Legrand Raritan iX Rack-PDU 0U with 12xHDOT C13 / 12xCx, single-phase 230V 32A, Outlet Metered/Switched RCM (PX4-5161-E7M27)
Highlights
- 0U Rack PDU, 24 Outlets HDOT C13/Cx
- Single-phase 230V 32A, 7.4 kVA power
- Outlet metered/switched + RCM
- Energy monitoring class 0.5 (±0.5%)
- Hot-swap controller, dual Gigabit LAN
Intelligent 0U Rack PDU with RCM, Outlet Switching, and Class 0.5 Metering

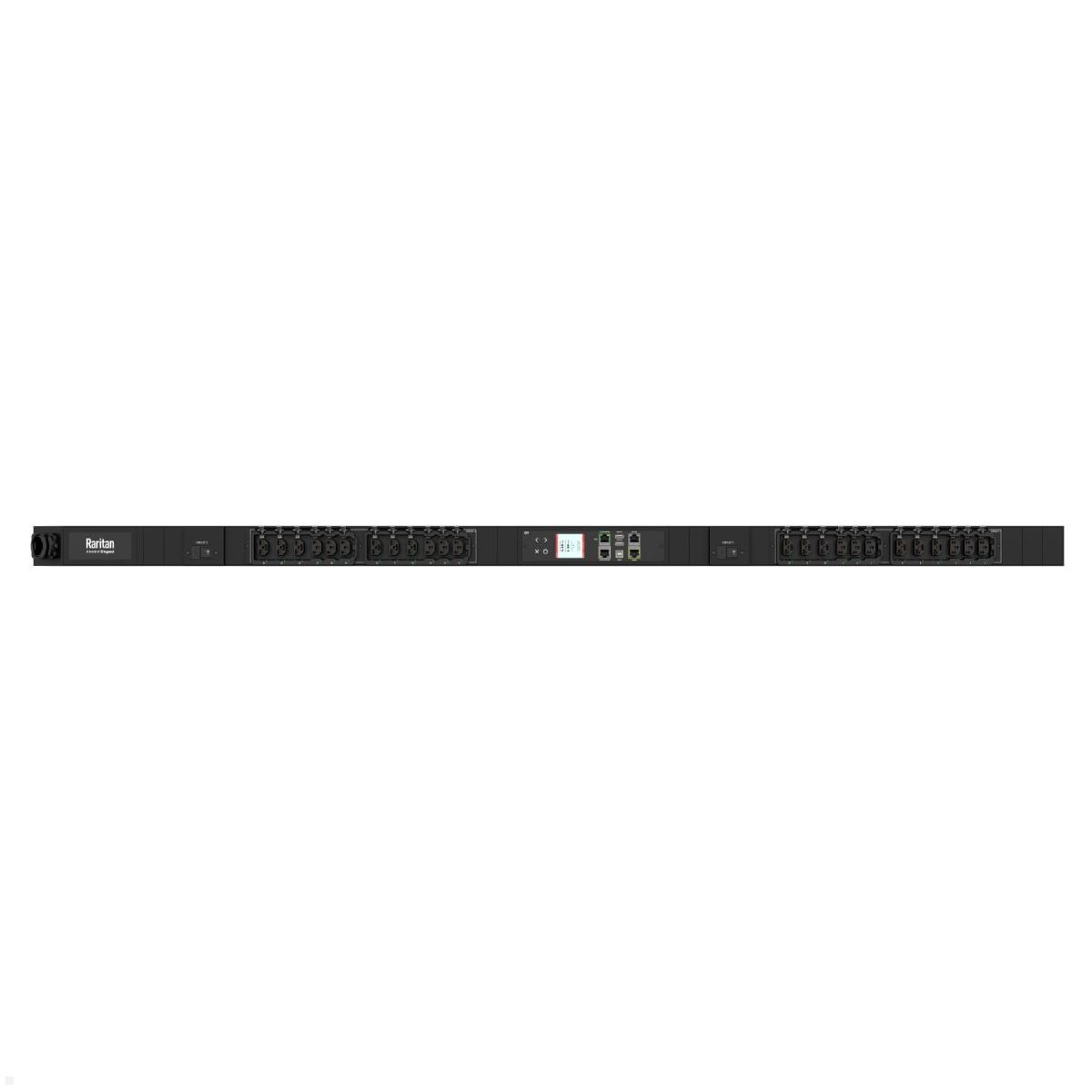

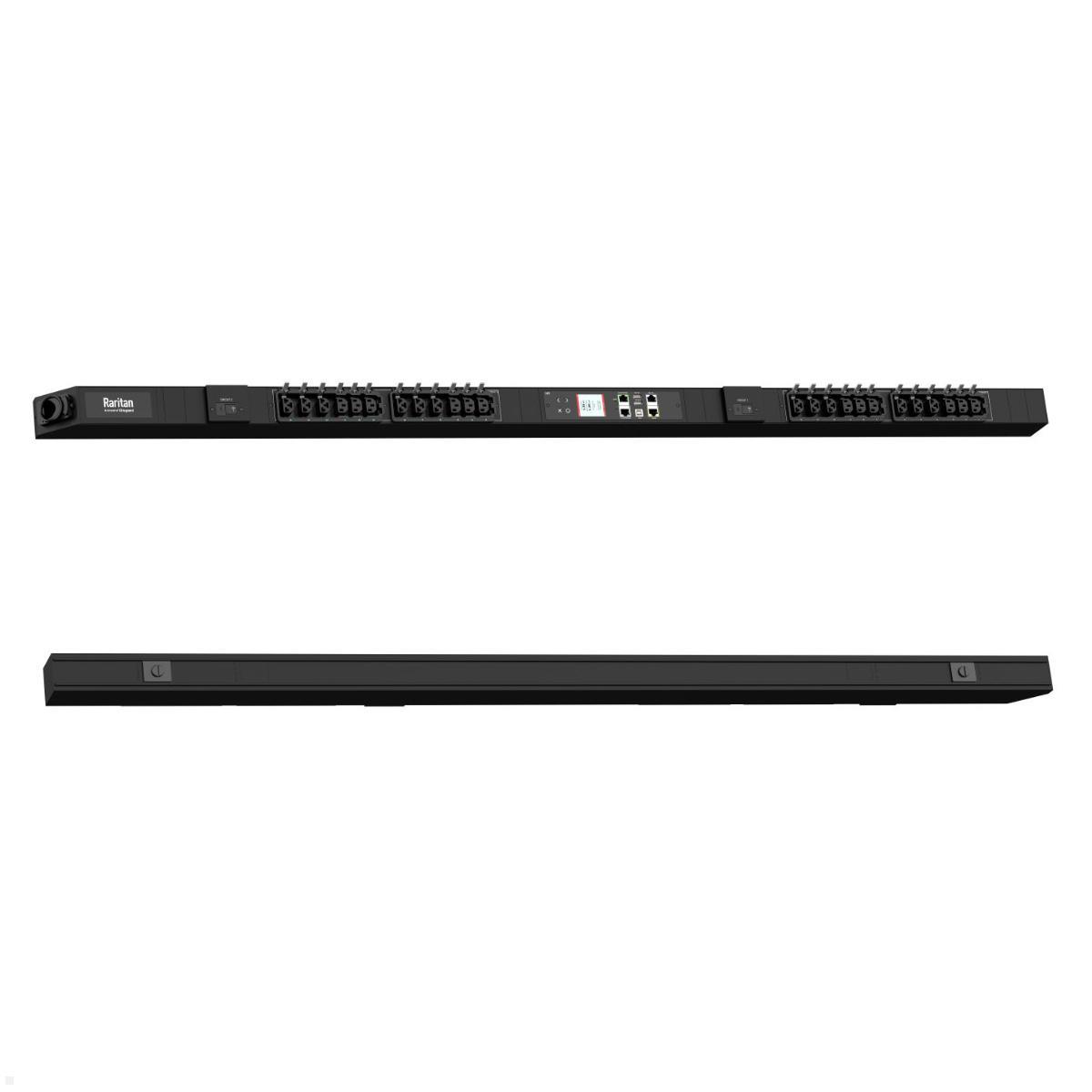

The Legrand Raritan iX Rack-PDU PX4-5161-E7M27 is a powerful vertical 0U PDU for 19" server racks. With 12x HDOT C13 and 12x Cx outlets (24 outlets total), single-phase input at 230V/32A (IEC 2P+PE 6Hr) and a power capacity of 7.4 kVA, it provides reliable power for medium to large server environments. The outlet metered/switched energy monitoring to Class 0.5 (±0.5%) captures all relevant measurements — per input line, per circuit breaker, and per individual outlet. The integrated RCM (Residual Current Monitoring) monitors leakage current and provides early warnings of insulation faults.
Remote Outlet Switching allows individual on/off control of each outlet over the network — ideal for remote management of servers and network devices. The hot-swappable controller can be replaced while running. Up to 8 PDUs can be linked and up to 32 physically cascaded. Remote management via HTTPS, SSH, SNMP v2/v3, JSON-RPC API and Redfish API as well as dual Gigabit Ethernet make the Legrand Raritan iX Rack-PDU 0U with 12xHDOT C13 / 12xCx, 1-phase 230V 32A, Outlet Metered/Switched RCM (PX4-5161-E7M27) the ideal solution for data centers and enterprise IT.
Technical Details Legrand Raritan iX Rack-PDU PX4-5161-E7M27
- Form factor: 0U vertical
- Input plug: IEC 230V/32A 2P+PE 6Hr
- Rated voltage: 230V, single-phase
- Max. input current: 32A
- Power capacity: 7.4 kVA
- Outlets: 12x HDOT C13 + 12x Cx (24 total)
- Overcurrent protection: 2 circuit breakers (16A, 10 kAIC)
- Energy monitoring: Class 0.5 (±0.5%), per outlet
- Remote outlet switching: Yes
- RCM (residual current monitoring): Yes
- Controller: Hot-Swappable
- Network: 2x Gigabit Ethernet (10/100/1000), optional Wi-Fi
- Remote management: HTTPS, SSH, Telnet, SNMP v2/v3, JSON-RPC, Redfish API, MODBUS-TCP

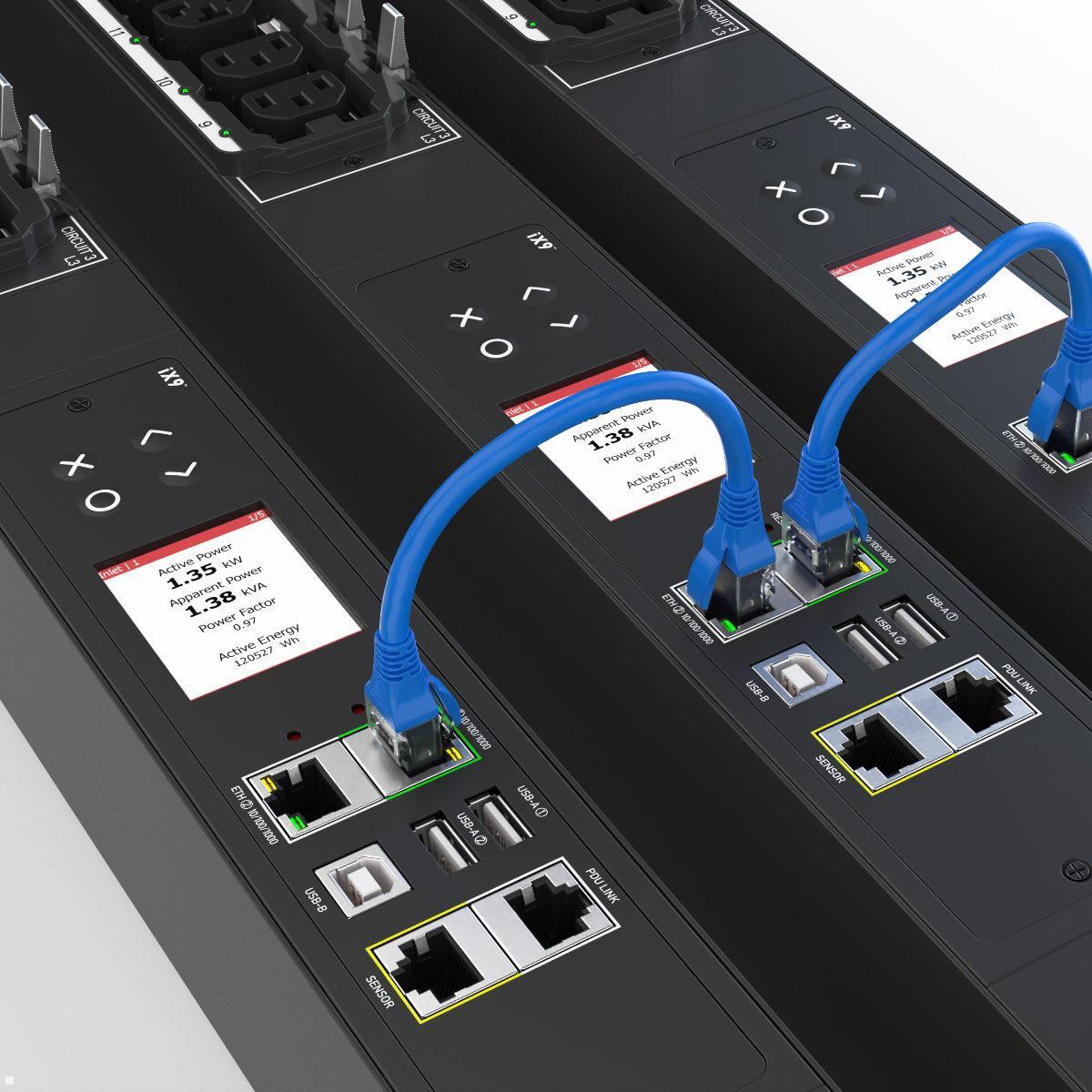

- Display: color LCD, auto-flip
- Environmental sensors: up to 32 sensor functions
- Cord length: 3 m
- Dimensions (W×D×H): 56 x 65 x 1539 mm
- Weight: approx. 5 kg
- Certification: CE
- Warranty: 2 years
| Product sheet: |  [pdf - Englisch] |
|---|---|
| Contains installation material: | + |
| Warranty: | 2 years |
| Manufacturer/Importer: | Legrand AV Netherlands B.V. / Chief, Franklinstraat 14, 6003 DK Weert NL, deutschland.verkauf@av.legrand.com |
| Einspeisung: | 32A |
| FI switch: | No |
| Fuse: | Yes |
| Mains filter: | No |
| Messen: | pro Port |
| Number of sockets: | 24 Outlets |
| Overvoltage protection: | No |
| Phasen: | 1-phasig |
| RCM-Differenzstrommessung: | Ja |
| Schalten: | Ja |
| Steckerart: | C13,Combosocket |
| Größe PDU: | Vertikal, 40 HE |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
Download area - catalogs, flyers, warranty conditions, ...
Questions & Answers
-
What is the Legrand Raritan iX Rack-PDU PX4-5161-E7M27?
A high-performance 0U vertical rack PDU for 19" server racks, with 12x HDOT C13 and 12x Cx outlets (24 total), 1-phase 230V/32A input and 7.4 kVA rating; Outlet Metered/Switched energy monitoring to Class 0.5; RCM (Residual Current Monitoring).
-
What outlets does it provide?
12x HDOT C13 and 12x Cx outlets (24 in total).
-
How does the energy metering work?
Outlet metered/switched energy monitoring to Class 0.5 (±0.5%), measuring per input line, per breaker and per outlet.
-
What remote management options are available?
Remote management via HTTPS, SSH, Telnet, SNMP v2/v3, JSON-RPC, Redfish API, MODBUS-TCP; network includes 2x Gigabit Ethernet (10/100/1000), optional WLAN.
-
Can the controller be hot-swapped during operation?
Yes, the hot-swappable controller can be replaced while running.
-
How many PDUs can be linked or cascaded?
Up to 8 PDUs can be linked, up to 32 physically cascaded.
-
What are the physical specs and protections?
Form factor 0U; dimensions (W×D×H): 56 x 65 x 1539 mm; weight approx. 5 kg; overcurrent protection via two fuses (16A, 10 kAIC); CE certification; 2-year warranty.
-
What protection and warranty does it include?
Overcurrent protection with two fuses (16A, 10 kAIC); CE certification; 2-year warranty.
