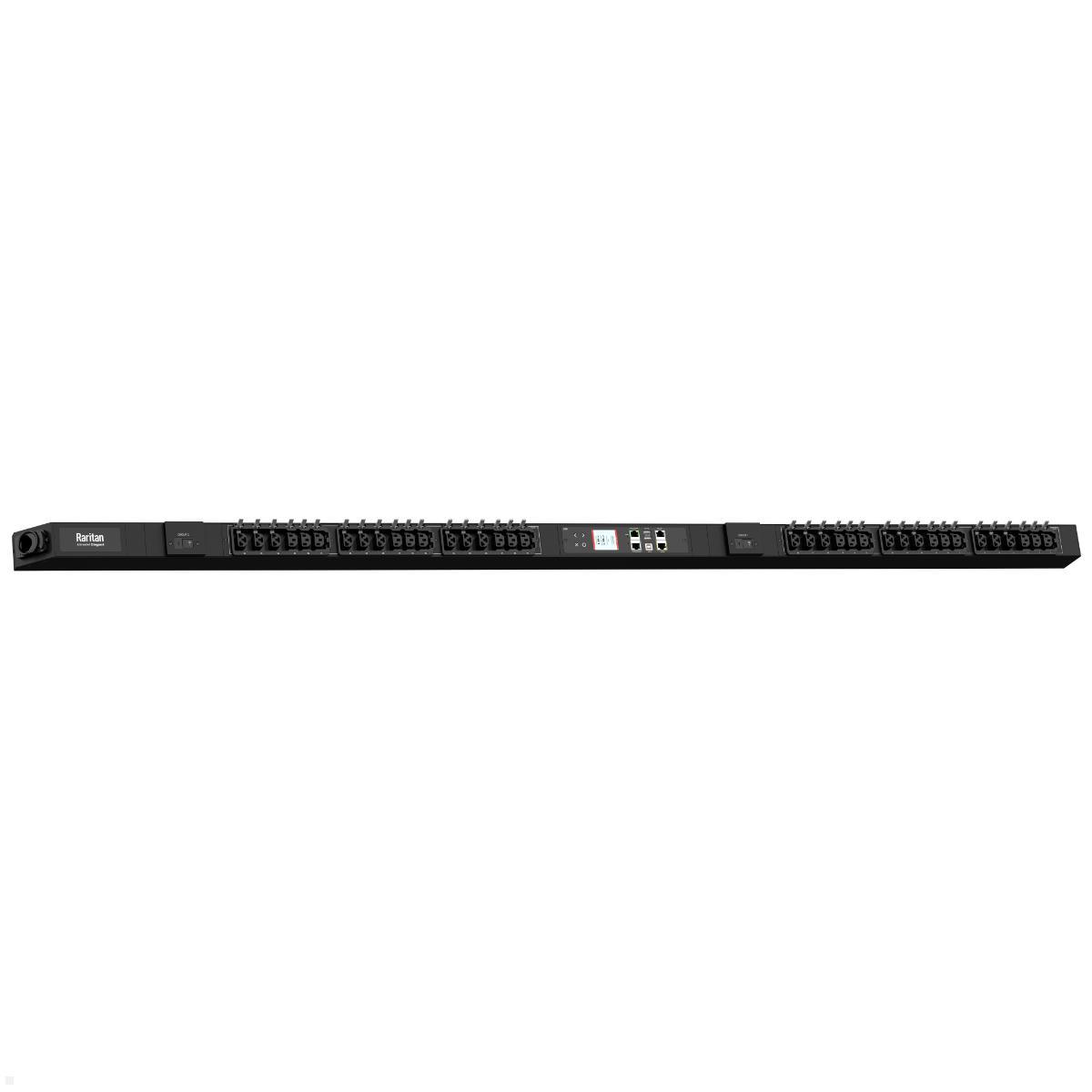

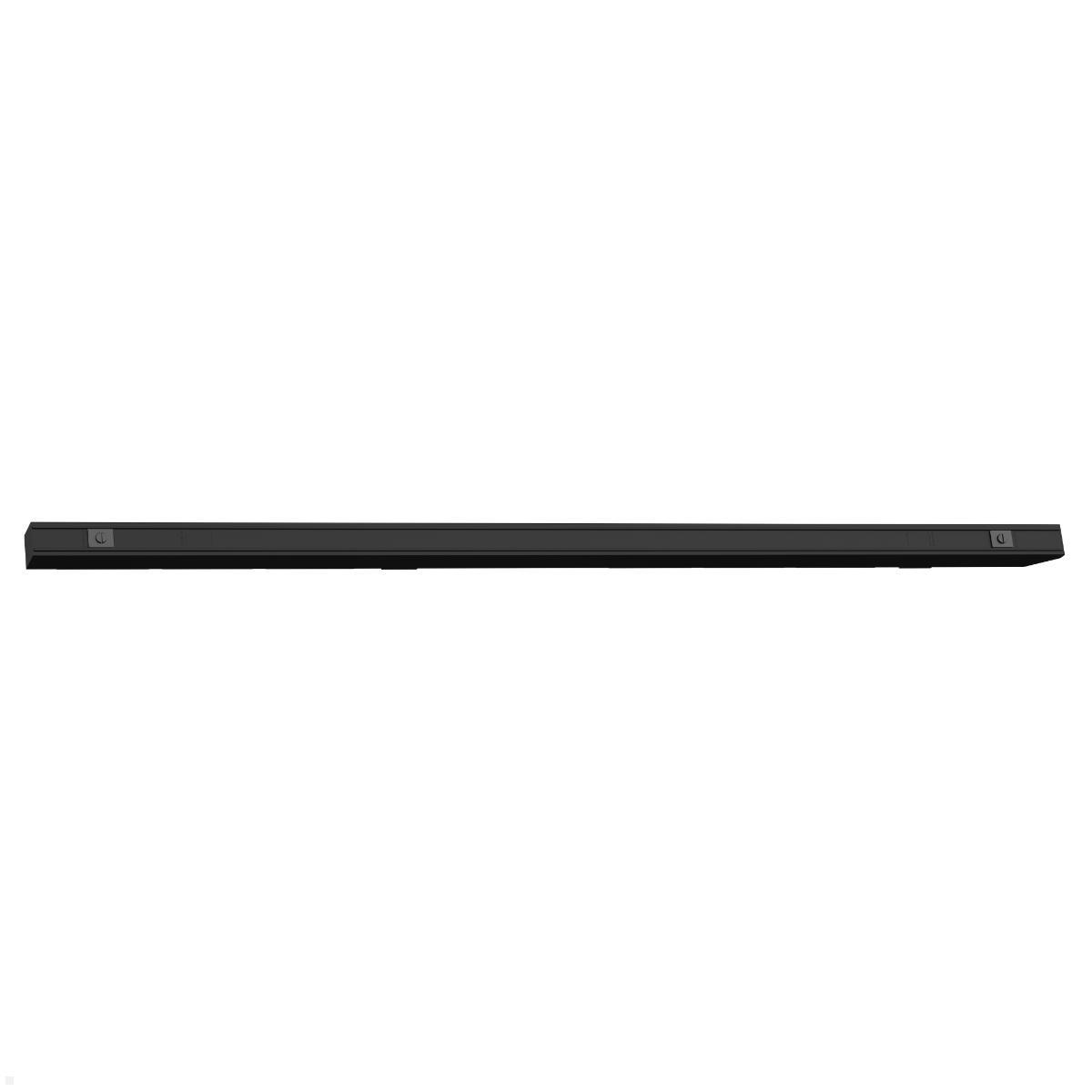

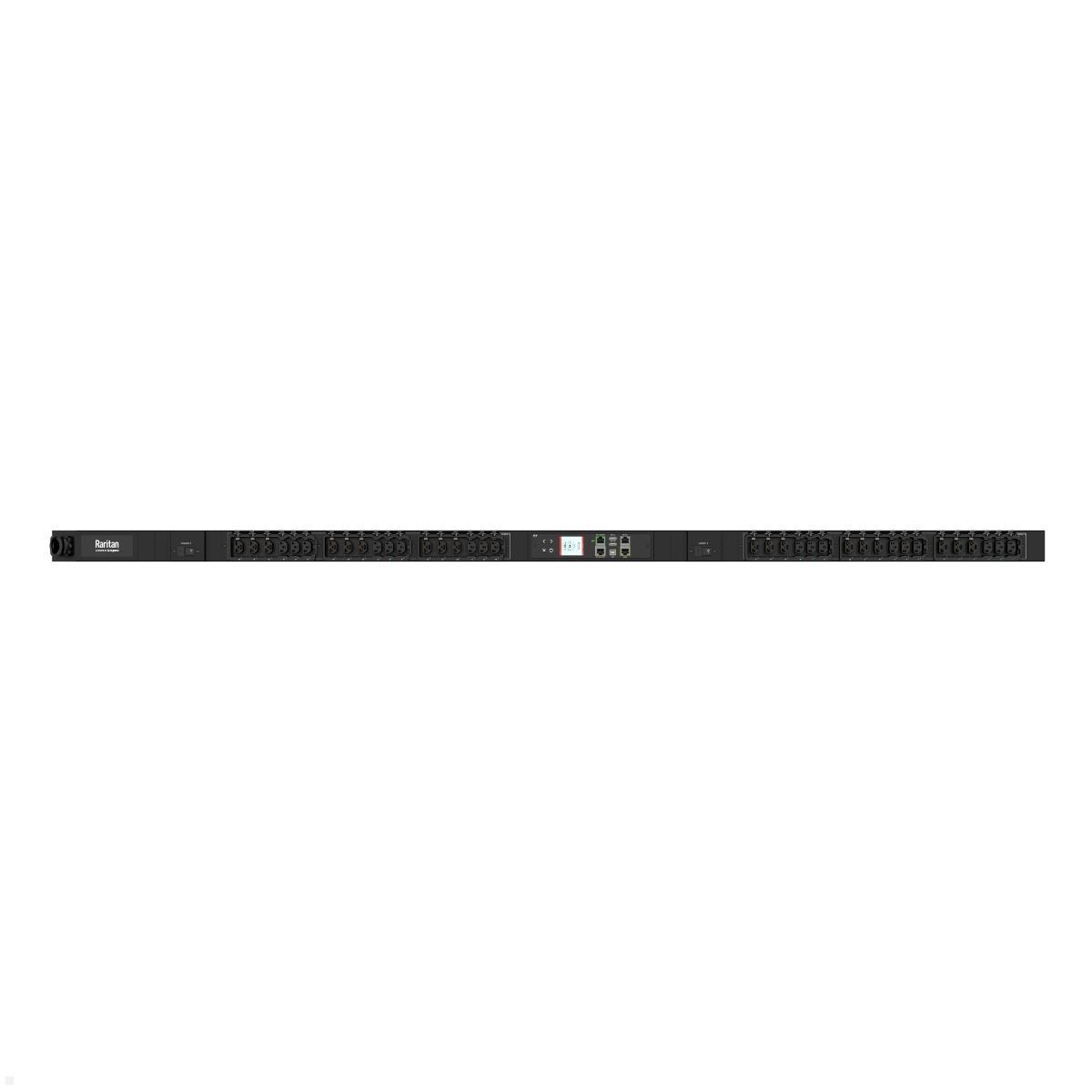

Legrand Raritan iX Rack-PDU 0U with 18xC13 / 18xCx, single-phase 230V 32A, Input Metered/Switched (PX4-2057-E7)
Article number:
91153296
Manufacturer:
Legrand
Manufacturernumber:
PX4-2057-E7
EAN:
0785813153296
€1,963.50*
delivery time: 1 - 5 working days
Freight forwarding
Highlights
- 36 lockable outlets: 18x C13, 18x Cx
- Billing-grade metering ±0.5% (Class 0.5)
- Remote outlet switching via network
- Hot-swappable controller iX12
- Dual Gigabit Ethernet, SNMP v3, Redfish API
0U Rack PDU with Remote Outlet Switching and Billing-Grade Energy Metering
The Legrand Raritan iX Rack-PDU 0U (PX4-2057-E7) combines precise energy measurement management with intelligent switching functionality in a very compact form. With 36 locking outlets (18x C13 Locking 10A, 18x Cx Locking 16A), an input capacity of 7.4 kVA and IEC 230V/32A feed, it is designed for professional rack use. Thanks to the compact 0U form factor it saves valuable rack space and can be mounted space-efficiently at the side. The billing-grade energy metering class 0.5 measures voltage (V), current (A), active power (kW), apparent power (kVA), energy (kWh) and power factor — both per input feed and per circuit breaker. The hot-swappable controller (iX12) enables replacement during operation without downtime. Remote Outlet Switching allows individual on/off switching of each outlet over the network. Power quality monitoring records harmonics, voltage sags, voltage spikes, line current and inrush currents. Up to 8 PDUs can be linked via PDU-Linking into a single management unit; in cascading mode up to 32 PDUs can be operated under a single Ethernet port or 16 PDUs via USB. Two USB-A ports (5V/500mA) and one USB-B port complete the connectivity. The Legrand Raritan iX Rack-PDU 0U is ideal for data centers, server rooms and professional IT infrastructures with high monitoring requirements.Technical Details Legrand Raritan iX Rack-PDU 0U
- Form factor: 0U (vertical mounting)
- Input: IEC 60309 2P+E 6h 32A (2P3W)
- Nominal input voltage: 230V
- Rated input voltage: 200–240V
- Input frequency: 50/60 Hz
- Max. input current: 32A
- Power capacity: 6.4 kVA at 200V / 7.7 kVA at 240V
- Cable length: 3 m, bottom-front feed
- Output nominal voltage: 230V (200–240V)
- Outlets: 18x IEC320 C13 Locking (10A) + 18x Cx Locking (16A) = 36 total
- Outlet LEDs: R/G/B LEDs (powered on/off, threshold, service mode, trip forensics)
- Outlet locking: Yes (incl. SecureLock / P-lock)
- Overcurrent protection: 2x LEJBXV6-16 circuit breakers
- Current measurement: Class 0.5 (±0.5%)
- Measured parameters: Voltage (V), Current (A), Active power (kW), Apparent power (kVA), Energy (kWh), Power factor
- Measurement per input feed: Yes
- Measurement per circuit breaker: Yes
- Per-outlet measurement: No
- Remote Outlet Switching: Yes
- Power quality monitoring: Harmonics (voltage & current), displacement power factor, voltage sags & spikes, line current, inrush current, crest factor
- Controller: iX12, hot-swappable
- Display: Multi-color LCD (voltage, current, active power per feed or outlet; alarms; configuration; auto-flip)
- PDU-Linking: up to 8 PDUs (PDU link port)
- Cascading: up to 32 PDUs (Ethernet) / 16 PDUs (USB)
- Network: Dual Gigabit Ethernet (10/100/1000 Base-T), optional Wi-Fi (802.11 a/b/g/n)
- USB ports: 2x USB-A (5V/500mA), 1x USB-B
- Remote access: HTTP(S), SSH (CLI), Telnet, RS-232, SNMP v2/v3, SMTP, JSON-RPC API, Modbus-TCP, Redfish API
- Environmental sensors: Temperature, Humidity, Airflow, Differential air pressure, Water leak, Dust/particulates, Proximity/motion, Vibration, Dry contact
- Operating temperature: up to 60 °C
- Relative humidity (operating): 5–95% (non-condensing)
- Operating altitude: 0–3,048 m
- Enclosure: Extruded aluminum, black powder-coated
- Approvals: CE, RoHS, FCC Part 15 Class A, Canada ICES-003
- Warranty: 2 years manufacturer warranty
- Dimensions (W×D×H): 56 x 65 x 1780 mm
- SmartLock: Contact and contact-closure sensors
- Sensor port: RJ45 (including sensor hub support)
- Reset button: Firmware restart without power interruption to the outlets
| Product sheet: |  [pdf - Englisch] |
|---|---|

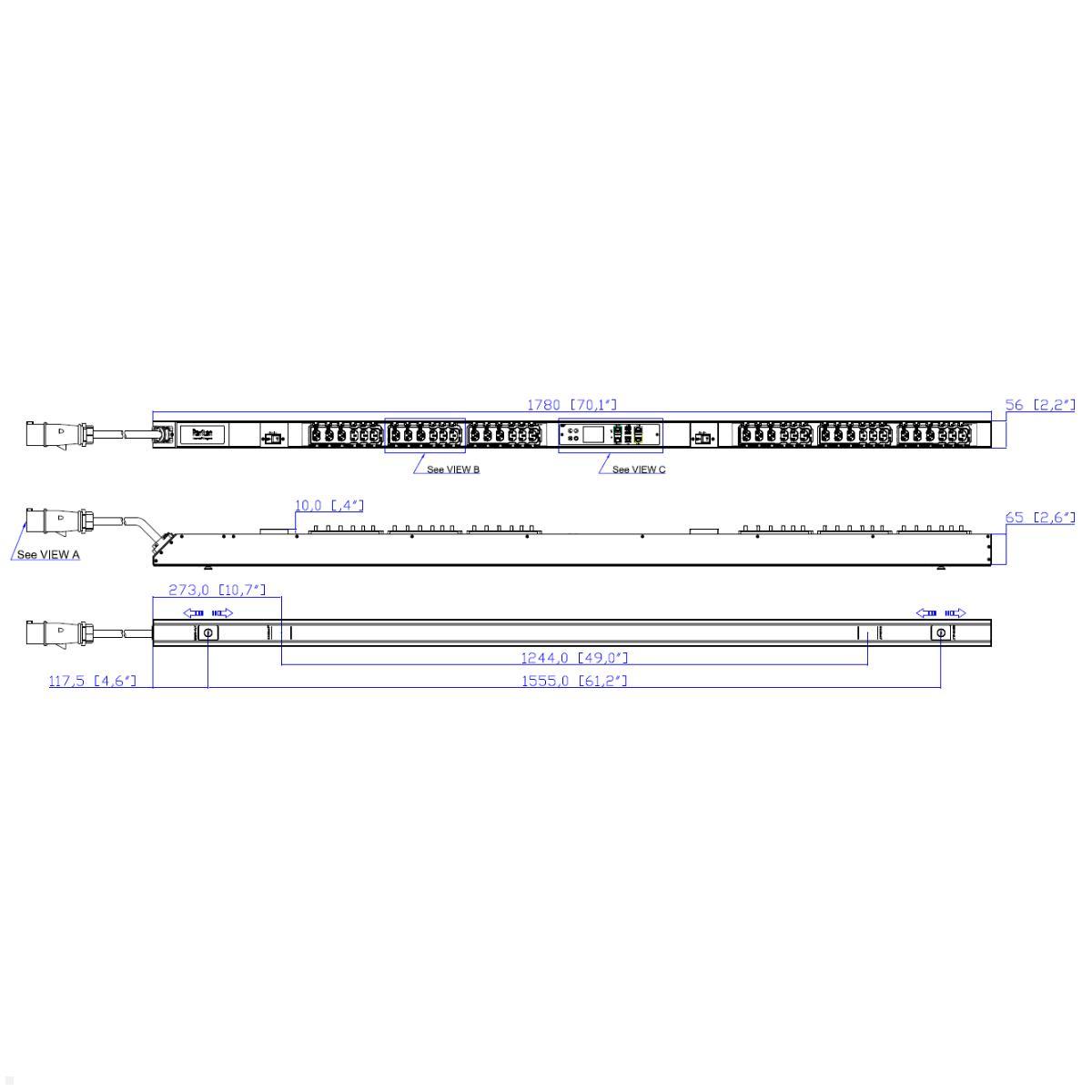

| Technical drawing: | [pdf] |
| Contains installation material: | + |
| Manufacturer/Importer: | Legrand AV Netherlands B.V. / Chief, Franklinstraat 14, 6003 DK Weert NL, deutschland.verkauf@av.legrand.com |
| Einspeisung: | 32A |
| FI switch: | No |
| Mains filter: | No |
| Messen: | pro Phase |
| Number of sockets: | 36 Outlets |
| Overvoltage protection: | No |
| Phasen: | 1-phasig |
| RCM-Differenzstrommessung: | Nein |
| Schalten: | Ja |
| Steckerart: | C13, Combosocket |
| Strommessung / Überwachung: | Ja, online |
| Größe PDU: | Vertikal, 42 HE |
| USB-Charger: | USB A/B |
