Legrand Raritan iX Rack-PDU with 18xC13 / 18xCX, single-phase 230V 32A (PX4-1057-E7)
Highlights
- 36 outputs: 18x C13, 18x CX
- Energy measurement Class 0.5
- Hot-swappable controller
- Cascading up to 32 PDUs
- Dual Gigabit Ethernet + Wi-Fi
Legrand Raritan iX Rack-PDU – intelligent energy management for your data center

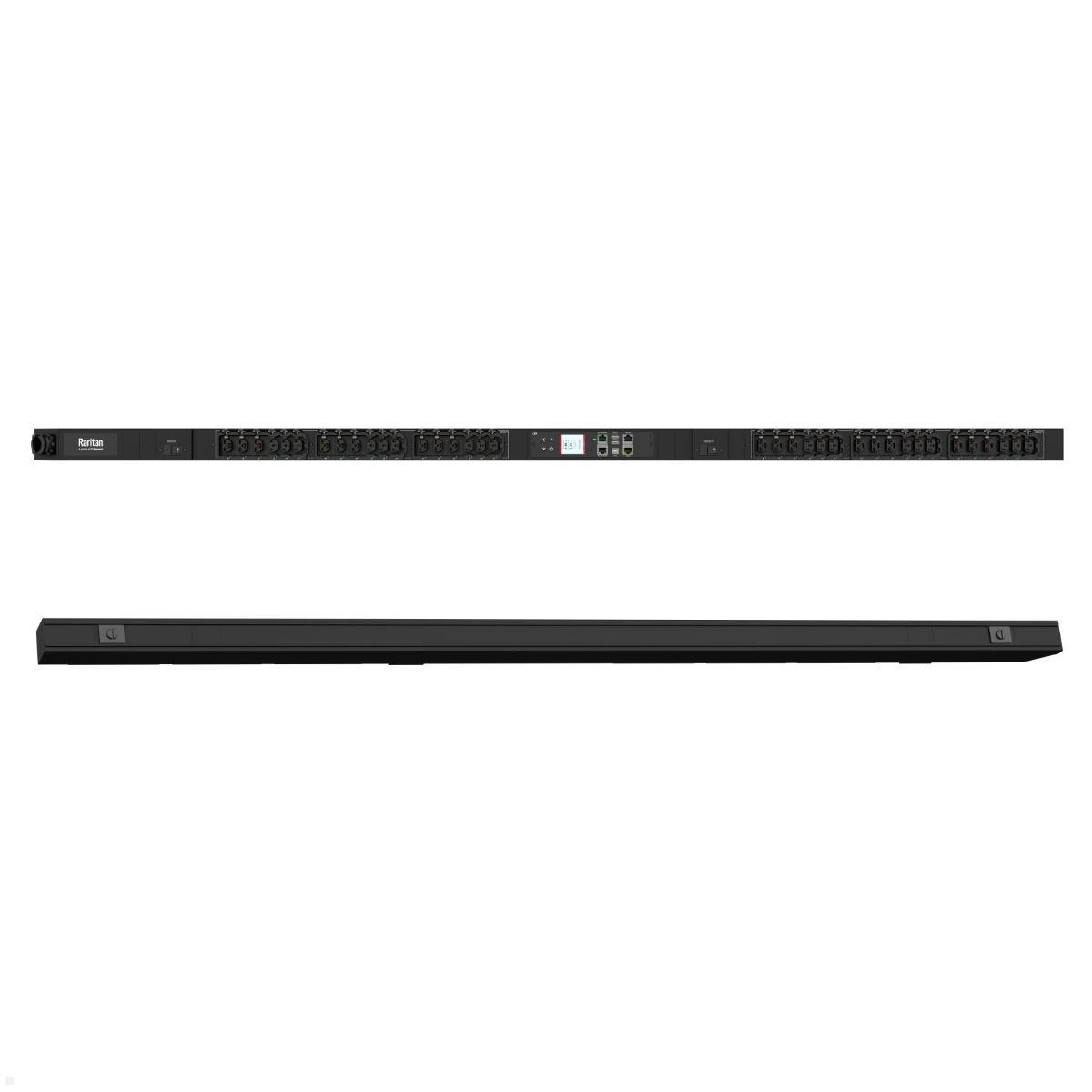

The Legrand Raritan iX Rack-PDU with 18xC13 / 18xCX, single-phase 230V 32A (PX4-1057-E7) is a single-phase, metered power distribution unit for professional data centers and server rooms. With 36 outlets (18x C13, 18x combined C13/C19) and an IEC 230V/32A 2P+PE 6Hr input, it delivers up to 7.4 kVA power capacity and provides comprehensive energy and power-quality monitoring at Class-0.5 level.
The hot-swappable controller allows uninterrupted replacement without shutdown. Via dual 10/100/1000 Ethernet and optional Wi-Fi (802.11 a/b/g/n) the PDU is remotely manageable via HTTP(s), SSH, SNMP v2/v3, JSON-RPC API, MODBUS-TCP and Redfish API. Up to 8 units can be linked via the PDU Link Port; physical cascading of up to 32 PDUs under one Ethernet port is possible. Typical use cases include data centers, server rooms, network cabinets and critical IT infrastructures.
Technical Details – Legrand Raritan iX Rack-PDU 230V 32A 36-way C13/CX 7.4 kVA
- Input: IEC 230V/32A 2P+PE 6Hr
- Rated voltage: 230V / Output voltage: 200–240V
- Maximum / rated input current: 32A
- Power capacity: 7.4 kVA
- Outlets: 18x C13, 18x combined C13/C19 (CX)
- Overload protection: 2 breakers (16A, 10 kAIC)
- Measurement accuracy: Class 0.5
- Measurements: Voltage (V), Current (A), Active Power (kW), Apparent Power (kVA), Energy (kWh), Power Factor, Voltage and Current Harmonics, Distortion Power Factor, Voltage Sag/Surge, Neutral Current
- Metering: per input feed, per branch circuit breaker
- Remote outlet switching: No
- PDU linking: up to 8 PDUs (1x primary, 7x link PDUs)
- Cascading: up to 32 PDUs (1x Ethernet port) or 16 PDUs (USB)
- Network: dual 10/100/1000 Base-T Ethernet, optional Wi-Fi 802.11 a/b/g/n
- Remote management: HTTP(s), SSH (CLI), Telnet, RS-232, SNMP v2/v3, SMTP, JSON-RPC API, MODBUS-TCP, Redfish API
- Controller: Hot-swappable, 536 MHz, 16 MB SPI-Flash, 64 MB DDR2 RAM
- Display: Color matrix LCD, auto-flip orientation
- Environment sensor-ready: Temperature, Humidity, Airflow, Differential Pressure, Dust/Particles, Water Leak, Proximity/Motion, Vibration, Dry Contact
- Outlet power distribution: Alternating branch
- Replaceable controller: Yes, hot-swap
- Operating temperature: up to 60°C | Humidity: up to 85% | Altitude: 0–10,000 ft
- Cable length: 3 m (10 ft)

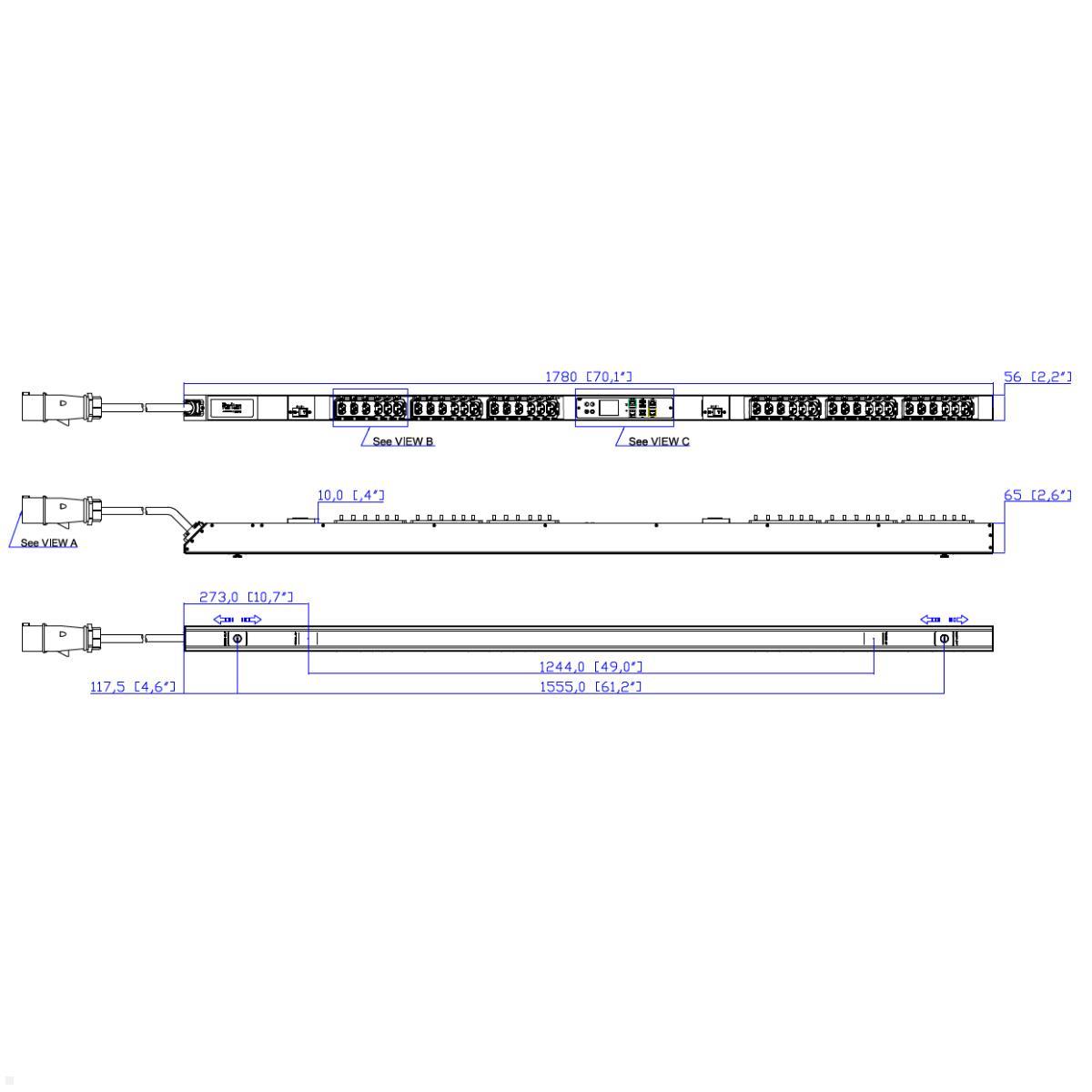

- Dimensions (W×D×H): 56 x 65 x 1780 mm
- Net weight: approx. 5 kg (11 lbs) | Shipping weight: approx. 7.5 kg (16.53 lbs)
- Shipping dimensions (H×D×W): 1940 x 255 x 125 mm
- Certifications: CE, IPv6 Ready, ISO 27001, VAPT-certified
- Warranty: 2 years manufacturer warranty
| Product sheet: |  [pdf - Englisch] |
|---|---|
| Contains installation material: | + |
| Manufacturer/Importer: | Legrand AV Netherlands B.V. / Chief, Franklinstraat 14, 6003 DK Weert NL, deutschland.verkauf@av.legrand.com |
| Einspeisung: | 32A |
| FI switch: | No |
| Mains filter: | No |
| Messen: | pro Phase |
| Number of sockets: | 36 Outlets |
| Overvoltage protection: | No |
| Phasen: | 1-phasig |
| RCM-Differenzstrommessung: | Nein |
| Schalten: | Nein |
| Steckerart: | C13, Combosocket |
| Größe PDU: | Vertikal, 42 HE |
| USB-Charger: | USB A |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
Download area - catalogs, flyers, warranty conditions, ...
1 review
26 June 2026 23:03
Alles top: Support, genau wie beschrieben
Alles bestens, würde ich jederzeit wieder kaufen. Top Produkt, absolut empfehlenswert.
Why is the Legrand Raritan iX Rack-PDU the right choice for your data center?
The Legrand Raritan iX Rack-PDU PX4-1057-E7 combines precise energy management with flexible remote management in a robust vertical unit. With 36 outlets and a power capacity of 7.4 kVA, it reliably covers the power needs of typical server racks. Energy measurement to Class 0.5 captures voltage, current, active and reactive power, energy, and power factor with high accuracy. The integrated color matrix LCD with auto-flip function displays all relevant measurements directly on the device. Safety and compliance are ensured by CE certification, ISO 27001 conformity, and a passed VAPT audit.
What management options does the Raritan iX PDU PX4-1057-E7 offer?
The Raritan PDU offers extensive remote management options via dual 10/100/1000 Gigabit Ethernet as well as optional Wi‑Fi according to IEEE 802.11 a/b/g/n. Administrators can access the unit via HTTP(s), SSH, Telnet, RS-232, SNMP v2/v3, JSON-RPC API, MODBUS-TCP and the Redfish API. Automated provisioning is available via TFTP, DHCP, SSH-CLI or USB flash drive. Data logging is supported via HTTP/S or MQTT. The hot-swappable controller with 536 MHz, 16 MB SPI flash and 64 MB DDR2 RAM can be replaced while the unit is running. iOS and Android apps round out the management offerings.
How does the Legrand Raritan PDU scale in larger data center environments?
For deployment in large data center infrastructures, the Legrand Raritan iX Rack-PDU with 18xC13 / 18xCX 1-phase 230V 32A (PX4-1057-E7) offers powerful scaling options: Physically cascading up to 32 PDUs under a single Ethernet port (or 16 PDUs via USB in bridging mode) significantly reduces IP address consumption. Up to 8 units can be linked together via the PDU Link Port, with the primary PDU centrally aggregating all power information from the connected expansion PDUs. Redundant power feed from the first expansion unit ensures availability even in the event of primary unit failure. Environmental monitoring via up to 32 sensor functions (temperature, humidity, water leak, vibration, etc.) completes the overall package.
