Legrand Raritan iX Rack-PDU 0U with 18xHDOT C13 / 18xCx, single-phase 230V 32A, Outlet Metered/Switched (PX4-5057-E7)
€3,355.80*
delivery time: 1 - 5 working days
Highlights
- 36 lockable outlets: 18x C13, 18x Cx
- Billing-grade metering ±0.5% (Class 0.5)
- Remote outlet switching via network
- Hot-swappable controller iX12
- Dual Gigabit Ethernet, SNMP v3, Redfish API

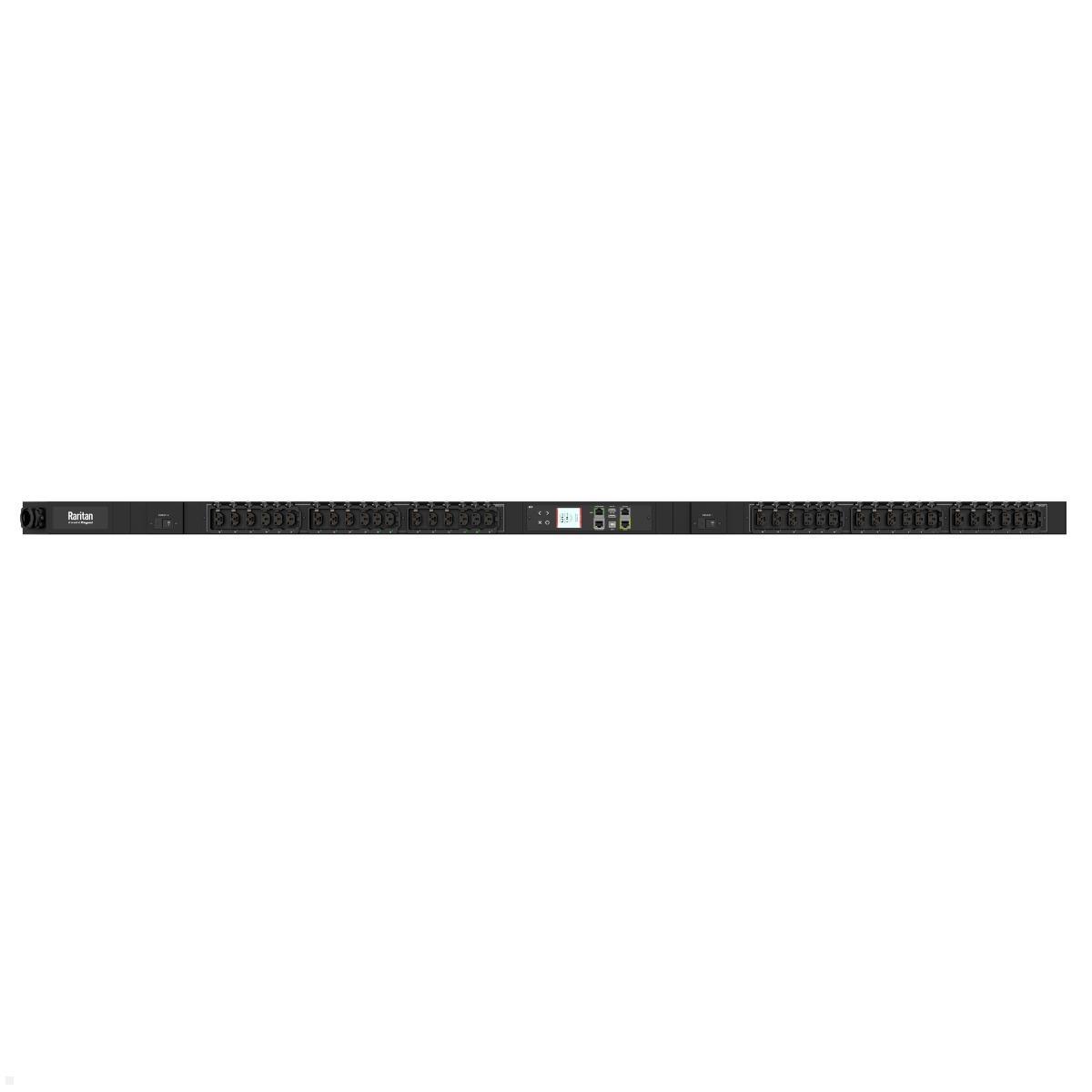

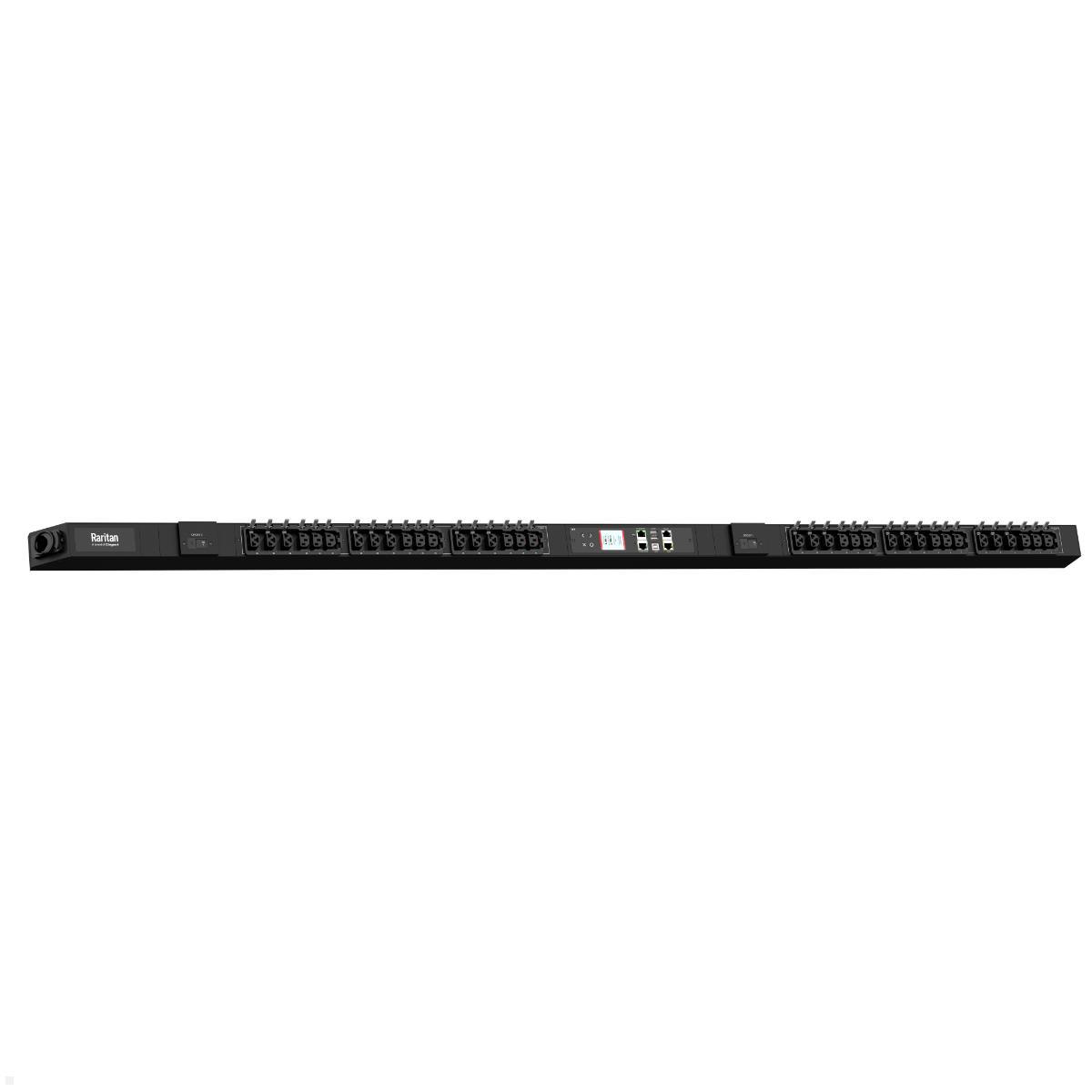

0U Rack-PDU with Remote Outlet Switching and Billing-Grade Energy Metering
The Legrand Raritan iX Rack-PDU 0U (PX4-5057-E7) combines precise energy measurement management with intelligent switching functionality in the tightest of spaces. With 36 locking outlets (18x C13 Locking 10A, 18x Cx Locking 16A), an input power of 7.4 kVA and IEC 230V/32A feed, it is designed for professional rack use. Thanks to the compact 0U form factor it saves valuable rack space and can be mounted space-efficiently at the side. The billing-grade energy metering of class 0.5 records voltage (V), current (A), active power (kW), apparent power (kVA), energy (kWh) and power factor — per input feed, per circuit breaker and per individual outlet. The hot-swappable controller (iX12) allows replacement during operation without downtime. Remote Outlet Switching enables individually turning each outlet on and off via the network. Power quality monitoring captures harmonics, voltage sags, voltage spikes, mains current and inrush/transient currents. Up to 8 PDUs can be linked via PDU-Linking into a single management unit; in cascading mode up to 32 PDUs can be operated under a single Ethernet port or 16 PDUs via USB. Two USB-A ports (5V/500mA) and one USB-B port complement connectivity. The Legrand Raritan iX Rack-PDU 0U is ideal for data centers, server rooms and professional IT infrastructures with high monitoring requirements.Technical Details Legrand Raritan iX Rack-PDU 0U
- Form factor: 0U (vertical mounting)
- Input: IEC 60309 2P+E 6h 32A (2P3W)
- Nominal input voltage: 230V
- Rated input voltage: 200–240V
- Input frequency: 50/60 Hz
- Max. input current: 32A
- Power capacity: 6.4 kVA at 200V / 7.7 kVA at 240V
- Cable length: 3 m, bottom-front feed
- Output nominal voltage: 230V (200–240V)
- Outlets: 18x IEC320 C13 Locking (10A) + 18x Cx Locking (16A) = 36 total
- Outlet LEDs: R/G/B LEDs (Powered On/Off, threshold, Service Mode, Trip Forensics)
- Outlet locking: Yes (incl. SecureLock / P-lock)
- Overload protection: 2x LEJBXV6-16 circuit breakers
- Current measurement: Class 0.5 (±0.5 %)
- Measured parameters: Voltage (V), Current (A), Active Power (kW), Apparent Power (kVA), Energy (kWh), Power Factor
- Measurement per input feed: Yes
- Measurement per circuit breaker: Yes
- Measurement per outlet: Yes
- Remote Outlet Switching: Yes
- Power quality monitoring: Harmonics (voltage & current), displacement power factor, voltage sags & spikes, mains current, inrush/transient currents, crest factor
- Controller: iX12, hot-swappable
- Display: Multi-color LCD (voltage, current, active power per feed or outlet; alarms; configuration; auto-flip)
- PDU-Linking: up to 8 PDUs (PDU Link Port)
- Cascading: up to 32 PDUs (Ethernet) / 16 PDUs (USB)
- Network: Dual Gigabit Ethernet (10/100/1000 Base-T), optional Wi-Fi (802.11 a/b/g/n)
- USB ports: 2x USB-A (5V/500mA), 1x USB-B
- Remote access: HTTP(S), SSH (CLI), Telnet, RS-232, SNMP v2/v3, SMTP, JSON-RPC API, MODBUS-TCP, Redfish API
- Environmental sensors: Temperature, Humidity, Airflow, Differential Air Pressure, Water leak, Dust/Particles, Proximity/Motion, Vibration, Dry contact
- Operating temperature: up to 60 °C
- Relative humidity (operating): 5–95 % (non-condensing)
- Operating altitude: 0–3,048 m

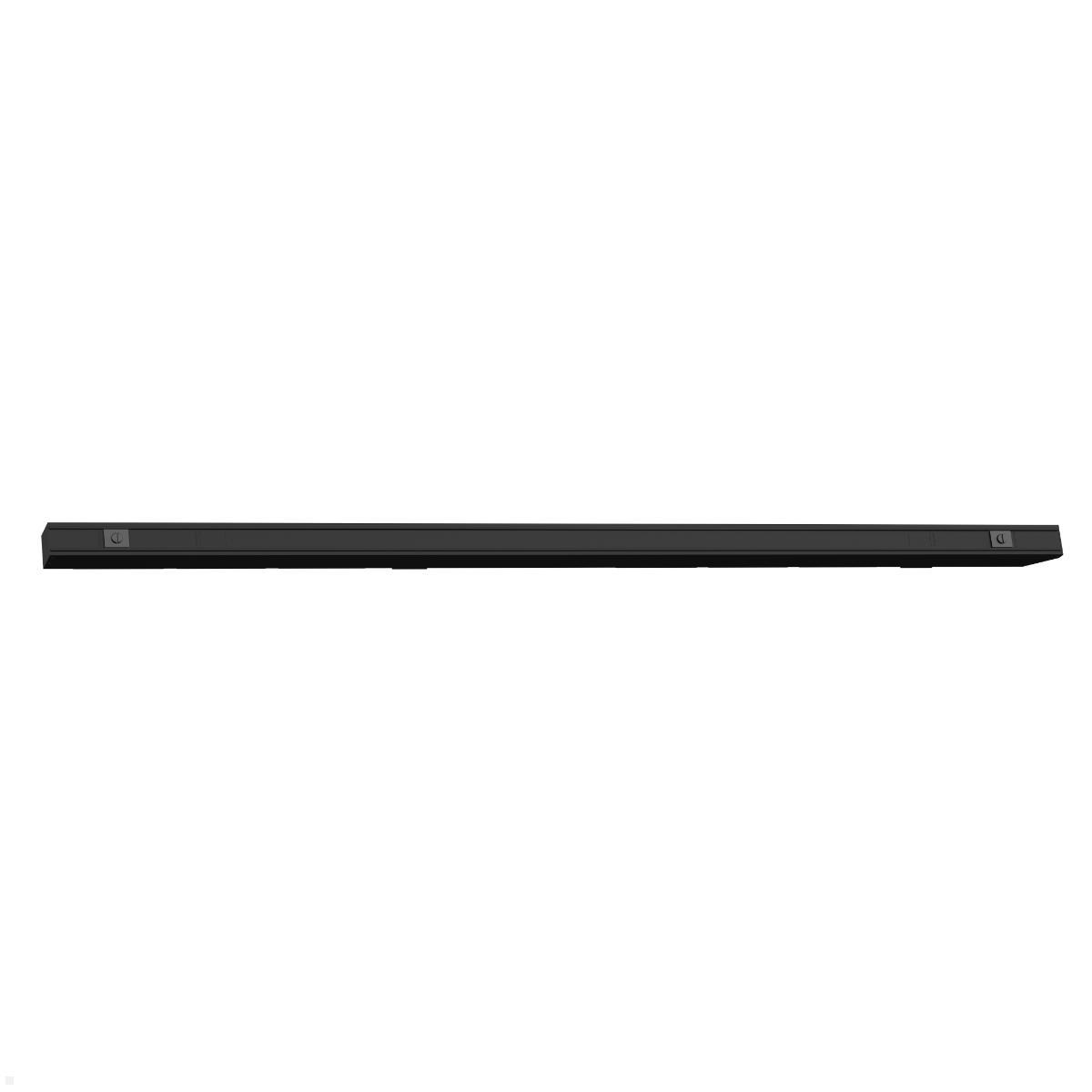

- Enclosure: Extruded aluminum, black powder-coated
- Certifications: CE, RoHS, FCC Part 15 Class A, Canada ICES-003, IPv6 Ready, ISO 27001
- Warranty: 2-year manufacturer warranty
- Dimensions (W×D×H): 56 x 65 x 1780 mm
- Net weight: 6.2 kg
- Shipping weight: 8.9 kg
- Shipping dimensions (W×D×H): 255 x 125 x 1940 mm
| Product sheet: |  [pdf - Englisch] |
|---|---|

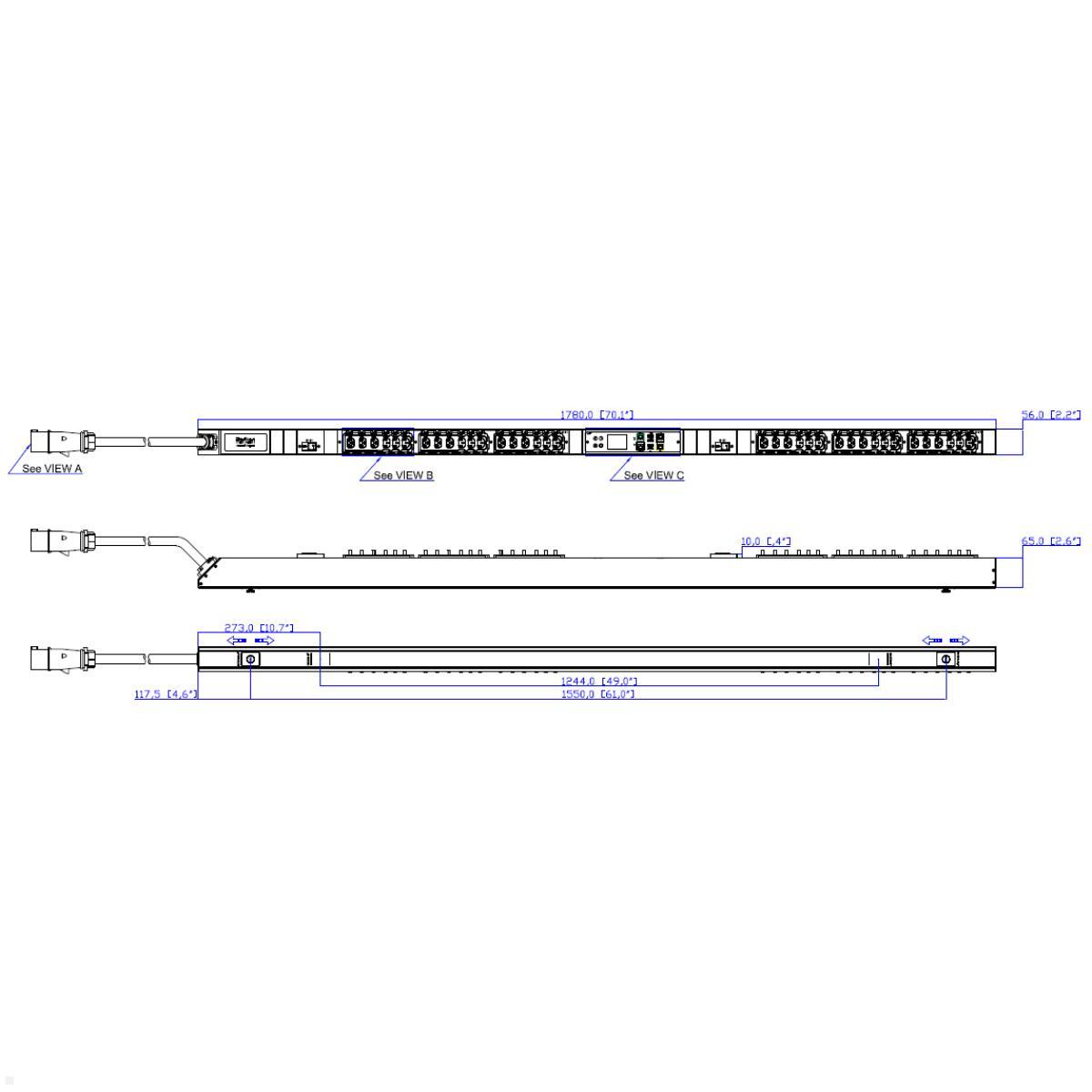

| Technical drawing: | [pdf] |
| Packaging dimensions (LxWxH in mm): | 1940 x 255 x 125 |
| Contains installation material: | + |
| Warranty: | 2 years |
| Manufacturer/Importer: | Raritan Europe B.V., Jan van Galenstraat 59, 3115 JG Schiedam, The Netherlands, sales.germany@raritan.com |
| Einspeisung: | 32A |
| FI switch: | No |
| Mains filter: | No |
| Messen: | pro Port |
| Number of sockets: | 36 Outlets |
| Overvoltage protection: | No |
| Phasen: | 1-phasig |
| RCM-Differenzstrommessung: | Nein |
| Schalten: | Ja |
| Steckerart: | C13, Combosocket |
| Strommessung / Überwachung: | Ja, online |
| color: | Black |
| Größe PDU: | Vertikal, 42 HE |
| USB-Charger: | USB A/B |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
Download area - catalogs, flyers, warranty conditions, ...
1 review
24 August 2026 21:03
Extrem zufrieden: klare Empfehlung
So sollte Online-Shopping immer sein. Wirklich toller Online-Shop.
Questions & Answers
-
What is the Legrand Raritan iX Rack-PDU 0U?
A 0U rack PDU with 18xHDOT C13 / 18xCx outlets, 1-phase 230V 32A, Outlet Metered/Switched (PX4-5057-E7) and Billing-Grade energy measurement.
-
How many outlets does it have and what types are they?
36 outlets in total: 18x C13 Locking (10A) and 18x Cx Locking (16A).
-
What energy measurement features does it provide?
Billing-Grade energy measurement of class 0.5 captures voltage, current, real power, apparent power, energy and power factor – per input line, per circuit breaker and per outlet.
-
What about remote control and networking features?
Remote Outlet Switching allows turning each outlet on/off over the network. The iX12 controller is hot-swappable; up to 8 PDUs can be linked via PDU-Linking to a common management unit; Cascading supports up to 32 PDUs via Ethernet or 16 PDUs via USB. Networking includes Dual Gigabit Ethernet, optional WLAN, plus HTTP(S), SSH, Telnet, RS-232, SNMP v2/v3, SMTP, JSON-RPC API, MODBUS-TCP and Redfish API.
-
What are the electrical specifications?
Input 230V; max input current 32A; input range 200–240V; input frequency 50/60 Hz; power capacity 6.4 kVA at 200V / 7.7 kVA at 240V; cable length 3 m bottom-front feed.
-
Physical details and installation?
0U form factor; dimensions 56 x 65 x 1780 mm; weight 6.2 kg (8.9 kg shipping); 36 outlets; 3 m cable; locking outlets; aluminium case, black powder-coated.
-
Environment, approvals and warranty?
Operating temperature up to 60°C; 5–95% RH non-condensing; approvals CE, RoHS, FCC Part 15 Class A, Canada ICES-003, IPv6 Ready, ISO 27001; 2-year warranty.
