MonLines MBGM75 fire protection enclosure with 75" monitor, black
Highlights
- A1 fire protection enclosure according to DIN EN 13501-1
- VdS-tested extinguishing cartridge integrated
- Clevertouch CL Pro 2 75" 4K display included
- Android 14, digital signage & 24/7 operation
- ESG safety glass & VdS power shut-off
MonLines MBGM75 Fire Protection Enclosure with Clevertouch CL Pro 2 75" Display
The MonLines MBGM75 combines reliable fire protection and state-of-the-art display technology in a compact solution. The robust enclosure is made of non-combustible A1 material according to DIN EN 13501-1 and features a durable ESG safety glass pane as well as an integrated, VdS-tested extinguishing cartridge. In the event of fire or smoke, the non-toxic, residue-free extinguishing gas provides fast and non-destructive fire suppression. A VdS-compliant automatic power shut-off reliably complements the safety concept.
The integrated Clevertouch CL Pro 2 75" Display (12975CLPRO2) offers 4K UHD resolution (3840 x 2160), a brightness of 500 cd/m² and a contrast ratio of 5000:1 – for razor-sharp content even in bright environments. Thanks to Android 14, the optimized LUX 14 interface and the powerful Quad-Core A73 processor, the display delivers smooth performance and high system stability. The integrated digital signage platform CleverLive™ enables easy creation and management of content – without additional hardware. With CleverShare™ content can be wirelessly transmitted from smartphones, tablets or laptops (AirPlay, Miracast, Chromecast). The display is designed for 24/7 continuous operation and is ideal for digital signage, information systems, reception areas, conference rooms as well as security-relevant areas in hospitals, businesses and public buildings.
Technical Details Fire Protection Enclosure MonLines MBGM75
- Enclosure: non-combustible A1 material according to DIN EN 13501-1
- Glazing: ESG safety glass with high impact and break resistance
- Extinguishing system: VdS-tested extinguishing cartridge, non-toxic & residue-free extinguishing gas
- Power shut-off: VdS-compliant automatic shut-off in case of fire
- Color: black (all RAL shades available on request)
- Delivery includes monitor
Technical Details Clevertouch CL Pro 2 75" Display (12975CLPRO2)
- Screen size: 75 inches
- Resolution: 4K UHD (3840 x 2160 @ 60 Hz)
- Brightness: 500 cd/m²
- Contrast ratio: 5000:1
- Panel: VA with Direct LED backlight
- VESA standard: 800 x 600 mm
- Operating system: Android 14 / LUX 14
- Processor: Quad-Core A73 / GPU: Mali G57 MC1 / 64 bit
- RAM: 4 GB / Storage: 32 GB
- Connections: 3x HDMI-In, 1x HDMI-Out, 1x USB-C (65W PD), 1x USB-A 2.0, 1x USB-A 3.2, 1x LAN (RJ45) + LAN-Out, 1x RS-232
- Wi‑Fi: Wi‑Fi 6E / Bluetooth 5.0
- Audio: 2x 16W speakers, optical output (SPDIF), 3.5 mm jack
- Power consumption: 107.54 W / Standby: ≤ 0.5 W
- Dimensions Display (W×H×D): 1686 × 964 × 82 mm
- Weight Display: 34.65 kg
| Product sheet: |  [pdf] |
|---|---|
| Screen size: | 75" |
| Scope of delivery: | 1x fire protection enclosure, 1x Clevertouch CL Pro 2 Series Display, 1x regional power cable, 1x HDMI cable, 1x remote control, 2x batteries for the remote control, 1x Clevertouch WiFi module, 1x quick installation guide |
| Manufacturer/Importer: | BCS Business Creative Solutions GmbH / MonLines, Am Marienhof 8, 22880 Wedel, info@monlines.de |
| Inch size: | 75 inch |
| Mounting type: | wall mount |
| Multi-monitor mount: | 1 monitor |
| color: | Black |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
Download area - catalogs, flyers, warranty conditions, ...
MonLines MBGM75 – Fire protection enclosure with 75" monitor for safety-critical environments
In commercial, public and industrial environments, reliably protecting electronic devices from fire risks is indispensable. The MonLines MBGM75 fire protection enclosure with 75" monitor offers a professional complete solution that combines state-of-the-art fire protection with powerful display technology. The robust enclosure is made of non-combustible A1 material according to DIN EN 13501-1 and thus meets the highest fire protection requirements. The integrated ESG safety glass pane ensures that the display remains optimally visible at all times while being reliably protected from external influences. The integrated Clevertouch CL Pro 2 75" display (12975CLPRO2) features 4K UHD resolution, Android 14 operating system and the integrated digital signage platform CleverLive. This makes the MBGM75 ideal for use in hospitals, companies, public buildings, data centers and industrial environments—wherever sensitive electronics must be reliably protected from fire risks and a powerful large-format display is required. Custom coloring according to RAL shades at no extra charge allows seamless integration into existing room concepts and corporate design guidelines.
How does the integrated extinguishing cartridge of the MonLines MBGM75 work?

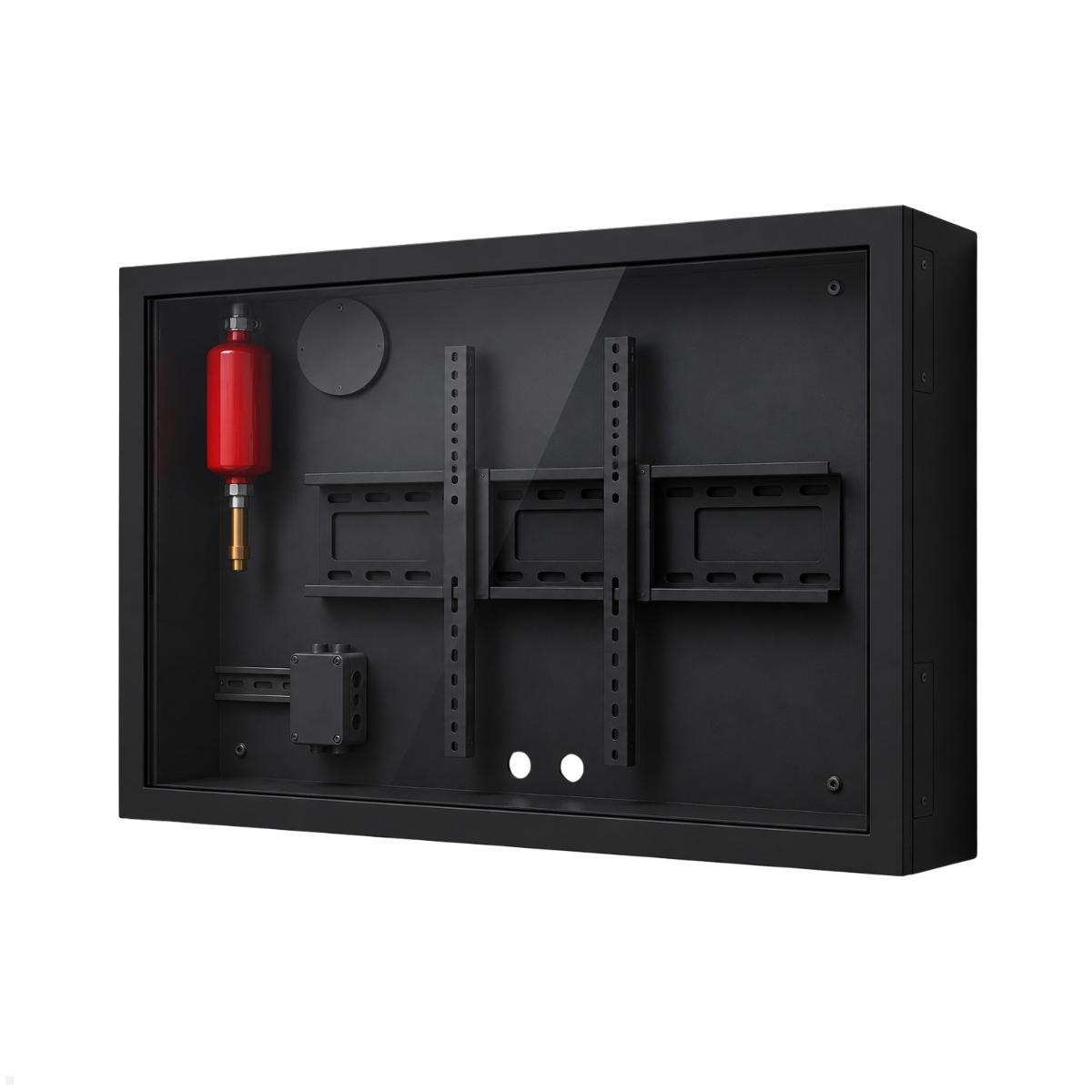

The MonLines MBGM75 is equipped with a VdS-tested extinguishing cartridge that triggers fully automatically in the event of smoke or fire—without manual intervention and without delay. The extinguishing agent used is non-toxic, leaves no residues and extinguishes without damage—the technology inside the enclosure generally remains fully functional after an extinguishing operation. This minimizes consequential damage and reduces downtime to a minimum. In addition, the fire protection enclosure features a VdS-compliant automatic power shutdown that activates immediately in an emergency and effectively rounds off the safety concept. The combination of automatic fire detection, non-destructive extinguishing and power shutdown makes the MBGM75 a comprehensive and reliable safety solution for sensitive electronics in fire-prone areas. Through VdS testing, both the extinguishing cartridge and the power shutdown are certified according to recognized safety standards—an important criterion for use in professional and safety-relevant environments. Compared to conventional protective solutions, the MBGM75 thus offers a maximum level of passive fire protection that requires no ongoing maintenance costs.
What advantages does the integrated Clevertouch CL Pro 2 75" display in the MBGM75 offer?
The integrated Clevertouch CL Pro 2 75" display (12975CLPRO2) in the MonLines MBGM75 is a powerful all-in-one solution for professional large-format applications. With 4K UHD resolution (3840 x 2160), a brightness of 500 cd/m² and a contrast ratio of 5000:1, the display delivers razor-sharp content and brilliant colors—even in bright environments. Thanks to Android 14 and the LUX 14 interface, users benefit from fast performance, high stability and long-term software support. The powerful quad-core A73 processor with 4 GB RAM and 32 GB storage ensures smooth multitasking and stable system performance. The integrated digital signage platform CleverLive enables easy creation and management of content without additional hardware or ongoing license fees. With CleverShare, content can be shared wirelessly via AirPlay, Miracast or Chromecast from up to 9 devices simultaneously—ideal for meetings, training and team collaboration. 24/7 continuous operation and the fanless design make the 75" display the perfect solution for continuous use in safety-relevant areas. Thanks to Wi‑Fi 6E, USB-C with 65W Power Delivery, 3x HDMI-In and integrated remote management, the display can be easily integrated into existing IT infrastructures and managed centrally.
