MonLines MBGM86 fire protection enclosure with 86" monitor, black
Highlights
- A1 fire protection enclosure according to DIN EN 13501-1
- Integrated VdS-approved extinguishing cartridge
- Clevertouch CL Pro 2 86" 4K display included
- Android 14, digital signage & 24/7 operation
- ESG safety glass & VdS power shut-off

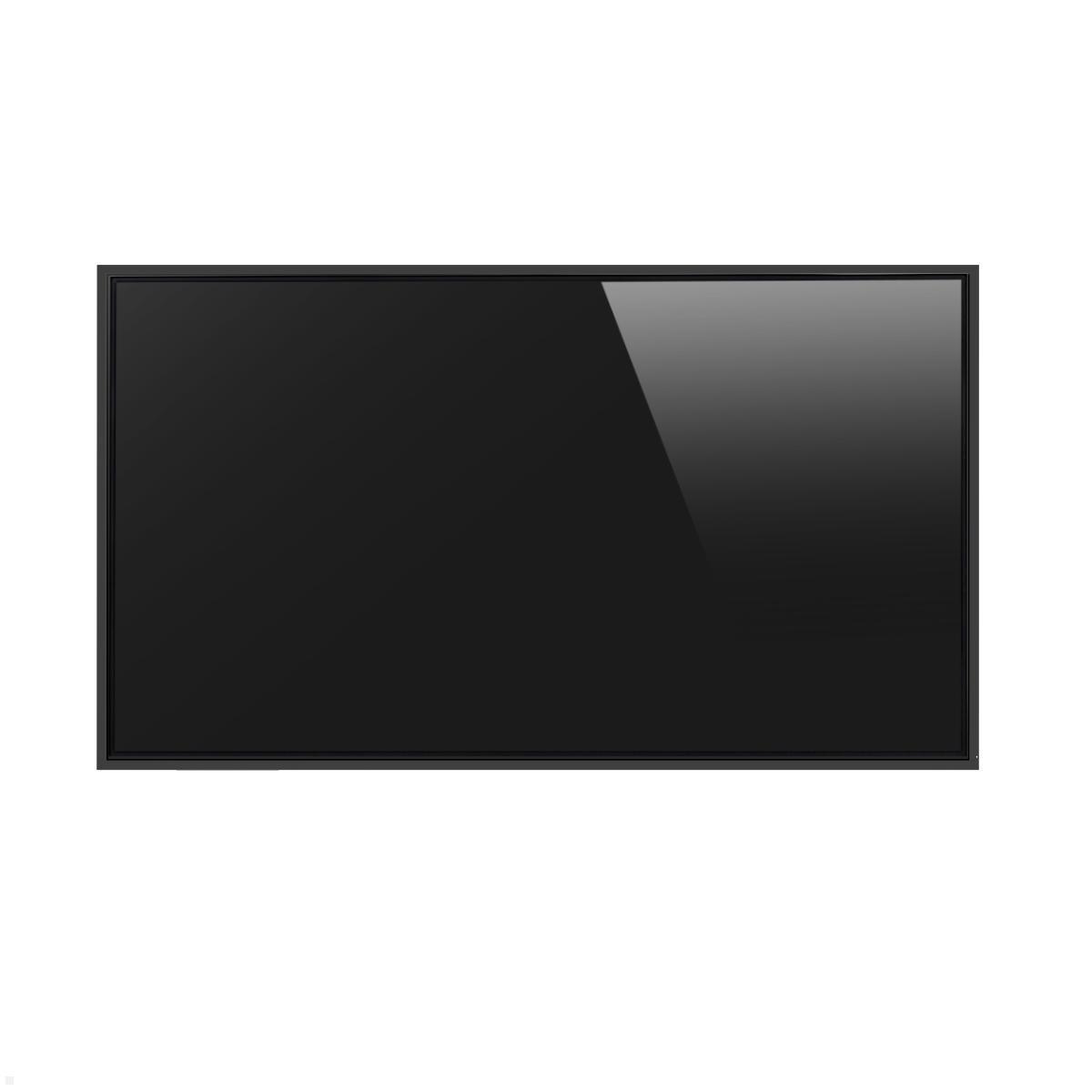

MonLines MBGM86 Fire Protection Enclosure with Clevertouch CL Pro 2 86" Display
The MonLines MBGM86 combines reliable fire protection and state-of-the-art large-format display technology in a professional solution. The robust enclosure is made of non-combustible A1 material according to DIN EN 13501-1 and is equipped with a durable ESG safety glass pane as well as an integrated, VdS-approved extinguishing cartridge. In the event of fire or smoke, the non-toxic, residue-free extinguishing gas ensures rapid and non-destructive fire suppression. A VdS-compliant automatic power shutdown reliably complements the safety concept.
The integrated Clevertouch CL Pro 2 86" Display (12986CLPRO2) offers 4K UHD resolution (3840 x 2160), a brightness of 500 cd/m² and a contrast ratio of 1200:1. The high-quality IPS panel ensures especially stable viewing angles and accurate color reproduction — ideal for large rooms and changing viewing positions. Thanks to Android 14, the optimized LUX 14 interface and the powerful Quad-Core A73 processor, the display delivers smooth performance and high system stability. The integrated digital signage platform CleverLive™ enables easy creation and management of content — without additional hardware. With CleverShare™, content can be shared wirelessly from smartphones, tablets or laptops (AirPlay, Miracast, Chromecast). The display is designed for 24/7 continuous operation and is ideal for digital signage, information systems, reception areas, large conference rooms as well as safety-relevant areas in hospitals, businesses and public buildings.
Technical Details Fire Protection Enclosure MonLines MBGM86
- Enclosure: non-combustible A1 material according to DIN EN 13501-1
- Glazing: ESG safety glass with high impact and break resistance
- Extinguishing system: VdS-approved extinguishing cartridge, non-toxic & residue-free extinguishing gas
- Power shutdown: VdS-compliant automatic shutdown in case of fire
- Color: black (all RAL colors available on request)
- Delivery includes monitor
Technical Details Clevertouch CL Pro 2 86" Display (12986CLPRO2)
- Screen size: 86 inches
- Resolution: 4K UHD (3840 x 2160 @ 60 Hz)
- Brightness: 500 cd/m²
- Contrast ratio: 1200:1
- Panel: IPS with Direct LED backlight
- VESA standard: 800x600 mm
- Operating system: Android 14 / LUX 14
- Processor: Quad-Core A73 / GPU: Mali G57 MC1 / 64 Bit
- RAM: 4 GB / Storage: 32 GB
- Ports: 3x HDMI-In, 1x HDMI-Out, 1x USB-C (65W PD), 1x USB-A 2.0, 1x USB-A 3.2, 1x LAN (RJ45) + LAN-Out, 1x RS-232
- Wi‑Fi: Wi-Fi 6E / Bluetooth 5.0
- Audio: 2x 16W speakers, Optical output (SPDIF), 3.5 mm jack
- Power consumption: 168.3 W / Standby: ≤ 0.5 W
- Display dimensions (W×H×D): 1931 × 1102 × 82 mm
- Display weight: 43.15 kg
| Product sheet: |  [pdf] |
|---|---|
| Screen size: | 86" |
| Scope of delivery: | 1x Fire protection enclosure, 1x Clevertouch CL Pro 2 Series display, 1x regional power cable, 1x HDMI cable, 1x remote control, 2x batteries for the remote control, 1x Clevertouch WiFi module, 1x quick installation guide |
| Manufacturer/Importer: | BCS Business Creative Solutions GmbH / MonLines, Am Marienhof 8, 22880 Wedel, info@monlines.de |
| Inch size: | 86 inch |
| Mounting type: | wall mount |
| Multi-monitor mount: | 1 monitor |
| color: | Black |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
Download area - catalogs, flyers, warranty conditions, ...
MonLines MBGM86 – Fire protection enclosure with 86" monitor for safety-critical environments
In commercial, public and industrial environments, reliable protection of electronic devices against fire risks is indispensable. The MonLines MBGM86 fire protection enclosure with 86" monitor offers a professional complete solution that combines state-of-the-art fire protection with powerful large-format display technology. The robust enclosure is made of non-combustible A1 material according to DIN EN 13501-1 and thus meets the highest fire protection requirements. The integrated ESG safety glass pane ensures that the display remains optimally visible at all times while being reliably protected from external influences. The integrated Clevertouch CL Pro 2 86" display (12986CLPRO2) impresses with 4K UHD resolution, Android 14 operating system and the integrated digital signage platform CleverLive. This makes the MBGM86 ideally suited for use in large conference rooms, hospitals, companies, public buildings and industrial environments – wherever a powerful large-format display must be reliably protected from fire hazards. Custom color design according to RAL shade at no extra charge allows seamless integration into existing room concepts and corporate design requirements.
How does the integrated extinguishing cartridge of the MonLines MBGM86 work?

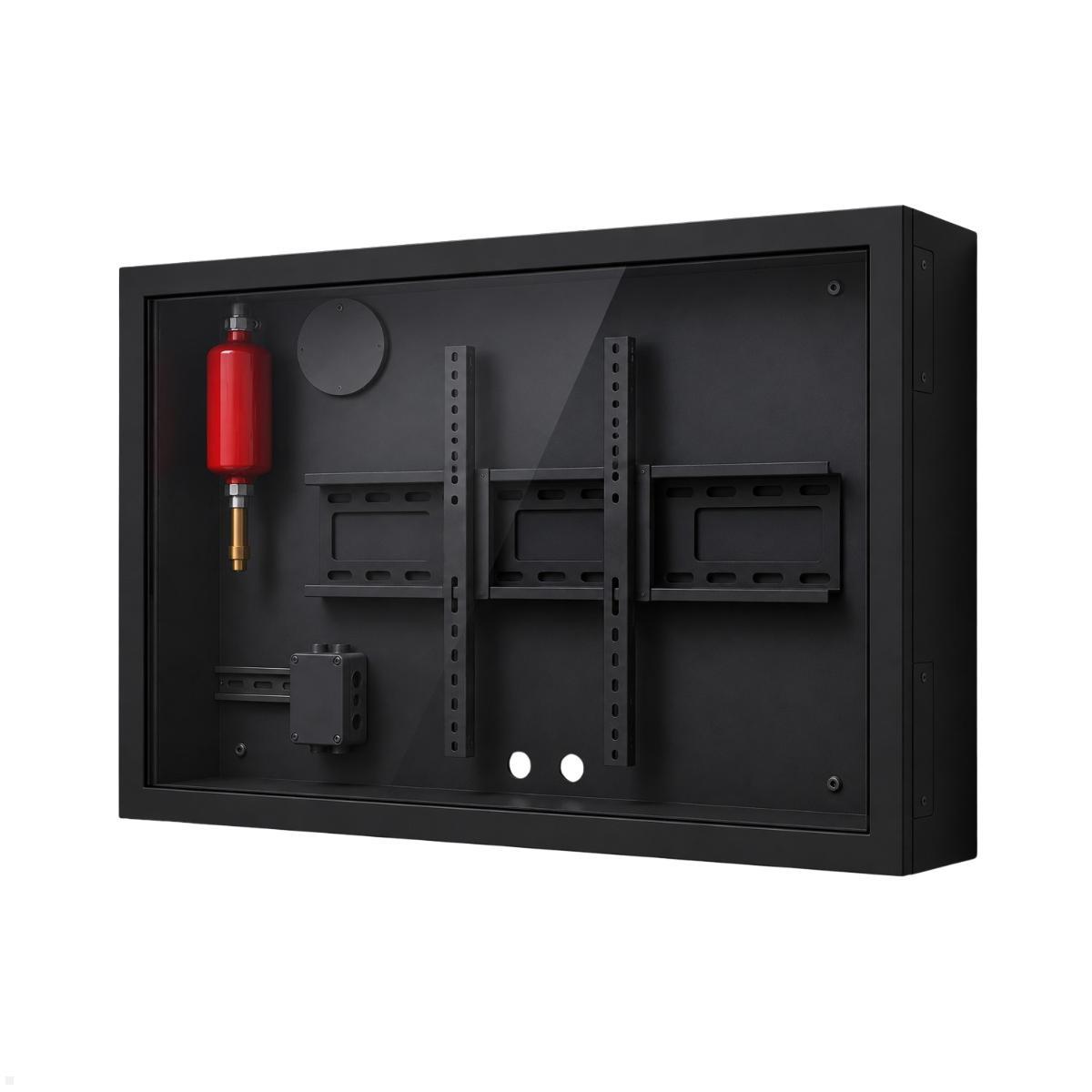

The MonLines MBGM86 is equipped with a VdS-tested extinguishing cartridge that triggers fully automatically in the event of smoke or fire development – without manual intervention and without delay. The extinguishing gas used is non-toxic, leaves no residues and extinguishes without damage – the technology inside the enclosure usually remains fully functional after a discharge. This minimizes consequential damage and reduces downtime to an absolute minimum. In addition, the fire protection enclosure features a VdS-compliant automatic power cut-off that is activated immediately in an emergency and effectively rounds off the safety concept. The combination of automatic fire detection, non-destructive extinguishing and power cut-off makes the MBGM86 a comprehensive and reliable safety solution for sensitive electronics in fire-prone areas. Through VdS testing, both the extinguishing cartridge and the power cut-off are certified according to recognized safety standards – an important criterion for use in professional and safety-relevant environments. Compared to conventional protection solutions, the MBGM86 thus offers the highest level of passive fire protection that does not incur ongoing maintenance costs.
What advantages does the integrated Clevertouch CL Pro 2 86" display in the MBGM86 offer?
The Clevertouch CL Pro 2 86" display (12986CLPRO2) integrated into the MonLines MBGM86 is a powerful all-in-one solution for professional large-format applications. With 4K UHD resolution (3840 x 2160), a brightness of 500 cd/m² and the high-quality IPS panel, the display delivers precise color reproduction and stable viewing angles of up to 178° – ideal for large rooms with changing viewing positions. Thanks to Android 14 and the LUX 14 interface, users benefit from fast performance, high stability and long-term software support. The powerful quad-core A73 processor with 4 GB RAM and 32 GB storage ensures smooth multitasking and stable system performance. The integrated digital signage platform CleverLive enables easy creation and management of content without additional hardware or ongoing licensing costs. With CleverShare, content can be shared wirelessly via AirPlay, Miracast or Chromecast from up to 9 devices simultaneously – ideal for large meetings, trainings and presentations. 24/7 continuous operation and the fanless design make the 86" display the perfect solution for continuous use in safety-relevant areas. Thanks to Wi-Fi 6E, USB-C with 65W Power Delivery, 3x HDMI-in and integrated remote management, the display can be easily integrated into existing IT infrastructures and centrally managed.
