MonLines MBGM98 fire protection enclosure with 98" monitor, black
Highlights
- A1 fire protection enclosure in accordance with DIN EN 13501-1
- Integrated VdS-tested extinguishing cartridge
- Clevertouch CL Pro 2 98" 4K display included
- Android 14, digital signage & 24/7 operation
- ESG safety glass & VdS power shutdown
MonLines MBGM98 Fire Protection Enclosure with Clevertouch CL Pro 2 98" Display
The MonLines MBGM98 combines reliable fire protection and state-of-the-art large-format display technology in a professional all-in-one solution. The robust enclosure is made of non-combustible A1 material according to DIN EN 13501-1 and is equipped with a durable ESG safety glass pane as well as an integrated, VdS-certified extinguishing cartridge. In the event of a fire or smoke, the non-toxic, residue-free extinguishing agent ensures rapid and non-destructive fire suppression. A VdS-compliant automatic power cut-off reliably complements the safety concept.
The integrated Clevertouch CL Pro 2 98" Display (12998CLPRO2) offers 4K UHD resolution (3840 x 2160), a brightness of 500 cd/m² and a contrast ratio of 1200:1. The high-quality IPS panel provides excellent color accuracy and stable viewing angles of up to 178° — ideal for large rooms where content is viewed from different perspectives. Thanks to Android 14, the optimized LUX 14 interface and the powerful Quad-Core A73 processor, the display delivers smooth performance and high system stability. The integrated digital signage platform CleverLive™ enables easy creation and management of content — without additional hardware. With CleverShare™, content can be transmitted wirelessly from smartphones, tablets or laptops (AirPlay, Miracast, Chromecast). The display is designed for 24/7 continuous operation and is ideal for large-scale digital signage installations, reception areas, corporate lobbies, as well as safety-relevant areas in hospitals, companies and public buildings.

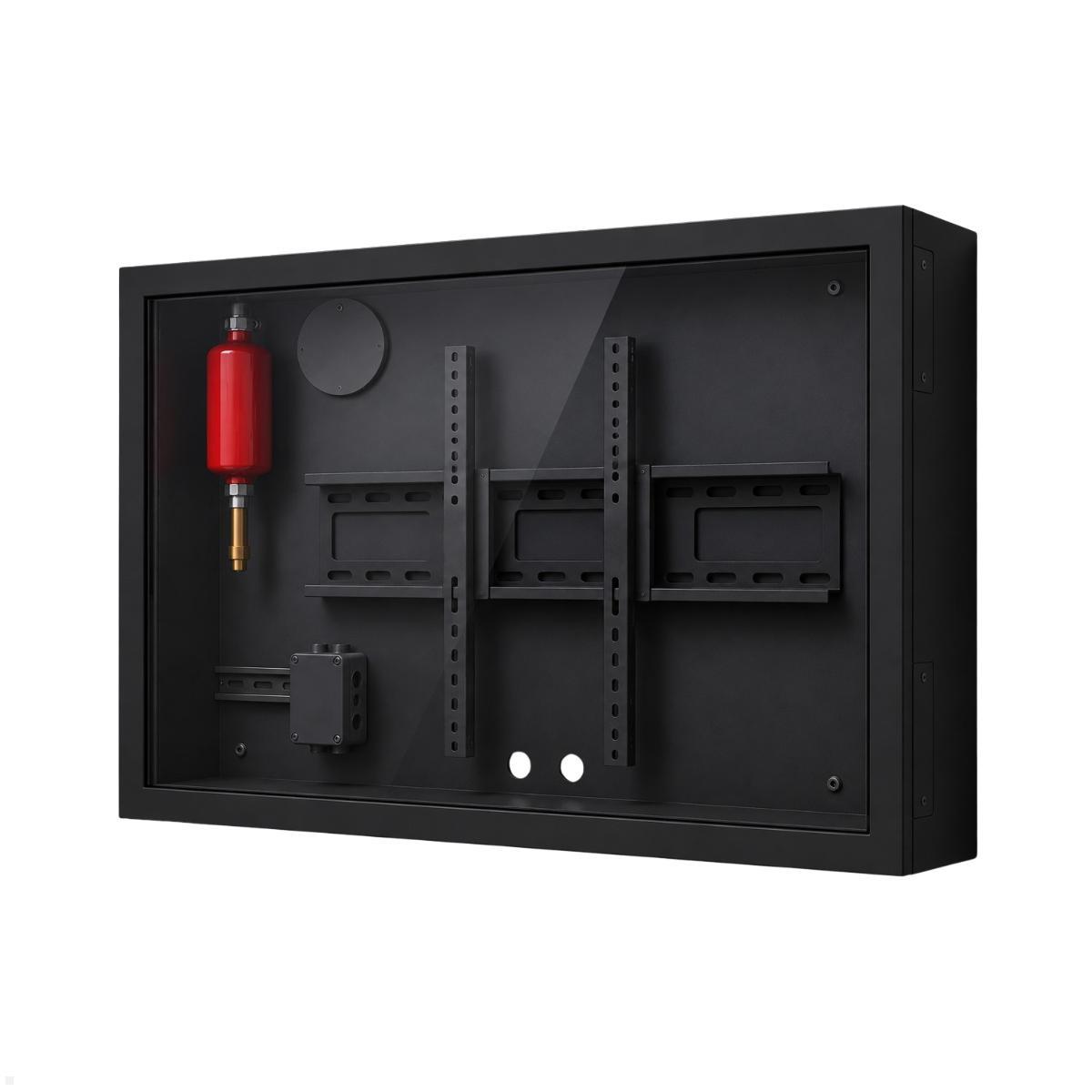

Technical Details Fire Protection Enclosure MonLines MBGM98
- Enclosure: non-combustible A1 material according to DIN EN 13501-1
- Glazing: ESG safety glass with high impact and break resistance
- Extinguishing system: VdS-certified extinguishing cartridge, non-toxic & residue-free extinguishing agent
- Power cut-off: VdS-compliant automatic shut-off in case of fire
- Color: black (all RAL colors available on request)
- Delivery includes monitor
Technical Details Clevertouch CL Pro 2 98" Display (12998CLPRO2)
- Screen size: 98 inches
- Resolution: 4K UHD (3840 x 2160 @ 60 Hz)
- Brightness: 500 cd/m²
- Contrast ratio: 1200:1
- Panel: IPS with Direct LED backlight
- VESA standard: 800 x 600 mm
- Operating system: Android 14 / LUX 14
- Processor: Quad-Core A73 / GPU: Mali G57 MC1 / 64-bit
- RAM: 4 GB / Storage: 32 GB
- Ports: 3x HDMI In, 1x HDMI Out, 1x USB-C (65W PD), 1x USB-A 2.0, 1x USB-A 3.2, 1x LAN (RJ45) + LAN-Out, 1x RS-232
- Wi‑Fi: Wi‑Fi 6E / Bluetooth 5.0
- Audio: 2x 16W speakers, optical output (SPDIF), 3.5 mm jack
- Power consumption: 164.22 W / Standby: ≤ 0.5 W
- Display dimensions (W×H×D): 2213 × 1268 × 80 mm
- Display weight: 69.9 kg
| Product sheet: |  [pdf] |
|---|---|
| Screen size: | 98" |
| Scope of delivery: | 1x fire protection enclosure, 1x Clevertouch CL Pro 2 Series Display, 1x regional power cable, 1x HDMI cable, 1x remote control, 2x batteries for the remote control, 1x Clevertouch WiFi module, 1x quick installation guide |
| Manufacturer/Importer: | BCS Business Creative Solutions GmbH / MonLines, Am Marienhof 8, 22880 Wedel, info@monlines.de |
| Inch size: | 98 inch |
| Mounting type: | wall mount |
| Multi-monitor mount: | 1 monitor |
| color: | Black |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
Download area - catalogs, flyers, warranty conditions, ...
MonLines MBGM98 – Fire-protection enclosure with 98" monitor for safety-critical environments
In commercial, public and industrial environments, reliable protection of electronic devices from fire risks is indispensable. The MonLines MBGM98 fire-protection enclosure with 98" monitor offers a professional complete solution that combines state-of-the-art fire protection with powerful XXL display technology. The robust enclosure is made of non-combustible A1 material according to DIN EN 13501-1 and thus meets the highest fire protection requirements. The integrated ESG safety glass pane ensures that the display remains optimally visible at all times while being reliably protected from external influences. The integrated Clevertouch CL Pro 2 98" display (12998CLPRO2) impresses with 4K UHD resolution, Android 14 operating system and the integrated digital signage platform CleverLive. With its enormous screen size, the MBGM98 is ideal for large-scale digital signage installations, corporate lobbies, trade fairs, public institutions and all areas where maximum visibility and reliable fire protection are equally required. Individual color design according to RAL shade without additional charge allows seamless integration into existing room concepts and corporate design specifications.
How does the integrated extinguishing cartridge of the MonLines MBGM98 work?
The MonLines MBGM98 is equipped with a VdS-certified extinguishing cartridge that triggers fully automatically in case of smoke or fire development—without manual intervention and without delay. The extinguishing gas used is non-toxic, leaves no residue and extinguishes without damage— the equipment inside the enclosure usually remains fully functional after a discharge. This minimizes consequential damage and reduces downtime to a minimum. Additionally, the fire-protection enclosure features a VdS-compliant automatic power shut-off, which is activated immediately in an emergency and effectively rounds off the safety concept. The combination of automatic fire detection, non-destructive extinguishing and power shut-off makes the MBGM98 a comprehensive and reliable safety solution for sensitive large-format electronics in fire-prone areas. Because of the VdS certification, both the extinguishing cartridge and the power shut-off are certified according to recognized safety standards—an important criterion for use in professional and safety-critical environments. Compared to conventional protective solutions, the MBGM98 thus offers a maximum level of passive fire protection that requires no ongoing maintenance costs.
What advantages does the integrated Clevertouch CL Pro 2 98" display offer in the MBGM98?
The integrated Clevertouch CL Pro 2 98" display (12998CLPRO2) is the powerful XXL solution for maximum attention and professional large-format applications. With 4K UHD resolution (3840 x 2160), a brightness of 500 cd/m² and the high-quality IPS panel, the display delivers excellent color accuracy and stable viewing angles up to 178°—ideal for large rooms with changing viewing positions. Thanks to Android 14 and the LUX 14 interface, users benefit from fast performance, high stability and long-term software support. The powerful quad-core A73 processor with 4 GB RAM and 32 GB storage ensures smooth multitasking even with demanding content such as videos, animations and interactive applications. The integrated digital signage platform CleverLive enables easy creation and management of content without additional hardware or ongoing license costs. With CleverShare, content can be transmitted wirelessly via AirPlay, Miracast or Chromecast from up to 9 devices simultaneously—ideal for presentations, events and teamwork. 24/7 continuous operation and a fanless design make the 98" display the perfect solution for continuous use in safety-relevant areas. Thanks to Wi-Fi 6E, USB-C with 65W Power Delivery, 3x HDMI-in and integrated remote management, the display can be easily integrated into existing IT structures and centrally managed.
