RAM Mounts mounting kit - round base plate, long connecting arm, Diamond base plate B-ball (RAM-B-138U-C)
Highlights
- Round and diamond base plate
- Long connecting arm included
- Compatible with AMPS hole pattern
- Powder-coated aluminum
- Load capacity up to approx. 0.91 kg
Assembly set with round and diamond base plate, long arm
The RAM Mounts assembly set - round base plate, long connecting arm, diamond base plate B-ball (RAM-B-138U-C) consists of a round base plate with AMPS 4-hole pattern, a long connecting arm and a trapezoid base plate with AMPS 2-hole pattern. The set is compatible with numerous RAM Mounts device cradles and can be flexibly mounted on almost any surface.
Thanks to the ball-arm system, the mount can be adjusted steplessly and provides perfect viewing and operating angles. The robust construction of powder-coated aluminum ensures a long service life even under harsh operating conditions. With a load capacity of up to 0.91 kg, the set is ideal for vehicles, boats, industry or logistics. Perfect for securely mounting cradles, tablets, monitors, GPS or radio devices.

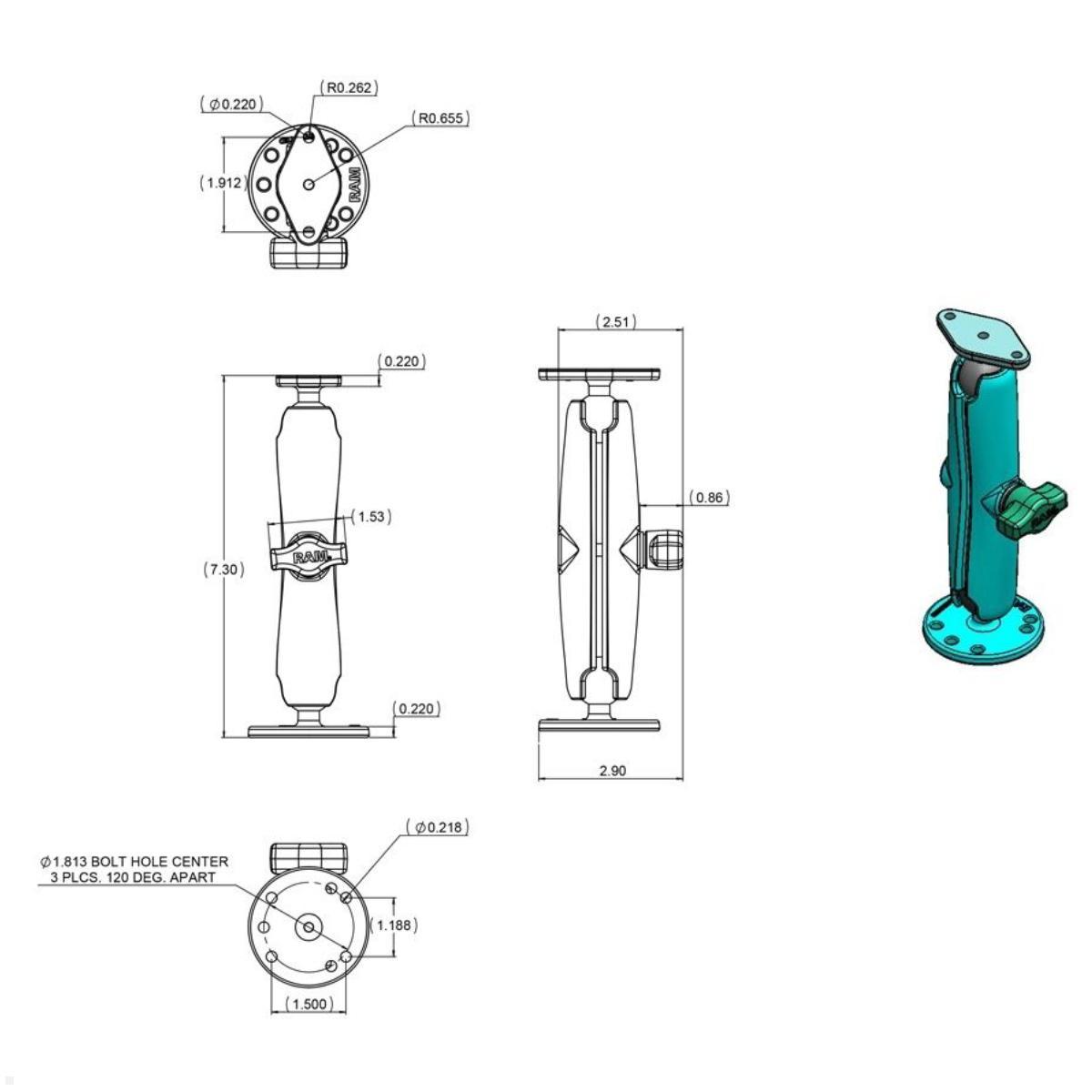

Technical details RAM Mounts assembly set RAM-B-138U-C
- Material: Powder-coated aluminum
- Overall dimension: approx. 185.73 mm
- Ball diameter: 25.4 mm (1 inch, B-ball)
- Dimensions round base plate: 63.5 mm diameter (AMPS 4-hole and 3-hole at 120°)
- Dimensions trapezoid base plate: approx. 61.7 x 33.3 mm (AMPS 2-hole, 48.56 mm)
- Dimensions connecting arm: approx. 152.4 mm total length, 134.87 mm base-to-base
- Load capacity standard applications: up to approx. 0.91 kg
- Load capacity high-load: up to approx. 0.45 kg
- Color: black
- Weight: approx. 340 g
| Material: | Pulverbeschichtetes Aluminium |
|---|---|
| Scope of delivery: | 1x assembly kit consisting of a round base plate, a long connecting arm and a diamond base plate (RAM-B-138U-C) |
| Warranty: | 30 Jahre |
| Manufacturer/Importer: | RAM Mounts Germany GmbH, Alexander-Meissner-Str. 42, 12526 Berlin, info@rammounts.de |
| Mounting type: | Car mount |
| color: | Black |
| RAM Mounts Kugel: | B-Kugel |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
Download area - catalogs, flyers, warranty conditions, ...
Questions & Answers
-
What is included in the RAM Mounts Construction Set RAM-B-138U-C?
It consists of a round base plate with AMPS 4-hole pattern (and 3-hole at 120°), a long connecting arm, and a trapezoid base plate with AMPS 2-hole pattern.
-
What material is it made from and how is it finished?
The construction is made of powder-coated aluminium and is black.
-
What are the dimensions of the set?
Overall dimensions approx. 185.73 mm; ball diameter 25.4 mm (1 inch, B-ball). Round base diameter approx. 63.5 mm; trapezoid base approx. 61.7 x 33.3 mm; arm length approx. 152.4 mm overall; base-to-base 134.87 mm.
-
What is the load capacity?
Standard applications up to about 0.91 kg; high-load up to about 0.45 kg.
-
What surfaces can it be mounted on and what are the applications?
Can be mounted on nearly all surfaces; ideal for vehicles, boats, industry or logistics.
-
Is it compatible with RAM Mounts?
The set is compatible with numerous RAM Mounts device holders.
-
What colour and weight does it have?
Colour: black; weight approx. 340 g.
-
How adjustable is the ball-and-arm system?
The ball-arm system allows stepless adjustment for optimal viewing and operating angles.
What distinguishes the RAM Mounts assembly kit RAM-B-138U-C?
The RAM Mounts assembly kit RAM-B-138U-C is the variant with the long connecting arm and thus offers the greatest reach within the 138 series. The long connecting arm has an overall length of approx. 152.4 mm and a socket-to-socket distance of 134.87 mm, allowing flexible positioning even at greater distances from the mounting surface. The set also includes a round base plate with AMPS 4-hole pattern and a trapezoid base plate with AMPS 2-hole pattern. Made of powder-coated aluminum, the set offers maximum durability at a weight of only approx. 340 g.
When should you choose the long connecting arm RAM-B-138U-C?
The long connecting arm is especially suitable for situations where the mounted device should be positioned further away from the mounting surface. Typical use cases are mounting tablets or GPS devices in larger vehicle cabins, on boats, or in industrial environments. The longer arm also allows better adjustment of the viewing angle and provides more leeway in positioning. Thanks to the ball-and-socket arm system, the mount can be adjusted infinitely at any time.
Is the RAM Mounts RAM-B-138U-C compatible with other RAM Mounts products?
Yes, the assembly kit is fully compatible with the entire RAM Mounts ball-and-socket arm system of the B-ball size. The B-ball with a 25.4 mm diameter fits all connecting arms, base plates, and cradle holders of the same ball size. The AMPS hole patterns of the base plates are also compatible with numerous device holders. The load capacity is up to 0.91 kg for standard applications, which is more than sufficient for most smartphones, tablets, and GPS devices. The set is also used as a device holder in the marine sector.
