RAM Mounts Assembly Set - 2x round base plate, short connecting arm B-ball (RAM-B-101U-A)
Highlights
- 2x round AMPS base plate
- Short connecting arm included
- B-ball 25.4 mm connection
- Powder-coated aluminum
- Load capacity up to approx. 0.91 kg
Mounting kit with round base plates and short connecting arm

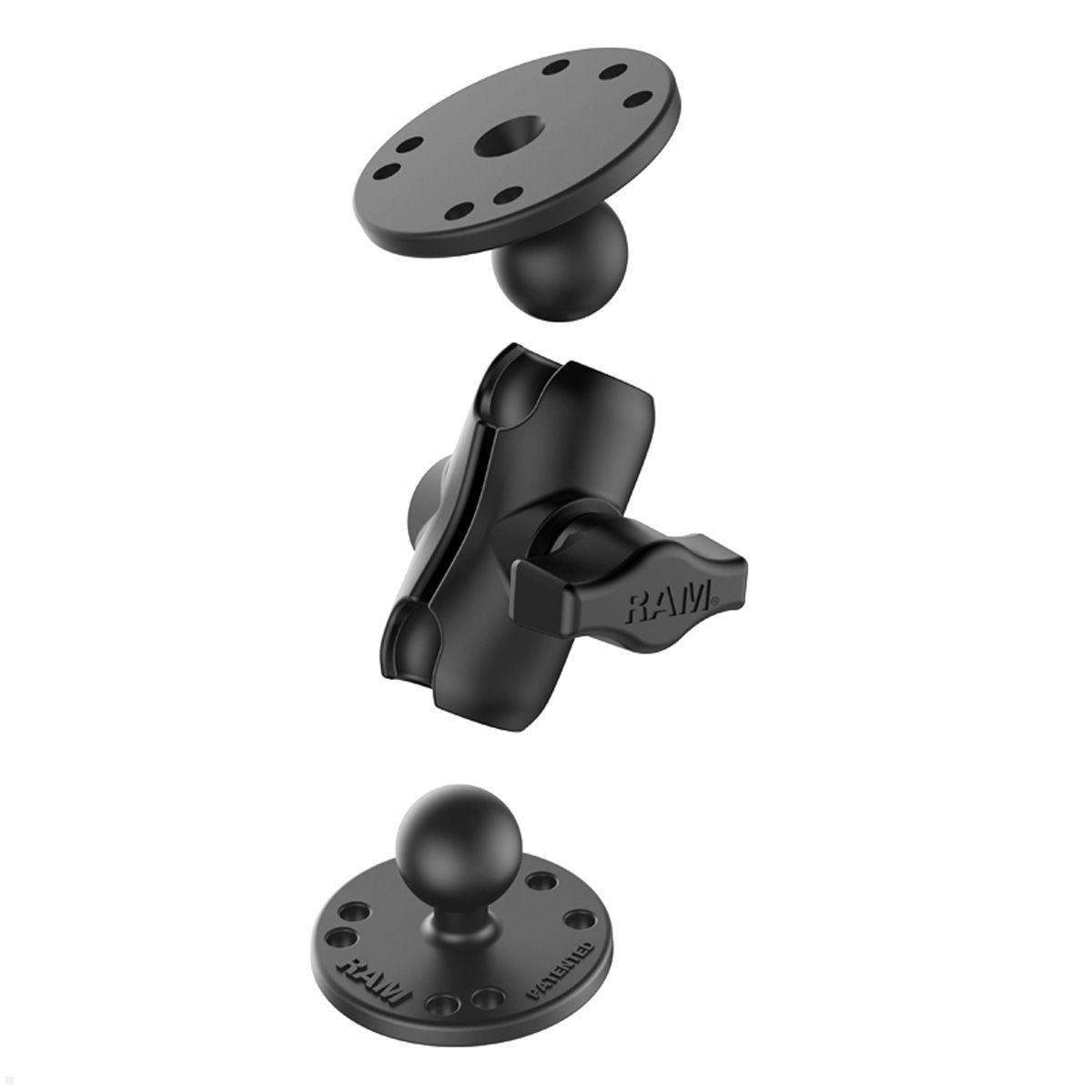

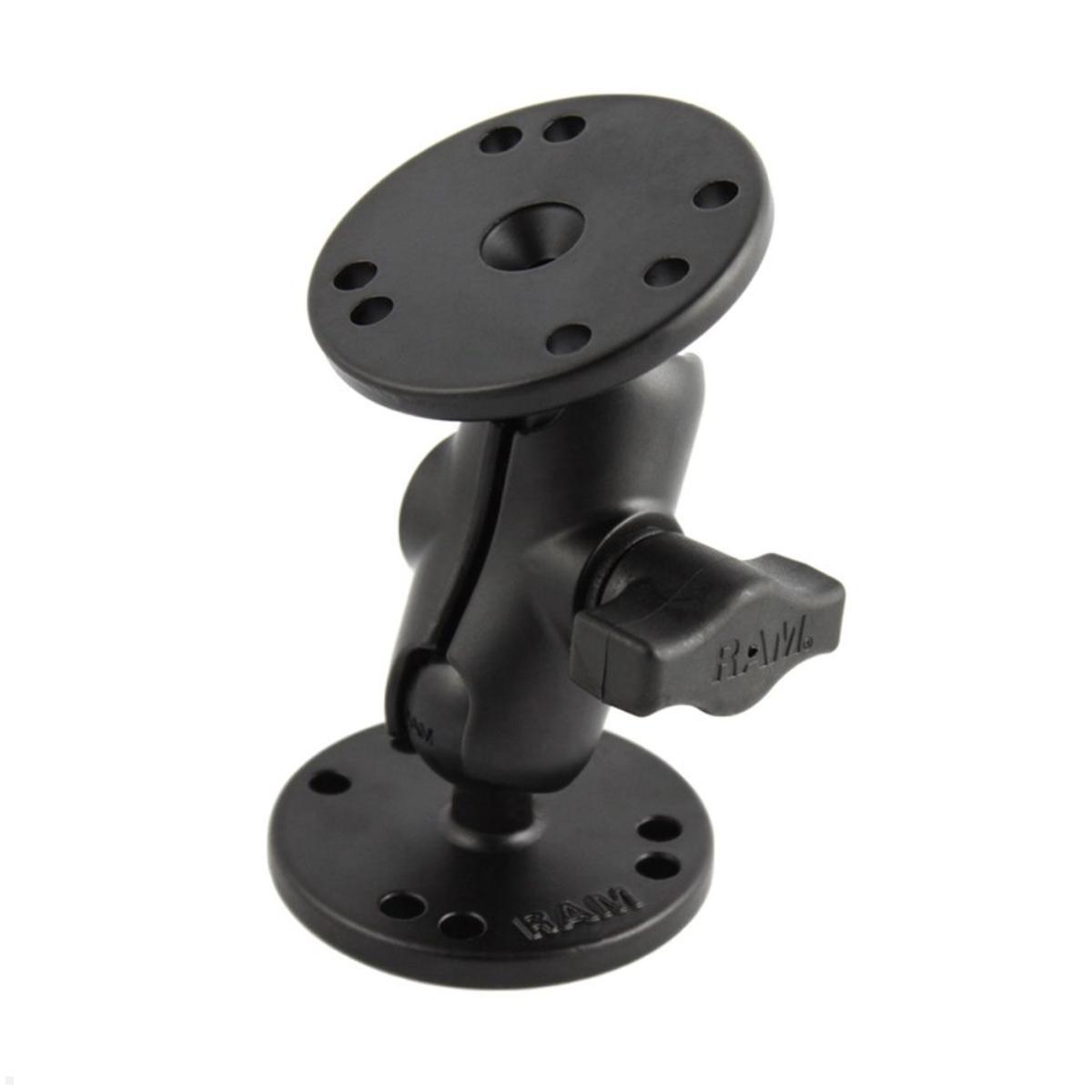

The RAM Mounts mounting kit - 2x round base plates, short connecting arm B-ball (RAM-B-101U-A) consists of a short connecting arm and two round base plates with AMPS hole pattern. Due to the AMPS hole pattern the kit is compatible with numerous RAM Mounts device cradles and can be flexibly mounted on almost any vertical and horizontal surfaces.
Thanks to the ball-arm system the mount can be adjusted flexibly and provides perfect viewing and operating angles. The robust construction made of powder-coated aluminum ensures long service life even under harsh operating conditions. With a load capacity of up to 0.91 kg the kit is ideal for vehicles, boats, industry or logistics. Perfect for securely mounting cradles, tablets, monitors, GPS or radio devices.
Technical details RAM Mounts mounting kit RAM-B-101U-A
- Material: powder-coated aluminum
- Overall dimension: approx. 95.25 mm
- Ball diameter: 25.4 mm (1 inch, B-ball)
- Base plate dimensions: 63.5 mm diameter (AMPS 4-hole and 3-hole at 120°)
- Connecting arm dimensions: approx. 61.46 mm overall length, 44.45 mm base-to-base
- Load capacity standard applications: up to approx. 0.91 kg
- Load capacity high load: up to approx. 0.45 kg
- Color: black
- Weight: approx. 213 g
| Material: | Pulverbeschichtetes Aluminium |
|---|---|
| Scope of delivery: | 1x assembly set consisting of 2x round base plates and a short connecting arm (RAM-B-101U-A) |
| Warranty: | 30 Jahre |
| Manufacturer/Importer: | RAM Mounts Germany GmbH, Alexander-Meissner-Str. 42, 12526 Berlin, info@rammounts.de |
| Mounting type: | Car mount |
| color: | Black |
| RAM Mounts Kugel: | B-Kugel |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
Download area - catalogs, flyers, warranty conditions, ...
Questions & Answers
-
What is included in the RAM-B-101U-A setup?
It consists of a short connecting arm and two round base plates with an AMPS hole pattern; the AMPS pattern is compatible with numerous RAM Mounts device holders.
-
On what surfaces can it be mounted?
It can be mounted on nearly all vertical and horizontal surfaces, with flexible mounting.
-
How does the ball-arm system benefit?
The ball-arm system allows flexible adjustment and provides ideal viewing and operating angles.
-
What material is used and is it durable?
It is made from powder-coated aluminium; robust construction ensures long life even under harsh conditions.
-
What is the load capacity?
Load capacity: standard applications up to about 0.91 kg; high-load up to about 0.45 kg.
-
What are the key dimensions and weight?
Overall dimensions: approx 95.25 mm; ball diameter 25.4 mm; base plate diameter 63.5 mm; arm length approx 61.46 mm; socket-to-socket 44.45 mm. Weight approx 213 g.
-
What is the colour and intended uses?
Colour: black. Ideal for securing holders, tablets, monitors, GPS or radio devices in vehicles, boats, industry or logistics.
What does the RAM Mounts assembly kit RAM-B-101U-A include?
The RAM Mounts assembly kit RAM-B-101U-A is a compact mounting kit that consists of two round base plates with AMPS hole patterns and a short connecting arm. The base plates have a diameter of 63.5 mm and are equipped with both the AMPS 4-hole and the 3-hole pattern. This makes the kit compatible with a wide range of RAM Mounts device cradles. The short connecting arm with a total length of approx. 61.46 mm provides compact and stable mounting. The entire kit is made of powder-coated aluminum and offers a load capacity of up to 0.91 kg for standard applications.
For which applications is the RAM Mounts RAM-B-101U-A suitable?
The assembly kit RAM-B-101U-A is a versatile mounting solution for attaching device cradles, tablets, monitors, GPS or radio devices. It can be mounted flexibly and securely on almost all vertical and horizontal surfaces. Typical areas of use are vehicles, boats, industrial facilities and logistics areas. Thanks to the ball-and-arm system, the holder can be adjusted steplessly, offering perfect viewing and operating angles for the user. The two round base plates enable symmetrical attachment at two mounting points.
How robust is the RAM Mounts assembly kit with B-ball connection?
The RAM Mounts assembly kit RAM-B-101U-A impresses with a robust construction made of powder-coated aluminum. This material ensures a long service life even under harsh operating conditions such as vibrations, moisture and extreme temperatures. The B-ball connection with a diameter of 25.4 mm allows quick mounting and dismounting and is fully compatible with the entire RAM Mounts range. For standard applications the kit supports up to 0.91 kg, and under high load up to 0.45 kg. The weight of the kit is only about 213 g, so it hardly adds any weight in mobile applications.
