RAM Mounts Tab-Tite Universal Tablet Holder Shell for 7-8-inch Tablets (RAM-HOL-TAB18U)
Highlights
- Universal tablet mounting cradle for 7–8 inch devices
- Spring mechanism for quick insertion and secure hold
- Open design for full access to ports and controls
- Compatible with the modular RAM-Mount system (AMPS hole pattern)
- Ideal for vehicles, industrial, warehouse, field service and office workspaces
Universal tablet holder Ram Mounts Tab-Tite RAM-HOL-TAB18U
The RAM Mounts Tab-Tite™ universal cradle is designed for tablets in the 7 to 8 inch size range and provides a reliable and flexible mounting solution for a wide variety of applications. To insert the tablet, the top part of the cradle is pulled upward, the appropriate device is placed in, and then gently released. The integrated, spring-assisted construction ensures the tablet sits securely and stably in the holder. At the same time, it allows quick removal and re-insertion of the device – ideal for applications where the tablet is used or swapped regularly.

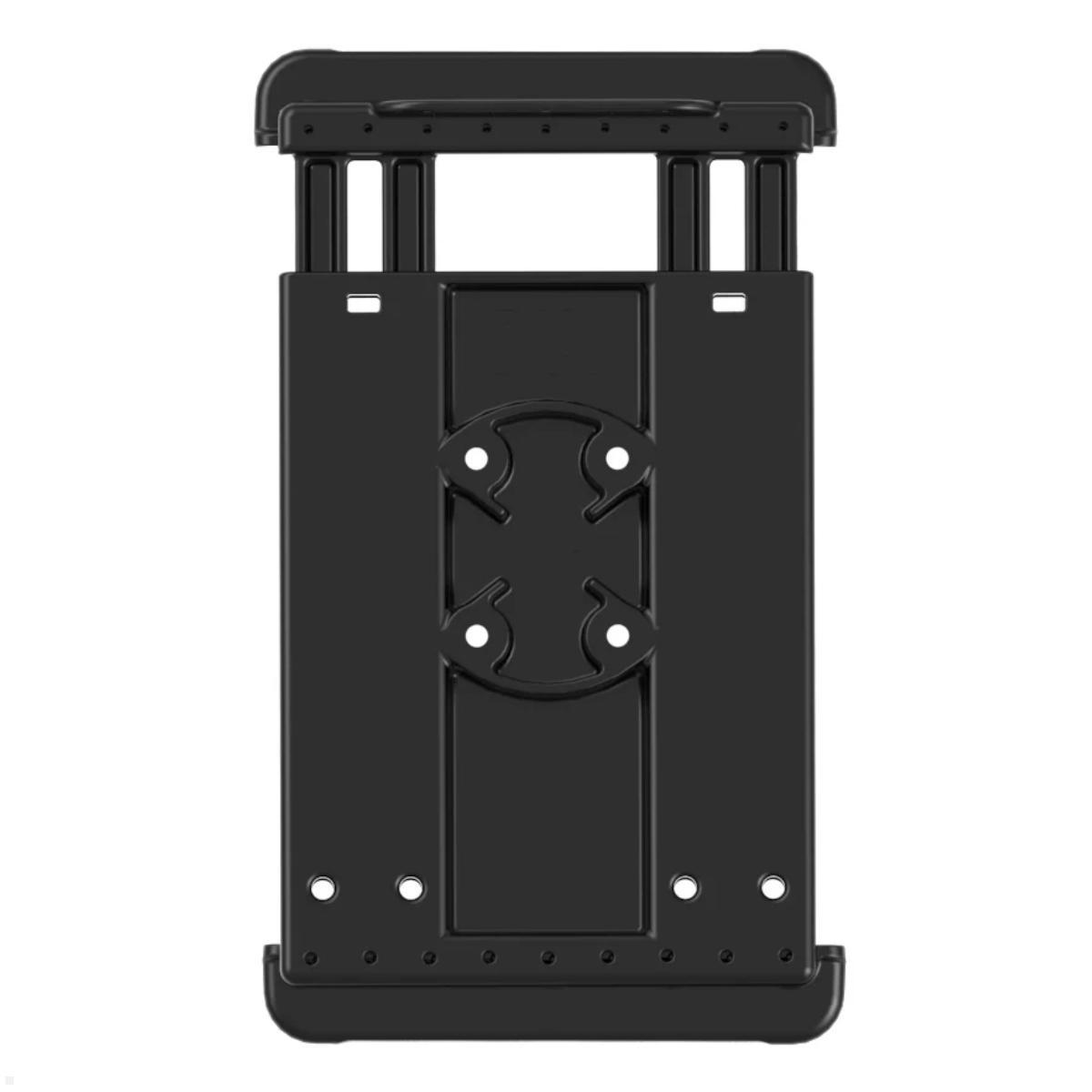

The back of the cradle is prepared to accept a round base plate (not included). This allows the Tab-Tite™ holder to be flexibly integrated into existing RAM Mounts systems and combined with various mounting solutions as needed, for example for vehicles, workstations, or industrial applications. Thanks to the open end-cap design, the cradle is compatible with numerous tablet models as long as they fall within the specified dimensions. In addition, access to ports, buttons and controls is retained for most devices.
Technical details RAM Mounts Tab-Tite™ cradle
- Universal holder for 7 - 8 inch tablets
- Spring mechanism for easy insertion and removal
- Open end-cap design for various tablet sizes
- Free access to ports and controls on most tablets
- Compatible with tablets with the following dimensions:
- Min./Max. device width: 95.25 mm – 119.38 mm
- Min./Max. device height: 190.5 mm – 257.17 mm
- Min./Max. device depth: 3.3 mm – 10.92 mm
- Color: Black
Additional notes: Devices shown are for illustration purposes only and are not included. Only the Tab-Tite™ cradle (RAM-HOL-TAB18U) is supplied.
| Others: |  [pdf] |
|---|---|
| Suitable for: | Für bis 7 - 8 Zoll TabletsTablets mit max. 119,38 mm Breite | max. 10,92 mm Tiefe | max. 257,17 mm Höhe |
| Scope of delivery: | 1x RAM Mounts Tab-Tite™ holder (RAM-HOL-TAB18U) |
| Manufacturer/Importer: | RAM Mounts Germany GmbH, Alexander-Meissner-Str. 42, 12526 Berlin, info@rammounts.de |
| Mounting type: | Car mount |
| color: | Black |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
Download area - catalogs, flyers, warranty conditions, ...
Questions & Answers
-
What tablets is the Tab-Tite shell suitable for?
It is a universal shell for 7–8 inch tablets. Devices must fall within the dimensions: width 95.25–119.38 mm, height 190.5–257.17 mm and depth 3.3–10.92 mm; the open-end-cap design allows compatibility with many models.
-
How do you insert a tablet?
Lift the top portion, insert the tablet, then release; the spring-assisted mechanism keeps it secure and enables quick removal.
-
What mounting options are available?
The backside is prepared for a round base plate (not included); it can be flexibly integrated into RAM Mounts systems and paired with mounts for vehicles, workstations, or industrial applications.
-
Will access to ports and controls be preserved?
For most tablets, access to ports and controls remains fully available.
-
What is included in the package?
Only the Tab-Tite shell (RAM-HOL-TAB18U) is included; devices shown are for illustration.
-
What colour is the shell?
Colour: Black.
-
Is the open end-cap design compatible with different tablet models?
The open end-cap design enables compatibility with a range of tablet models within the specified dimensions.
Which advantages does the RAM Mounts Tab-Tite™ retention cradle for 7–8 inch tablets offer?
The RAM Mounts Tab-Tite™ universal retention cradle is a robust and versatile tablet mount for tablets in the 7 to 8 inch size range. It was specifically developed for professional use and impresses with its high stability, easy handling and flexible application possibilities. Whether in a vehicle, in the warehouse, in the workshop, in the field service or at a fixed workstation – this universal tablet mount securely and ergonomically attaches mobile devices.
Especially in commercial environments where tablets are used as navigation devices, data collection tools or digital workstations, reliable and durable mounting is crucial. The Tab-Tite™ cradle from RAM Mounts provides exactly this security and is designed to remain compatible with different tablet models.
How does inserting and removing the tablet work?
The handling of the Tab-Tite™ mount is particularly user-friendly. To insert, pull the top part of the cradle upward, place the tablet in and then gently release it. The integrated spring mechanism ensures the tablet is automatically secured and sits firmly in the mount. At the same time, the spring mechanism allows quick removal of the device – ideal for work environments where tablets are frequently used and removed.
The open end-cap design ensures that different tablet sizes within the specified range can be accommodated. In addition, on most devices access to ports, cameras and controls remains fully available. This means the tablet can continue to be charged, operated or connected to accessories without having to remove it from the mount.
Where can the Tab-Tite™ tablet mount be used?
Thanks to its modular design, the Tab-Tite™ cradle is compatible with the entire RAM Mount system. On the back there is a prepared receptacle for a round base plate (not included). In combination with suitable RAM Mount components, the cradle can be used, for example, as a tablet vehicle mount, tablet wall mount, tablet desk mount or for industrial machines and workplaces.
Especially in vehicles, vans, trucks or service vehicles the robust construction provides secure hold – even with vibrations or uneven roads. At the same time the cradle is suitable for office environments, retail spaces, warehouse logistics or production areas. Through the standardized AMPS hole pattern the tablet mount can be flexibly integrated into existing mounting systems.
Which tablets are compatible?
The RAM Mounts Tab-Tite™ cradle (RAM-HOL-TAB18U) is compatible with most tablets that fall within the following dimensions:
- Height: 190.5 mm – 257.17 mm
- Width: 95.25 mm – 119.38 mm
- Depth: 3.3 mm – 10.92 mm
Thus, the cradle is suitable for numerous 7- and 8-inch tablets from various manufacturers. It is the ideal choice for anyone seeking a durable, flexible and professional tablet mount for daily use.
Note:
Devices shown are not included. Only the Tab-Tite™ cradle (RAM-HOL-TAB18U) is delivered.
Technical details:
- Mounting pattern: AMPS 4-hole
- Mounting type: screw mounting
