Vogels Motion MOMO 2137B Monitor desk mount swiveling, black
Highlights
- For 1 monitor, 10 - 43 inches
- Load capacity up to 20 kg
- 3 pivot points, adjustable depth
- TÜV and IGR certified
- 10-year manufacturer warranty
Swiveling Monitor Arm with 3 Pivot Points for Maximum Flexibility
The Vogels Motion MOMO 2137B monitor desk mount, swiveling, black (7121370), is the most versatile monitor arm in the MOMO Motion series. Thanks to 3 pivot points and the extended tilt range of -20° to +105°, the screen can be positioned in virtually any desired position. The mount supports monitors from 10" to 43" weighing up to 20 kg. The manual height adjustment of 250 mm and the adjustable depth allow individual adaptation to any working position.
This articulating arm for the desk is suitable for flat and curved displays up to 10 kg. The versatile desk clamp offers two mounting options: clamped to the desk or bolted through. An integrated Allen key makes additional tools unnecessary. The VESA-compatible screen mount supports hole patterns 50 x 50, 75 x 75 and 100 x 100 mm. The swivel range of up to 180° together with integrated cable management ensures a tidy and flexible workspace. Perfect for offices, home offices, schools and conference rooms.
Technical details Vogels MOMO swiveling screen mount with articulating arm
- Suitable for 1 monitor from 10" to 43"
- Maximum load capacity: 20 kg
- Max. weight for curved display: 10 kg
- VESA standard: 50 x 50, 75 x 75, 100 x 100 mm
- Tilt: -20° / +105°
- Swivel range: up to 180°
- Number of pivot points: 3

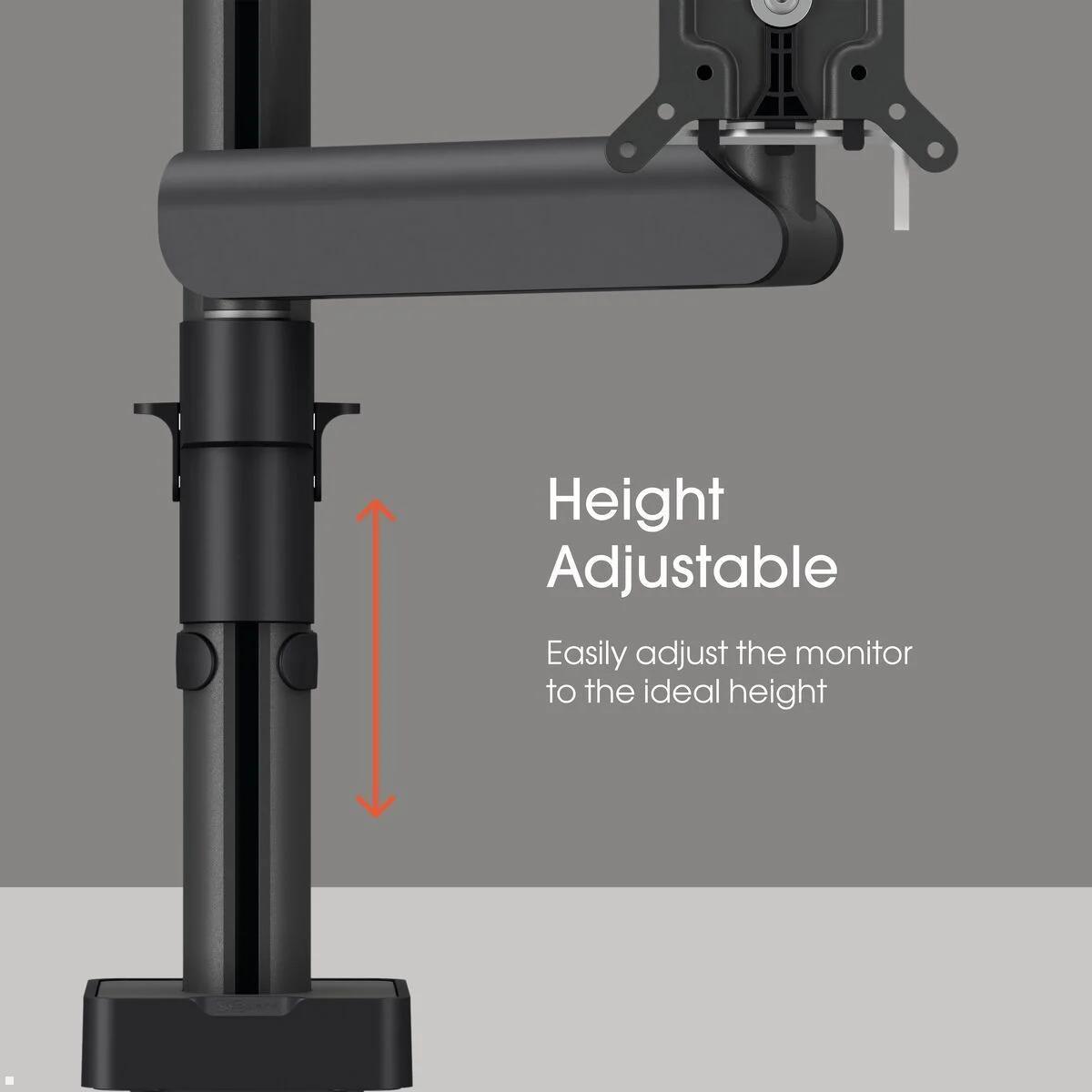

- Height adjustment: 250 mm (manual)
- Adjustable depth: Yes
- Maximum desk thickness: 66 mm
- Mounting: desk clamp or through-bolt installation
- Color: Black
- Warranty: 10 years
- Certifications: TÜV, IGR
| Product sheet: |  [pdf] |
|---|---|
| Technical drawing: | [pdf] |
| Others: | [pdf] |
| Installation manual: | [pdf] |
| Minimum weight: | 1 kg |
| Capacity: | 20 kg |
| Tilt: | -20°/+105° |
| Height range (mm): | 250 |
| Swivelling range: | 180° |
| Screen size: | 10" - 43" |
| Thickness of table (mm): | max. 66 mm |
| VESA Standard: | 50x50,75x75, 100x100 mm (www.vesa-standard.com) |
| Contains installation material: | + |
| Warranty: | 10 years |
| Manufacturer/Importer: | Vogel's Products BV, Hondsruglaan 93, 5628 DB Eindhoven, info.de@vogels.com |
| Inch size: | 14 inch, 15 inch, 17 inch, 18 inch, 19 inch, 20 inch, 21 inch, 22 inch, 23 inch, 24 inch, 25 inch, 26 inch, 27 inch, 28 inch, 29 inch, 30 inch, 31 inch, 32 inch, 33 Zoll, 34 inch, 35 inch, 37 inch, 38 inch, 40 inch, 42 inch, 43 inch |
| Mobility: | height adjustable , swivelling, tilting |
| Mounting type: | desk - clamp, desk - drill screw fastening |
| Multi-monitor mount: | 1 monitor |
| color: | Black |
| VESA (in mm): | 50 x 50, 75 x 75, 100 x 100 |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
Download area - catalogs, flyers, warranty conditions, ...
Questions & Answers
-
What monitors is the Vogels Motion MOMO 2137B suitable for?
Suitable for one monitor from 10 to 43 inches with a maximum load of 20 kg. VESA patterns supported: 50x50, 75x75 and 100x100 mm.
-
What range of movement does the arm offer?
It has 3 pivot points, can tilt from -20° to +105°, and swivel up to 180°.
-
How adjustable is height and depth?
Manual height adjustment of 250 mm and adjustable depth.
-
What mounting options are available?
Desk clamp or through-bolted mounting.
-
Is any additional tool required?

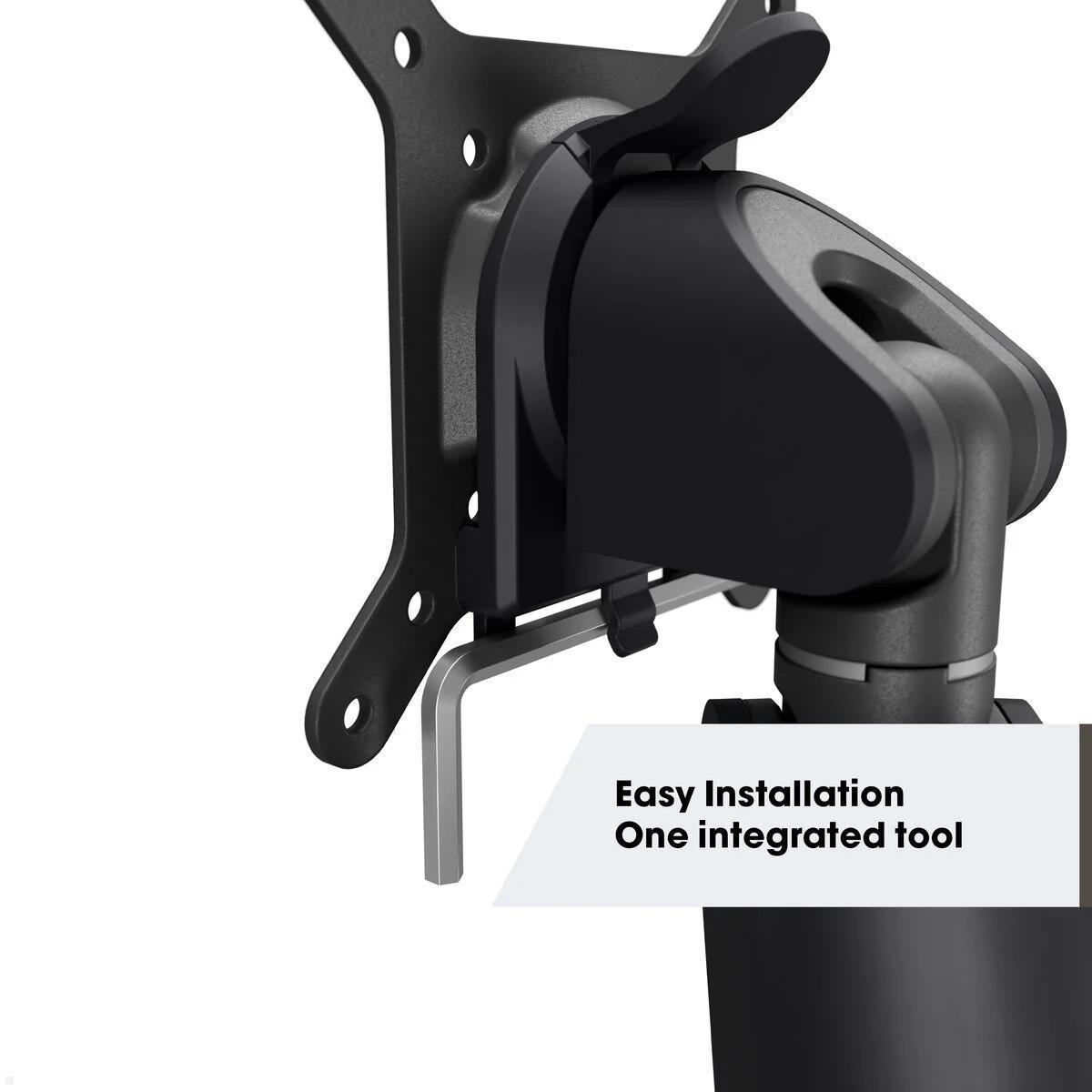

An integrated Allen key is included, so no extra tools are required.
-
Does it include cable management?
Yes, it features an integrated cable management system.
-
What is the warranty and certifications?
10-year warranty; certifications include TÜV and IGR.
-
Is it suitable for offices, home offices, schools and conference rooms?
Perfect for offices, home offices, schools and conference rooms.
Why is the Vogels MOMO 2137B the most flexible monitor arm of the MOMO Motion series?
Whoever seeks maximum freedom of movement at the workplace will find the Vogels Motion MOMO 2137B monitor desk mount, swivel, black the perfect solution. Three pivot points give the monitor arm exceptional flexibility that goes far beyond simple height adjustment. The screen can be adjusted steplessly in height, depth and tilt, with the extended tilt range of -20 to +105 degrees particularly noteworthy. The load capacity of 20 kg and compatibility with monitors from 10 to 43 inches make this swivel arm a universal solution for almost any screen on the market. The VESA mount supports the common hole patterns 50 x 50, 75 x 75 and 100 x 100 mm. Curved displays up to 10 kg are also held securely. Compared to models with one or two pivot points, the 2137 offers the greatest reach and positioning freedom.
How does the installation of the Vogels MOMO swivel arm differ from other mounts?

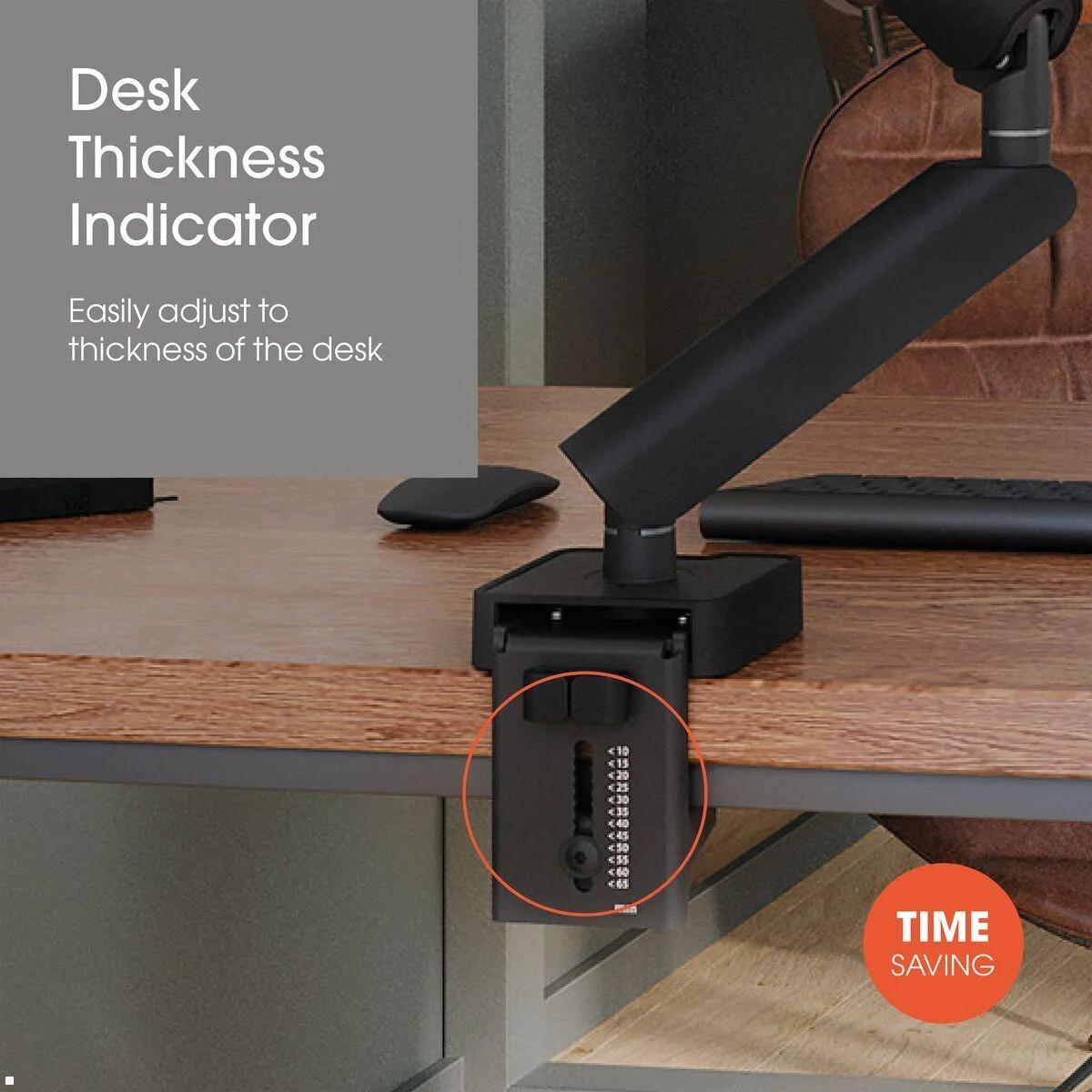

The installation of the MOMO 2137 is quick and requires no external tools. The included desk clamp supports two fastening variants: as a clamp on the desk edge or as a through-bolt fastening through the desktop. Desks up to a thickness of 66 mm are supported without problems. The integrated Allen key and the built-in weight indicator greatly simplify the initial setup. The desk thickness indicator helps with correct clamp adjustment. The entire assembly is done from above, which also makes the setup easier in confined conditions.
For which application areas is the three-joint MOMO display arm especially suitable?

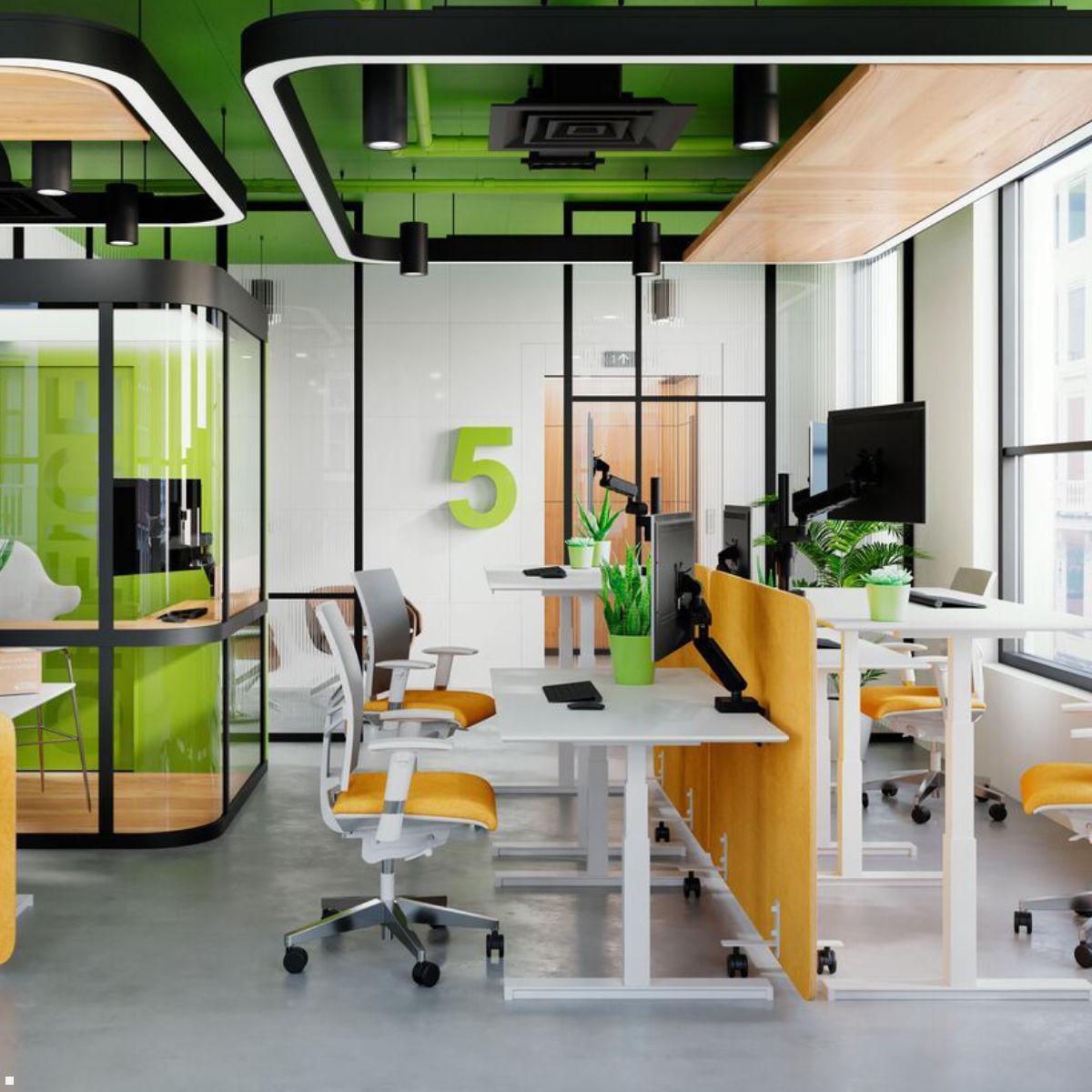

The three pivot points make the MOMO 2137 the ideal companion for dynamic work environments. In the office or home office, users benefit from the ability to reposition the monitor instantly between different working postures. At reception counters, the screen can be turned to the customer and then returned. In meeting rooms, the large swivel radius allows sharing content with multiple participants. The concealed cable management always ensures a tidy appearance. An integrated swivel stop reliably protects against cable breakage. As part of the modular MOMO system, the arm can be expanded at any time with additional components. TÜV and IGR certification guarantee the highest safety and ergonomic standards, confirmed by a 10-year manufacturer's warranty from Vogels.
