Vogels Motion MOMO 2137W Monitor desk mount swiveling, white
Highlights
- For 1 monitor, 10 - 43 inches
- Load capacity up to 20 kg
- 3 pivot points, adjustable depth
- TÜV and IGR certified
- 10 years manufacturer's warranty
Swivel monitor arm with 3 pivot points for maximum flexibility
The Vogels Motion MOMO 2137W monitor desk mount swivel, white (7121371) is the most versatile monitor arm of the MOMO Motion series. Thanks to 3 pivot points and the extended tilt range from -20° to +105°, the screen can be brought into almost any desired position. The mount supports monitors from 10 to 43 inches with a weight of up to 20 kg. Manual height adjustment over 250 mm and the adjustable depth allow individual adaptation to any working position.
This articulated arm for the desk is suitable for flat and curved displays up to 10 kg. The versatile desk clamp offers two mounting options: clamped to the desk or bolted through. An integrated Allen key makes additional tools unnecessary. The VESA-compatible screen mount supports the hole patterns 50 x 50, 75 x 75 and 100 x 100 mm. The swivel range of up to 180° together with the integrated cable management ensures a tidy and flexible workspace. Perfect for offices, home offices, schools and conference rooms.
Technical details Vogels MOMO swivel screen mount with articulated arm
- Suitable for 1 monitor from 10" to 43"
- Maximum load capacity: 20 kg
- Max. weight curved display: 10 kg
- VESA standard: 50 x 50, 75 x 75, 100 x 100 mm
- Tilt: -20° / +105°
- Swivel range: up to 180°
- Number of pivot points: 3

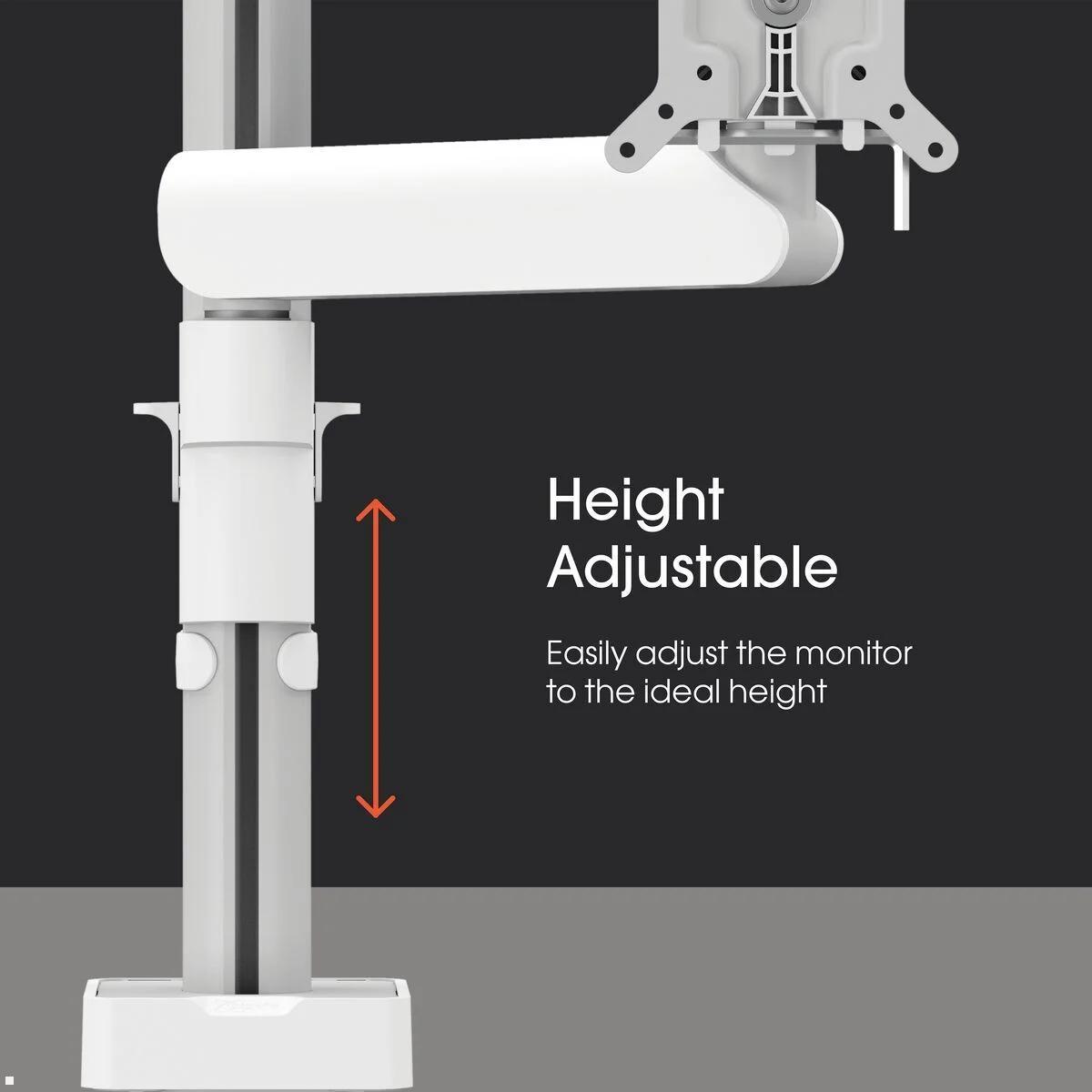

- Height adjustment: 250 mm (manual)
- Adjustable depth: Yes
- Maximum desk thickness: 66 mm
- Mounting: desk clamp or through-bolt mounting
- Color: White
- Warranty: 10 years
- Certifications: TÜV, IGR
| Product sheet: |  [pdf] |
|---|---|

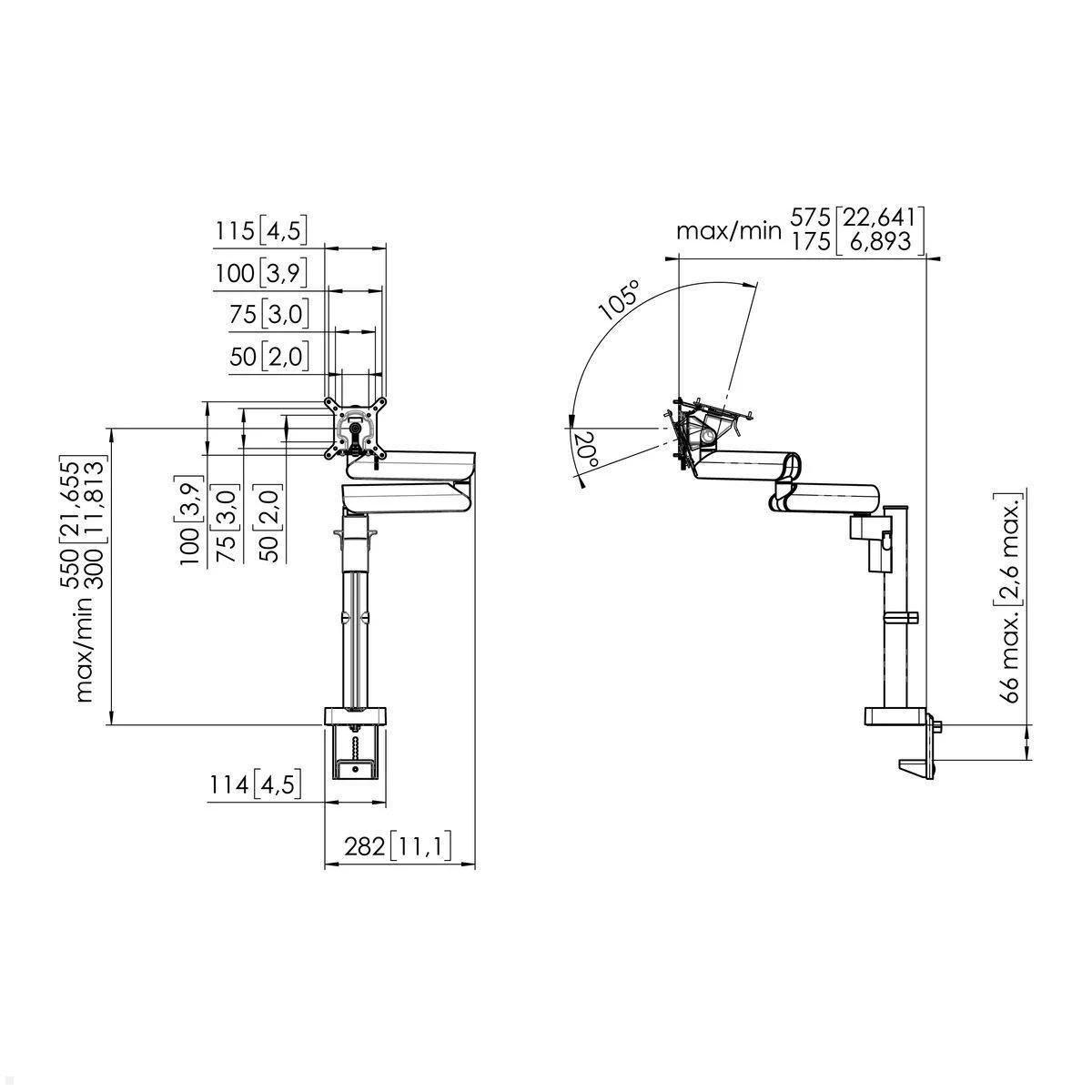

| Technical drawing: | [pdf] |
| Others: | [pdf] |
| Installation manual: | [pdf] |
| Minimum weight: | 1 kg |
| Capacity: | 20 kg |
| Tilt: | -20°/+105° |
| Height range (mm): | 250 |
| Swivelling range: | 180° |
| Screen size: | 10" - 43" |
| Thickness of table (mm): | max. 66 mm |
| VESA Standard: | 50x50,75x75, 100x100 mm (www.vesa-standard.com) |
| Contains installation material: | + |
| Warranty: | 10 years |
| Manufacturer/Importer: | Vogel's Products BV, Hondsruglaan 93, 5628 DB Eindhoven, info.de@vogels.com |
| Inch size: | 14 inch, 15 inch, 17 inch, 18 inch, 19 inch, 20 inch, 21 inch, 22 inch, 23 inch, 24 inch, 25 inch, 26 inch, 27 inch, 28 inch, 29 inch, 30 inch, 31 inch, 32 inch, 33 Zoll, 34 inch, 35 inch, 37 inch, 38 inch, 40 inch, 42 inch, 43 inch |
| Mobility: | height adjustable , swivelling, tilting |
| Mounting type: | desk - clamp, desk - drill screw fastening |
| Multi-monitor mount: | 1 monitor |
| color: | Weiß |
| VESA (in mm): | 50 x 50, 75 x 75, 100 x 100 |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
Download area - catalogs, flyers, warranty conditions, ...
Questions & Answers
-
What monitors is it suitable for?
Designed to support a single monitor from 10 to 43 inches, up to 20 kg; for curved displays the max weight is 10 kg.
-
What VESA patterns are supported?
VESA standards: 50 x 50, 75 x 75 and 100 x 100 mm.
-
What is the tilt and swivel range?
Tilt from -20° to +105°, swivel up to 180°.
-
How much height adjustment does it offer?
Manual height adjustment of 250 mm.
-
What mounting options are available?
Desk clamp or through-desk screw mounting; includes an integrated hex key, so no extra tools are needed.
-
What is the maximum desk thickness it can fit?
Max desk thickness 66 mm.
-
What color is it and what is the warranty?
Color: white. It comes with a 10-year warranty.
-
For which use cases is it ideal?
Perfect for offices, home offices, schools and conference rooms.
Why is the Vogels MOMO 2137W the most flexible monitor arm in the MOMO Motion series?
Anyone seeking maximum freedom of movement at the workplace will find the Vogels Motion MOMO 2137W swivel monitor desk mount, white, the perfect solution. Three pivot points give the monitor arm exceptional flexibility that goes far beyond simple height adjustment. The screen can be continuously adjusted in height, depth and tilt, with the extended tilt range of -20 to +105 degrees particularly noteworthy. The 20 kg load capacity and compatibility with monitors from 10 to 43 inches make this swivel arm a universal solution for almost any screen on the market. The VESA mount supports common hole patterns 50 x 50, 75 x 75 and 100 x 100 mm. Curved displays up to 10 kg are also securely supported. Compared to models with one or two pivot points, the 2137 offers the greatest reach and positioning freedom.
How does the installation of the Vogels MOMO swivel arm differ from other mounts?

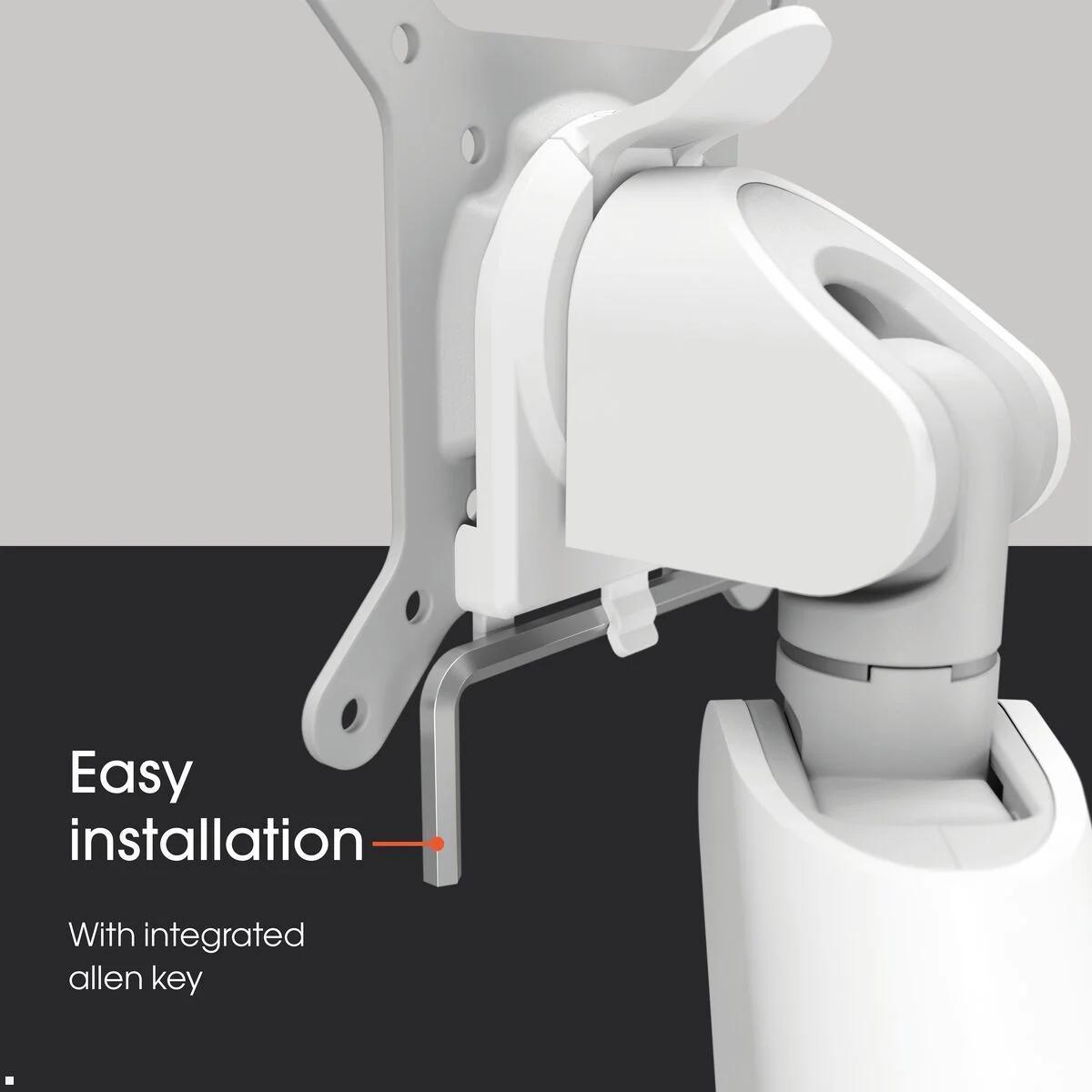

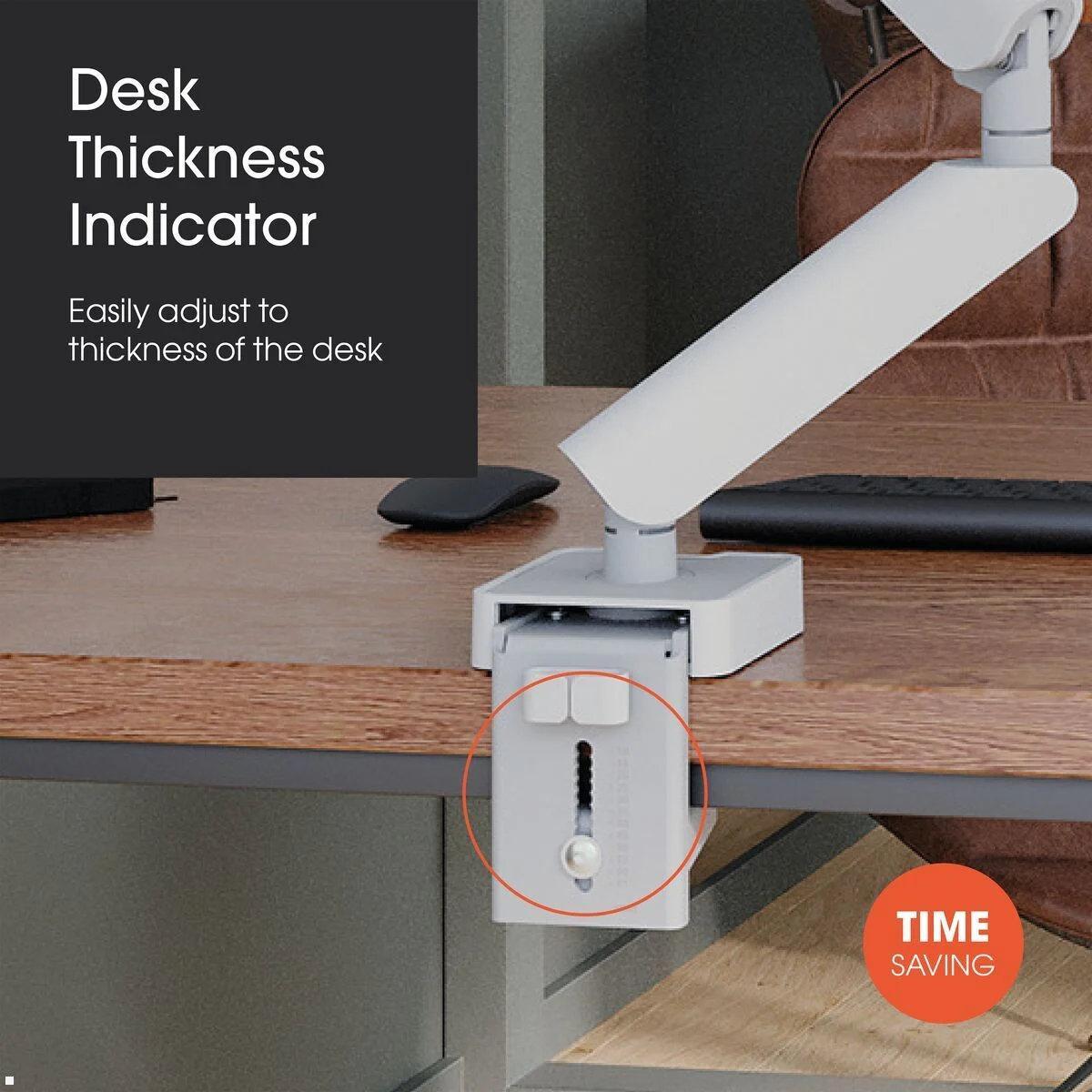

Installation of the MOMO 2137 is quick and requires no external tools. The supplied desk clamp supports two mounting options: clamping to the desk edge or through-bolt fastening through the desktop. Desks up to 66 mm thick are supported without problems. The integrated hex key and the built-in weight indicator greatly simplify initial setup. The desk thickness indicator helps ensure correct clamp adjustment. The entire assembly is performed from above, which also makes setup easier in confined spaces.
For which applications is the three-joint MOMO display arm particularly suitable?
The three pivot points make the MOMO 2137 an ideal companion for dynamic work environments. In the office or home office, users benefit from the ability to reposition the monitor instantly between different working postures. At reception counters, the screen can be turned toward the customer and then returned. In meeting rooms, the large swivel radius enables sharing content with multiple participants. The concealed cable management always ensures a tidy appearance. An integrated rotation stop reliably protects against cable breakage. As part of the modular MOMO system, the arm can be expanded at any time with additional components. TÜV and IGR certification guarantees the highest safety and ergonomic standards, confirmed by Vogels' 10-year manufacturer's warranty.
