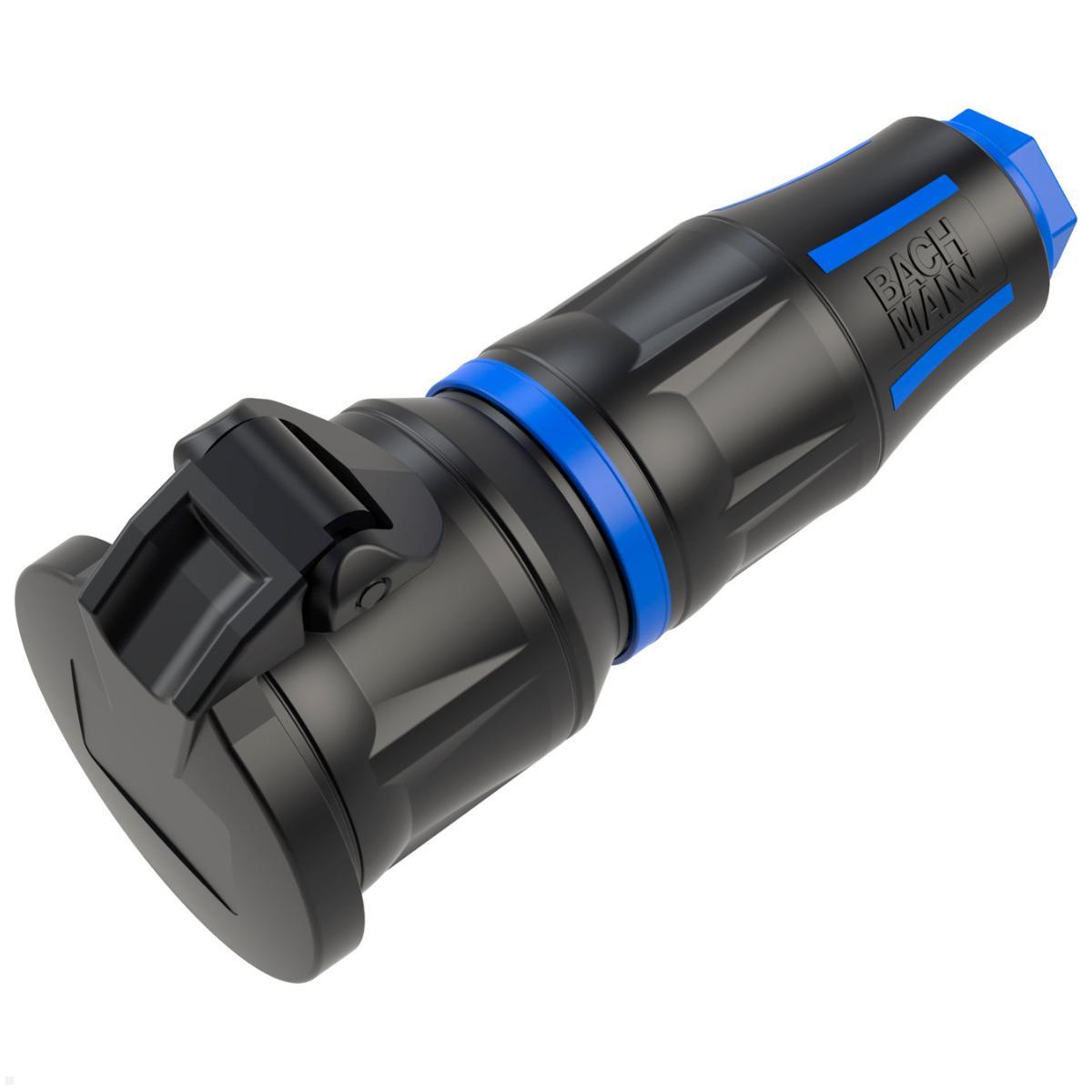

Bachmann Profi protective-contact coupling CEE7/3 with hinged cover, LED, rubberized (BM0017351)
The Bachmann protective-contact coupling BM0017351 with a flip cover and LED operating-voltage indicator offers maximum safety and durability for professional use. It is ideally suited for workshops, construction sites, and industrial applications and ensures reliable power connections even under demanding conditions.
Protective contact coupling BM0017351 – Robust connection technology for professional applications
The protective contact plugs and couplings from Bachmann stand for reliable quality and long-lasting safety in both professional and private use. Robust materials such as rubber or solid rubber provide high resistance to mechanical stress and harsh environmental conditions. Models with ingress protection rating IP54 offer additional protection against splashing water and are therefore also suitable for outdoor use. Thoughtful details such as lid straps, flip covers or integrated LED indicators increase operating comfort and make everyday use easier. The series includes both standard and professional versions, which are characterized by rubberized housings, screwless terminals or reinforced strain reliefs. This way Bachmann offers a wide range of solutions for safe and robust power connections that meet the various requirements in the workshop, on construction sites or at home.
Versatile applications and reliable technology of the BM0017351
The Bachmann protective contact coupling BM0017351 with flip cover is a high-quality connection solution designed for professional use in workshops, on construction sites and in industrial environments. With its robust rubber housing, modern design and well-thought-out ergonomics, it provides a reliable and durable solution for power supply.
Technical details Bachmann mounting coupling
- Mounting coupling with flip cover
- Integrated LED operating voltage indicator
- Incl. bend protection

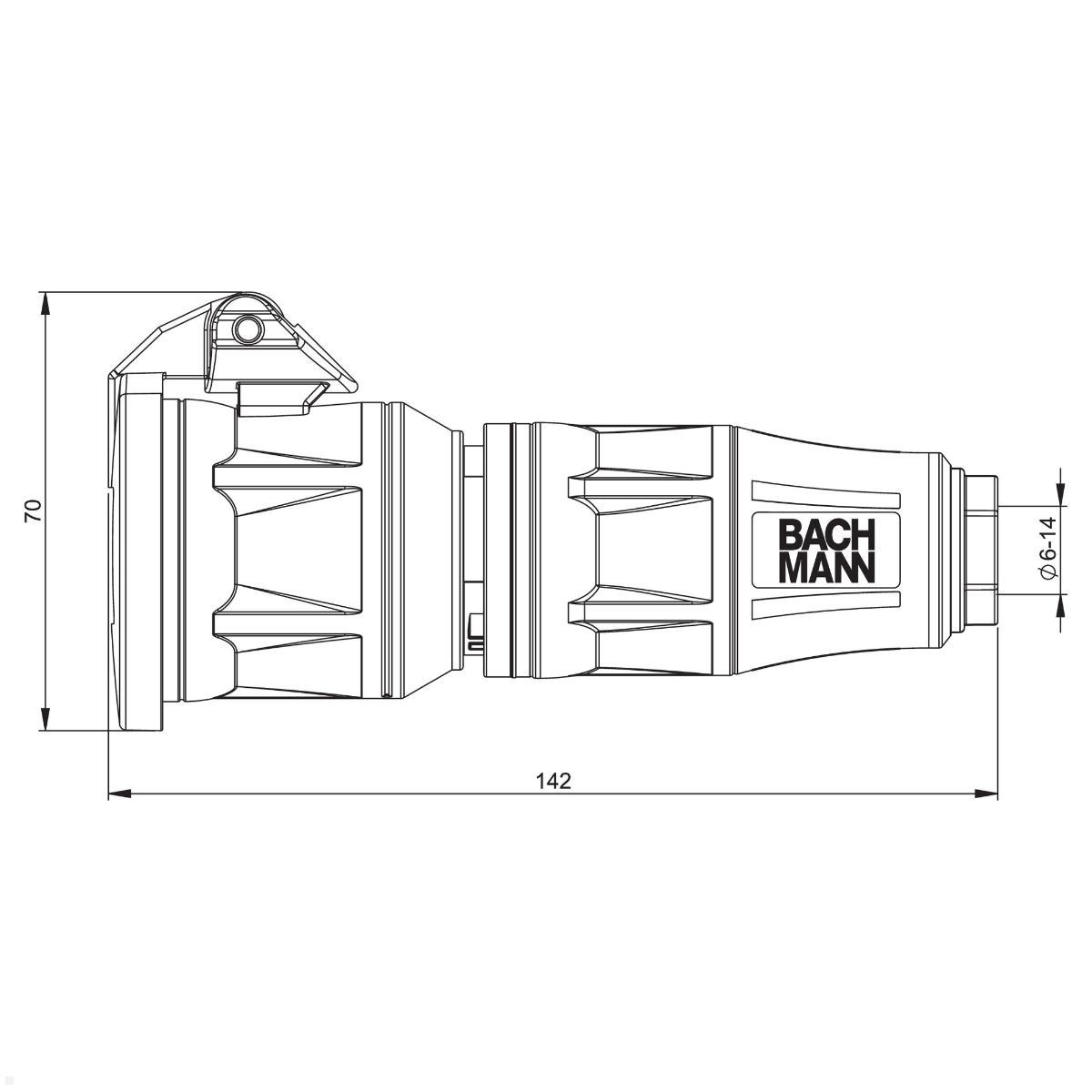

- Length: 142 mm
- Diameter: 70 mm
- Version: Coupling CEE 7/3 (Type F)
- Material: Plastic
- Material quality: Polyamide (PA)
- Rubberized surface for optimal feel and grip
- Ingress protection (IP): IP54 dust- and splash-protected
- Plug direction: straight
- Connection technology: screw terminal
- Color: Black / Blue
- Number of poles: 3
- Rated voltage: 250.00 V
- Rated current: 16.00 A
- For "severe conditions" according to VDE: yes
- Cables up to 2.5 mm²
- External strain relief
- Without enhanced touch protection
- Connection only by a qualified professional
| Product sheet: |  [pdf] |
|---|---|
| Technical drawing: | [pdf] |
| RoHS / REACH: | [pdf] |
| Installation manual: | [pdf] |
| Warning/safety instructions: | [pdf] |
| Contains installation material: | + |
| Manufacturer/Importer: | Bachmann GmbH, Ernsthaldenstr. 33, 70565 Stuttgart, info@bachmann.com |
| Number of sockets: | 1 |
| color: | black/blue |
| Land: | Germany |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
Download area - catalogs, flyers, warranty conditions, ...
Protective-contact Coupler BM0017351 – Robust Connection Technology for Professional Applications
The protective-contact coupler BM0017351 from Bachmann was specially developed for professional use and impresses with its high quality, safety and durability. Whether in the workshop, on construction sites or in industrial environments – this coupler offers reliable connection technology that works safely even under demanding conditions. Thanks to robust materials, thoughtful details and innovative technology, the BM0017351 is the ideal solution for those who value professional power supply. The housing of the BM0017351 is made of high-quality plastic (polyamide PA) with a rubberized surface. This not only provides a pleasant feel but also a secure grip, even under adverse conditions or with wet hands. The coupler is rated IP54 — dust and splash protected and is therefore also suitable for temporary outdoor use. Its construction meets the requirements for “harsh conditions” according to VDE and makes it particularly resistant to mechanical stresses. With a length of 142 mm, a diameter of 70 mm and a straight plug orientation, it remains compact yet robust enough for intensive continuous use.
Practical Details for Greater Safety and Comfort
A special highlight of the protective-contact coupler BM0017350 is the integrated LED operating-voltage indicator. This reliably indicates whether voltage is present, thus increasing safety and user comfort in daily use. In addition, the coupler features a flip cover that reliably protects the protective contact from dust and dirt, as well as a sturdy anti-kink protection that significantly extends the service life of the connected cables. The externally mounted cable strain relief ensures that a secure connection is maintained even under stronger tension on the cable. This makes the BM0017351 optimally tailored to the high demands of professional use.
Technical Specifications of the BM0017351
The coupler is designed as CEE 7/3 (Type F) and compatible with protective-contact plugs CEE 7/7. It is suitable for a rated voltage of 250 V and a rated current of 16 A. Connection is made via a proven screw terminal designed for conductors up to 2.5 mm² cross-section. Important note: Electrical connection may only be carried out by a qualified professional to ensure safe operation in the long term. The protective-contact coupler BM0017351 is universally applicable and meets the high demands of craftsmen, industrial users and ambitious DIY enthusiasts alike. On construction sites it demonstrates its strengths through robustness and resilience, in workshops it convinces with ergonomic handling and in private settings it provides a safe and durable power supply. Thanks to the combination of robust technology, modern equipment and additional safety features such as the LED operating-voltage indicator, the BM0017351 clearly stands out from standard solutions and offers real added value in everyday use.
