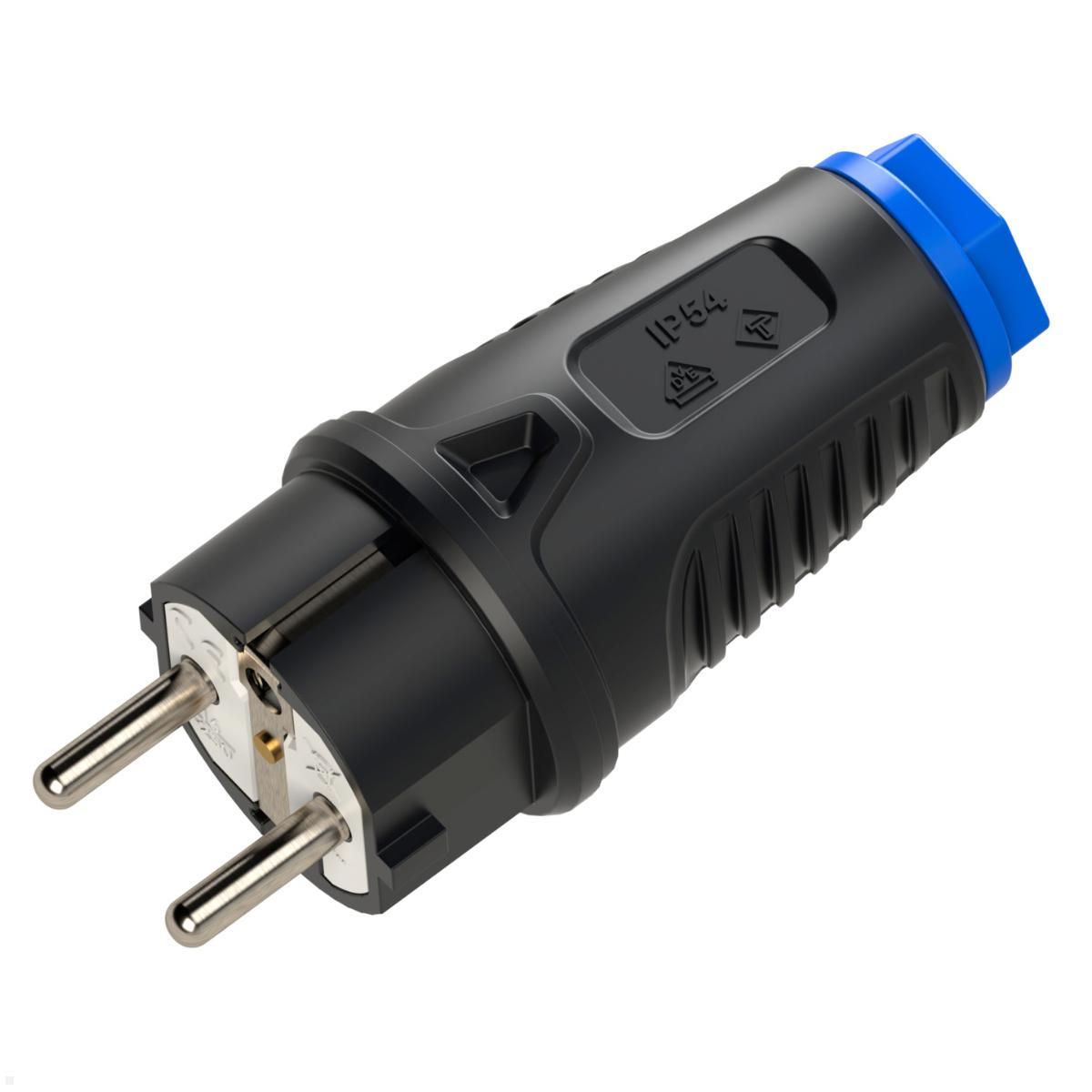

Bachmann protective contact plug CEE7/7, rubber (BM0017342)
The Bachmann BM0017342 protective contact coupling offers reliable power connections thanks to its robust rubber housing and integrated strain relief. Perfect for professional use in workshops, on construction sites, or in industrial applications. Durable, safe, and easy to handle.
Robust safety plug BM0017342 for professional use
Bachmann safety plugs and couplings stand for reliable quality and long-lasting safety in both professional and private use. Robust materials such as rubber or solid rubber ensure high resistance to mechanical stress and harsh environmental conditions. Models with IP44 protection offer additional protection against splash water and are therefore also suitable for outdoor use. Well-thought-out details such as cover strips, hinged lids, or integrated LED indicators increase ease of use and simplify everyday use. The series includes both standard and professional versions, featuring rubberized housings, screwless connectors, and reinforced strain relief. Bachmann thus offers a wide range of solutions for secure and robust power connections that meet the diverse requirements of workshops, construction sites, and households.
Versatile applications and reliable technology of the BM0017342
The Bachmann BM0017342 safety plug is the ideal choice for anyone looking for a reliable, durable, and versatile connector. With its robust construction and sophisticated ergonomics, it is suitable for professional use in workshops, on construction sites, and in industry, as well as for the demanding DIY enthusiast.
Technical Details Bachmann Mounting Plug
- CEE7/7 safety plug
- Incl. Anti-kink protection
- Length: 102 mm
- Diameter: 42 mm
- Design: Hybrid plug CEE 7/7 (Type E/F)
- Material: Rubber
- Material grade: Thermoplastic
- Protection class (IP): IP54 dust and splash-proof
- Plug direction: straight
- Connection technology: screw terminal
- Color: Black / Blue
- Number of poles: 3
- Nominal voltage: 250.00 V
- Nominal current: 16.00 A
- Protective contact: End clips
- For "heavy VDE conditions: yes
- Cables up to 2.5 mm²
- Internal strain relief
- Without increased contact protection
- Connection only by a qualified specialist
[pdf]
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
Download area - catalogs, flyers, warranty conditions, ...
Robust protective contact coupling for professional applications
The Bachmann protective contact coupling BM0017342 is a high-quality connection solution specially developed for professional use in workshops, on construction sites, and in industrial environments. The housing is made of durable rubber that can withstand mechanical stress and daily wear and tear. At the same time, the integrated strain relief effectively protects cables and connectors, while the kink protection prevents damage from frequent bending.
Ergonomic design for comfortable handling
The sophisticated design of the BM0017342 allows for easy plugging and unplugging, even when wearing gloves. The compact design ensures space-saving integration into any work environment. The coupling thus combines robustness with high user-friendliness and comfortable handling – a decisive advantage for professional users. The BM0017342 offers a rated voltage of 250V and a rated current of 16A, making it suitable for a wide range of applications. It has three poles (2P + E) and is designed for cables up to 2.5 mm². These specifications guarantee a safe and reliable power supply in demanding applications. The coupling complies with the strict VDE and KEMA-KEUR certifications, which ensure the highest safety and quality standards. With protection class IP20, it offers reliable protection against solid foreign bodies from 12.5 mm and is ideal for indoor use.
Versatile applications for workshops, construction sites, and industry
The BM0017342 is versatile and provides reliable power connections at all times. It is suitable for professional tradespeople, industrial applications, or ambitious DIY enthusiasts who rely on durable and secure plug connections. Whether in workshops, on construction sites, or in production halls – the coupling meets all requirements. Thanks to robust materials and high-quality workmanship, the BM0017342 is extremely durable and resistant to wear, dirt, and mechanical stress. Easy cleaning ensures that the coupling remains reliably ready for use for years. The Bachmann BM0017342 protective contact coupling thus stands for quality, safety, and durability. It combines robust materials, high technical standards, and ergonomic design in a product that meets the requirements of professional users. If you're looking for a reliable, professional power connection, the BM0017342 is the right choice.
