Bachmann professional protective contact coupling CEE7/3, cover strip, LED, rubberized (BM0017350)
The Bachmann BM0017350 protective contact coupling with cover strip and LED operating voltage indicator offers maximum safety and durability for professional use. It is ideal for workshops, construction sites, and industrial applications and ensures reliable power connections even under difficult conditions.
Safety contact coupling BM0017350 – Robust connection technology for professional applications
Bachmann's safety contact plugs and couplings stand for reliable quality and long-lasting safety in both professional and private applications. Robust materials such as rubber or solid rubber ensure high resistance to mechanical stress and harsh environmental conditions. Models with IP44 protection offer additional protection against splash water and are therefore also suitable for outdoor use. Well-thought-out details such as cover strips, hinged lids, or integrated LED displays increase ease of use and simplify everyday use. The series includes both standard and professional versions, featuring rubberized housings, screwless connectors, and reinforced strain relief. Bachmann thus offers a wide range of solutions for secure and robust power connections that meet the diverse requirements of workshops, construction sites, and households.
Versatile Applications and Reliable Technology of the BM0017350
The Bachmann BM0017350 protective contact coupling with cover strip is a high-quality connection solution designed for professional use in workshops, on construction sites, and in industrial environments. With its robust rubber housing, modern design, and sophisticated ergonomics, it offers a reliable and durable power supply solution.
Technical Details Bachmann Mounting Coupling
- CEE7/7 safety plug
- Mounting coupling with cover strip
- Integrated LED operating voltage indicator
- Incl. Anti-kink protection

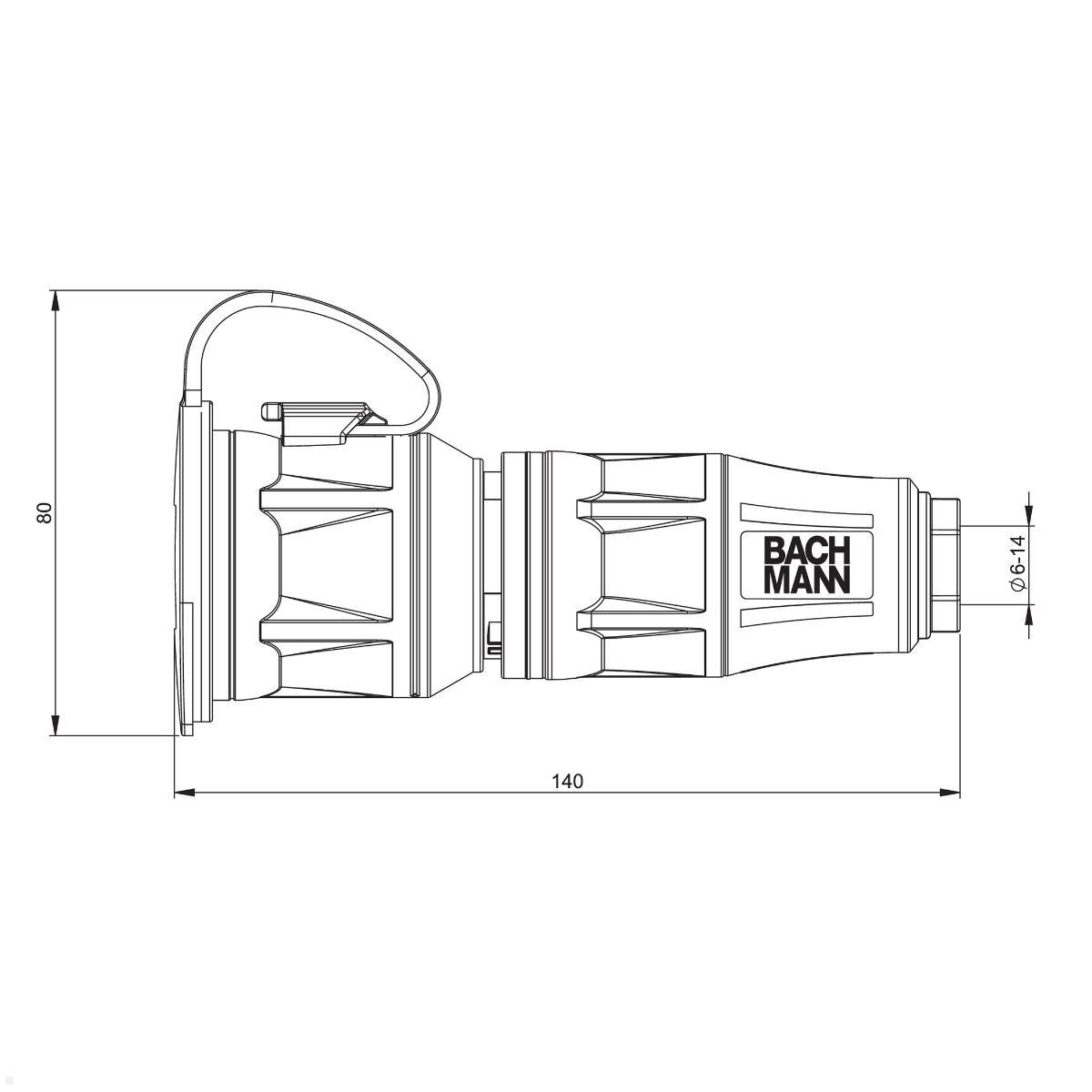

- Length: 140 mm
- Diameter: 80 mm
- Design: CEE 7/3 (Type F) coupling
- Material: Plastic
- Material grade: Polyamide (PA)
- Rubberized surface for optimal feel and grip
- Protection class (IP): IP54 dust and splash-proof
- Plug direction: straight
- Connection technology: screw terminal
- Color: Black / Blue
- Number of poles: 3
- Nominal voltage: 250.00 V
- Rated current: 16.00 A
- Protective contact: End clips
- For "heavy conditions" according to VDE: yes
- Cables up to 2.5 mm²
- External strain relief
- Without increased contact protection
- Connection only by a qualified specialist
| Product sheet: |  [pdf] |
|---|---|
| Technical drawing: | [pdf] |
| RoHS / REACH: | [pdf] |
| Installation manual: | [pdf] |
| Warning/safety instructions: | [pdf] |
| Contains installation material: | + |
| Manufacturer/Importer: | Bachmann GmbH, Ernsthaldenstr. 33, 70565 Stuttgart, info@bachmann.com |
| Number of sockets: | 1 |
| color: | black/blue |
| Land: | Germany |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
Download area - catalogs, flyers, warranty conditions, ...
BM0017350 Protective Contact Coupling - Robust Connection Technology for Professional Applications
The BM0017350 protective contact coupling from Bachmann was specially developed for professional use and impresses with its high quality, safety, and durability. Whether in the workshop, on construction sites, or in industrial environments, this coupling offers reliable connection technology that functions reliably even under difficult conditions. Thanks to robust materials, sophisticated details, and innovative technology, the BM0017350 is the ideal solution for anyone who values professional power supplies. The housing of the BM0017350 is made of high-quality plastic (polyamide PA) with a rubberized surface. This not only ensures a pleasant feel, but also a secure grip, even under adverse conditions or with wet hands. The coupling is dust and splash-proof according to protection class IP54, making it suitable for temporary outdoor use. Its design meets the requirements for "heavy conditions" according to VDE and makes it particularly resistant to mechanical stress. With a length of 140 mm, a diameter of 80 mm, and a straight plug-in direction, it remains compact yet robust enough for intensive, continuous use.
Practical details for greater safety and convenience
A special highlight of the BM0017350 protective contact coupling is the integrated LED operating voltage indicator. This reliably indicates whether voltage is present, thus increasing safety and ease of use in daily use. In addition, the coupling features a cover strip that reliably protects the protective contact from dust and dirt, as well as a sturdy anti-kink protection that significantly extends the service life of the connected cables. The external strain relief ensures a secure connection even under heavy strain on the cable. This makes the BM0017350 optimally tailored to the high demands of professional use.
Technical Features of the BM0017350
The coupling is designed as a CEE 7/3 (Type F) and compatible with CEE 7/7 safety plugs. It is suitable for a rated voltage of 250 V and a rated current of 16 A. The connection is made via a proven screw terminal designed for cables with a cross-section of up to 2.5 mm². Important note: The electrical connection must only be performed by a qualified specialist to ensure long-term operational safety. The BM0017350 protective contact coupling is universally applicable and meets the high demands of tradespeople, industrial users, and ambitious DIY enthusiasts alike. It demonstrates its strengths on construction sites through its robustness and durability, impresses in workshops with its ergonomic handling, and ensures a safe and long-lasting power supply in private homes. Thanks to the combination of robust technology, modern equipment, and additional safety features such as the LED operating voltage indicator, the BM0017350 clearly stands out from standard solutions and offers real added value in everyday use.
