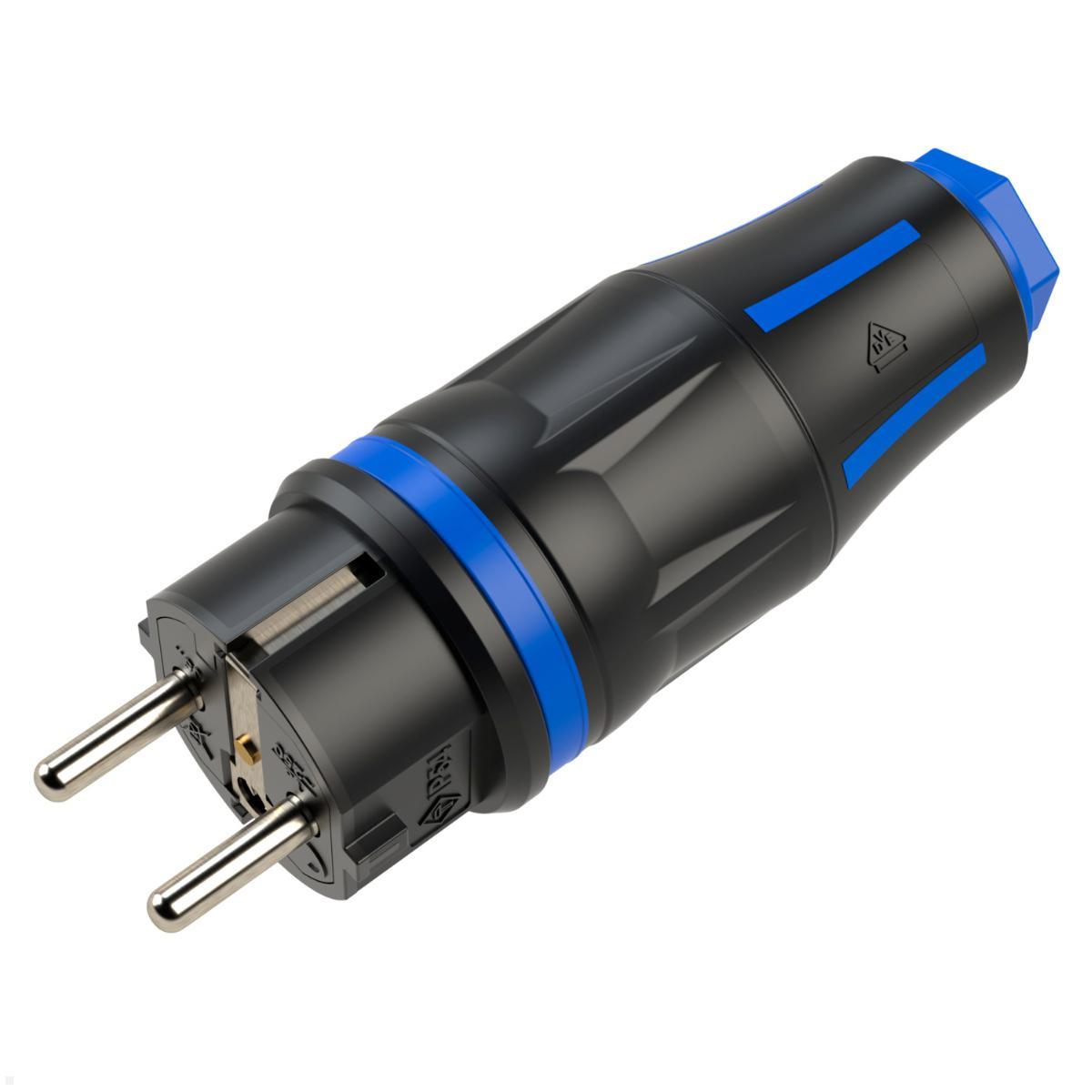

Bachmann professional protective contact plug CEE7/7, rubberized (BM0017347)
The Bachmann BM0017347 safety plug offers reliable and durable power connections for professional applications. With its robust, rubberized housing and ergonomic design, it is suitable for workshops, construction sites, and industrial applications. Thanks to IP54 protection, it is also dust and splash-proof.
Robust safety plug BM0017347 for professional use
Bachmann safety plugs and couplings stand for reliable quality and long-lasting safety in both professional and private use. Robust materials such as rubber or solid rubber ensure high resistance to mechanical stress and harsh environmental conditions. Models with IP44 protection offer additional protection against splash water and are therefore also suitable for outdoor use. Well-thought-out details such as cover strips, hinged lids, or integrated LED indicators increase ease of use and simplify everyday use. The series includes both standard and professional versions, featuring rubberized housings, screwless connectors, and reinforced strain relief. Bachmann thus offers a wide range of solutions for secure and robust power connections that meet the diverse requirements of workshops, construction sites, and households.
Versatile applications and reliable technology of the BM0017347
The Bachmann BM0017347 safety plug is the ideal choice for anyone looking for a reliable, durable, and versatile connector. With its robust construction and sophisticated ergonomics, it is suitable for professional use in workshops, on construction sites, and in industry, as well as for the discerning DIY enthusiast.
Technical Details Bachmann Mounting Plug / Professional Earthing Contact Plug
- Earthing Contact Plug CEE7/7
- Incl. Anti-kink protection

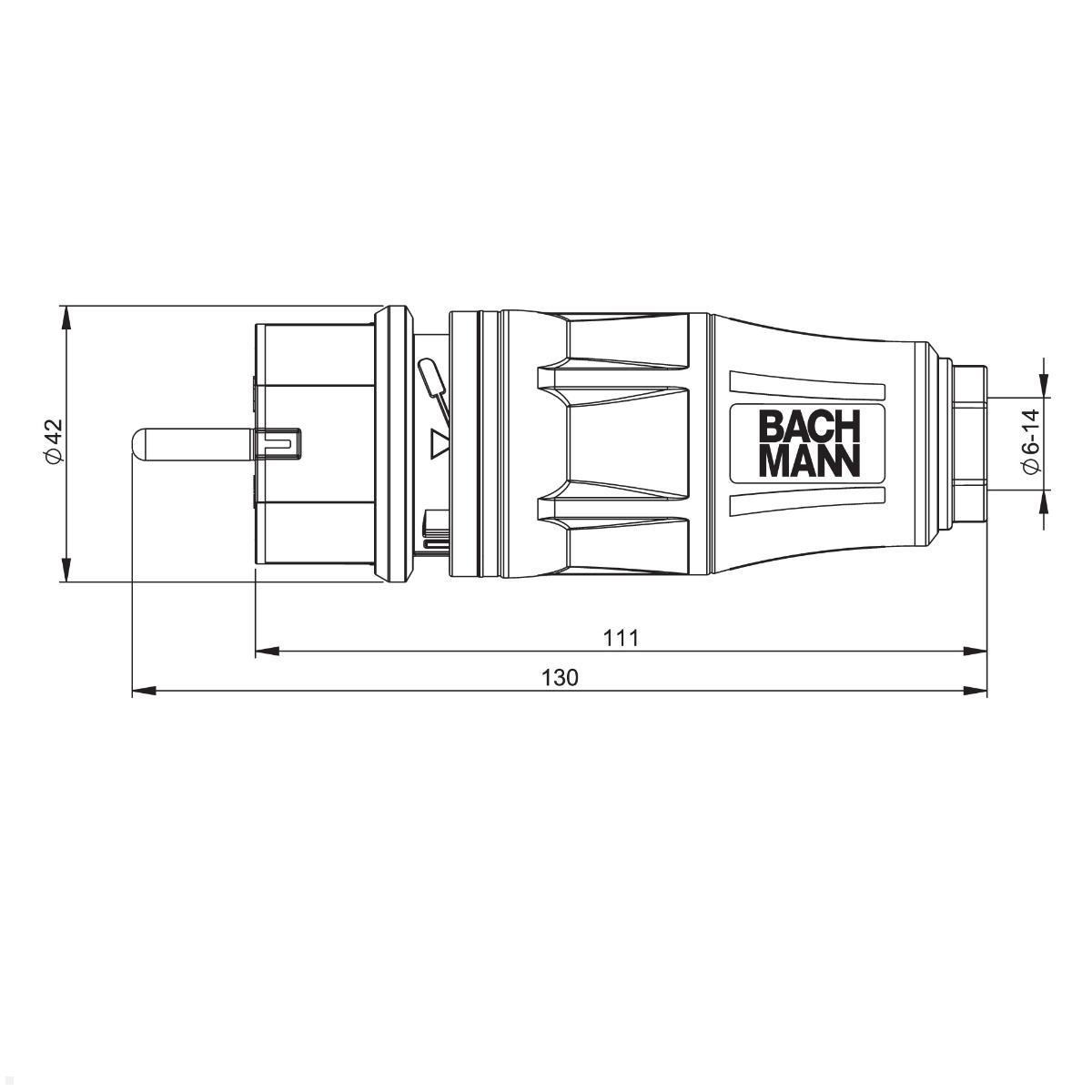

- Length: 130 mm
- Diameter: 42 mm
- Design: CEE 7/7 hybrid plug (Type E/F)
- Material: Plastic
- Rubberized surface for optimal feel and grip
- Protection class (IP): IP54 dust and splash-proof
- Connection direction: straight
- Connection technology: screw terminal
- Without housing screw (quick-release)
- Color: Black / Blue
- Number of poles: 3
- Nominal voltage: 250.00 V
- Nominal current: 16.00 A
- Protective contact: End clips
- For "heavy conditions" according to VDE: yes
- Cables up to 2.5 mm²
- Without increased contact protection
- Connection only by a qualified specialist
[pdf]
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
Download area - catalogs, flyers, warranty conditions, ...
Safety plug BM0017347 - Reliable solution for heavy-duty use
The Bachmann safety plug BM0017347 was developed to ensure a safe and long-lasting power supply, even in demanding work environments. With its rubberized surface, practical quick-release technology, and robust construction, it is an excellent choice for both commercial use and ambitious DIY enthusiasts.
Material Quality and Durability
In contrast to traditional solid rubber versions, the BM0017347 uses high-quality plastic with a rubberized surface. This combination ensures a pleasant feel, a secure grip, and resistance to mechanical stress. The robust construction meets the requirements for use under harsh conditions according to VDE. Thanks to its IP54 protection rating, the plug is also dust and splash-proof. This makes it suitable not only for dry indoor environments, but also for damp or dirty environments – ideal for construction sites, use in workshops, or for mobile outdoor applications.
Practical technology for everyday use
The BM0017347 is designed as a CEE 7/7 (Type E/F) hybrid plug and is therefore compatible with standard European sockets. With a 250 V rated voltage and 16 A rated current, it offers the performance required for everyday professional use. A key feature is the screwless housing design with quick-release fastener. This allows the connector to be installed quickly and easily without the need for additional housing screws. The screw terminal connection technology nevertheless ensures a secure and stable cable connection.
Protective functions for high operational reliability
Cable protection is particularly crucial in professional environments. The connector features an integrated kink protection system that reliably prevents cable breaks in the transition area. It is suitable for cables up to 2.5 mm², enabling flexible use in a variety of applications. The combination of internal strain relief and robust housing construction ensures that no impairment occurs even with frequent reconnection or under load. This makes the BM0017347 a durable and secure solution for daily use.
Compact dimensions and functional design
With a length of 130 mm and a diameter of 42 mm, the connector is handy yet robustly constructed. The straight plug-in direction enables uncomplicated use. The black and blue color scheme facilitates visual identification in the work environment and underscores the professional character. The rubberized surface not only increases robustness but also improves grip – An advantage when the plug is used with gloves or under adverse conditions.
The BM0017347 safety plug is universally applicable:
- On construction sites for machines, tools, and extension cables
- In workshops for devices in continuous use
- Outdoors thanks to splash-proof design
- For DIY enthusiasts with high demands on quality and durability
Key product highlights at a glance
- Hybrid plug CEE 7/7 (Type E/F)
- Plastic housing with rubberized surface for better grip
- IP54 protection: dust and splash-proof
- Screw terminal connection with quick-release housing
- Kink protection and internal strain relief
- Dimensions: 130 mm length, 42 mm diameter
- Suitable for cables up to 2.5 mm²
- 250 V nominal voltage / 16 A nominal current
The Bachmann BM0017347 safety plug combines robustness, user-friendliness, and safety in a compact design. Its rubberized surface ensures optimal handling, while the quick-release technology simplifies installation. With IP54 protection, integrated kink protection, and durable construction, it's the ideal solution for anyone looking for a reliable connector.for everyday professional use or demanding DIY projects.
