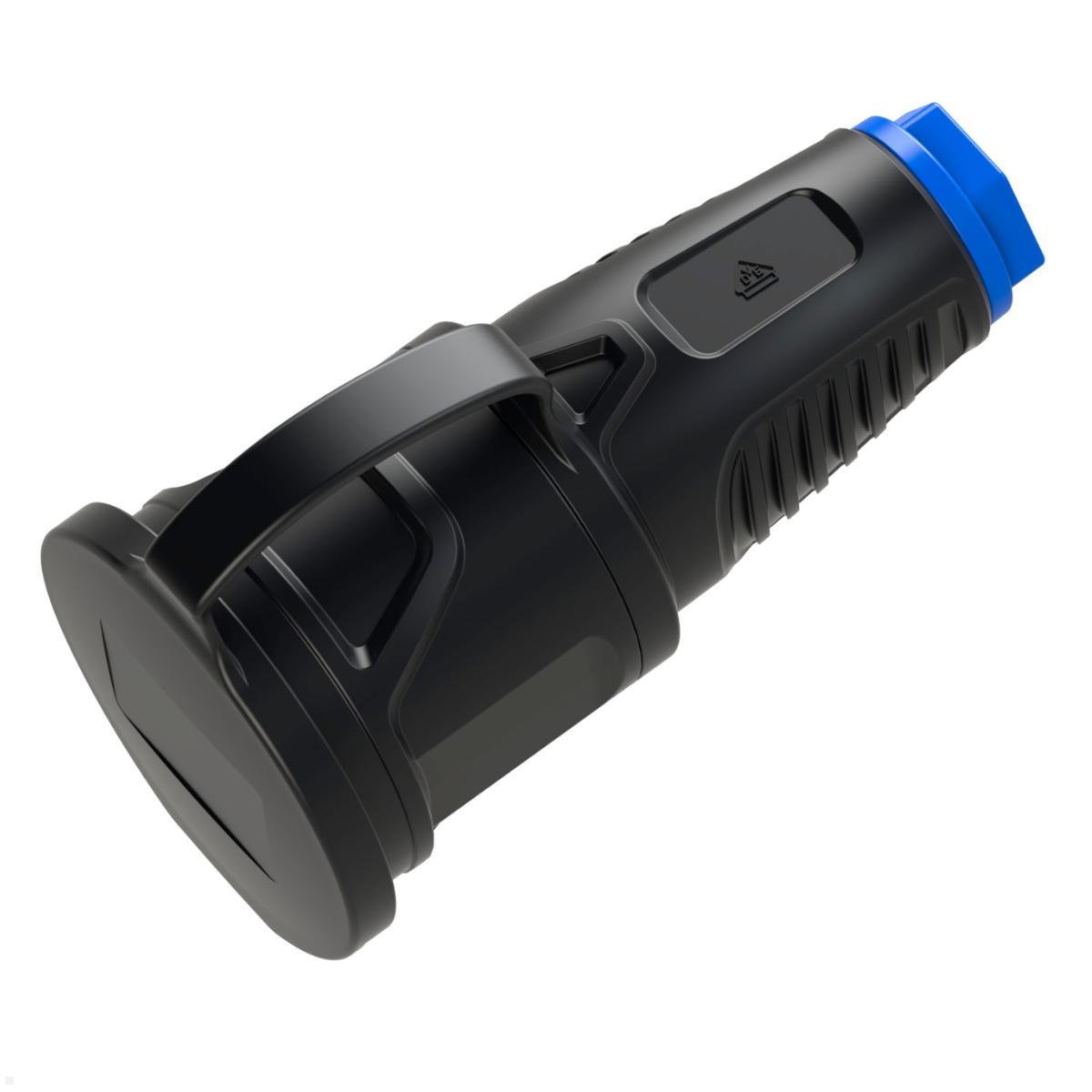

Bachmann protective contact coupling CEE7/3 with cover strip, solid rubber (BM0017346)
The Bachmann BM0017346 protective contact coupling impresses with its robust solid rubber housing and practical cover strip for secure protection. It offers durable and reliable power connections for workshops, construction sites, and industrial applications. Thanks to IP54 protection, it is also suitable for outdoor use.
Safety contact coupling BM0017346 – Robust connection technology for professional applications
Bachmann's safety contact plugs and couplings stand for reliable quality and long-lasting safety in both professional and private applications. Robust materials such as rubber or solid rubber ensure high resistance to mechanical stress and harsh environmental conditions. Models with IP44 protection offer additional protection against splash water and are therefore also suitable for outdoor use. Well-thought-out details such as cover strips, hinged lids, or integrated LED displays increase ease of use and simplify everyday use. The series includes both standard and professional versions, featuring rubberized housings, screwless connectors, and reinforced strain relief. Bachmann thus offers a wide range of solutions for secure and robust power connections that meet the diverse requirements of workshops, construction sites, and households.
Versatile Applications and Reliable Technology of the BM0017346
The Bachmann BM0017346 protective contact coupling with cover strip is a high-quality connection solution designed for professional use in workshops, on construction sites, and in industrial environments. With its robust rubber housing, modern design, and sophisticated ergonomics, it offers a reliable and durable power supply solution.
Technical Details Bachmann Mounting Coupling
- CEE7/7 safety plug
- Mounting coupling with cover strip
- Incl. Anti-kink protection
- Length: 112 mm
- Diameter: 72 mm
- Design: CEE 7/3 (Type F) coupling
- Material: Solid rubber
- Material grade: Thermoplastic
- Protection class (IP): IP54 dust and splash-proof
- Plug direction: straight
- Connection technology: screw terminal
- Color: Black / Blue
- Number of poles: 3
- Nominal voltage: 250.00 V
- Nominal current: 16.00 A
- Protective contact: End clips
- For "Heavy conditions" according to VDE: yes
- Cables up to 2.5 mm²
- Internal strain relief
- Without increased contact protection
- Connection only by a qualified specialist
| Product sheet: |  [pdf] |
|---|---|
| Technical drawing: | [pdf] |
| RoHS / REACH: | [pdf] |
| Installation manual: | [pdf] |
| Warning/safety instructions: | [pdf] |
| Contains installation material: | + |
| Manufacturer/Importer: | Bachmann GmbH, Ernsthaldenstr. 33, 70565 Stuttgart, info@bachmann.com |
| Number of sockets: | 1 |
| color: | black/blue |
| Land: | Germany |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
Download area - catalogs, flyers, warranty conditions, ...
Safety Contact Coupling BM0017346 - Robust Connection Technology
The Bachmann Safety Contact Coupling BM0017346 was specially developed for professional use in workshops, on construction sites, and in industry. With its robust solid rubber housing, sophisticated design, and integrated cover strip, it meets the highest requirements for safety, stability, and durability. This makes it the ideal solution for anyone who needs a reliable power connection, even under difficult conditions.
Robust construction for tough use
The housing of the BM0017346 is made of solid rubber and thermoplastic, making it particularly resistant to mechanical influences such as pressure, impact, and harsh environments. With an IP54 protection rating, the connector also offers protection against dust and splash water. This makes it suitable not only for indoor use, but also for outdoor use or in humid environments. The integrated cover strip ensures that the hinged cover always remains securely closed, protecting the plug contacts from dirt and moisture. This design significantly increases the service life and supports long-term, reliable operation.
Sophisticated technology for secure connections
The CEE 7/3 (Type F) coupling is compatible with all common earthing contact plugs. With a rated voltage of 250 V and a rated current of 16 A, it meets the common standards for professional use. Thanks to the screw terminal connection technology, the coupling can be wired easily and safely. An internal strain relief reliably protects the connected cables from damage caused by pulling or pushing. In addition, the integrated kink protection prevents damage to the cable in the transition area. This combination of protective mechanisms ensures a permanently secure power supply, even during intensive use.
Practical design and ergonomic handling

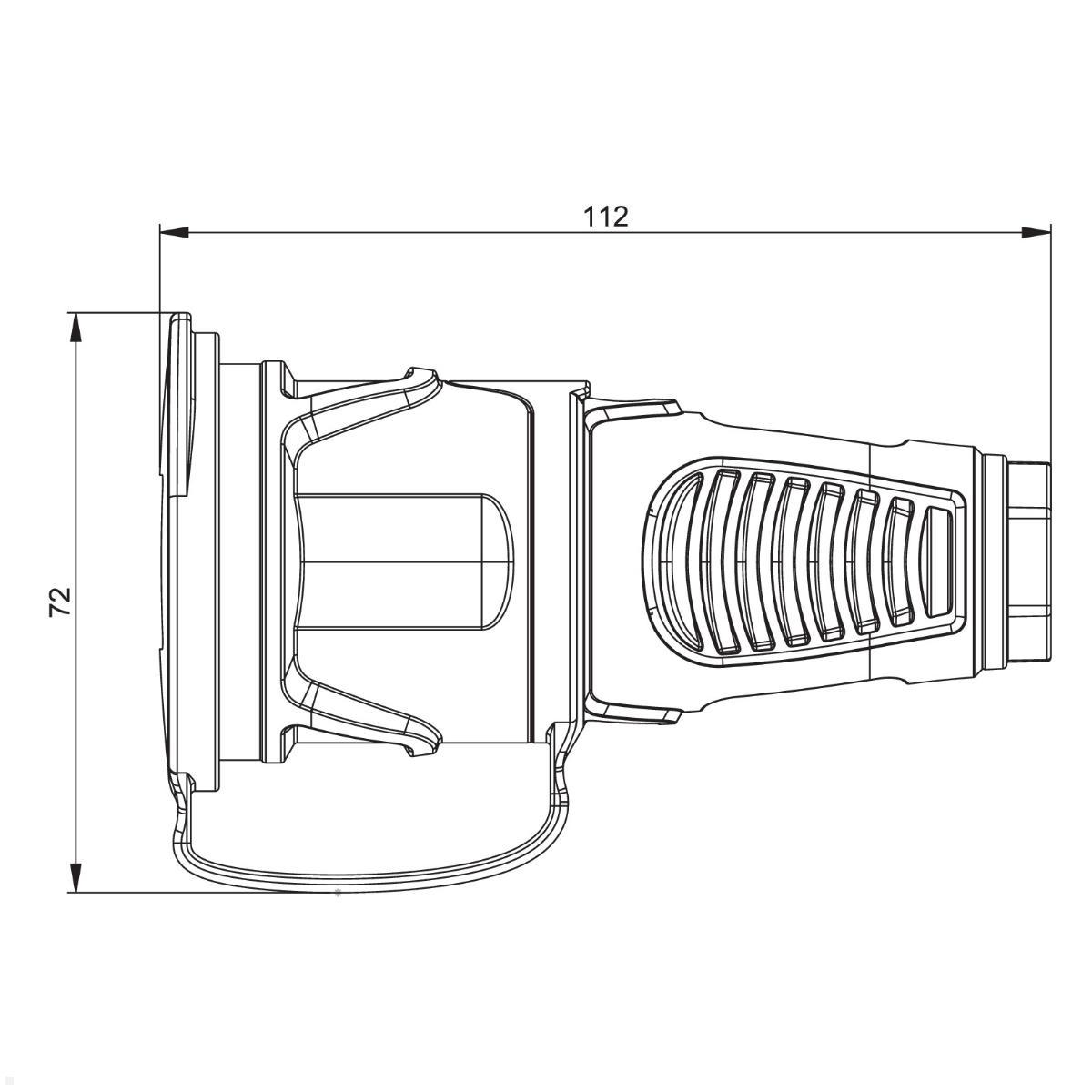

With a length of 112 mm and a diameter of 72 mm, the BM0017346 protective contact coupling is compact, sturdy, and yet comfortable to handle. The straight plug-in direction allows for easy connection to various devices. The color combination of black and blue visually enhances the coupling and underscores its professional application. The cover strap also simplifies everyday use: The cover always remains attached to the housing, preventing loss and speeding up the workflow.
Versatile Applications
The coupling is suitable for cables up to 2.5 mm² and meets the requirements for "heavy conditions" according to VDE. This makes it ideal for connecting machines, tools, or extension cables, both in workshops and on construction sites or outdoors. Its robust construction makes it ideal for demanding environments.
Summary of Key Features
- Solid rubber and thermoplastic housing for maximum load capacity
- Mounting coupling with cover strip for additional protection
- IP54 protection class: dust and splash-proof
- Design: CEE 7/3 (Type F) coupling
- Screw terminal connection and internal strain relief
- Integrated kink protection for long-lasting cables
- Rated voltage 250 V / Rated current 16 A
- Compact Dimensions: Length 112 mm, Diameter 72 mm
- Suitable for cables up to 2.5 mm²
