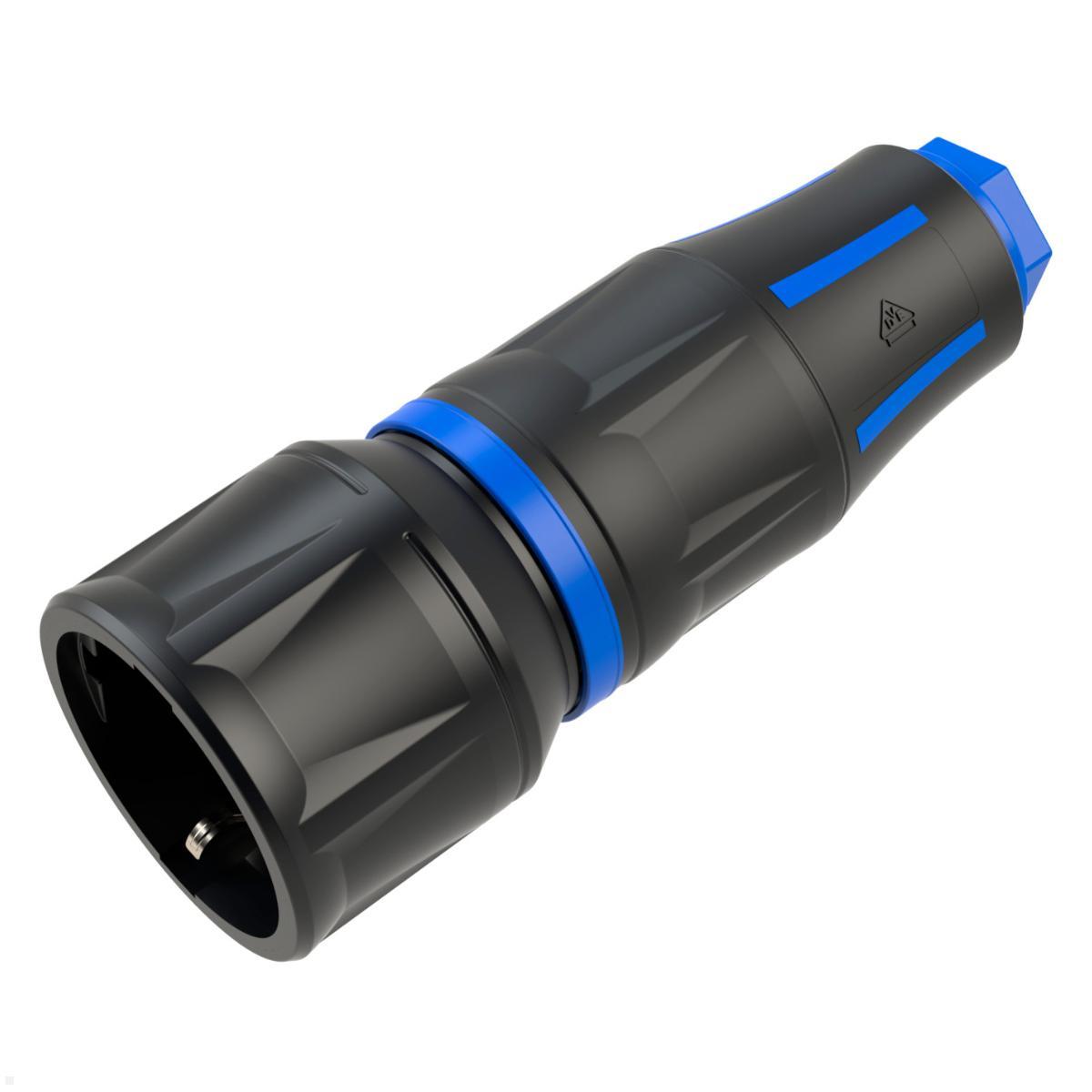

Bachmann professional protective contact coupling CEE7/3, rubberized (BM0017348)
The Bachmann BM0017348 protective contact coupling offers a robust and reliable connection solution for professional use. With its rubberized surface, ergonomic design, and quick-release fastener, it is ideal for workshops, construction sites, and industrial applications. The coupling guarantees secure power connections even under difficult conditions.
Safety contact coupling BM0017348 – Robust connection technology for professional applications
Bachmann's safety contact plugs and couplings stand for reliable quality and long-lasting safety in both professional and private applications. Robust materials such as rubber or solid rubber ensure high resistance to mechanical stress and harsh environmental conditions. Models with IP44 protection offer additional protection against splash water and are therefore also suitable for outdoor use. Well-thought-out details such as cover strips, hinged lids, or integrated LED displays increase ease of use and simplify everyday use. The series includes both standard and professional versions, featuring rubberized housings, screwless connectors, and reinforced strain relief. Bachmann thus offers a wide range of solutions for secure and robust power connections that meet the diverse requirements of workshops, construction sites, and households.
Versatile Applications and Reliable Technology of the BM0017348
The Bachmann BM0017348 protective contact coupling is a high-quality connection solution designed for professional use in workshops, on construction sites, and in industrial environments. With its robust rubber housing, modern design, and sophisticated ergonomics, it offers a reliable and durable power supply solution.
Technical Details Bachmann Mounting Coupling
- CEE7/7 safety plug
- Incl. Anti-kink protection
- Length: 130 mm
- Diameter: 48 mm
- Design: CEE 7/3 (Type F) coupling
- Material: PA6 2k rubberized
- Material grade: Polyamide (PA)
- Rubberized surface for optimal feel and grip
- Protection class (IP): IP20
- Plug direction: straight
- Connection technology: screw terminal
- Without housing screw (quick-release)
- Color: Black / Blue
- Number of poles: 3
- Nominal voltage: 250.00 V
- Rated current: 16.00 A
- Protective contact: End clips
- For "heavy conditions" according to VDE: yes
- Cables up to 2.5 mm²
- External strain relief
- Without increased contact protection
- Connection only by a qualified specialist
| Product sheet: |  [pdf] |
|---|---|
| Technical drawing: | [pdf] |
| RoHS / REACH: | [pdf] |
| Installation manual: | [pdf] |
| Warning/safety instructions: | [pdf] |
| Contains installation material: | + |
| Manufacturer/Importer: | Bachmann GmbH, Ernsthaldenstr. 33, 70565 Stuttgart, info@bachmann.com |
| Number of sockets: | 1 |
| color: | black/blue |
| Land: | Germany |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
Download area - catalogs, flyers, warranty conditions, ...
BM0017348 Protective Contact Coupling - High-Performance Coupling for Demanding Environments
The Bachmann BM0017348 protective contact coupling is specially designed for professional use in workshops, on construction sites, and in industry. It impresses with its robust construction, sophisticated ergonomics, and the use of high-quality materials. Thus, it offers a durable and secure connection solution that functions reliably even in challenging work environments.
Robust Materials for Maximum Load Capacity
The housing of the BM0017348 is made of polyamide (PA) with a rubberized surface. This material is known for its high impact and abrasion resistance, while also offering a pleasant feel and a secure grip. The rubberized surface facilitates handling, even with work gloves or in damp conditions. The coupling meets the requirements for harsh conditions according to VDE and is therefore ideally suited for tough, continuous use. With protection class IP20, it is protected against the ingress of foreign bodies and is ideal for use in protected environments such as workshops, production halls, or dry construction sites.
Functional technology for a secure connection
The BM0017348 is designed as a CEE 7/3 coupling (Type F) and is therefore compatible with standard safety plugs. With a rated voltage of 250 V and a rated current of 16 A, it covers the usual requirements of everyday industrial and trade applications. The screw terminal connection technology ensures a stable and secure cable connection. The quick-opening housing design without housing screws is particularly practical. This allows for quick and easy installation – a clear advantage when time and efficiency are important in everyday work.
Additional protective mechanisms for the cable connection
An integrated kink protection extends the service life of the connected cables and reliably protects them in the transition area. The coupling is suitable for cables up to 2.5 mm² and can therefore be used flexibly in many areas. The external strain relief ensures that the cable remains securely fastened even during frequent reconnection and intensive use. This design prevents damage caused by tensile stress and increases operational reliability.
Compact design with practical ergonomics
With a length of 130 mm and a diameter of 48 mm, the BM0017348 is compact yet robust. The straight plug-in direction ensures uncomplicated handling and versatile connection options. The black and blue design facilitates visual identification and underscores the professional character of the product. At the same time, the rubberized surface ensures that the coupling remains secure even under difficult conditions.
Areas of application in practice and industry
- Workshops with high loads due to daily use
- Construction sites in protected areas
- Industrial applications with a reliable power supply
- DIY projects where professional quality is important
Key features at a glance
- CEE 7/3 (Type F) coupling
- PA6 material with rubberized surface for high Robustness
- IP20 protection rating for use in protected environments
- Screw terminal connection with quick-release housing
- Kink protection and external strain relief
- Suitable for cables up to 2.5 mm²

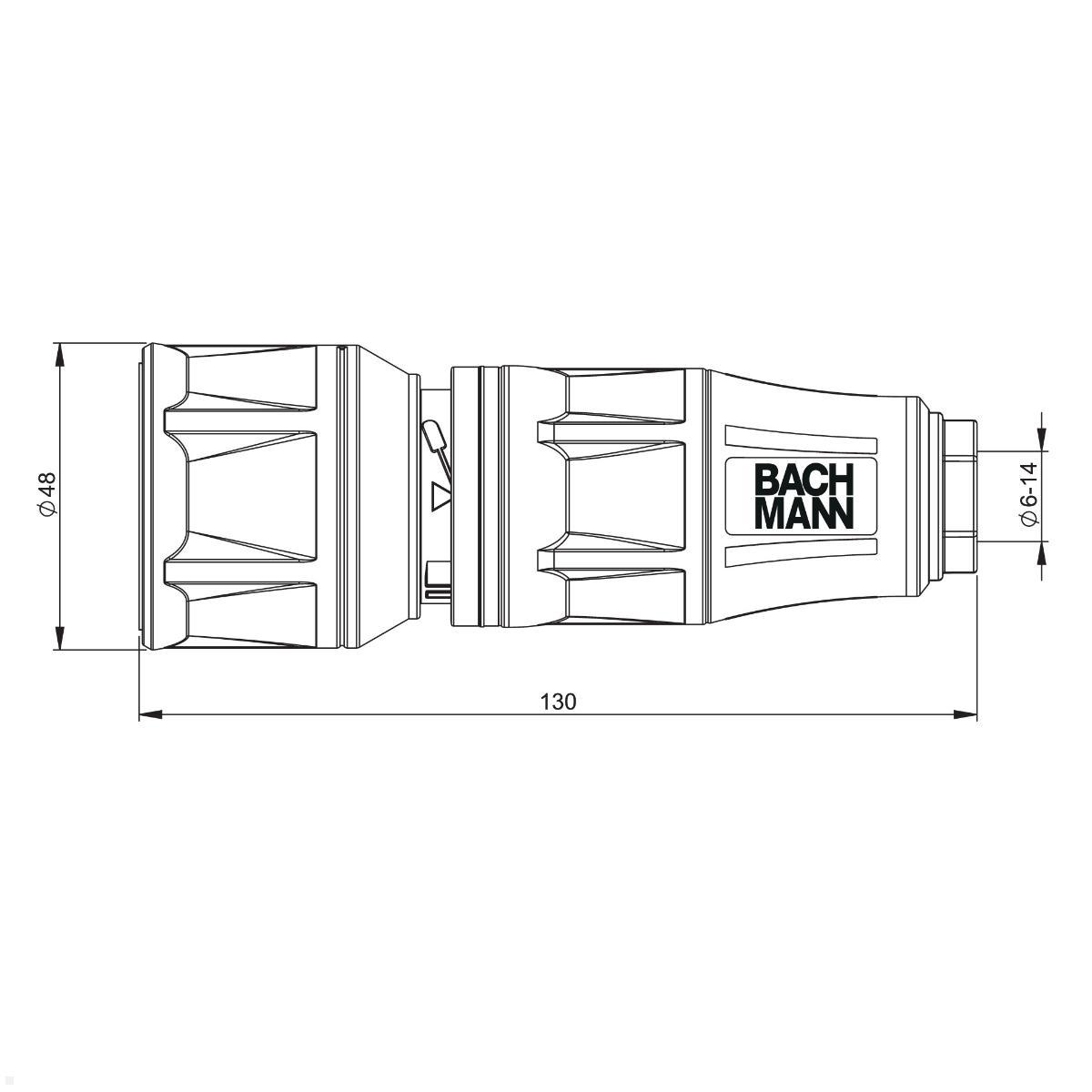

- Dimensions: Length 130 mm, Diameter 48 mm
- Rated voltage 250 V / Rated current 16 A
