Bachmann protective contact coupling CEE7/3, solid rubber (BM0017345)
The Bachmann BM0017345 protective contact coupling impresses with its robust construction and high reliability for professional use. With its durable solid rubber housing and ergonomic design, it offers safe and durable power connections. It is ideal for workshops, construction sites, and industrial applications.
Safety contact coupling BM0017345 – Robust connection technology for professional applications
Bachmann's safety contact plugs and couplings stand for reliable quality and long-lasting safety in both professional and private applications. Robust materials such as rubber or solid rubber ensure high resistance to mechanical stress and harsh environmental conditions. Models with IP44 protection offer additional protection against splash water and are therefore also suitable for outdoor use. Well-thought-out details such as cover strips, hinged lids, or integrated LED displays increase ease of use and simplify everyday use. The series includes both standard and professional versions, featuring rubberized housings, screwless connectors, and reinforced strain relief. Bachmann thus offers a wide range of solutions for secure and robust power connections that meet the diverse requirements of workshops, construction sites, and households.
Versatile Applications and Reliable Technology of the BM0017345
The Bachmann BM0017345 protective contact coupling is a high-quality connection solution designed for professional use in workshops, on construction sites, and in industrial environments. With its robust rubber housing, modern design, and sophisticated ergonomics, it offers a reliable and durable power supply solution.
Technical Details Bachmann Mounting Coupling
- CEE7/7 safety plug
- Incl. Anti-kink protection
- Length: 100 mm
- Diameter: 50 mm
- Design: CEE 7/3 (Type F) coupling
- Material: Solid rubber
- Material grade: Thermoplastic
- Protection class (IP): IP20
- Plug direction: Straight
- Connection technology: Screw terminal
- Color: Black / Blue
- Number of poles: 3
- Nominal voltage: 250.00 V
- Nominal current: 16.00 A
- Protective contact: End clips
- For "heavy conditions" according to VDE: Yes
- Cables up to 2.5mm²
- Internal strain relief
- Without increased contact protection
- Connection only by a qualified specialist
| Product sheet: |  [pdf] |
|---|---|
| Technical drawing: | [pdf] |
| RoHS / REACH: | [pdf] |
| Installation manual: | [pdf] |
| Warning/safety instructions: | [pdf] |
| Contains installation material: | + |
| Manufacturer/Importer: | Bachmann GmbH, Ernsthaldenstr. 33, 70565 Stuttgart, info@bachmann.com |
| Number of sockets: | 1 |
| color: | black/blue |
| Land: | Germany |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
Download area - catalogs, flyers, warranty conditions, ...
Safety Contact Coupling BM0017345 - Robust Connection Technology
The Bachmann Safety Contact Coupling BM0017345 is the reliable solution for secure power connections in demanding work environments. It combines robust materials with sophisticated technology and is specifically tailored to the needs of professionals in trade, industry, and construction. Thanks to its high-quality solid rubber construction, it can withstand even heavy loads and boasts a long service life.
Robust housing for maximum durability
The coupling's housing is made of solid rubber and thermoplastic, making it particularly resistant to impact, pressure, and harsh conditions. With an IP20 protection rating, the coupling is particularly suitable for indoor use or in protected environments where a reliable power supply must be guaranteed. The solid construction ensures that the connector retains its functionality even with frequent use.
Technical features for secure connections
The Bachmann BM0017345 is designed as a CEE 7/3 (Type F) connector and is therefore compatible with standard safety plugs. With a rated voltage of 250 V and a rated current of 16 A, it meets all common requirements for professional use. The screw terminal connection technology enables a secure and stable connection, while the internal strain relief ensures that cables remain reliably secured even under heavy loads. An integrated kink protection protects the cable at the transition point and significantly extends the service life of the connected device. This means the coupling meets the requirements for "heavy conditions" according to VDE.
Compact design and ergonomic handling

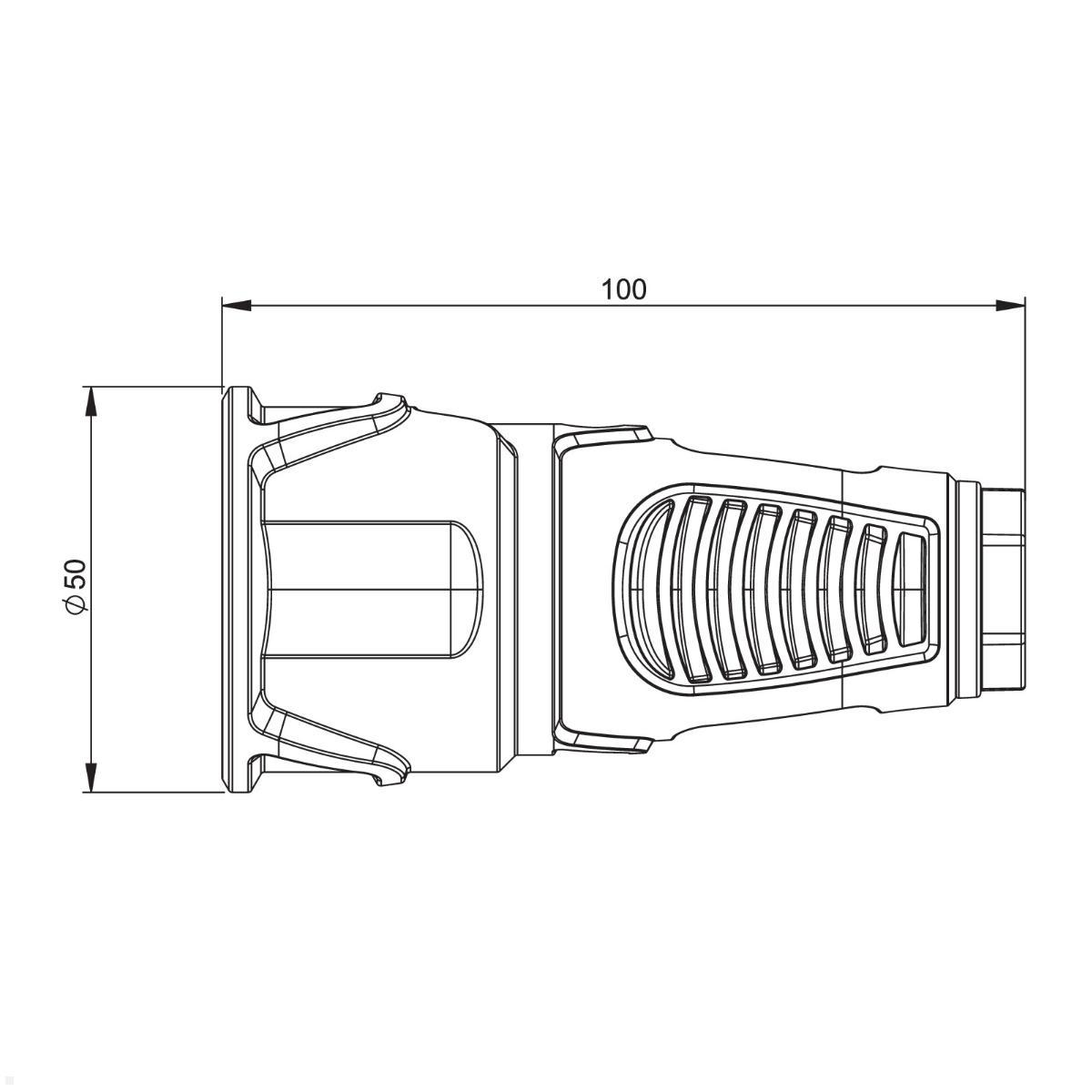

With a length of 100 mm and a diameter of 50 mm, the BM0017345 protective contact coupling is compact and handy. The straight plug-in direction makes it easy and convenient to use. The color combination of black and blue facilitates visual recognition and underscores the professional character of the design. The ergonomic shape ensures easy handling, even when the connector is regularly plugged and unplugged. Combined with its sturdy construction, it is ideal for daily use in workshops or on construction sites.
Versatile Applications
The connector is suitable for cables up to 2.5 mm² and can therefore be used flexibly in a variety of applications. Whether connecting tools, machines, or extension cables – The BM0017345 provides a secure connection and impresses with its high reliability, even under intensive use.
Summary of the most important features
- Housing made of solid rubber and thermoplastic for robust resistance
- CEE 7/3 (Type F) coupling design
- IP20 protection class for use in protected environments
- Screw terminal connection and internal strain relief
- Integrated kink protection to protect the cable
- Suitable for cables up to 2.5 mm²
- Rated voltage 250 V / Rated current 16 A
- Compact dimensions: length 100 mm, diameter 50 mm
