Legrand Raritan iX Rack-PDU 0U with 12xC13 / 12xHDOT Cx, 3-phase 400V 16A, Outlet Metered/Switched (PX4-5538-E7)
Highlights
- 0U Rack-PDU, 24 Outlets C13/HDOT Cx
- 3-phase 400V 16A, 11.1 kVA power
- Outlet metered/switched, Class 0.5

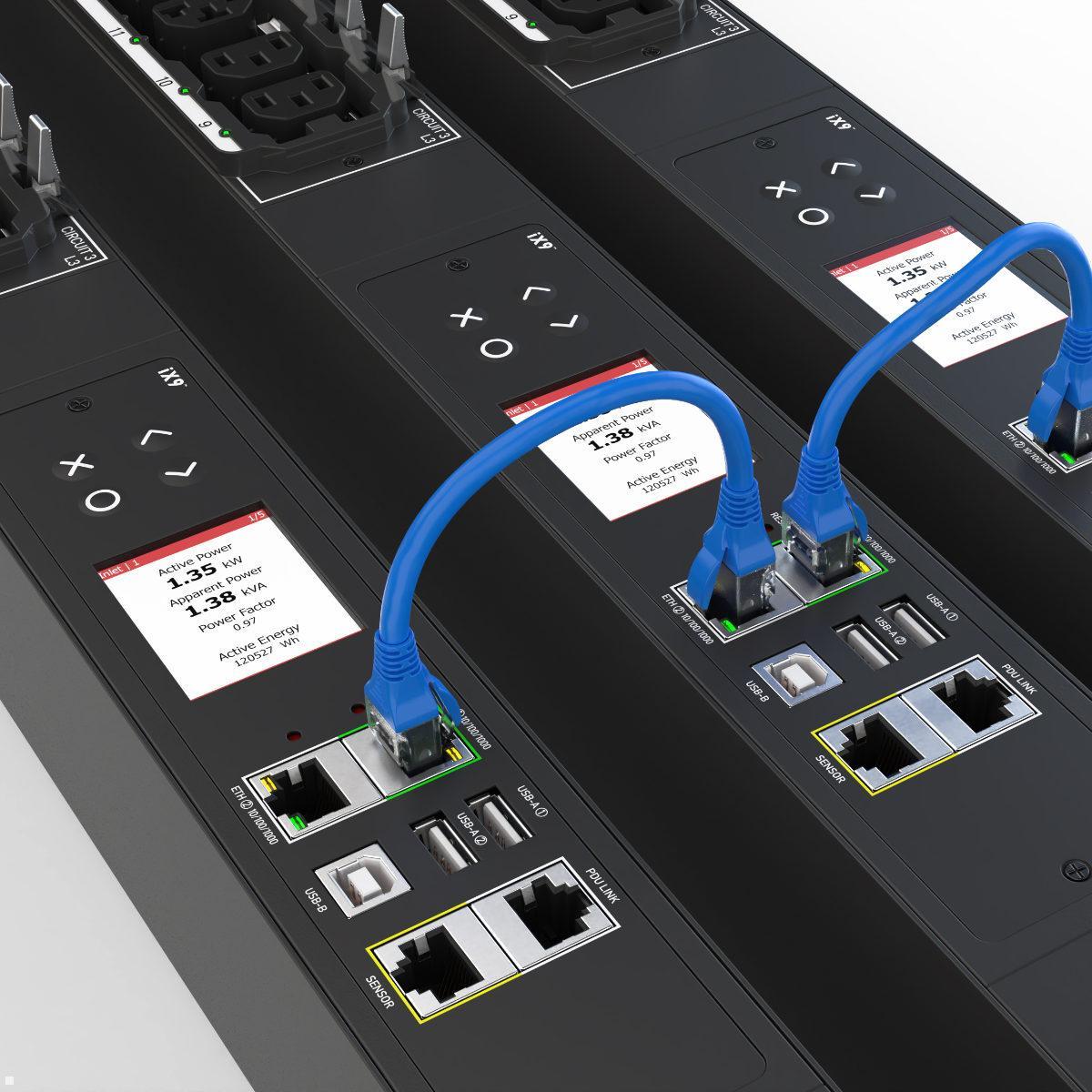

- Hot-swap controller, dual Gigabit LAN
- Environmental sensor-ready, up to 32 sensor functions
3-phase 0U Rack PDU with Outlet Switching and Class 0.5 Metering
Legrand Raritan iX Rack-PDU PX4-5538-E7 is a powerful vertical 0U PDU for 19" server racks. With 12x C13 and 12x HDOT Cx outlets (24 outlets total), 3-phase input at 400V/16A (IEC 60309 3P+N+PE 6Hr) and a power capacity of 11.1 kVA, it provides reliable power for medium to large server environments. The outlet metered/switched energy monitoring to Class 0.5 (±0.5%) measures voltage, current, active power, apparent power, energy and power factor — per input feed, per breaker and per individual outlet. The Remote Outlet Switching enables individual on/off of each outlet over the network.
The hot-swappable controller can be exchanged during operation. Up to 8 PDUs can be linked via the PDU Link Port, and up to 32 can be cascaded physically. Dual Gigabit Ethernet (10/100/1000 Base-T) with optional Wi‑Fi as well as extensive remote management via HTTPS, SSH, SNMP v2/v3, JSON-RPC API and Redfish API make the Legrand Raritan iX Rack-PDU 0U with 12xC13 / 12xHDOT Cx, 3-phase 400V 16A, Outlet Metered/Switched (PX4-5538-E7) the ideal solution for data centers and enterprise IT infrastructures.
Technical Details Legrand Raritan iX Rack-PDU PX4-5538-E7
- Form factor: 0U vertical
- Input plug: IEC 60309 3P+N+PE 6Hr (230/400V, 16A)
- Rated voltage: 400V, 3-phase
- Max. input current: 16A
- Power capacity: 11.1 kVA
- Outlets: 12x C13 + 12x HDOT Cx (24 total)
- Overload protection: none (0 breakers)
- Energy monitoring: Class 0.5 (±0.5%), per outlet
- Remote outlet switching: Yes
- RCM: No
- Controller: Hot-swappable
- Network: 2x Gigabit Ethernet (10/100/1000), opt. Wi‑Fi
- Remote management: HTTPS, SSH, Telnet, SNMP v2/v3, JSON-RPC, Redfish API, MODBUS-TCP
- Display: color LCD, auto-flip
- Environmental sensors: up to 32 sensor functions
- Input cable length: 3 m
- Dimensions (W×D×H): 56 x 65 x 1298 mm
- Weight: approx. 4.5 kg
- Certification: CE
- Warranty: 2 years
| Product sheet: |  [pdf - Englisch] |
|---|---|
| Contains installation material: | + |
| Warranty: | 2 years |
| Manufacturer/Importer: | Legrand AV Netherlands B.V. / Chief, Franklinstraat 14, 6003 DK Weert NL, deutschland.verkauf@av.legrand.com |
| Einspeisung: | 16A |
| FI switch: | No |
| Fuse: | Yes |
| Mains filter: | No |
| Messen: | pro Port |
| Number of sockets: | 24 Outlets |
| Overvoltage protection: | No |
| Phasen: | 3-phasig |
| RCM-Differenzstrommessung: | Nein |
| Schalten: | Ja |
| Steckerart: | C13,Combosocket |
| Größe PDU: | Vertikal, 40 HE |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
Download area - catalogs, flyers, warranty conditions, ...
Questions & Answers
-
What is the Legrand Raritan iX Rack-PDU PX4-5538-E7?
A 0U vertical rack PDU for 19-inch server racks with 24 outlets (12x C13, 12x HDOT Cx), 3-phase input at 400V/16A and a capacity of 11.1 kVA. It features outlet metering and switching.
-
What outlets/outputs does it have?
0U vertical form factor; 24 outlets: 12x C13 and 12x HDOT Cx; input plug IEC 60309 3P+N+PE 6Hr (230/400V, 16A).
-
How does energy monitoring work?
Energy metering class 0.5 (±0.5%), per outlet, per input line and per circuit breaker; measures voltage, current, active power, apparent power, energy and power factor.
-
What is Remote Outlet Switching?
Remote Outlet Switching enables turning each outlet on or off over the network.
-
What management and networking options are available?
Dual Gigabit Ethernet (10/100/1000), optional WLAN; remote management via HTTPS, SSH, SNMP v2/v3, JSON-RPC API and Redfish API; PDU Link Port allows linking up to 8 PDUs (up to 32 cascaded).
-
What about dimensions and weight?
0U vertical form factor; dimensions (W×D×H) 56 × 65 × 1298 mm; weight approx. 4.5 kg.
-
Is there a warranty or certification?
CE certified; 2-year warranty.
