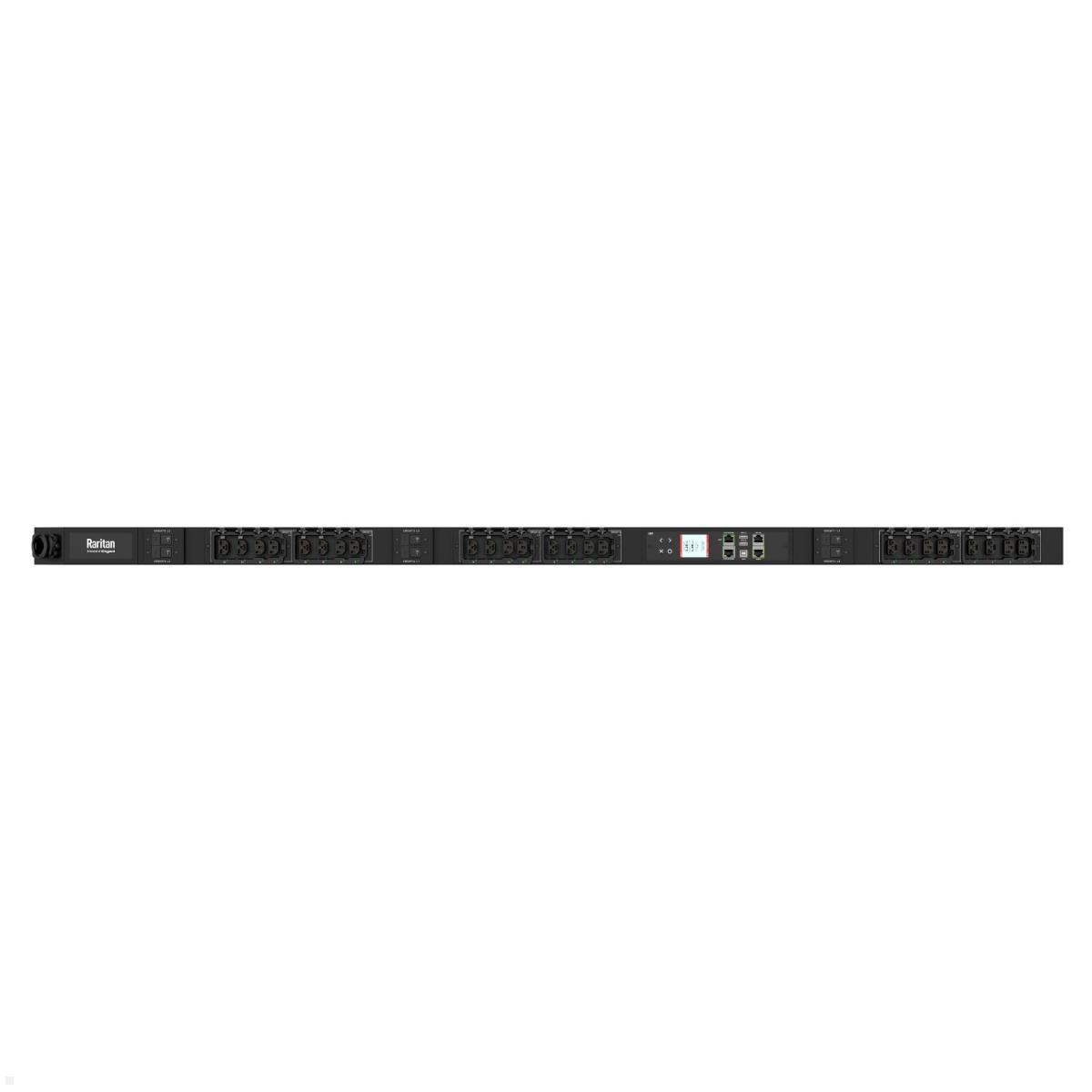

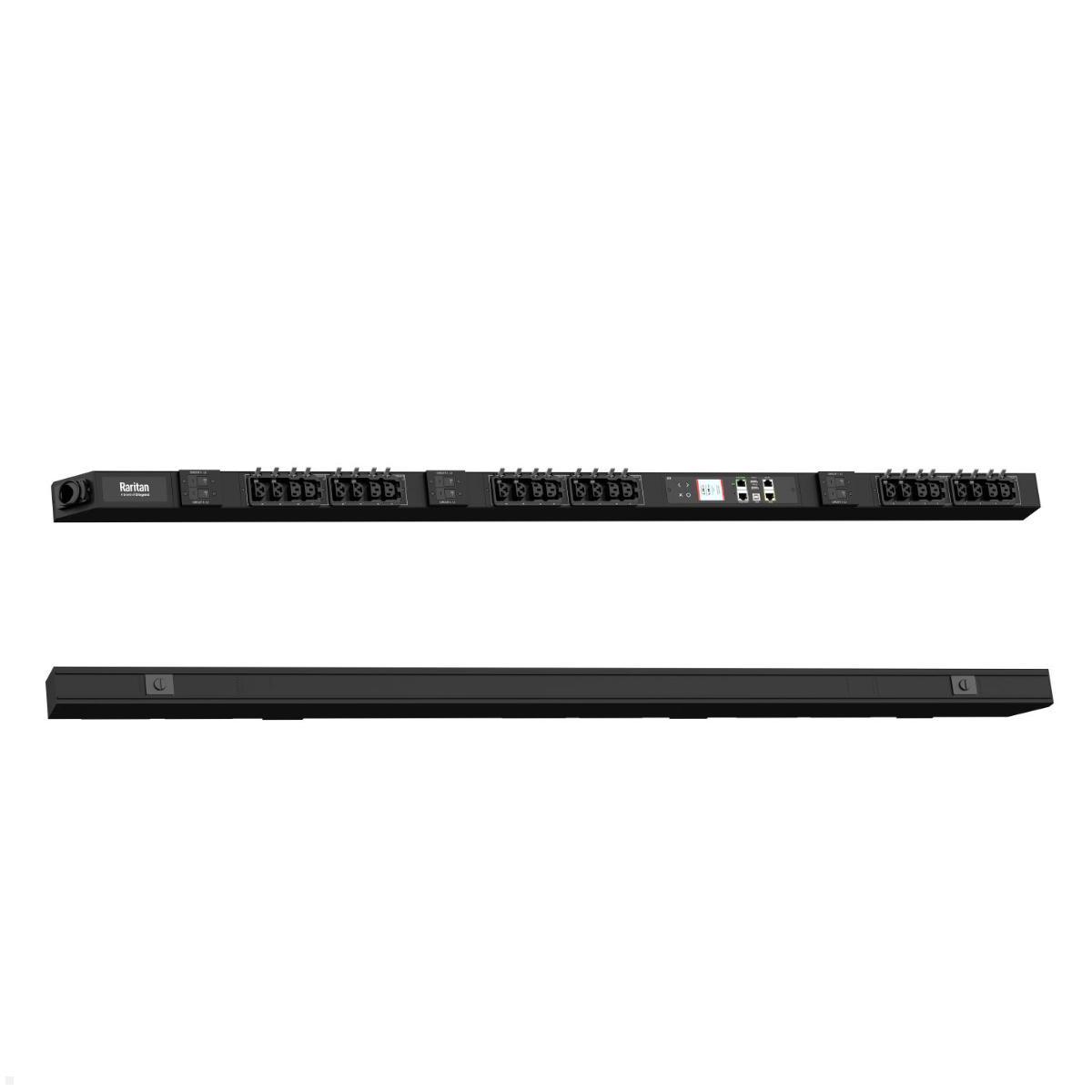

Legrand Raritan iX Rack-PDU 0U with 12xHDOT C13 / 12xCx, 3-phase 400V 32A, Outlet Metered/Switched RCM (PX4-5917-E7M28V2)
Highlights
- 0U Rack PDU, 24 outlets HDOT C13/Cx locking
- 3-phase 400V 32A, 22.2 kVA, RCM
- RGB LED per outlet, iX9 hot-swap controller
- 6 circuit breakers, SecureLock
- Tool-less mounting, dual Gigabit LAN
3-phase 0U Rack-PDU with iX9 Controller, RGB LEDs and RCM
The Legrand Raritan iX Rack-PDU PX4-5917-E7M28V2 is the most technologically advanced 3-phase 32A PDU of the Raritan iX series. With 12x HDOT C13 Locking and 12x Cx Locking outlets (24 outlets total), 3-phase input at 400V/32A (IEC 60309 4P5W, 22.2 kVA) and the latest iX9 controller, it sets new standards in intelligence and monitoring. Each outlet is equipped with an RGB LED that color-codes operational status, threshold breaches (over- or under-shoots), service modes and circuit breaker trips. Six integrated 16A circuit breakers (LEJBXV6, 10 kAIC) with breaker metering and 0V detection reliably protect all output circuits.
The integrated RCM (Residual Current Monitoring) continuously monitors the residual current. The mechanical SecureLock (P-lock) outlet locking prevents accidental unplugging of cords. Tool-less mounting greatly simplifies installation. Dual Gigabit Ethernet, optional Wi‑Fi and remote management via HTTPS, SSH, SNMP v2/v3, JSON-RPC API and Redfish API make the Legrand Raritan iX Rack-PDU 0U with 12x HDOT C13 / 12x Cx, 3-phase 400V 32A, outlet metered/switched RCM (PX4-5917-E7M28V2) a top solution for cutting-edge data centers.
Technical Details Legrand Raritan iX Rack-PDU PX4-5917-E7M28V2
- Form factor: 0U vertical
- Input plug: IEC 60309 32A 3PY (4P5W)
- Nominal voltage: 400V, 3-phase (380–415V)
- Max. input current: 32A
- Power capacity: 21.1 kVA (380V) / 23.0 kVA (415V)
- Outlets: 12x HDOT C13 Locking (10A) + 12x Cx Locking (16A) = 24 total
- Outlet LEDs: RGB per outlet (status, thresholds, service mode)
- Outlet lock: Yes (SecureLock / P-lock)

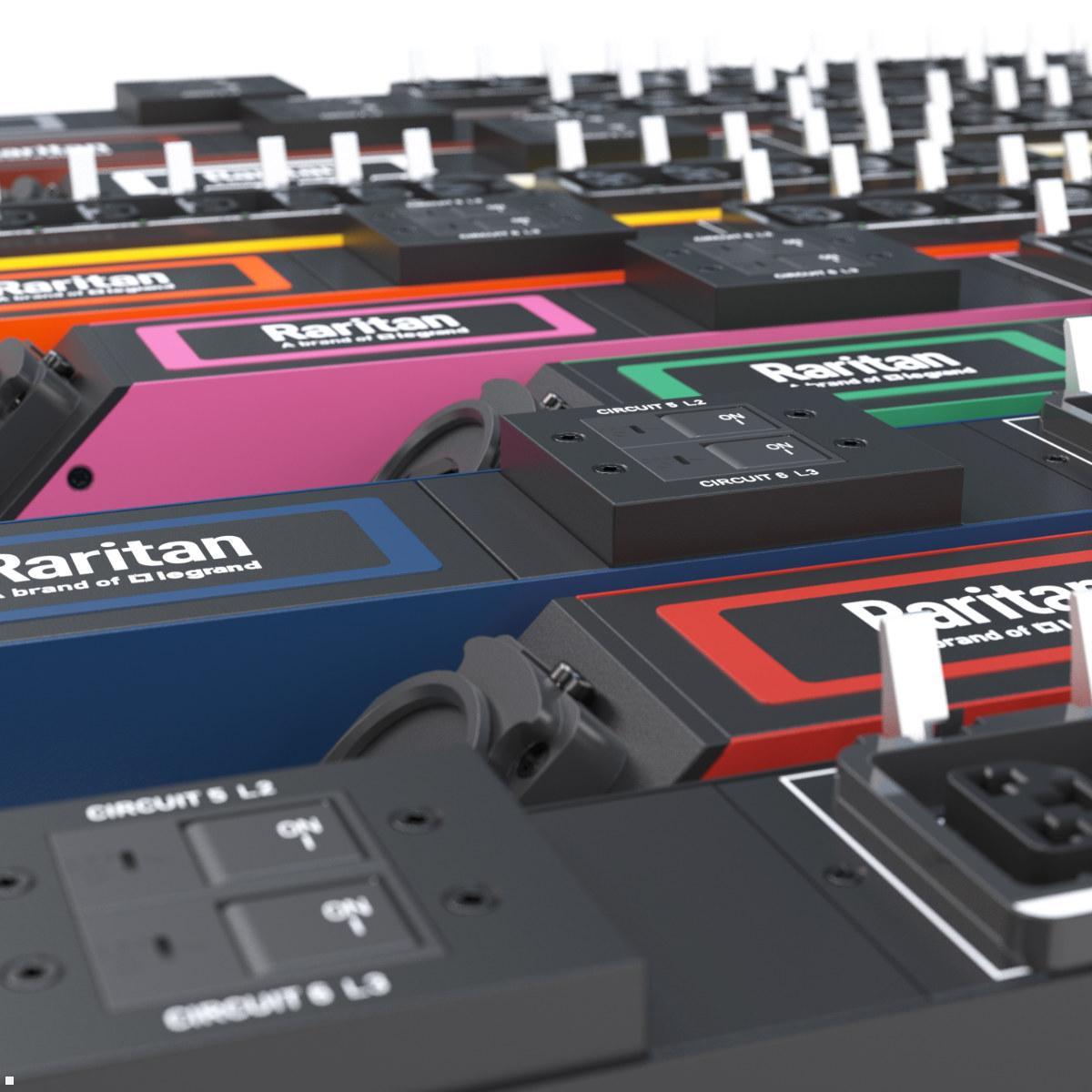

- Overcurrent protection: 6x 16A single-pole (LEJBXV6, 10 kAIC)
- Energy monitoring: Class 0.5, per outlet
- Remote outlet switching: Yes
- RCM (residual current monitoring): Yes

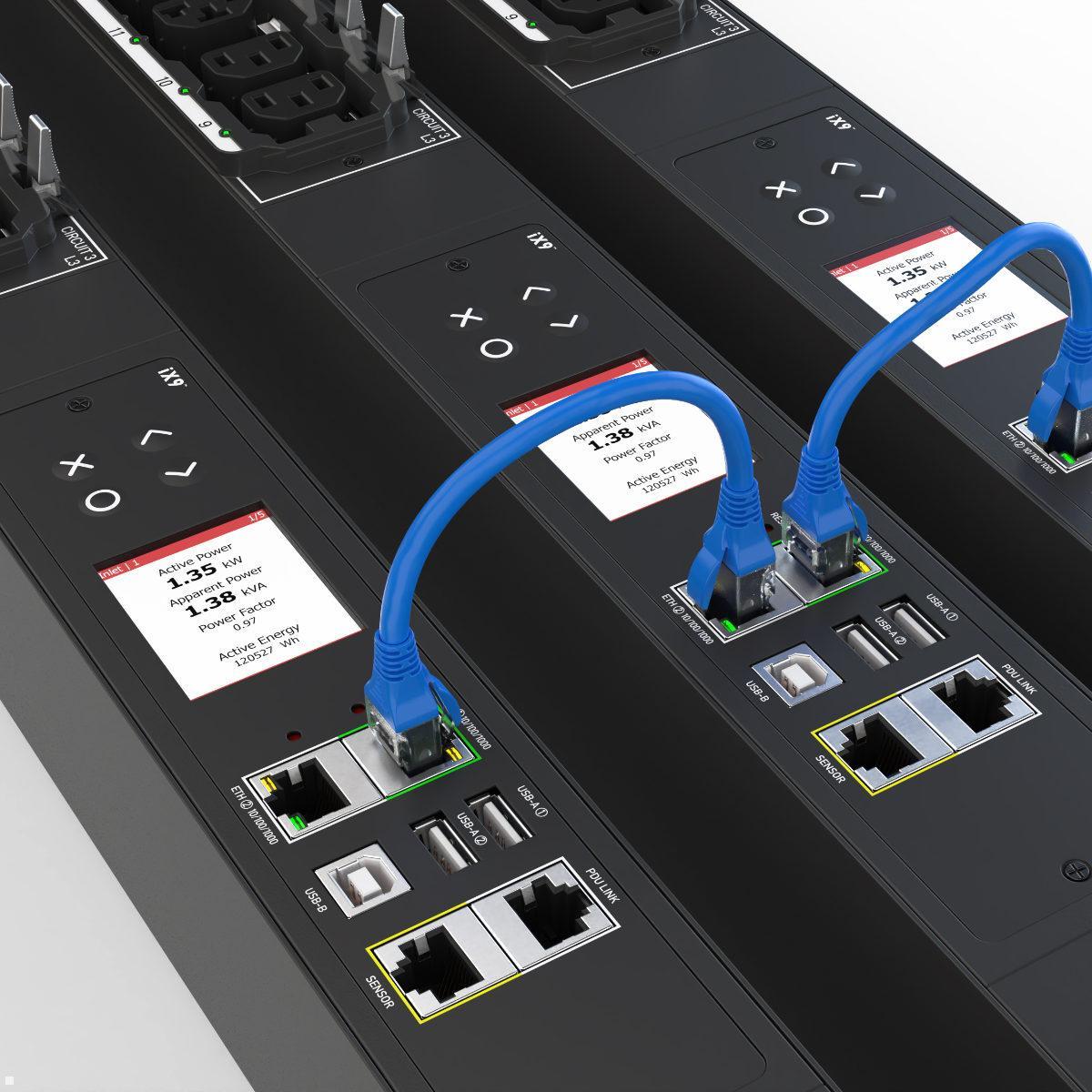

- Controller: iX9, hot-swappable
- Network: 2x Gigabit Ethernet (10/100/1000), optional Wi‑Fi
- Remote management: HTTPS, SSH, Telnet, SNMP v2/v3, JSON-RPC, Redfish API, MODBUS-TCP
- Display: Color LCD, auto-flip
- Mounting: Tool-less
- Dimensions (W×D×H): 56 x 65 x 1539 mm
- Certifications: CE, RoHS
- Warranty: 2 years
| Product sheet: |  [pdf - Englisch] |
|---|---|
| Contains installation material: | + |
| Warranty: | 2 years |
| Manufacturer/Importer: | Legrand AV Netherlands B.V. / Chief, Franklinstraat 14, 6003 DK Weert NL, deutschland.verkauf@av.legrand.com |
| Einspeisung: | 32A |
| FI switch: | No |
| Fuse: | Yes |
| Mains filter: | No |
| Messen: | pro Port |
| Number of sockets: | 24 Outlets |
| Overvoltage protection: | No |
| Phasen: | 3-phasig |
| RCM-Differenzstrommessung: | Ja |
| Schalten: | Ja |
| Steckerart: | C13,Combosocket |
| Größe PDU: | Vertikal, 40 HE |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
Download area - catalogs, flyers, warranty conditions, ...
Questions & Answers
-
What is the Legrand Raritan iX Rack-PDU PX4-5917-E7M28V2?
A 0U three-phase rack PDU with an iX9 controller, RGB LEDs and RCM, featuring 24 outlets (12x HDOT C13 Locking and 12x Cx Locking) rated at 400V/32A.
-
How many outlets does it have and what types are they?
24 outlets in total: 12x HDOT C13 Locking (10A) and 12x Cx Locking (16A).
-
What protection features does the PDU provide?
Six integrated 16A single-pole breakers (LEJBXV6, 10 kAIC) with breaker metering and 0V detection, plus RCM differential current monitoring and SecureLock outlet locking.
-
How can it be managed remotely?
Dual Gigabit Ethernet, optional WLAN; remote management via HTTPS, SSH, Telnet, SNMP v2/v3, JSON-RPC, Redfish API and MODBUS-TCP.
-
What is the form factor and mounting method?
0U vertical form factor; tool-less mounting.
-
What are the electrical specifications?
Input plug IEC 60309 32A 3P (4P5W); nominal voltage 400V (3-phase, 380–415V); max input current 32A; power capacity 21.1 kVA (380V) / 23.0 kVA (415V); 24 outlets (12x HDOT C13, 12x Cx).
-
Are there any additional features and what about the warranty?
Color LCD display with auto-rotate; RGB LEDs per outlet; CE and RoHS certified; 2-year warranty.
