Legrand Raritan iX Rack-PDU 0U with 18xC13 / 18xHDOT Cx, 3-phase 400V 16A, Outlet Metered/Switched RCM (PX4-51A0-E7M28V2)
Highlights
- 0U Rack PDU, 36 outlets C13/HDOT Cx
- 3-phase 400V 16A, 11.1 kVA power
- Outlet metered/switched + RCM
- Energy monitoring Class 0.5 (±0.5%)
- Hot-swap controller, dual Gigabit LAN
3-phase 0U Rack PDU with RCM, Outlet Switching and Class 0.5 Metering
The Legrand Raritan iX Rack-PDU PX4-51A0-E7M28V2 is a powerful vertical 0U PDU for 19" server racks. With 18x C13 and 18x HDOT Cx outlets (36 outlets total), 3-phase input at 400V/16A (IEC 60309 3P+N+PE 6Hr) and a power capacity of 11.1 kVA, it reliably powers large server environments. The outlet metered/switched energy monitoring to Class 0.5 (±0.5%) captures all relevant measurements per input feed, per circuit breaker and per individual outlet. The integrated RCM (Residual Current Monitoring) continuously monitors leakage current and provides early warning of insulation faults.
Remote Outlet Switching allows individual on/off control of each outlet over the network. The hot-swappable controller can be replaced during operation. Up to 8 PDUs can be linked and up to 32 can be cascaded physically. Dual Gigabit Ethernet, optional Wi‑Fi and remote management via HTTPS, SSH, SNMP v2/v3, JSON-RPC API and Redfish API make the Legrand Raritan iX Rack-PDU 0U with 18x C13 / 18x HDOT Cx, 3-phase 400V 16A, Outlet Metered/Switched RCM (PX4-51A0-E7M28V2) an ideal solution for professional data centers and enterprise IT.
Technical Details Legrand Raritan iX Rack-PDU PX4-51A0-E7M28V2
- Form factor: 0U vertical
- Input plug: IEC 60309 3P+N+PE 6Hr (230/400V, 16A)
- Rated voltage: 400V, 3-phase
- Max. input current: 16A
- Power capacity: 11.1 kVA
- Outlets: 18x C13 + 18x HDOT Cx (36 total)
- Overload protection: none (0 circuit breakers)
- Energy metering: Class 0.5 (±0.5%), per outlet
- Remote outlet switching: Yes
- RCM (residual current monitoring): Yes
- Controller: Hot-swappable
- Network: 2x Gigabit Ethernet (10/100/1000), optional Wi‑Fi
- Remote management: HTTPS, SSH, Telnet, SNMP v2/v3, JSON-RPC, Redfish API, MODBUS-TCP
- Display: Color LCD, auto-flip
- Environmental sensors: up to 32 sensor functions
- Power cord length: 3 m
- Dimensions (W×D×H): 56 x 65 x 1780 mm
- Weight: approx. 6.4 kg
- Certification: CE
- Warranty: 2 years
| Product sheet: |  [pdf - Englisch] |
|---|---|
| Contains installation material: | + |
| Warranty: | 2 years |
| Manufacturer/Importer: | Legrand AV Netherlands B.V. / Chief, Franklinstraat 14, 6003 DK Weert NL, deutschland.verkauf@av.legrand.com |
| Einspeisung: | 16A |
| FI switch: | No |
| Fuse: | Yes |
| Mains filter: | No |
| Messen: | pro Port |
| Number of sockets: | 36 Outlets |
| Overvoltage protection: | No |
| Phasen: | 3-phasig |
| RCM-Differenzstrommessung: | Ja |
| Schalten: | Ja |
| Steckerart: | C13,Combosocket |
| Größe PDU: | Vertikal, 42 HE |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
Download area - catalogs, flyers, warranty conditions, ...
Questions & Answers
-
What is the Legrand Raritan iX Rack-PDU PX4-51A0-E7M28V2?
A 0U vertical rack PDU for 19" server racks, three-phase 400 V/16 A, with 36 outlets (18x C13 + 18x HDOT Cx) and a rating of 11.1 kVA; Outlet Metered/Switched with Class 0.5 monitoring and integrated RCM.
-
What outlets does it provide?
18x C13 and 18x HDOT Cx, 36 outlets in total.
-
What does Outlet Metered/Switched and Class 0.5 mean?
Energy metering is Class 0.5 (±0.5%) per outlet, with measurements per input line, per breaker, and per outlet.
-
What is RCM (differential current monitoring)?
RCM continuously monitors the differential current and warns of insulation faults.
-
How does Remote Outlet Switching work?
It allows individual outlets to be switched on or off over the network.
-
Can the controller be hot-swapped?
Yes, the hot-swappable controller can be replaced while the unit is running.
-

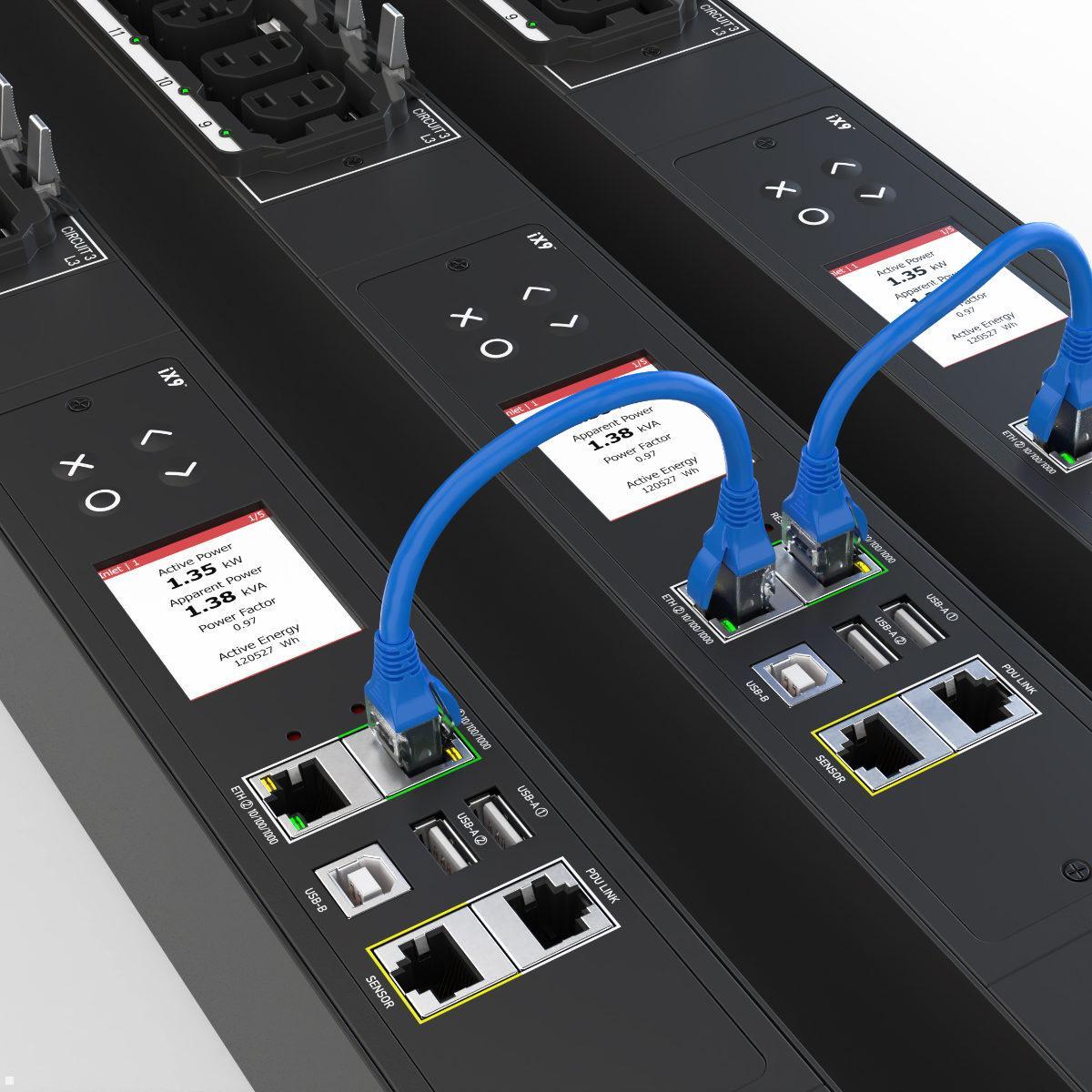

How many PDUs can be linked or cascaded?
Up to 8 PDUs can be linked, with up to 32 physically cascaded.
-
What networking and management options are supported?
2x Gigabit Ethernet, optional WLAN; remote management via HTTPS, SSH, SNMP v2/v3, JSON-RPC API and Redfish API (MODBUS-TCP also available).
-
What are the dimensions, weight and other physical specs?
Form factor 0U vertical; dimensions 56 × 65 × 1780 mm; weight approx. 6.4 kg; lead length 3 m.
