Novus TFC monitor mount folding arm 700 mm (969+3039+001)
Highlights
- VESA-compatible (75x75 & 100x100 mm)
- High load capacity up to 10 kg
- Compact design with approx. 700 mm reach
- QuickRelease system for tool-free monitor replacement
- Ideal for Novus TFC monitor mounting systems
Monitor Mount Novus TFC Folding Arm III
The Novus TFC Monitor Mount Folding Arm 700 mm (969+3039+001) is a high-quality, two-part monitor support arm for mounting on compatible TFC profile systems. It allows particularly flexible and ergonomic positioning of monitors and is ideal for offices, control rooms, and professional workstations. Thanks to its sturdy construction, monitors weighing up to 10 kg can be securely attached. The standardized VESA interface (75 × 75 mm and 100 × 100 mm) ensures high compatibility with a wide range of common displays.
Thanks to the two-part joint system, the folding arm offers a high degree of freedom of movement and can be individually adapted to different work requirements. The monitor can be tilted, swiveled and rotated, allowing optimal alignment for ergonomic working. With a reach of approx. 700 mm up to extended variants, the support arm offers sufficient scope for flexible monitor positions.
The integrated QuickRelease system allows particularly convenient, tool-free mounting and removal of the monitor. This makes the folding arm perfect for workstations where displays are regularly changed or adjusted. The standardized VESA interface also guarantees maximum compatibility with common monitors and ensures easy integration into existing mounting solutions.
The Novus TFC Folding Arm III impresses with its combination of flexibility, stability and ease of use and is therefore the ideal solution for modern, ergonomic monitor workstations.
Technical details
- Load capacity: 10 kg
- Reach: 700 mm
- Tilt: +/- 45 degrees
- Swivel range +/- 90°
- Height adjustable: stepless
- VESA mount: 75x75 mm, 100x100 mm
- Ball head joint for flexible and precise positioning
- QuickRelease for a quick monitor change
Does your screen or display fit the VESA mount?
We will gladly check whether your monitor is suitable for this mount. To do so, simply provide your model (manufacturer + model no.) in the comments field at the end of the ordering process. We will then check for you whether the monitor or display fits the monitor mount and, if not, we will contact you.
Learn more about the VESA standard for VESA mounts here.
| Product sheet: |  [pdf] |
|---|---|

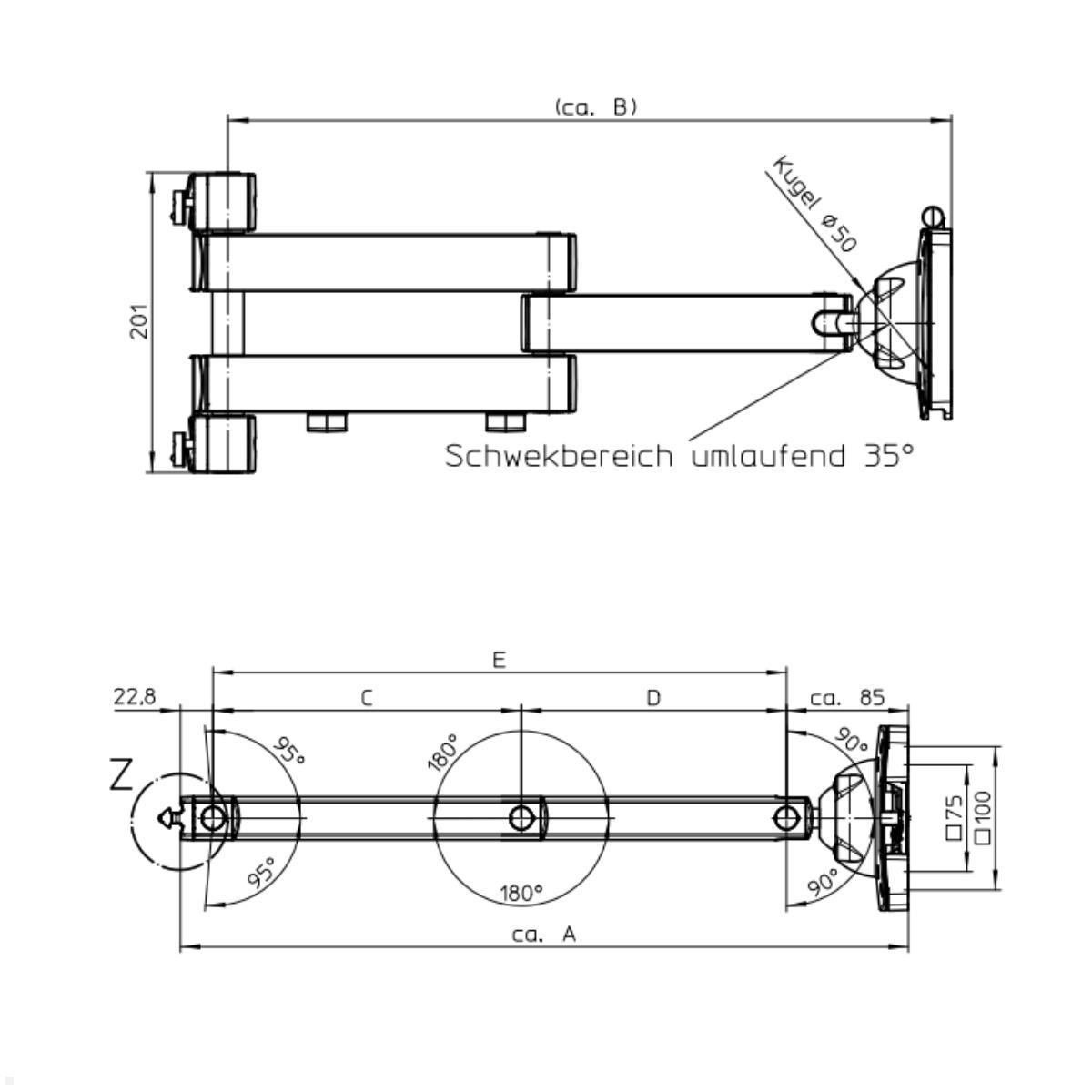

| Technical drawing: | [pdf] |
| Installation manual: | [pdf] |
| Capacity: | 10 kg |
| Tilt: | +/- 35° |
| Rotate: | 90° |
| Swivelling range: | +/- 90° |
| Length of the swivel arm: | 700 |
| VESA Standard: | 75x75, 100x100 mm (www.vesa-standard.com) |
| Scope of delivery: | 1x TFC folding arm |
| Contains installation material: | + |
| Manufacturer/Importer: | Novus Dahle GmbH, Breslauer Straße 34-38, 49808 Lingen (Ems), info@novus-dahle.com |
| Mobility: | Drehbar, swivelling, tilting |
| Multi-monitor mount: | 1 monitor |
| color: | Silber |
| VESA (in mm): | VESA 75x75, VESA 100x100 |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
Download area - catalogs, flyers, warranty conditions, ...
Questions & Answers
-
What is the load capacity of the Novus TFC Monitor Arm?
Technical details specify 10 kg; the product description also mentions a load capacity of up to 15 kg.
-
What is the reach of the arm?
Reach is 700 mm, with extended variants available.
-
Which VESA sizes are supported?
VESA mounting supports 75x75 mm and 100x100 mm.
-
What movements does it offer?
It tilts ±45°, swivels ±90°, and the height is continuously adjustable; the monitor can be inclined, swiveled and rotated.
-
What is the QuickRelease system?
The integrated QuickRelease system enables tool-free mounting and dismounting of the monitor.
-
What system does it mount to?
Mounts to compatible TFC profile systems.
-
Who is it suitable for?
Ideal for offices, control rooms and professional workstations with ergonomic monitor positioning.
-
What is the ball joint good for?
The ball joint allows flexible and precise positioning of the monitor.
Kunden kauften auch
What is the Novus TFC Folding Arm III and what is it used for?
The Novus TFC Folding Arm III is a high-quality, two-part monitor support arm specifically designed for professional use in modular workstation systems. As part of the Novus TFC system (Technical Furniture Components), it enables secure and flexible mounting of monitors to profile systems. The folding arm is used wherever ergonomic, adaptable and durable monitor solutions are required—for example in offices, control rooms, command centers or industrial work environments.
Its well-thought-out construction offers an ideal combination of stability and mobility. It helps companies create modern and efficient workstations where monitors can be positioned optimally. This flexibility is a decisive advantage especially in environments with changing requirements or multiple users.
What advantages does the Novus TFC Folding Arm III offer in everyday work?
A key advantage of the Novus TFC Folding Arm III is its high flexibility. Thanks to the two-part joint system, the monitor can be easily positioned in various ways—whether closer to the user, angled to the side, or folded back to save space. This makes the folding arm ideal for dynamic workstations where requirements regularly change.
Another major plus is the simple handling. The integrated QuickRelease system allows tool-free mounting and dismounting of the monitor. This saves time during installation and greatly simplifies device replacement during operation.
Additionally, the integrated cable management provides a neat and professional appearance at the workstation. Cables are routed cleanly and remain flexibly movable without getting in the way or posing a safety risk. Overall, the folding arm contributes to greater efficiency, comfort and tidiness in everyday work.
What technical features characterize the Folding Arm III?
The Novus TFC Folding Arm III impresses with its well-designed technical specifications. It is compatible with the common VESA standards 75 x 75 mm and 100 x 100 mm and thus supports a wide range of commercially available monitors. With a load capacity of up to 10 kg, the folding arm is suitable for classic office screens as well as larger displays used professionally.
The reach of approximately 700 mm offers generous freedom of movement and allows flexible positioning of the monitor. Through the combination of articulated arms and a ball joint, the screen can be tilted, swiveled and rotated, enabling precise alignment.
The sturdy construction ensures a secure and reliable mount at all times. Even with frequent adjustments, the monitor remains firmly in position without losing stability. These technical features make the folding arm a durable and high-performance solution for demanding work environments.
Why is the Novus TFC Folding Arm III the ideal choice for monitor mounts?
The Novus TFC Folding Arm III is the ideal choice for anyone looking for a flexible, ergonomic and high-quality solution for monitor mounting. Through its integration into the TFC system, it can be seamlessly incorporated into existing workstation concepts while offering maximum adaptability.
Especially in modern work environments where efficiency and ergonomics play a central role, the folding arm demonstrates its strengths. It enables individual adjustment of the monitor position, supports healthy working and provides a structured workstation layout.
Companies benefit from the high quality and durability, while users appreciate the easy operation and high comfort. The Novus TFC Folding Arm III is therefore a future-proof investment for professional monitor workstations that combines flexibility, stability and functionality.
