Bachmann BN PRO Metered + – 24xC13 / 6xCombo, 3.0m CEE 16A/5p (BM0024749)
Highlights

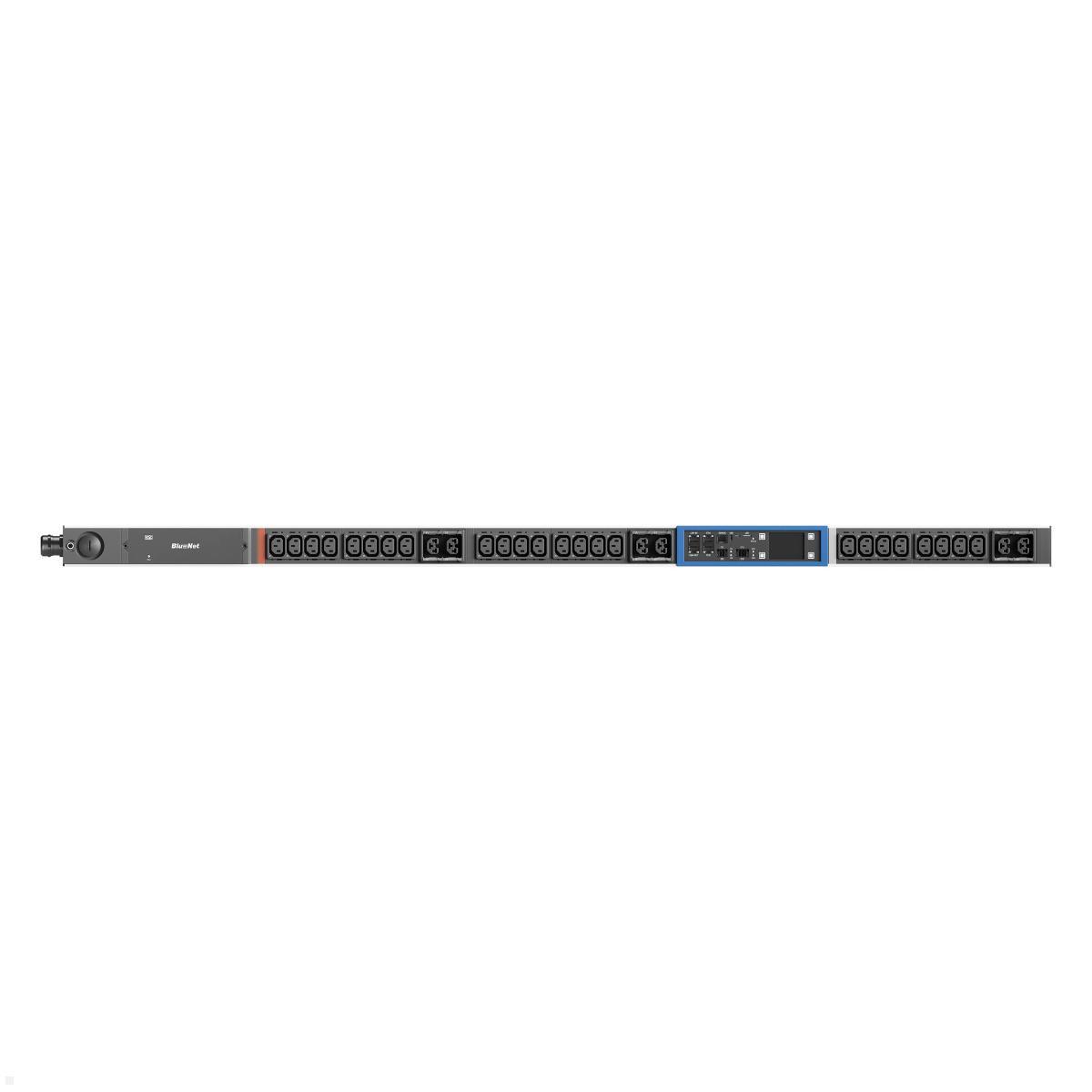

- 24x C13 IEC appliance outlets and 6x combo C13/C15/C19/C21
- 3-phase with 16 A / 400 V input and 11 kW power
- Per-socket measurement: current, voltage, power, energy
- Hot-swappable controller and power supply (hot-swap) during operation
- Integrated web server, SNMP, and PDU grouping for up to 20 PDUs
3-phase Rack PDU with 30 Outlets and Per-outlet Monitoring
The Bachmann BN PRO Metered + – 24xC13 / 6xCombo, 3.0m CEE 16A/5p (BM0024749) is a powerful 3-phase Power Distribution Unit for professional use in data centers and IT infrastructures with high power demands. With an input of 16 A / 400 V and a total output of 11 kW, this Bachmann PDU supplies a total of 30 outlets – 24x C13 IEC outlets for standard IT devices and 6x combo sockets (C13/C15/C19/C21) for larger consumers. The integrated measurement function records per outlet current, voltage, reactive, apparent and active power, as well as frequency and power factor. The integrated web server with two Ethernet interfaces (1x Gbit/s with PoE and 1x 10/100 Mbit/s) enables convenient remote access to all measurement data.
For maximum availability, the controller and power supply can be replaced during operation (hot-swap). The clear 2.4" TFT color display shows all relevant data at a glance. Via the PDU chain function, up to 20 PDUs can be managed under a single IP address. The Bachmann BN PRO Metered + is ideal for colocation environments, high-performance servers, and professional network racks with 3-phase connections.
Technical Details Bachmann BN PRO Metered + 3-phase PDU 24xC13 / 6xCombo
- Input: 16 A / 400 V, 11 kW, 3-phase
- Supply cable: 3.0 m, 2.5 mm², red 16 A CEE plug
- Output: 24x C13 IEC outlets, 6x combo C13/C15/C19/C21
- Per-outlet measurement: current, voltage, power, energy, frequency, power factor
- Rated current 16 A, supply voltage 400 V
- Hot-swappable controller and power supply
- Integrated web server with web interface
- 2x Ethernet: 1x Gbit/s (PoE), 1x 10/100 Mbit/s
- PDU chain for up to 20 PDUs
- 1x RJ45 for up to 10 external sensors
- 1x USB-C port (USB 2.0)
- 2.4" TFT color display (rotatable via software)
- SNMP-capable, LED indicator, temperature measurement
- Mounting orientation: vertical (0U)
- Dimensions (L×W×D): 1358 x 56 x 71 mm
- Color: aluminium
- Includes mounting brackets (L-shaped, single) and mounting hardware
| Product sheet: |  [pdf] |
|---|---|

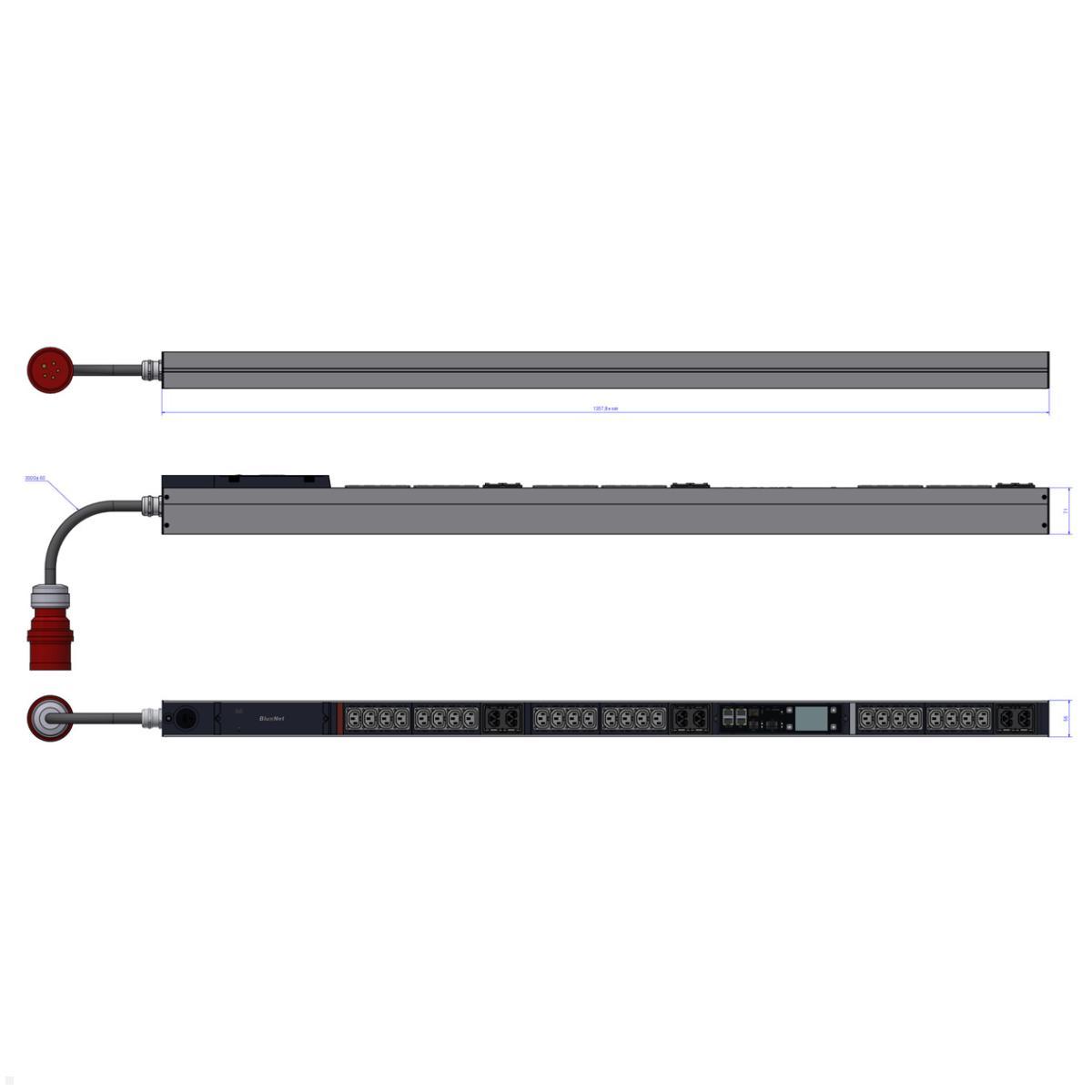

| Technical drawing: | [pdf] |
| RoHS / REACH: | [pdf] |
| Installation manual: | [pdf] |
| Warning/safety instructions: | [pdf] |
| Contains installation material: | + |
| Warranty: | 3 years |
| Manufacturer/Importer: | Bachmann GmbH, Ernsthaldenstr. 33, 70565 Stuttgart, info@bachmann.com |
| Einspeisung: | 16A |
| FI switch: | No |
| Mains filter: | No |
| Messen: | pro Port |
| Number of sockets: | 30 Outlets |
| Overvoltage protection: | No |
| Phasen: | 3-phasig |
| RCM-Differenzstrommessung: | Nein |
| Schalten: | Nein |
| Steckerart: | Combosocket |
| Strommessung / Überwachung: | Ja, online |
| color: | Black |
| Größe PDU: | Vertikal, 40 HE |
| Form: | eckig |
| USB-Charger: | USB C |
| screw-on: | Yes |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
Download area - catalogs, flyers, warranty conditions, ...
What advantages does a 3-phase PDU with per-outlet metering offer in the data center?
In high-power IT environments, single-phase PDUs quickly reach their limits. The Bachmann BN PRO Metered + with 24x IEC C13 and 6x combo sockets (BM0024749) solves this problem by using a 3-phase feed with 16 A / 400 V and a total power of 11 kW. The three phases distribute the load evenly and enable a significantly higher total capacity than comparable single-phase models. The 24 IEC C13 outlets cover the needs of standard servers and network devices, while the 6 combo sockets in the C13/C15/C19/C21 format can also accommodate higher-power devices. Per-outlet metering records detailed values for each connected device such as current, voltage, active power, apparent power, reactive power, active energy, apparent energy, reactive energy, frequency and power factor. The red CEE 16A plug indicates the 3-phase feed and is connected via the 3.0 m long supply cable with a 2.5 mm² cross-section.
How does network connectivity support central monitoring of multiple PDUs?
The integrated web server of the Bachmann BN PRO Metered + provides all measurement data and configuration options via a clear web interface. Two physically separate Ethernet interfaces with 1x Gigabit (PoE-capable) and 1x 10/100 Mbit/s ensure redundant network connectivity. Using the PDU grouping function, up to 20 PDUs can be centrally managed via a single IP address, which greatly simplifies administration of large installations. SNMP support enables seamless integration into existing monitoring systems. An RJ45 interface allows the connection of up to ten external sensors for environmental monitoring.
Why is the hot-swap concept particularly important for 3-phase operation?
In a 3-phase PDU with 11 kW total power, many critical devices are connected. A failure of the management electronics would have particularly serious consequences in this scenario. The Bachmann BN PRO Metered + addresses this risk with hot-swappable controllers and power supplies. Firmware updates and component replacements are performed without interrupting the power supply. An adjacent PDU or a PoE switch can redundantly power the communication module. The 2.4-inch TFT color display with rotatable orientation shows all operational data directly on the device. Status LEDs at each outlet make the operational status visible at a glance. With dimensions of 1358 x 56 x 71 mm and vertical 0U mounting, the 3-phase PDU does not occupy valuable rack space.
