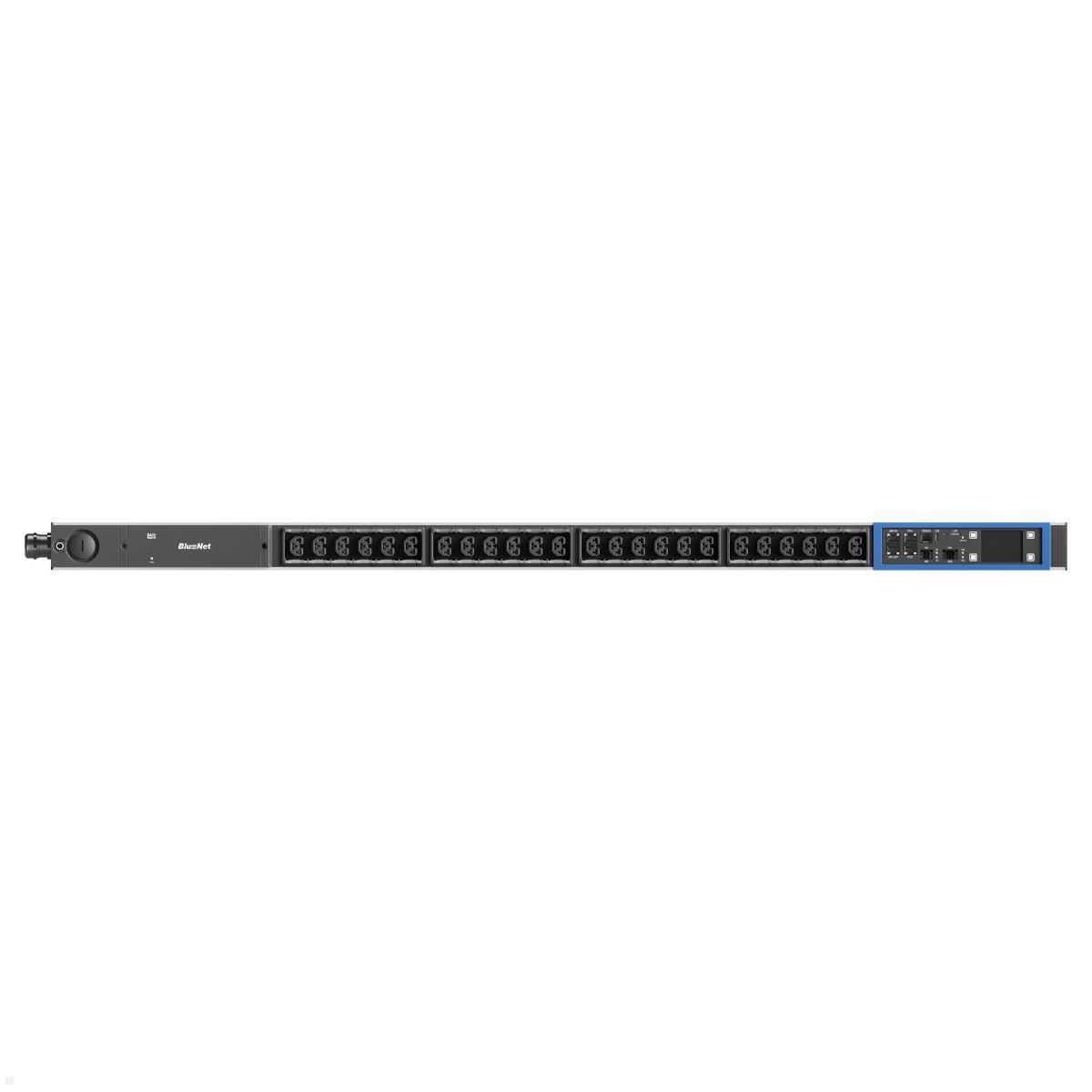

Bachmann BN PRO Metered + – 24xCombo, 3.0m CEE 16A/3p (BM0024743)
Highlights
- 24x combo outlets C13/C15/C19/C21 with per-outlet measurement
- Integrated web server with 2x Ethernet (1x 1 Gbit/s PoE, 1x 100 Mbit/s)
- Hot-swappable controller and power supply (hot-swap)
- 2.4" TFT color display with rotatable screen
- PDU cluster of up to 20 PDUs via a single IP address
Intelligent Rack PDU with Per-Socket Energy Measurement
The Bachmann BN PRO Metered + – 24xCombo, 3.0m CEE 16A/3p (BM0024743) is a powerful Power Distribution Unit for professional use in data centers, server rooms and IT infrastructures. With 24 combo sockets in the C13/C15/C19/C21 format, this Bachmann PDU provides maximum flexibility for power distribution. The integrated metering function records current, voltage, reactive, apparent and active power as well as frequency and power factor for each individual socket. The integrated web server with two Ethernet interfaces (1x Gbit/s with PoE and 1x 10/100 Mbit/s) enables convenient remote access to all measurement data and settings.
For maximum redundancy, the controller and power supply can be replaced during operation (hot-swappable). The clear 2.4" TFT color display shows all relevant data at a glance and can be rotated via software. Up to 20 PDUs can be managed via a single IP address using the PDU linking function. The rack PDU is ideal for colocation environments, distributed server landscapes and professional network cabinets.
Technical Details Bachmann BN PRO Metered + PDU 24xCombo
- Input: 16 A / 230 V, 3.6 kW
- Supply cable: 3.0 m, 2.5 mm², CEE plug 16 A blue
- Output: 24x Combo C13/C15/C19/C21
- Per-socket measurement: current, voltage, power, energy, frequency, power factor
- Single-phase, rated current 16 A, supply voltage 230 V
- Hot-swappable controller and power supply
- Integrated web server with web interface
- 2x Ethernet: 1x Gbit/s (PoE), 1x 10/100 Mbit/s
- PDU linking for up to 20 PDUs
- 1x RJ45 for up to 10 external sensors
- 1x USB-C port (USB 2.0)
- 2.4" TFT color display (rotatable via software)
- SNMP-capable, LED indicator, temperature measurement
- Mounting orientation: vertical (0U)

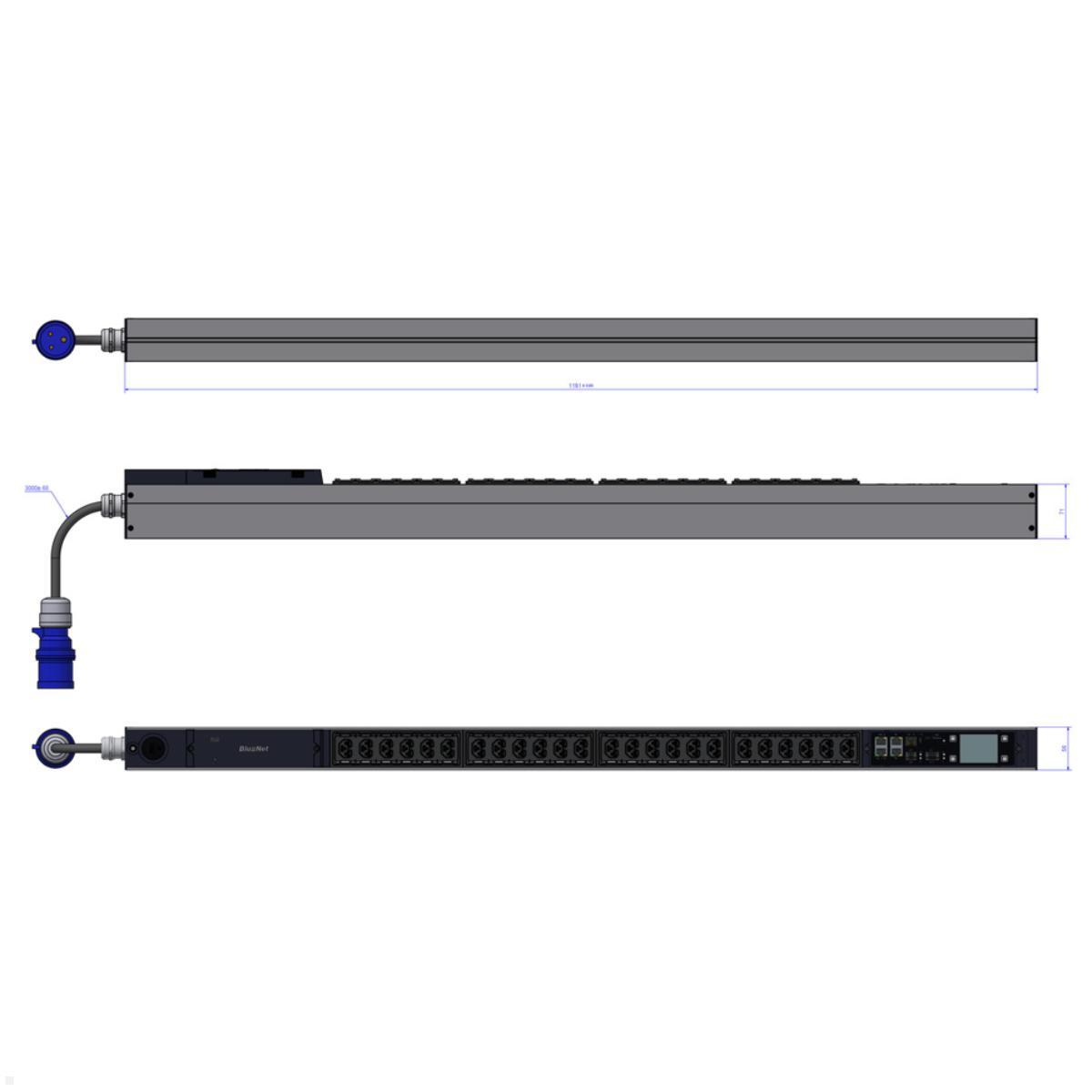

- Dimensions (L×W×D): 1191 x 56 x 71 mm
- Color: aluminum
- Includes mounting brackets (L-shaped, single) and fastening hardware
| Product sheet: |  [pdf] |
|---|---|
| Technical drawing: | [pdf] |
| RoHS / REACH: | [pdf] |
| Installation manual: | [pdf] |
| Warning/safety instructions: | [pdf] |
| Contains installation material: | + |
| Warranty: | 3 years |
| Manufacturer/Importer: | Bachmann GmbH, Ernsthaldenstr. 33, 70565 Stuttgart, info@bachmann.com |
| Einspeisung: | 16A |
| FI switch: | No |
| Mains filter: | No |
| Messen: | pro Port |
| Number of sockets: | 24 Outlets |
| Overvoltage protection: | No |
| Phasen: | 1-phasig |
| RCM-Differenzstrommessung: | Nein |
| Schalten: | Nein |
| Steckerart: | Combosocket |
| Strommessung / Überwachung: | Ja, online |
| color: | Black |
| Größe PDU: | Vertikal, 40 HE |
| Form: | eckig |
| USB-Charger: | USB C |
| screw-on: | Yes |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
Download area - catalogs, flyers, warranty conditions, ...
Why is the Bachmann BN PRO Metered + PDU the optimal choice for data centers?
In modern data centers and server rooms, precise power monitoring is indispensable. The Bachmann BN PRO Metered + with 24 combo outlets (BM0024743) offers exactly this functionality at the highest level. Unlike conventional PDUs, the BN PRO Metered + measures not only total consumption but records for each individual outlet detailed measurements such as current, voltage, active power, apparent power, reactive power, active energy, apparent energy, reactive energy, frequency and power factor. This granular measurement enables an exact allocation of energy consumption to individual devices, which is particularly crucial in colocation environments with multiple customers. The single-phase input with 16 A and 230 V delivers up to 3.6 kW of power, while the 3.0 m long supply cable with CEE 16A blue plug allows flexible positioning in the rack. Vertical mounting as a 0U solution saves valuable rack space and keeps the full height unit available for active components.
What network and management functions does the BlueNet PDU offer?
The Bachmann BN PRO Metered + features an integrated web server that provides full access to all measurement data and configurations via a convenient web interface. Two physically separate Ethernet interfaces with 1x Gigabit (PoE-capable) and 1x 10/100 Mbit/s ensure a reliable and redundant network connection. Using the PDU bundling function, up to 20 PDUs can be managed via a single IP address, which significantly simplifies administration of large installations. SNMP support enables seamless integration into existing monitoring and management systems. In addition, an RJ45 interface is available for up to ten external sensors, for example to monitor temperature and humidity in the rack. A USB-C port (USB 2.0) completes the connectivity.
How does the BN PRO Metered + ensure maximum availability in operation?
Fault tolerance is of the highest priority in professional IT environments. The Bachmann BN PRO Metered + was developed with a hot-swap concept that allows the replacement of the controller and power supply during operation. This enables maintenance and updates to be performed without interrupting the power supply. the adjacent PDU or a PoE switch can supply the communications module as a redundant system, which further increases fault tolerance. The 2.4-inch TFT color display with automatic orientation clearly shows all relevant operating data, while status LEDs at each outlet make the operational status easily visible at a glance. The color coding with interchangeable frames in blue and red facilitates the distinction between A and B feeds in redundant power supply concepts. With the supplied L-shaped mounting bracket and mounting hardware, the PDU can be installed quickly and securely in the rack.
