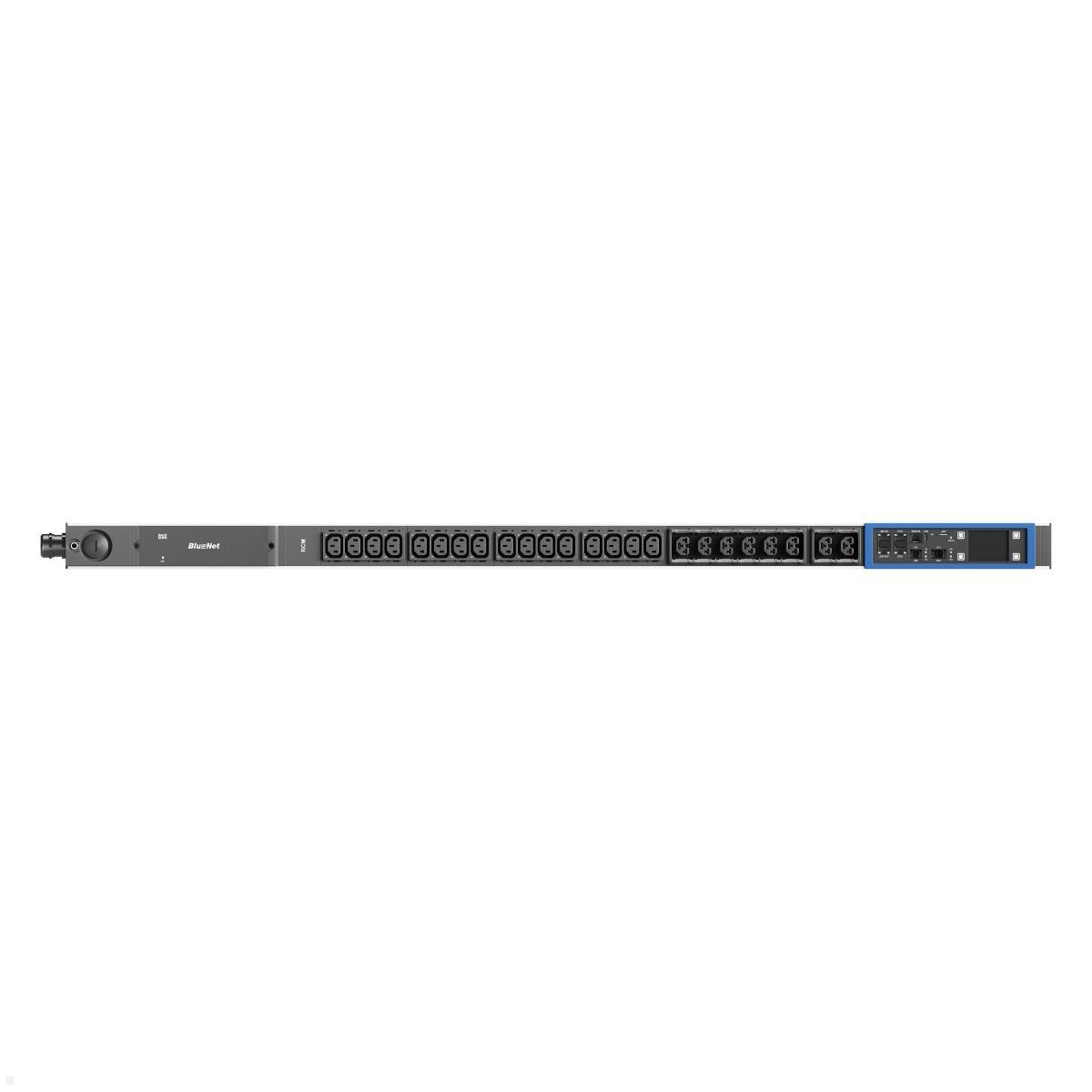

Bachmann BN PRO Metered + RCM – 16xC13 / 8xCombo, 3.0m CEE 16A/3p (BM0024748)
Highlights
- 16x C13 power outlets and 8x combo C13/C15/C19/C21
- RCM residual current measurement per phase, Type B for maximum safety
- Measurements per outlet: current, voltage, power, energy
- Hot-swappable controller and power supply (hot-swap)
- Integrated web server, SNMP, and PDU clustering up to 20 PDUs
RCM Rack PDU with 16x C13 and 8x Combo Sockets for Secure IT Infrastructure
The Bachmann BN PRO Metered + RCM 6 16xC13 / 8xCombo, 3.0m CEE 16A/3p (BM0024748) combines precise per-outlet energy measurement with integrated residual current monitoring per phase (Type B) and thus offers the highest safety standards for data center operation. The mix of 16 C13 IEC outlets and 8 combo sockets (C13/C15/C19/C21) enables simultaneous operation of servers, switches and larger IT devices. The integrated measurement function records per outlet current, voltage, reactive, apparent and active power as well as frequency and power factor. The integrated web server with two Ethernet interfaces (1x Gbit/s with PoE and 1x 10/100 Mbit/s) allows convenient remote access to all measurement data.
The hot-swap concept allows replacement of the controller and power supply during operation without interrupting the power supply. The 2.4" TFT color display shows all relevant operating data clearly. Via the PDU cascade function up to 20 PDUs can be managed under a single IP address. The Bachmann BN PRO Metered + RCM is ideal for security-critical colocation environments, professional network racks and distributed server landscapes.
Technical Details Bachmann BN PRO Metered + RCM PDU 16xC13 / 8xCombo
- Input: 16 A / 230 V, 3.6 kW
- Supply cable: 3.0 m, 2.5 mm², CEE plug 16 A blue
- Output: 16x C13 IEC outlets, 8x combo C13/C15/C19/C21
- Measurement per outlet: current, voltage, power, energy, frequency, power factor
- RCM residual current measurement per phase, Type B
- Single-phase, rated current 16 A, supply voltage 230 V
- Hot-swappable controller and power supply
- Integrated web server with web interface
- 2x Ethernet: 1x Gbit/s (PoE), 1x 10/100 Mbit/s
- PDU cascade for up to 20 PDUs
- 1x RJ45 for up to 10 external sensors
- 1x USB-C port (USB 2.0)
- 2.4" TFT color display (rotatable via software)
- SNMP-capable, LED indicator, temperature measurement
- Mounting orientation: vertical (0U)
- Dimensions (L×W×D): 1200 x 56 x 71 mm
- Color: aluminum
- Incl. mounting brackets (L-shaped, single) and fastening material
| Product sheet: |  [pdf] |
|---|---|
| Technical drawing: | [pdf] |
| RoHS / REACH: | [pdf] |
| Installation manual: | [pdf] |
| Warning/safety instructions: | [pdf] |
| Contains installation material: | + |
| Warranty: | 3 years |
| Manufacturer/Importer: | Bachmann GmbH, Ernsthaldenstr. 33, 70565 Stuttgart, info@bachmann.com |
| Einspeisung: | 16A |
| FI switch: | No |
| Mains filter: | No |
| Messen: | pro Port |
| Number of sockets: | 24 Outlets |
| Overvoltage protection: | No |
| Phasen: | 1-phasig |
| RCM-Differenzstrommessung: | Ja |
| Schalten: | Nein |
| Steckerart: | Combosocket |
| Strommessung / Überwachung: | Ja, online |
| color: | Black |
| Größe PDU: | Vertikal, 40 HE |
| Form: | eckig |
| USB-Charger: | USB C |
| screw-on: | Yes |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
Download area - catalogs, flyers, warranty conditions, ...
Why is a PDU with RCM and mixed C13/Combo outlets ideal for data centers?
Professional data centers demand high levels of safety and flexibility in power distribution. The Bachmann BN PRO Metered + RCM with 16x C13 and 8x Combo outlets (BM0024748) meets both requirements in a single PDU. The 16 C13 IEC appliance outlets supply standard IT devices such as servers and switches, while the 8 Combo outlets can be used as C13, C15, C19 or C21 and thus also support higher-powered devices. The integrated RCM residual current measurement per phase of type B detects both AC and DC fault currents, providing the highest protection standard. Combined with outlet-level metering, this creates a seamless monitoring system that makes fault currents and energy consumption transparent at the individual device level. The single-phase input with 16 A and 230 V provides up to 3.6 kW, fed via the 3.0 m supply cable with CEE 16A blue plug.
What advantages does the combination of outlet metering and RCM monitoring offer?
The Bachmann BN PRO Metered + RCM combines two crucial monitoring functions in one unit. Outlet-level metering captures detailed values for each connected device such as current, voltage, active power, apparent power, reactive power as well as associated energy values, frequency and power factor. At the same time, the RCM function continuously monitors residual currents per phase and issues alarms when configured thresholds are exceeded. All measurement and monitoring data can be viewed remotely via the integrated webserver with web interface. SNMP support enables seamless integration into monitoring platforms. Two physically separate Ethernet interfaces ensure redundant network connectivity, while PDU chaining allows centralized management of up to 20 PDUs via a single IP address.
How does the BN PRO Metered + RCM ensure uninterrupted operation?
The hot-swap capability of the Bachmann BN PRO Metered + RCM allows controller and power supply replacement during operation. Firmware updates and maintenance can thus be performed without interrupting the power supply to connected devices. A neighboring PDU or a PoE switch can redundantly power the communication module, further increasing availability. The 2.4-inch TFT color display with rotatable view provides all operating data directly on the device, complemented by status LEDs at each outlet. Colored frames in blue and red make it easier to distinguish A and B feeds in redundant concepts. With dimensions of 1200 x 56 x 71 mm and vertical 0U mounting, the PDU saves valuable rack space.
