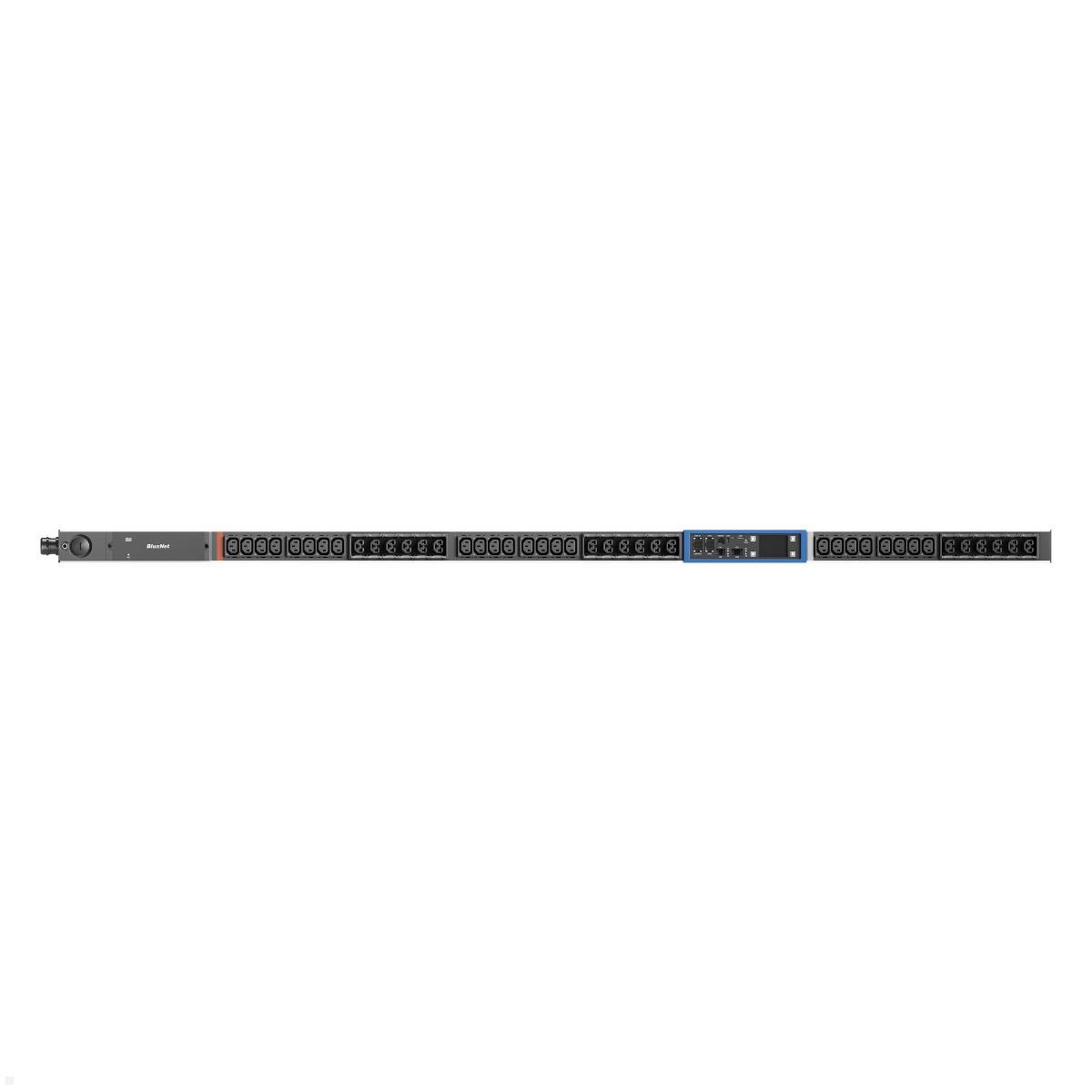

Bachmann BN PRO S Switched - 16A Rack PDU with 24xC13 18xCombo, 3,0m CEE 16A/5p (BM0024774)
Highlights
- 24xC13 + 18xCombo (C13/C15/C19/C21)
- 16A / 400V / 11 kW, 3-phase
- Outlets individually switchable
- Measurement per phase, SNMP-capable
- Controller & power supply hot-swappable
3-phase Switched Rack PDU with 24x C13, 18x Combo and 11 kW Power

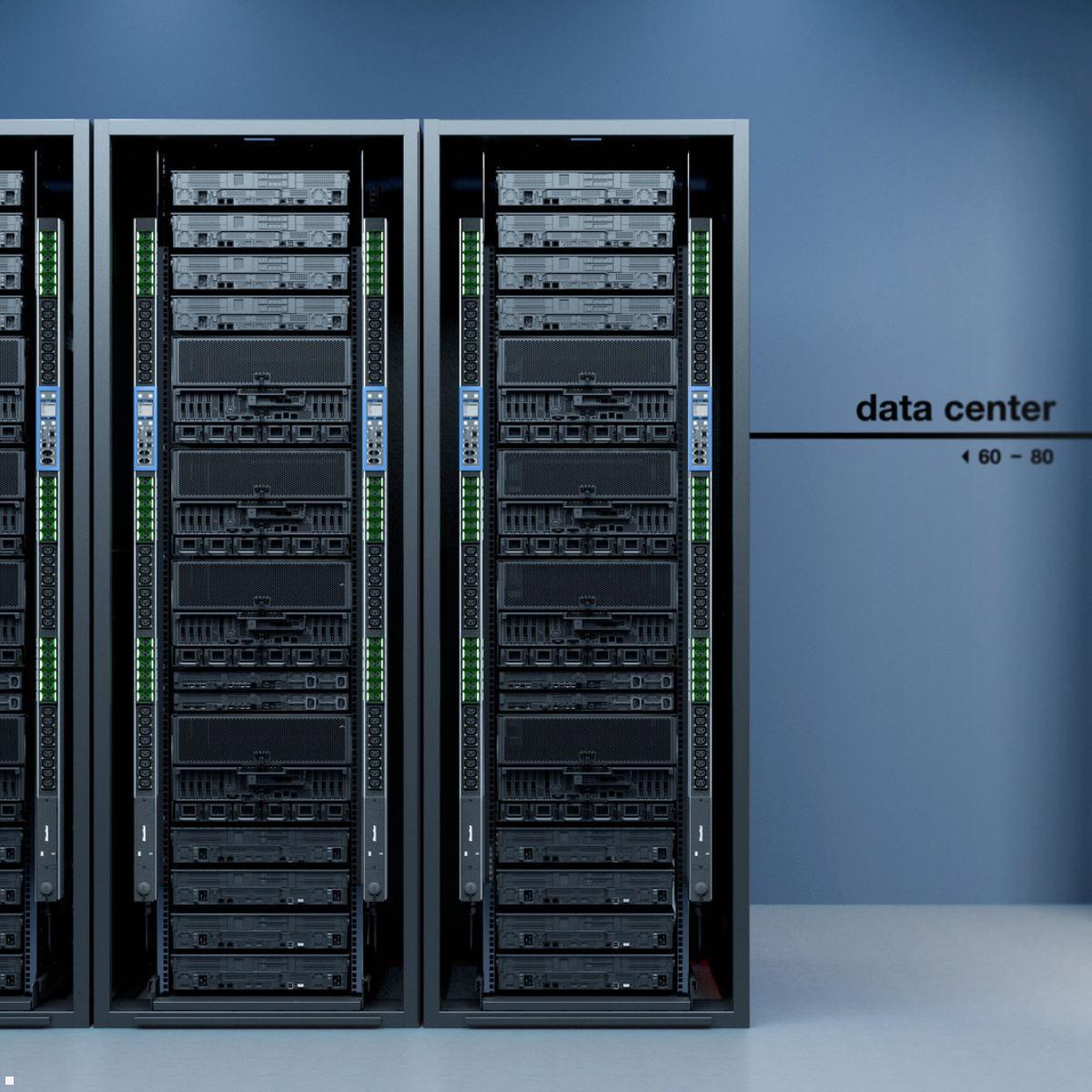

The Bachmann BN PRO S Switched (BM0024774) is a powerful 3-phase Power Distribution Unit for professional use in IT racks, server rooms and data centers. With an input of 16A/400V and 11 kW and a 3.0 m supply cable (2.5 mm²) with a red 16A CEE plug, it reliably powers connected devices in the rack. The 24x C13 IEC outlets and 18x combo sockets (C13/C15/C19/C21) provide maximum flexibility for different device configurations. Each outlet is individually switchable, allowing devices to be remotely powered on, restarted or turned off — ideal for remote racks and edge installations. The integrated measurement function records per phase current, voltage, reactive, apparent and active power, reactive, apparent and active energy, as well as frequency and power factor. Upgradeable at any time to per-outlet measurement via license.

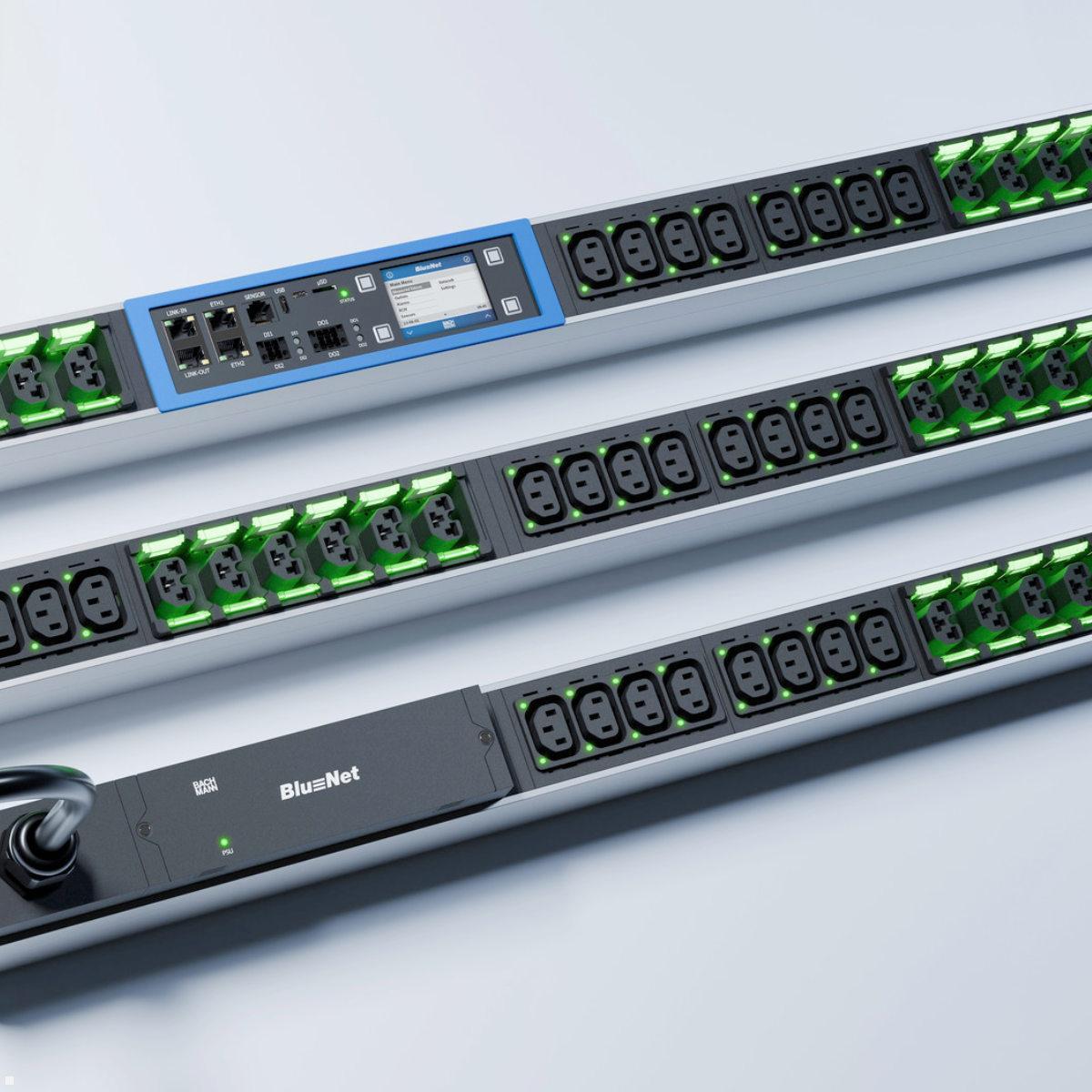

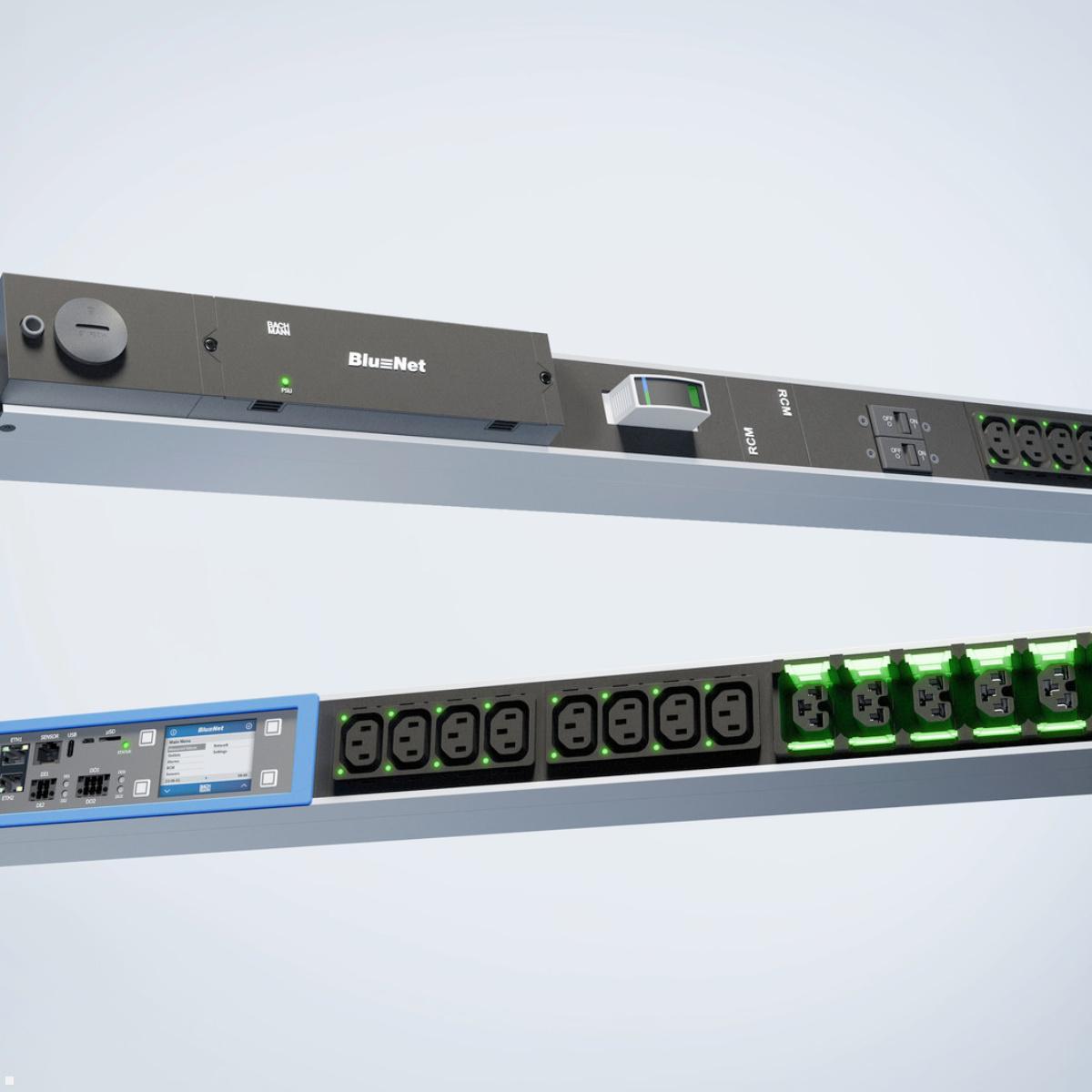

The Bachmann BN PRO S Switched - 16A Rack PDU with 24x C13 18x Combo, 3.0m CEE 16A/5p (BM0024774) impresses with maximum redundancy: controller and power supply are hot-swappable, allowing maintenance without interruption. The integrated web server with web interface and SNMP support enable seamless integration into existing monitoring systems. Up to 20 PDUs can be cascaded and centrally managed via the PDU cascade interface. The 2.4" TFT color display shows important operating data directly on the device. An RJ45 sensor port allows connection of up to ten external sensors. With 1x 1 Gbit/s (PoE) and 1x 10/100 Mbit/s Ethernet port as well as 1x USB-C (USB 2.0), the PDU is well connected — color-coding frames (blue/red) and mounting brackets (L-shape) are included.
Technical Details – Bachmann BN PRO S Switched Rack PDU BM0024774
- Input: 16A / 400V / 11 kW
- Cable: 3.0 m | 2.5 mm² | CEE plug 16A red
- Phases: 3-phase

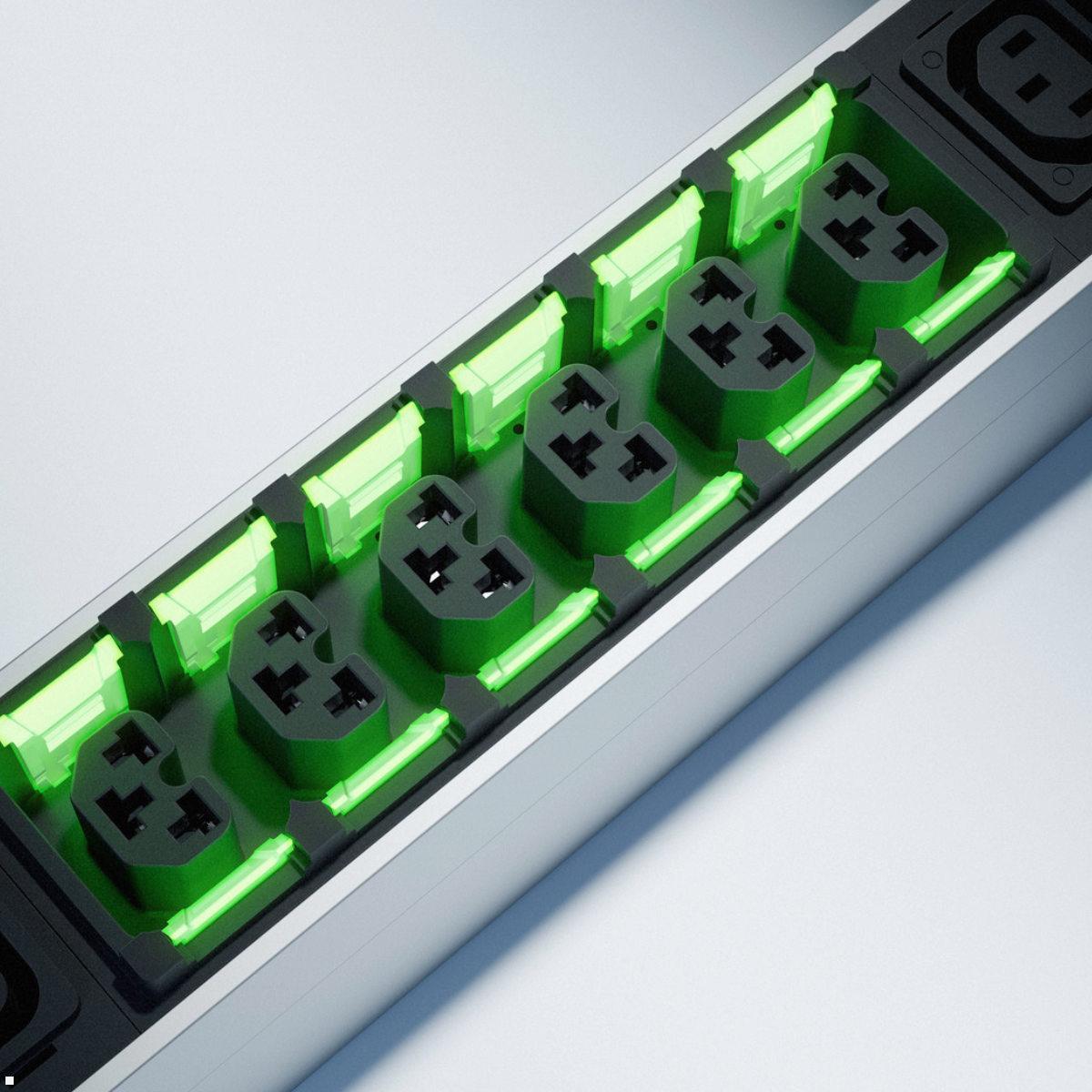

- Output: 24x C13 IEC outlets, 18x Combo (C13/C15/C19/C21)
- Outlets individually switchable
- Per-phase measurement: current, voltage, reactive/apparent/active power, reactive/apparent/active energy, frequency, power factor
- Upgradeable at any time to per-outlet measurement via license
- Controller and power supply hot-swappable
- Integrated web server with web interface
- SNMP support
- Ethernet: 1x 1 Gbit/s (PoE) + 1x 10/100 Mbit/s
- PDU cascade: up to 20 PDUs can be cascaded
- 1x RJ45 sensor port for up to 10 external sensors
- 1x USB-C port (USB 2.0)
- 2.4" TFT color display
- LED indicator: Yes
- Surge protection: No
- EMI / mains interference filter: No
- Fuse: No
- Temperature measurement: Yes
- Mounting orientation: vertical
- Enclosure: Aluminum
- Color-coding frames (blue/red)
- Including mounting brackets (L-shape, single)
- Dimensions (L×W×D): 1678.2 x 56 x 71 mm
| Product sheet: |  [pdf] |
|---|---|

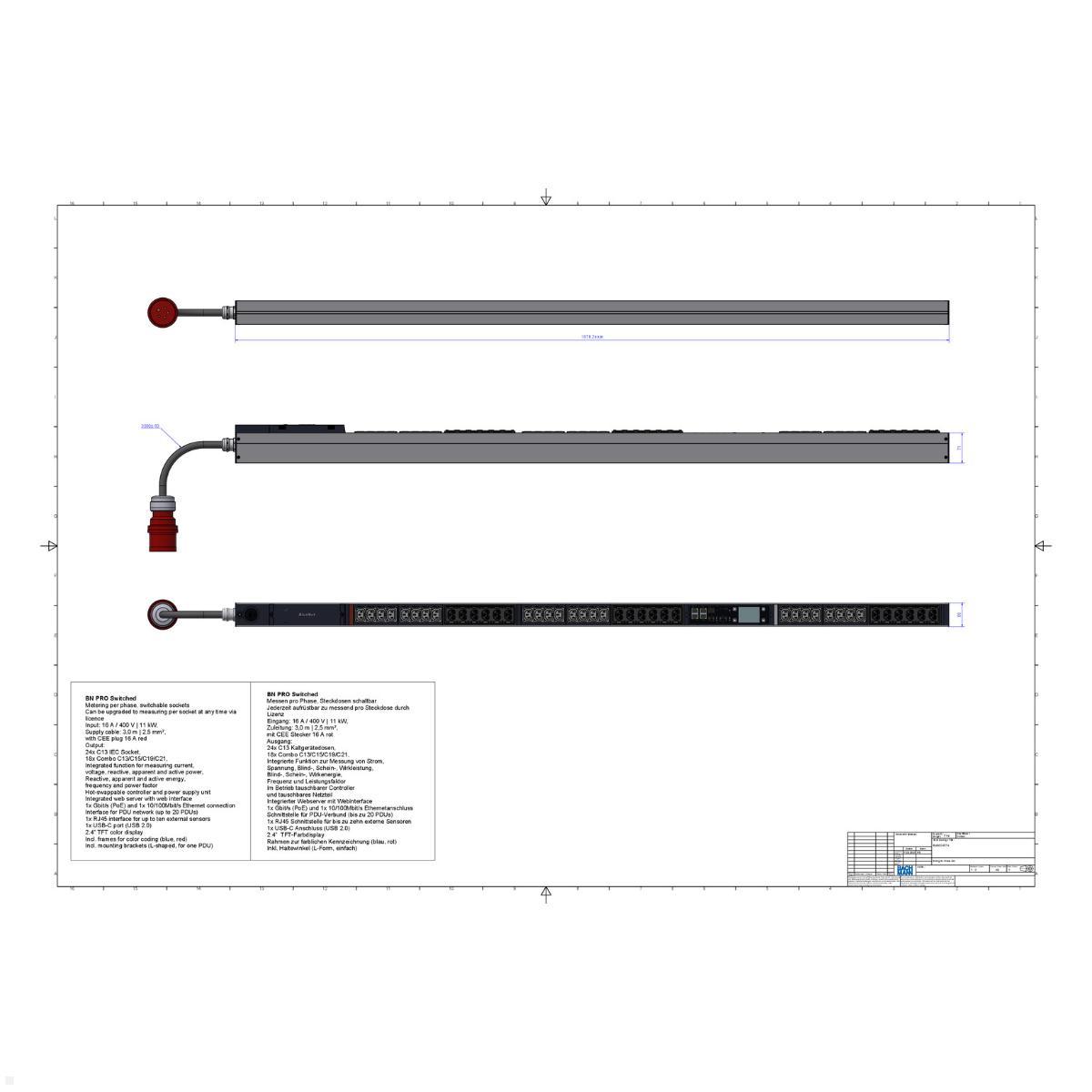

| Technical drawing: | [pdf] |
| Installation manual: | [pdf] |
| Contains installation material: | + |
| Warranty: | 3 years |
| Manufacturer/Importer: | Bachmann GmbH, Ernsthaldenstr. 33, 70565 Stuttgart, info@bachmann.com |
| Einspeisung: | 16A |
| FI switch: | No |
| Fuse: | No |
| Mains filter: | No |
| Messen: | pro Phase |
| Number of sockets: | 42 Outlets |
| Overvoltage protection: | No |
| Phasen: | 3-phasig |
| RCM-Differenzstrommessung: | Nein |
| Schalten: | Ja |
| Steckerart: | C13, Combosocket |
| Strommessung / Überwachung: | Ja, online |
| color: | Aluminium |
| Größe PDU: | Vertikal, 40 HE |
| USB-Charger: | USB C |
| screw-on: | Yes |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
Download area - catalogs, flyers, warranty conditions, ...
1 review
6 July 2026 07:03
Schnelle Preis‑Leistung, gerne wieder
Einfacher Bestellprozess, alles lief glatt. Sehr freundlicher Kontakt.
Questions & Answers
-
What is the Bachmann BN PRO S Switched Rack PDU BM0024774?
A powerful 3-phase switched rack PDU for professional use in IT racks, server rooms and data centres, with 11 kW and an input of 16A/400V.
-
What outlets and types does it provide?
It provides 24x C13 outlets and 18x Combo outlets (C13/C15/C19/C21).
-
Are the outlets individually switchable?
Yes, each outlet is individually switchable.
-
What monitoring and measurement features are included?
It measures per-phase current, voltage, apparent, reactive and real power, as well as reactive, apparent and real energy, frequency and power factor; upgrading to per-outlet measurement is available via a license.
-
How can it be managed and integrated into a monitoring system?
An integrated web server with a web interface and SNMP support enables seamless integration; the PDU cascade interface allows up to 20 PDUs to be cascaded.
-
What networking ports and sensor options are supported?
Ethernet: 1x 1 Gbit/s (PoE) + 1x 10/100 Mbit/s; 1x USB-C (USB 2.0); RJ45 sensor port for up to 10 external sensors; 2.4" colour TFT display.
-
What are the physical characteristics and mounting options?
Aluminium enclosure; vertical mounting orientation; colour-coded frame (blue/red); includes L-shaped mounting brackets.
-
What are the dimensions of the PDU?
Dimensions (L×W×D): 1678.2 x 56 x 71 mm.
