Bachmann BN PRO S Switched - 16A Rack PDU with 36xCombo, 3,0m CEE 16A/5p (BM0024772)
Highlights
- 36x Combo (C13/C15/C19/C21)
- 16A / 400V / 11 kW, 3-phase
- Sockets individually switchable
- Per-phase measurement, SNMP-capable
- Controller & power supply hot-swappable

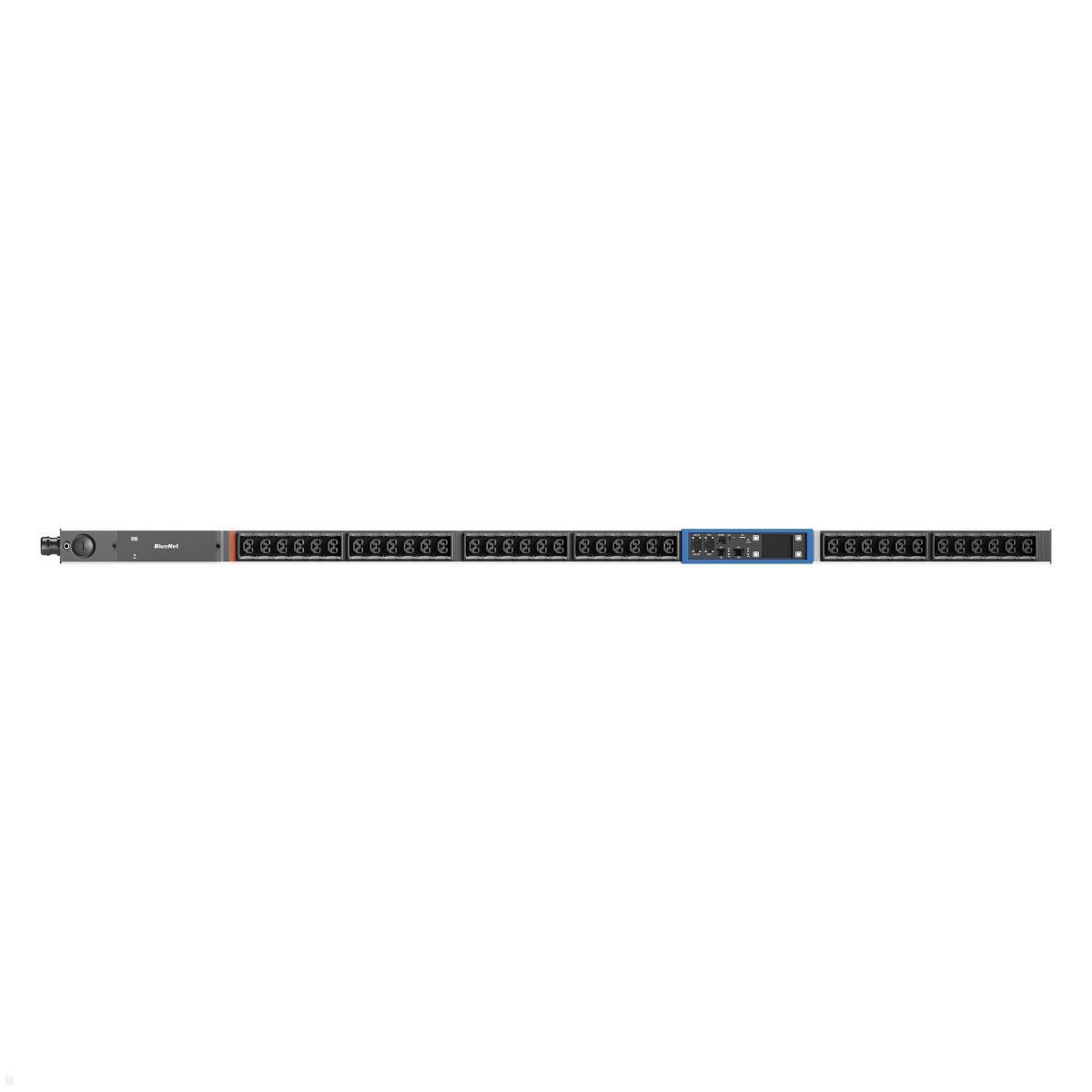

3-phase Switched Rack PDU with 36x Combo and 11 kW Power

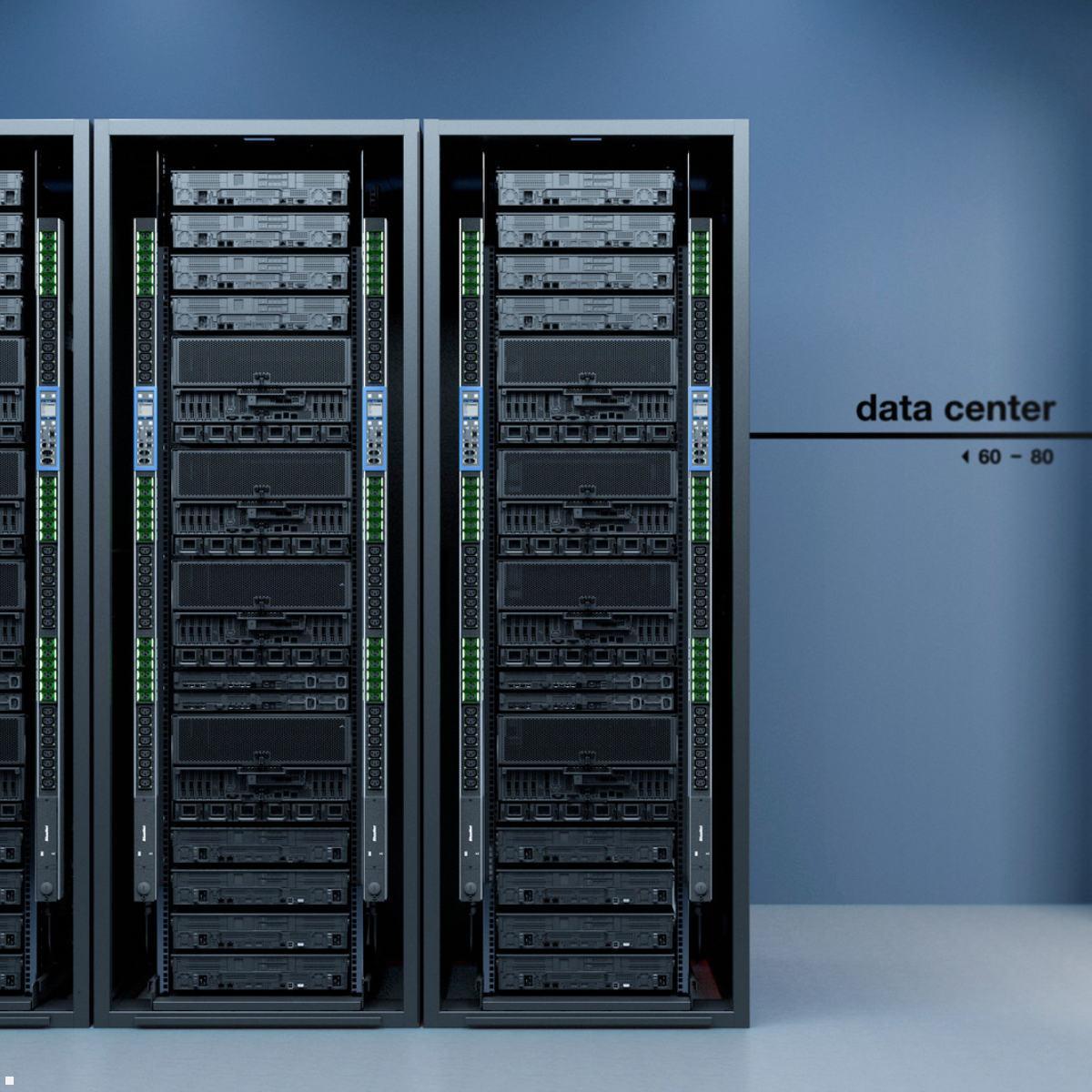

The Bachmann BN PRO S Switched (BM0024772) is a high-performance, 3-phase Power Distribution Unit for professional use in IT racks, server rooms and data centers. With an input of 16A/400V and 11 kW and a 3.0 m supply cable (2.5 mm²) with red CEE 16A plug, it reliably powers devices connected in the rack. The 36x Combo outlets (C13/C15/C19/C21) offer maximum flexibility and support a wide range of device configurations. Each outlet is individually switchable, allowing devices to be conveniently powered on, restarted or shut down remotely—ideal for remote racks and edge installations. The integrated metering function measures per phase current, voltage, reactive/apparent/active power, reactive/apparent/active energy, frequency and power factor. Upgradable at any time to per-outlet metering via license.
The Bachmann BN PRO S Switched - 16A Rack PDU with 36x Combo, 3.0m CEE 16A/5p (BM0024772) impresses with maximum redundancy: controller and power supply are hot-swappable, allowing maintenance without interruption. The integrated web server with web interface and SNMP support enable seamless integration into existing monitoring systems. Up to 20 PDUs can be cascaded and centrally managed via the PDU linking interface. The 2.4" TFT color display shows important operating data directly on the unit. An RJ45 sensor port allows connection of up to ten external sensors. With 1x 1 Gbit/s (PoE) and 1x 10/100 Mbit/s Ethernet port as well as 1x USB-C (USB 2.0), the PDU is well connected—frames for color coding (blue/red) and mounting brackets (L-shape) are included.
Technical Details – Bachmann BN PRO S Switched Rack PDU BM0024772
- Input: 16A / 400V / 11 kW
- Supply cable: 3.0 m | 2.5 mm² | CEE plug 16A red
- Phases: 3-phase

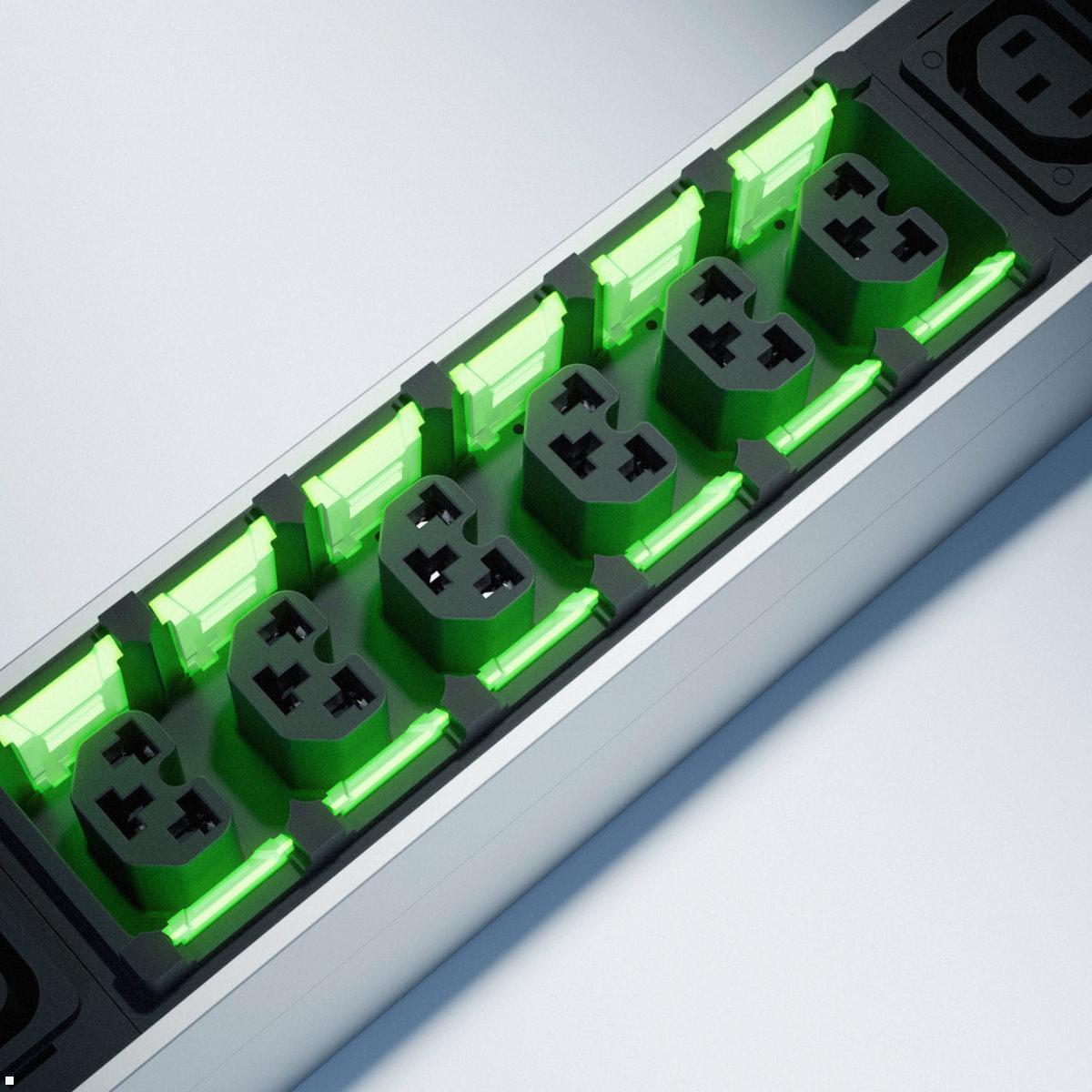

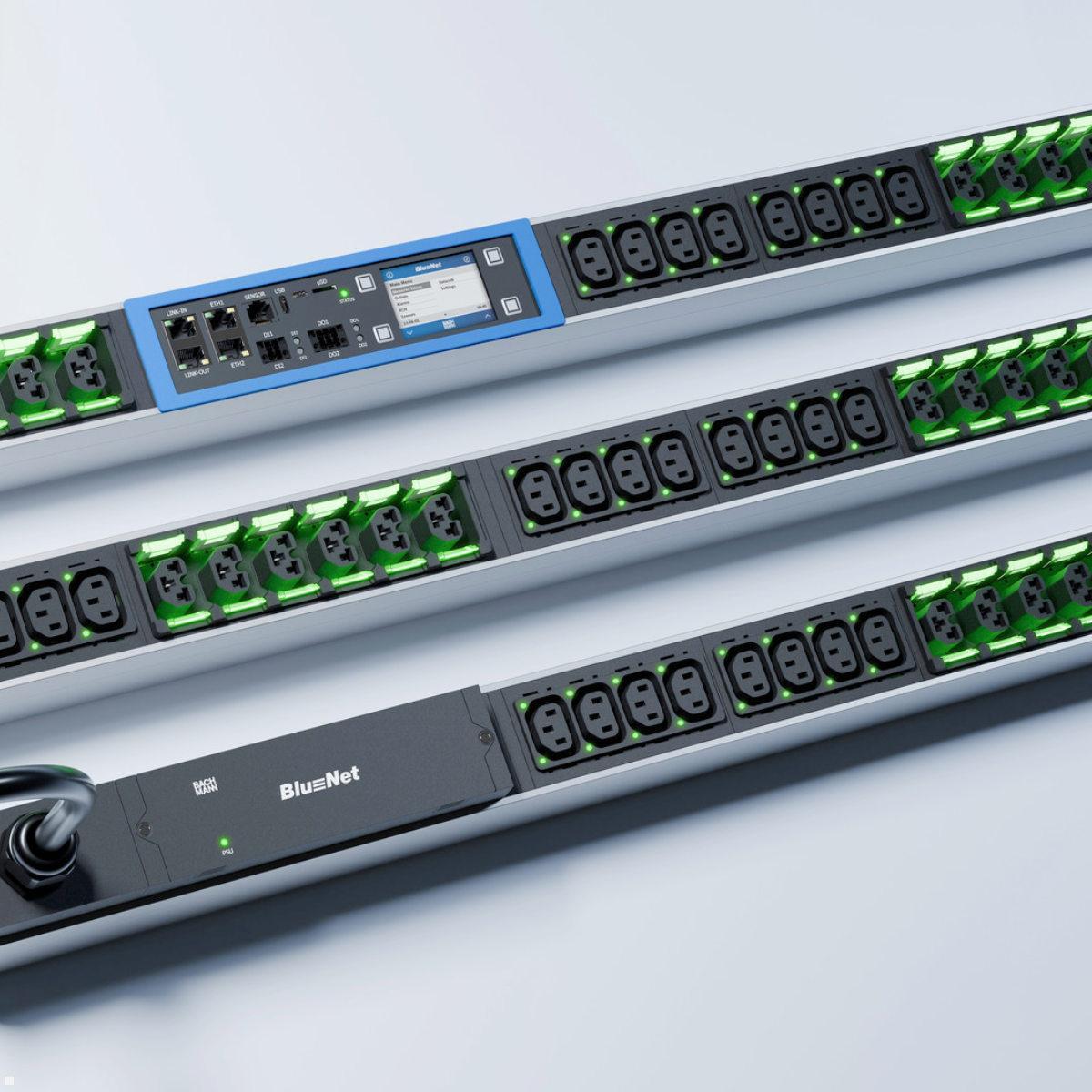

- Output: 36x Combo (C13/C15/C19/C21)
- Outlets individually switchable
- Per-phase metering: current, voltage, reactive/apparent/active power, reactive/apparent/active energy, frequency, power factor
- Upgradeable at any time to per-outlet metering via license
- Controller and power supply hot-swappable
- Integrated web server with web interface
- SNMP support
- Ethernet: 1x 1 Gbit/s (PoE) + 1x 10/100 Mbit/s
- PDU linking: up to 20 PDUs cascadeable
- 1x RJ45 sensor port for up to 10 external sensors
- 1x USB-C port (USB 2.0)

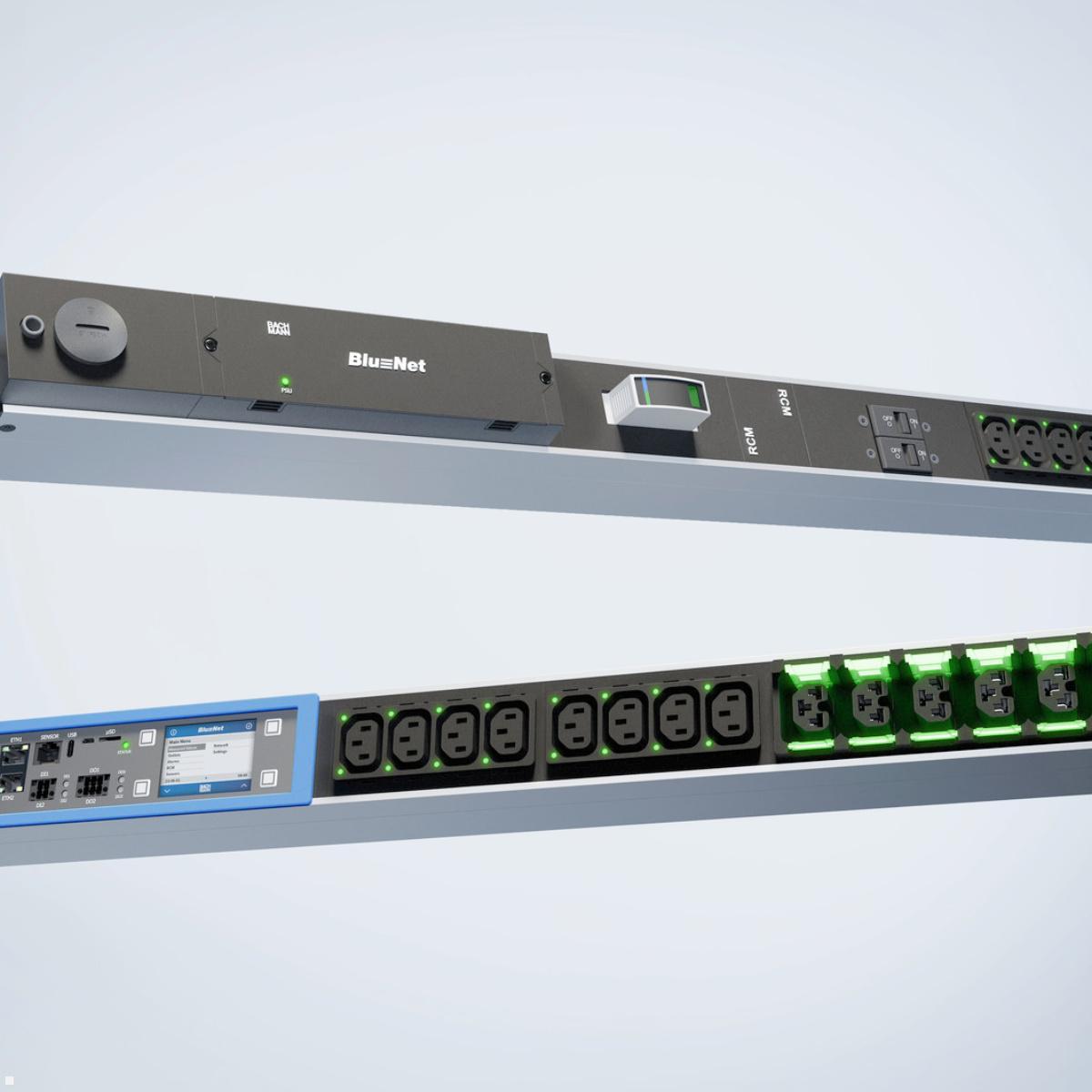

- 2.4" TFT color display
- LED indicator: Yes
- Surge protection: No
- Mains interference filter: No
- Fuse: No
- Temperature measurement: Yes
- Mounting orientation: vertical
- Housing: Aluminum
- Frame for color coding (blue/red)
- Includes mounting brackets (L-shape, single)
- Dimensions (L×W×D): 1568.7 x 56 x 71 mm
| Product sheet: |  [pdf] |
|---|---|

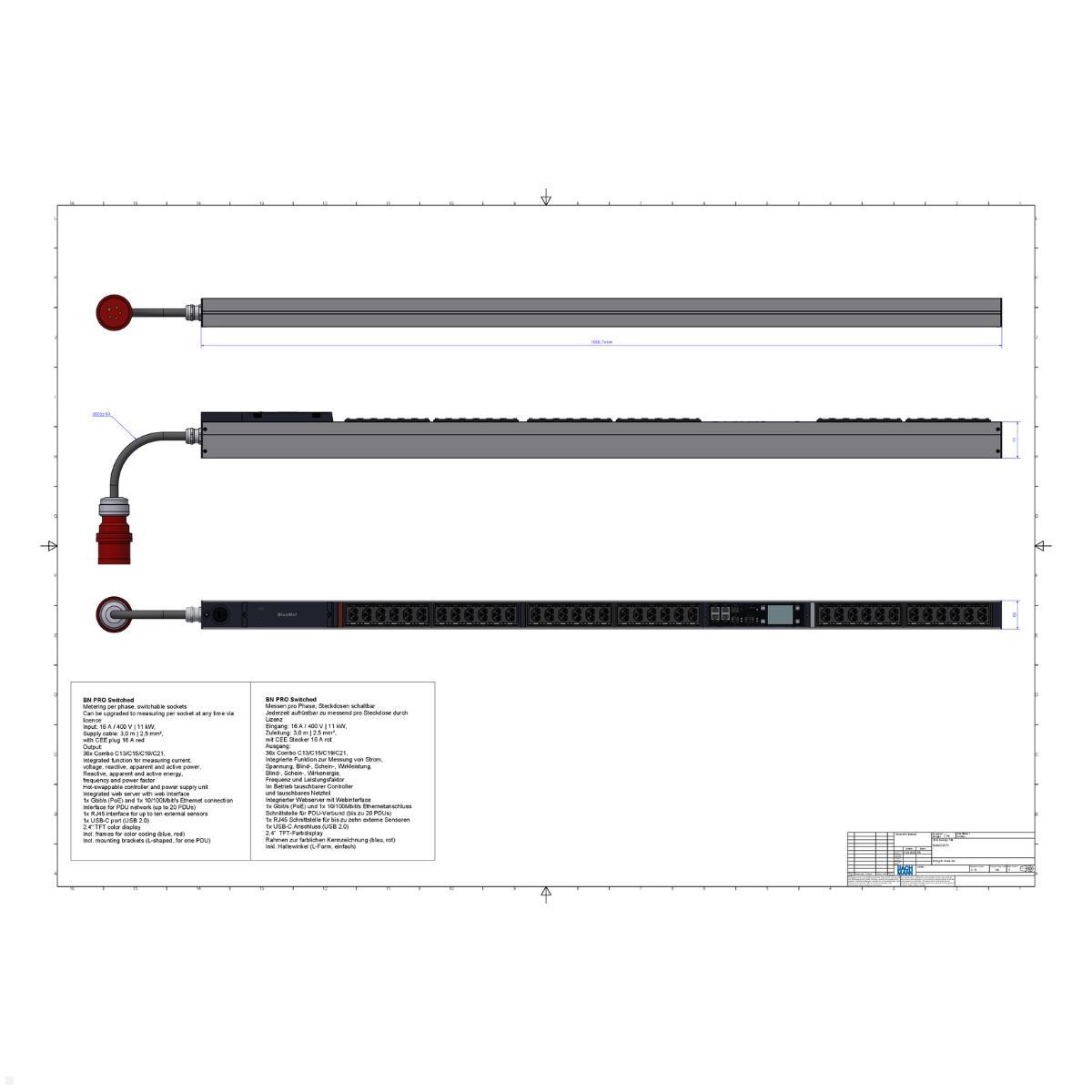

| Technical drawing: | [pdf] |
| Installation manual: | [pdf] |
| Contains installation material: | + |
| Warranty: | 3 years |
| Manufacturer/Importer: | Bachmann GmbH, Ernsthaldenstr. 33, 70565 Stuttgart, info@bachmann.com |
| Einspeisung: | 16A |
| FI switch: | No |
| Fuse: | No |
| Mains filter: | No |
| Messen: | pro Phase |
| Number of sockets: | 36 Outlets |
| Overvoltage protection: | No |
| Phasen: | 3-phasig |
| RCM-Differenzstrommessung: | Nein |
| Schalten: | Ja |
| Steckerart: | Combosocket |
| Strommessung / Überwachung: | Ja, online |
| color: | Aluminium |
| Größe PDU: | Vertikal, 40 HE |
| USB-Charger: | USB C |
| screw-on: | Yes |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
Download area - catalogs, flyers, warranty conditions, ...
Questions & Answers
-
What is the Bachmann BN PRO S Switched Rack PDU BM0024772?
A 3-phase Switched Rack PDU with 36 Combo outlets and 11 kW rating, 16 A/400 V input and a 3.0 m lead with a red 16A CEE plug.
-
What outlets does it have and are they individually controllable?
36x Combo outlets (C13/C15/C19/C21) with individual outlet switching for remote control.
-
How can I monitor and manage the PDU?
Integrated web server with a web interface and SNMP support; PDU bus interface allows cascading up to 20 PDUs.
-
What measurement capabilities does it offer?
Measurement per phase for current, voltage, apparent and real power, energy, frequency and power factor; license can upgrade to per-outlet measurement.
-
Networking and sensors?
Ethernet: 1x 1 Gbit/s (PoE) and 1x 10/100; RJ45 sensor port for up to 10 external sensors; USB-C (USB 2.0); 2.4" colour TFT display.
-
What are the physical characteristics?
Aluminium enclosure; vertical mounting direction; dimensions 1568.7 x 56 x 71 mm; colour-coded frame (blue/red) and included L-shaped mounting brackets.
-
Are there protection features?
Overvoltage protection: No; line filter: No; fuse: No.
