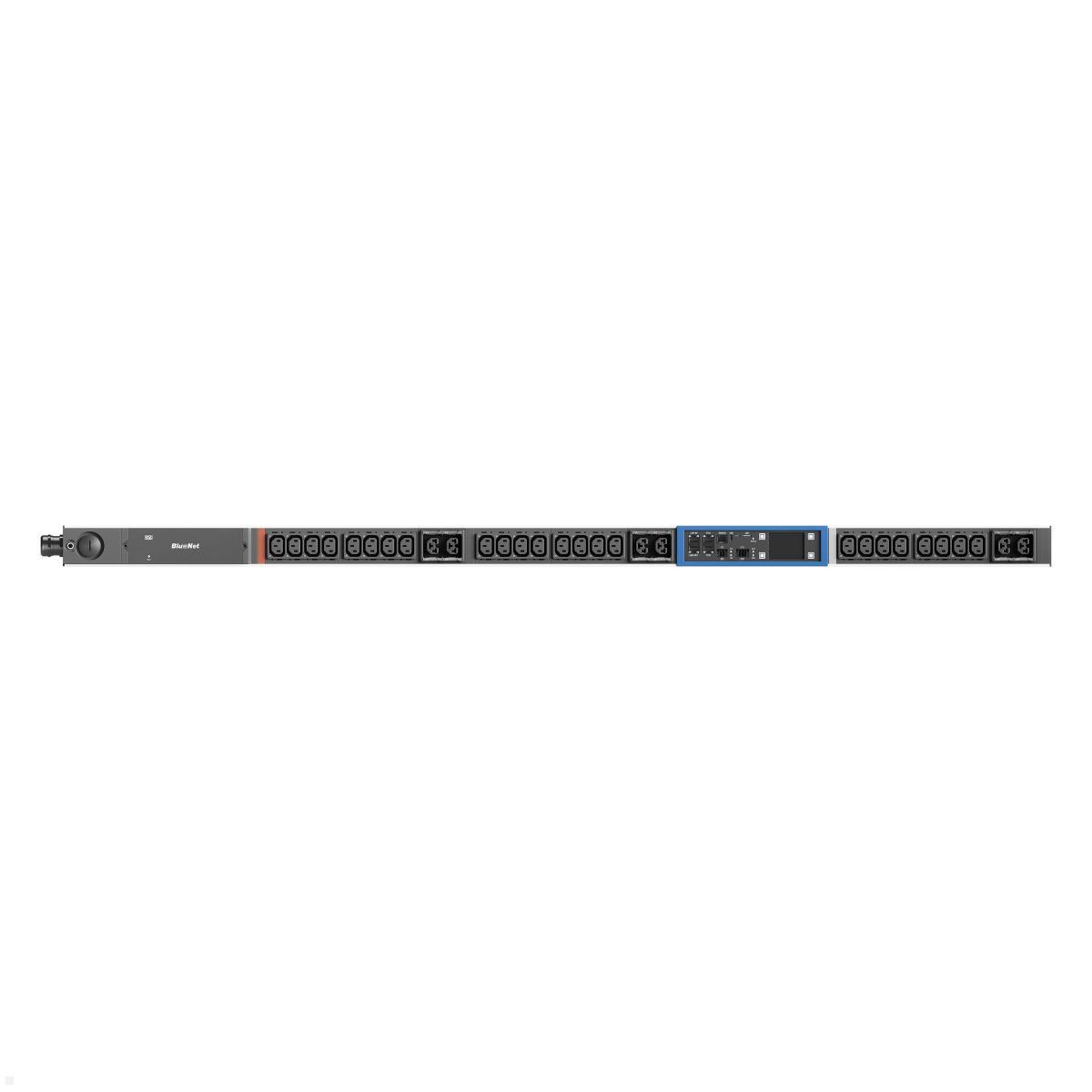

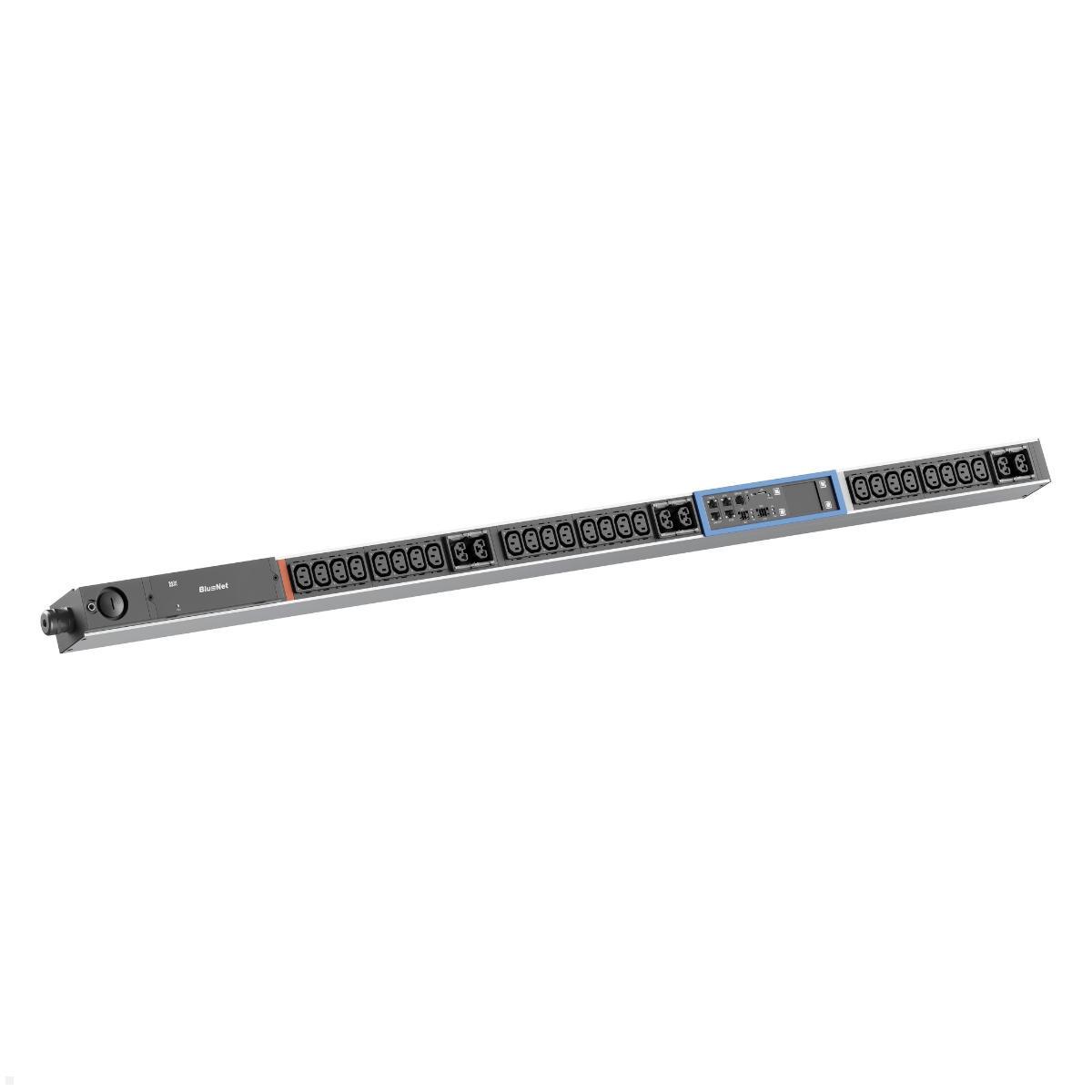

Bachmann BN PRO S Switched - 16A Rack PDU with 24xC13 6xCombo, 3,0m CEE 16A/5p (BM0024771)
Highlights
- 24x C13 + 6x Combo (C13/C15/C19/C21)
- 16A / 400V / 11 kW, 3-phase
- Outlets individually switchable
- Per-phase measurement, SNMP-capable
- Controller & power supply hot-swappable
3-phase Switched Rack PDU with 11 kW and Switchable Outlets

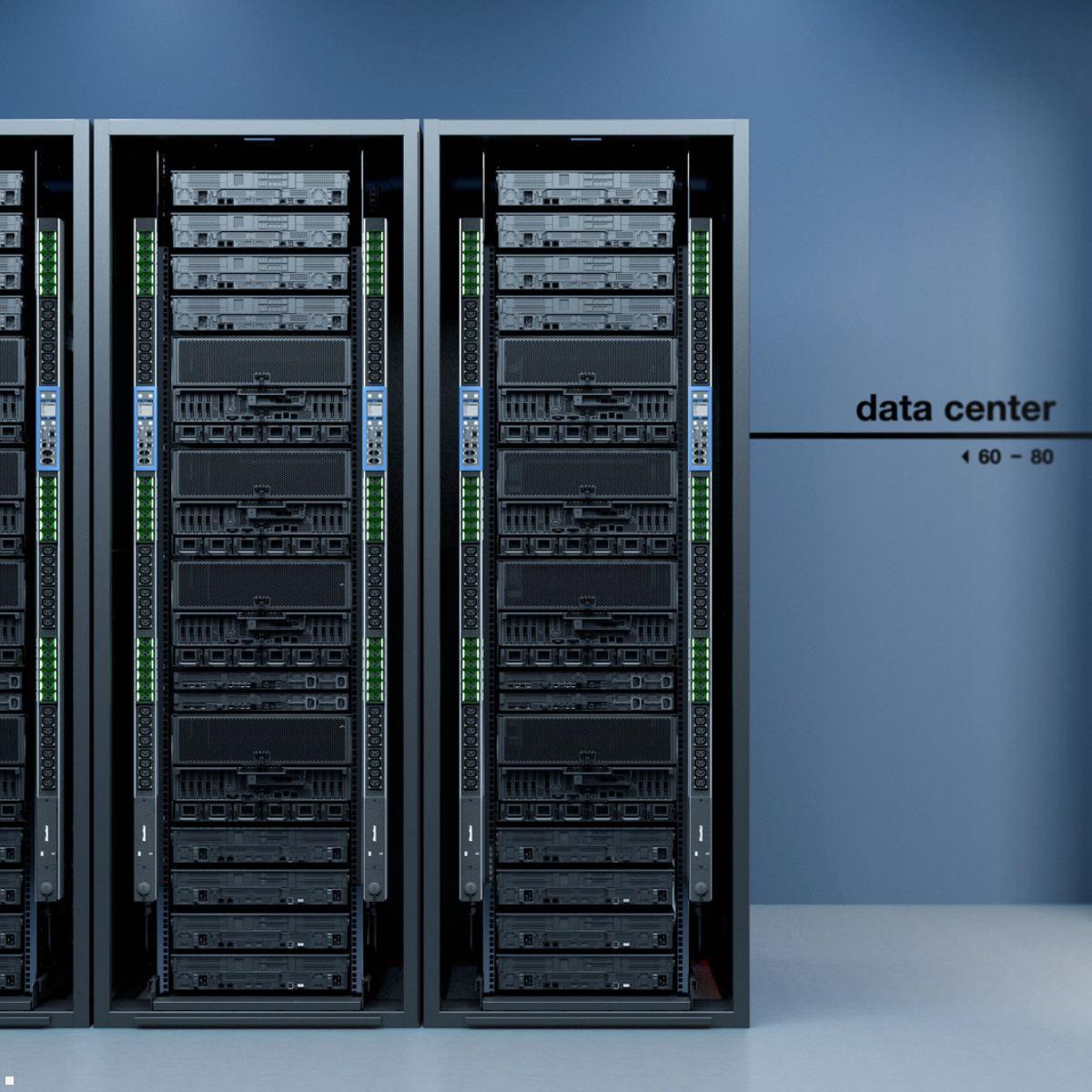

The Bachmann BN PRO S Switched (BM0024771) is a powerful 3-phase Power Distribution Unit for professional use in IT racks, server rooms and data centers. With an input of 16A/400V and 11 kW and a 3.0 m supply cable (2.5 mm²) with red 16A CEE plug, it reliably powers connected rack equipment. The 24x C13 IEC outlets and 6x combo sockets (C13/C15/C19/C21) offer maximum flexibility for different device configurations. Each outlet is individually switchable, allowing devices to be started, restarted or powered off remotely—ideal for remote racks and edge installations. The integrated measurement function records per phase current, voltage, reactive, apparent and active power, reactive, apparent and active energy, frequency and power factor. Can be upgraded at any time to per-outlet measurement via license.

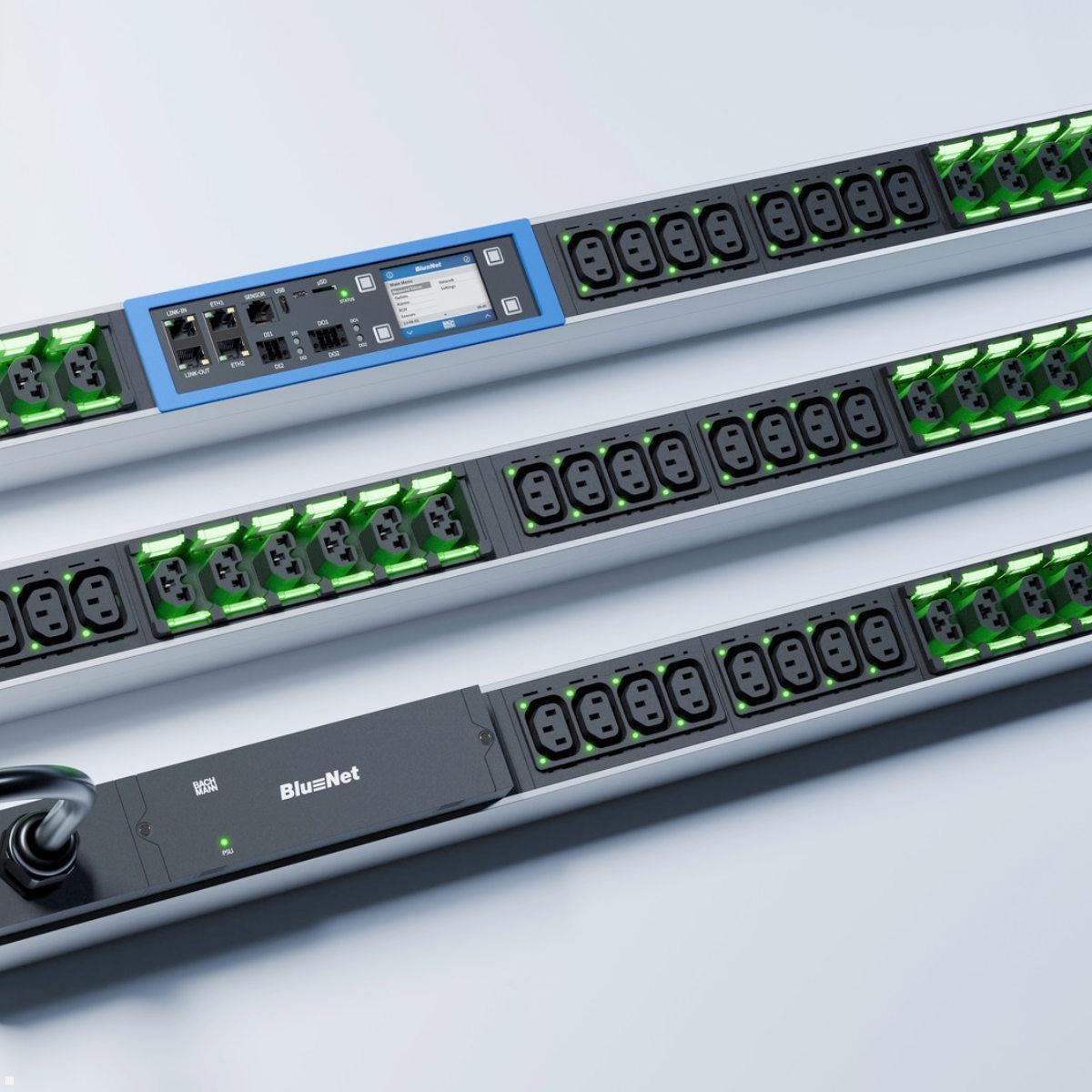

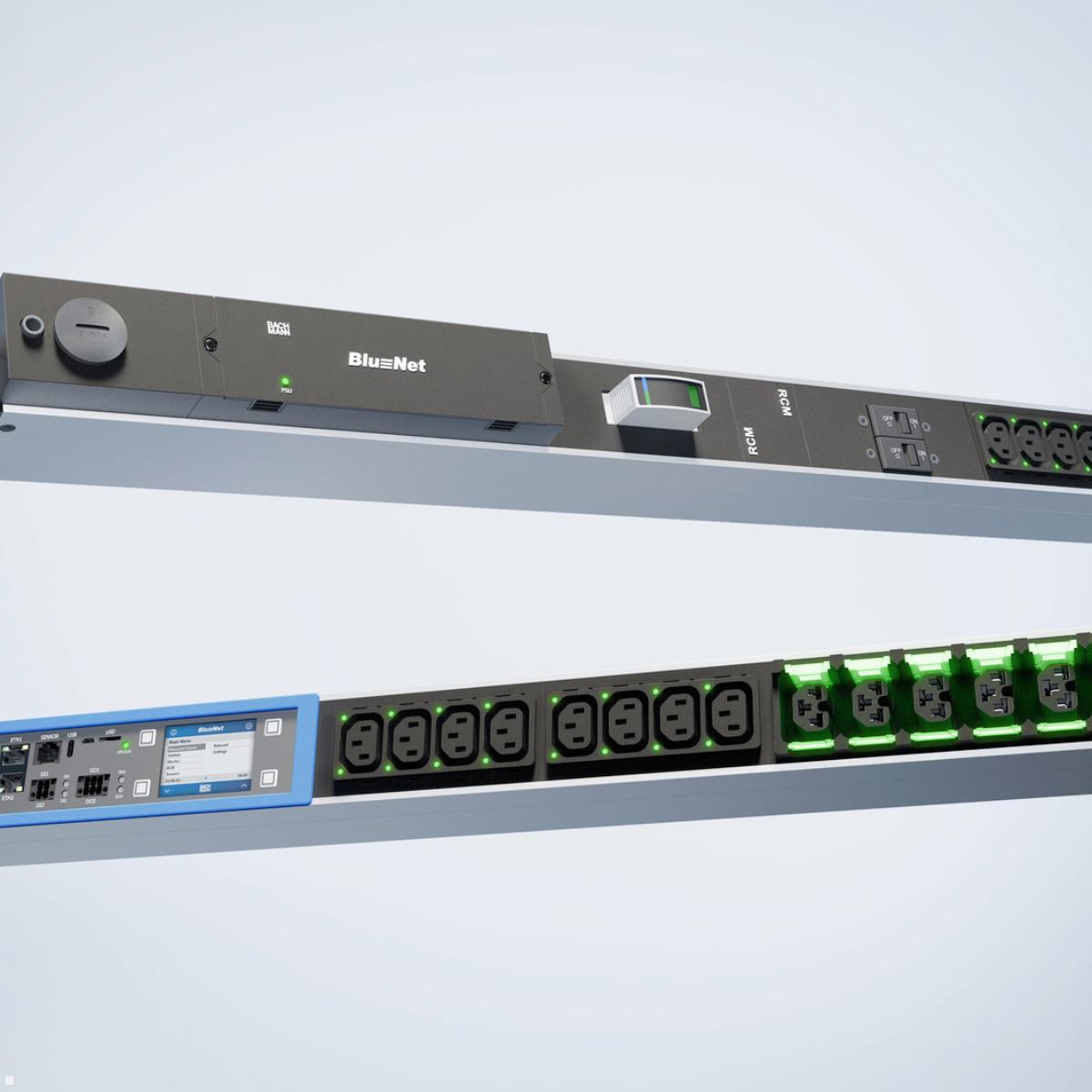

The Bachmann BN PRO S Switched - 16A Rack PDU with 24xC13 6xCombo, 3.0m CEE 16A/5p (BM0024771) convinces with maximum redundancy: controller and power supply are hot-swappable during operation, so maintenance can be performed without interruption. The integrated web server with web interface and SNMP support enables seamless integration into existing monitoring systems. Up to 20 PDUs can be cascaded and centrally managed via the PDU cascade interface. The 2.4" TFT color display shows important operating data directly on the unit. An RJ45 sensor port allows connection of up to ten external sensors. With 1x 1 Gbit/s (PoE) and 1x 10/100 Mbit/s Ethernet port as well as 1x USB-C (USB 2.0), the PDU is well networked—color identification frames (blue/red) and mounting brackets (L-shaped) are included.
Technical Details – Bachmann BN PRO S Switched Rack PDU BM0024771
- Input: 16A / 400V / 11 kW
- Supply cable: 3.0 m | 2.5 mm² | 16A red CEE plug
- Phases: 3-phase

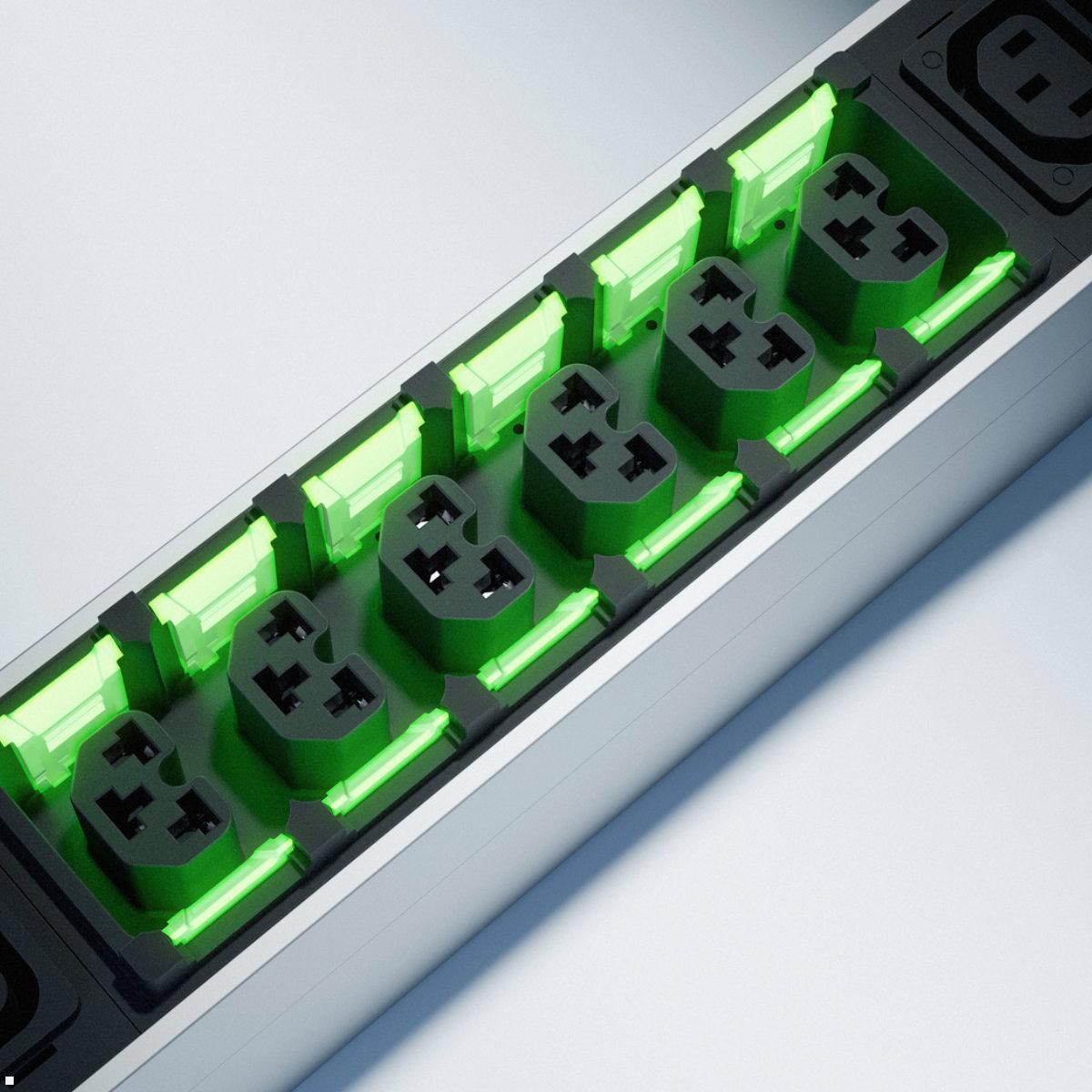

- Output: 24x C13 IEC outlets, 6x combo (C13/C15/C19/C21)
- Outlets individually switchable
- Per-phase measurement: current, voltage, reactive/apparent/active power, reactive/apparent/active energy, frequency, power factor
- Upgradeable at any time to per-outlet measurement via license
- Controller and power supply hot-swappable during operation
- Integrated web server with web interface
- SNMP support
- Ethernet: 1x 1 Gbit/s (PoE) + 1x 10/100 Mbit/s
- PDU cascade: up to 20 PDUs cascadeable
- 1x RJ45 sensor port for up to 10 external sensors
- 1x USB-C port (USB 2.0)
- 2.4" TFT color display
- LED indicator: Yes
- Surge protection: No
- Mains filter: No
- Fuse: No
- Temperature measurement: Yes
- Mounting orientation: vertical
- Housing: Aluminum
- Color identification frames (blue/red)
- Includes mounting brackets (L-shaped, single)
- Dimensions (L×W×D): 1357.8 x 56 x 71 mm
| Product sheet: |  [pdf] |
|---|---|

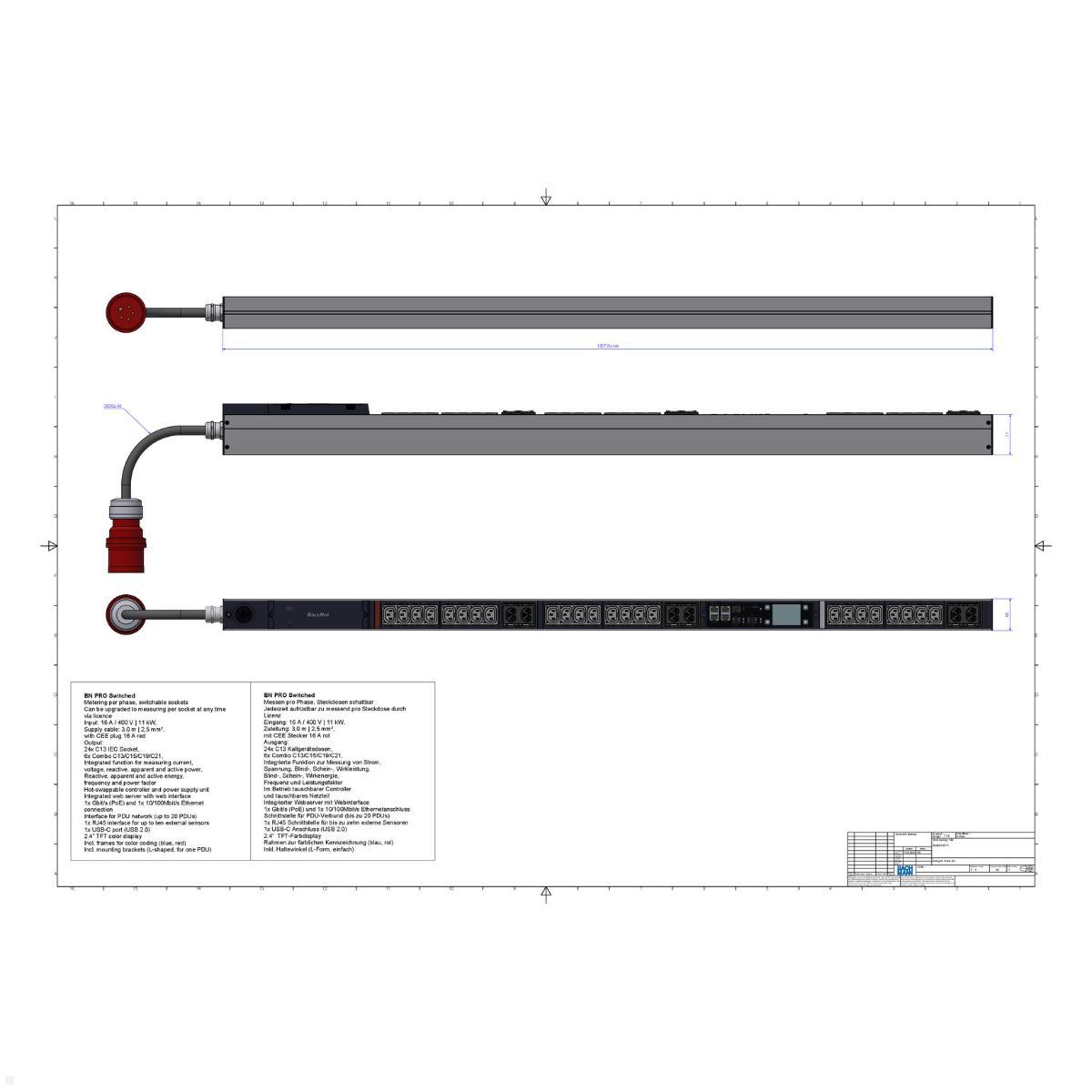

| Technical drawing: | [pdf] |
| Installation manual: | [pdf] |
| Contains installation material: | + |
| Warranty: | 3 years |
| Manufacturer/Importer: | Bachmann GmbH, Ernsthaldenstr. 33, 70565 Stuttgart, info@bachmann.com |
| Einspeisung: | 16A |
| FI switch: | No |
| Fuse: | No |
| Mains filter: | No |
| Messen: | pro Phase |
| Number of sockets: | 30 Outlets |
| Overvoltage protection: | No |
| Phasen: | 3-phasig |
| RCM-Differenzstrommessung: | Nein |
| Schalten: | Ja |
| Steckerart: | C13, Combosocket |
| Strommessung / Überwachung: | Ja, online |
| color: | Aluminium |
| Größe PDU: | Vertikal, 40 HE |
| USB-Charger: | USB C |
| screw-on: | Yes |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
Download area - catalogs, flyers, warranty conditions, ...
1 review
11 July 2026 23:33
Begeisternde Versand – top Preis‑Leistung
Einfach in der Anwendung – top! Top Produkt, absolut empfehlenswert.
Questions & Answers
-
What is the Bachmann BN PRO S Switched Rack PDU BM0024771?
A powerful 3-phase Switched Rack PDU for professional use in IT racks, server rooms and data centres, with 11 kW rating, 3.0 m lead and a red 16 A CEE plug, featuring 24x C13 outlets and 6x Combo outlets.
-
How many outlets and which types does it have?
It has 24x C13 outlets and 6x Combo outlets (C13/C15/C19/C21). Each outlet is individually switchable.
-
What are the input specifications?
Input is 16 A / 400 V / 11 kW; 3-phase; 3.0 m lead; CEE plug 16 A red.
-
Are outlets individually switchable?
Yes, each outlet can be switched individually for remote control of devices.
-
What metering features exist and is there a licensing option?
Metering per phase for current, voltage, apparent, reactive and real power, energy, frequency and power factor; upgrading to per-outlet metering is possible via a license.
-
What network/management features are included?
Built-in web server with web interface; SNMP support; PDU cascade up to 20 PDUs; 2.4" color TFT display; RJ45 sensor port for up to 10 external sensors; Ethernet: 1 Gbps (PoE) plus 10/100 Mbps; USB-C.
-
What physical features and mounting does it have?
Aluminium housing; frame for colour coding (blue/red) and included L-shaped brackets; dimensions 1357.8 × 56 × 71 mm; vertical mounting.
-
Is the controller or power supply hot-swappable?
Controller and power supply are swappable in operation.
