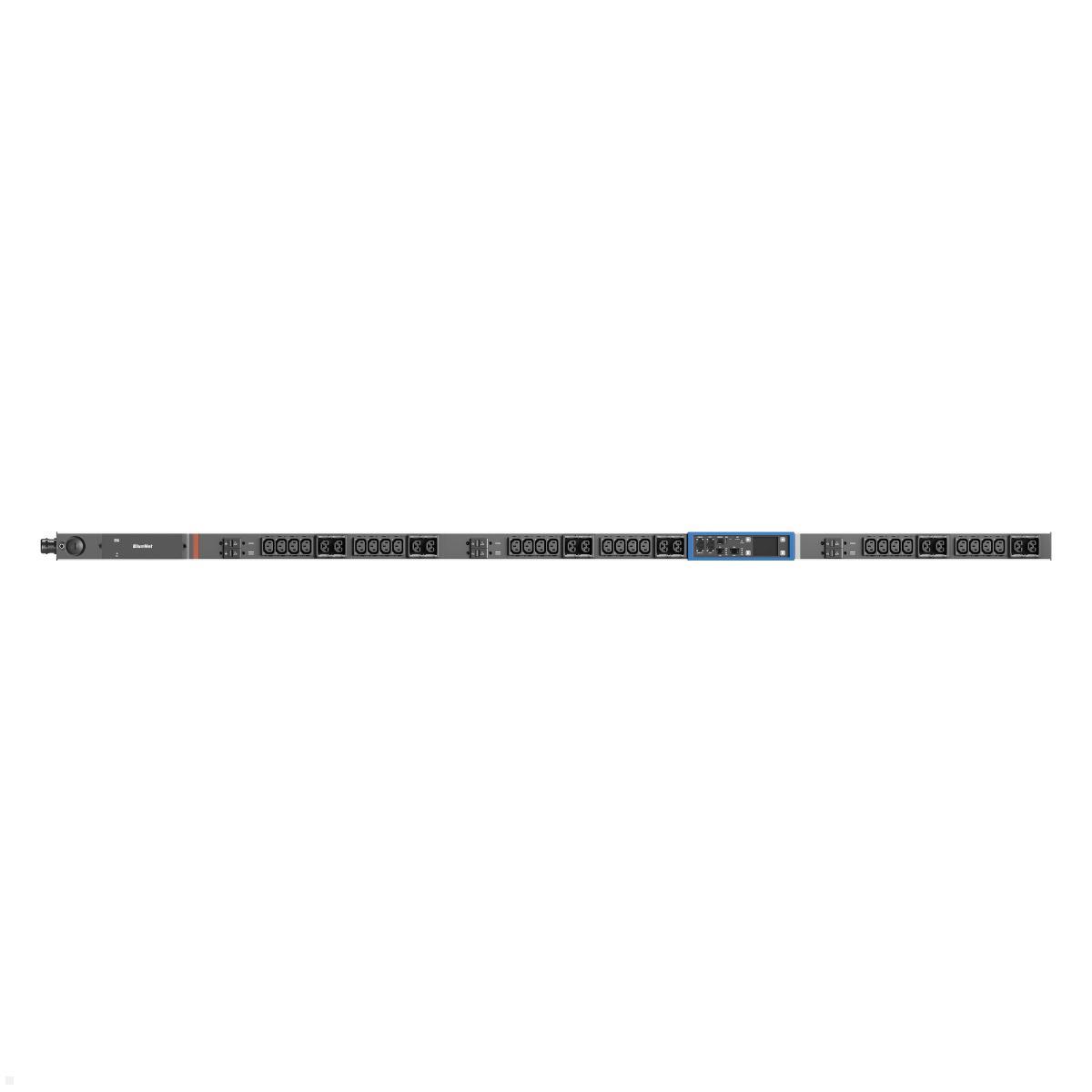

Bachmann BN PRO S Switched - 32A Rack PDU with 24xC13 12xCombo 6xMCB, 3.0m CEE 32A/5p (BM0024781)
Highlights
- 24xC13 + 12xCombo + 6x MCB 16A
- 32A / 400V / 22 kW, 3-phase
- Sockets individually switchable
- Per-phase measurement, SNMP-capable
- Controller & power supply hot-swappable
3-phase Switched Rack PDU 32A with 22 kW, 24xC13 12xCombo and MCBs
The Bachmann BN PRO S Switched (BM0024781) is a high-performance, 3-phase Power Distribution Unit for professional use in IT racks, server rooms and data centers. With an input of 32A/400V and 22 kW and a 3.0 m supply cable (4 mm²) with red CEE 32A plug, it provides maximum power reserves for densely populated IT racks. The 24x C13 IEC outlets and 12x combo sockets (C13/C15/C19/C21) offer maximum flexibility for various device configurations. Six integrated hydraulic-magnetic 16A circuit breakers provide reliable overload protection for connected device groups. Each outlet is individually switchable, allowing devices to be conveniently powered on, rebooted or turned off remotely. The integrated measurement function records per phase current, voltage, reactive/apparent/active power, reactive/apparent/active energy, frequency and power factor. Upgradable at any time to per-outlet measurement via license.
The Bachmann BN PRO S Switched - 32A Rack PDU with 24xC13 12xCombo 6xMCB, 3.0m CEE 32A/5p (BM0024781) impresses with maximum availability: controller and power supply are hot-swappable, allowing maintenance without interruption. The integrated web server with web interface and SNMP support enables seamless integration into existing monitoring systems. Up to 20 PDUs can be cascaded and centrally managed via the PDU cascade interface. The 2.4" TFT color display shows important operational data directly on the unit. An RJ45 sensor port allows connection of up to ten external sensors. With 1x 1 Gbit/s (PoE) and 1x 10/100 Mbit/s Ethernet port as well as 1x USB-C (USB 2.0), the PDU is well networked – color identification frame (blue/red) and mounting brackets (L-shaped) are included.
Technical Details – Bachmann BN PRO S Switched Rack PDU BM0024781
- Input: 32A / 400V / 22 kW
- Supply cable: 3.0 m | 4 mm² | CEE plug 32A red
- Phases: 3-phase
- Output: 24x C13 IEC outlets, 12x combo (C13/C15/C19/C21)
- 6x hydraulic-magnetic circuit breakers 16A
- Outlets individually switchable
- Per-phase measurement: current, voltage, reactive/apparent/active power, reactive/apparent/active energy, frequency, power factor
- Upgradeable at any time to per-outlet measurement via license
- Controller and power supply hot-swappable
- Integrated web server with web interface
- SNMP support
- Ethernet: 1x 1 Gbit/s (PoE) + 1x 10/100 Mbit/s
- PDU cascade: up to 20 PDUs can be cascaded
- 1x RJ45 sensor port for up to 10 external sensors
- 1x USB-C port (USB 2.0)
- 2.4" TFT color display
- LED indicator: Yes
- Surge protection: No
- Line interference filter: No
- Protection: Yes (6x MCB 16A)
- Temperature measurement: Yes
- Mounting orientation: vertical
- Housing: Aluminum
- Color identification frame (blue/red)
- Including mounting brackets (L-shaped, single)
- Dimensions (L×W×D): 1940.1 x 56 x 71 mm
| Product sheet: |  [pdf] |
|---|---|

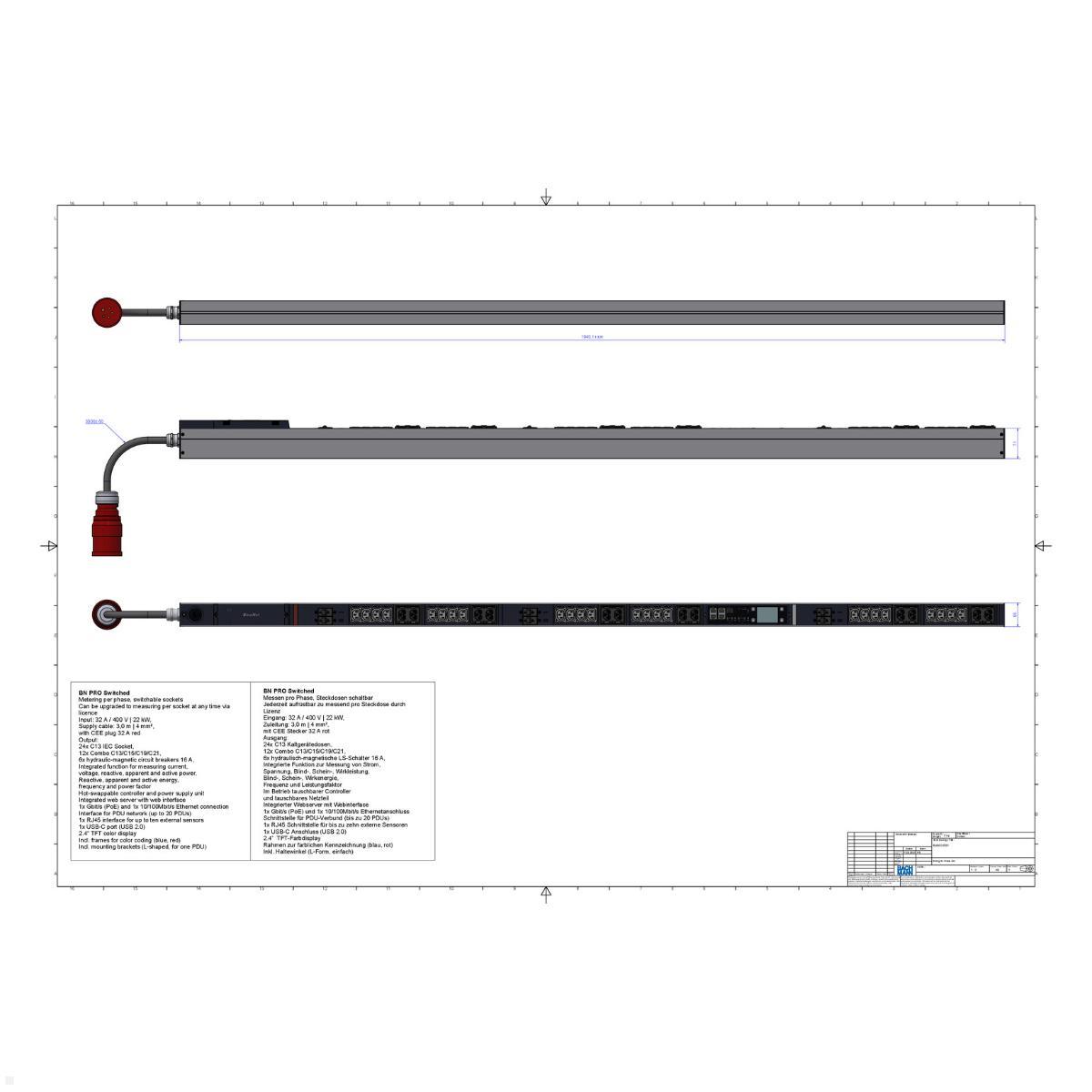

| Technical drawing: | [pdf] |
| Installation manual: | [pdf] |
| Contains installation material: | + |
| Warranty: | 3 years |
| Manufacturer/Importer: | Bachmann GmbH, Ernsthaldenstr. 33, 70565 Stuttgart, info@bachmann.com |
| Einspeisung: | 32A |
| FI switch: | No |
| Fuse: | Yes |
| Mains filter: | No |
| Messen: | pro Phase |
| Number of sockets: | 36 Outlets |
| Overvoltage protection: | No |
| Phasen: | 3-phasig |
| RCM-Differenzstrommessung: | Nein |
| Schalten: | Ja |
| Steckerart: | C13, Combosocket |
| Strommessung / Überwachung: | Ja, online |
| color: | Aluminium |
| Größe PDU: | Vertikal, 47 HE |
| USB-Charger: | USB C |
| screw-on: | Yes |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
Download area - catalogs, flyers, warranty conditions, ...
Questions & Answers
-
What are the input, power rating and cable length of the BN PRO S Switched Rack PDU?
Input: 32A / 400V / 22 kW; Lead: 3.0 m; 4 mm²; CEE connector 32A red; 3-phase.
-
What outlets does it provide?
Outputs: 24x C13 outlets and 12x Combo outlets (C13/C15/C19/C21); 6x hydraulically-magnetic 16A MCBs; outlets are individually switchable.
-
What protection does it offer?
Six hydraulically-magnetic 16A MCBs; surge protection: No; power line filter: No.
-
What networking and monitoring features are included?
Integrated webserver with web interface; SNMP support; PDU daisy-chaining up to 20 PDUs; 2.4" colour TFT display; RJ45 sensor port for up to 10 external sensors; Ethernet: 1x 1 Gbit/s (PoE) + 1x 10/100; USB-C.
-
Can the metering be upgraded?
Metering per phase is available; can be upgraded to per-outlet metering via a license.
-
What are the physical and mounting details?
Aluminium case; 3-phase input; vertical mounting; dimensions 1940.1 × 56 × 71 mm; frame for colour coding (blue/red); includes L-shaped mounting brackets.
-
What are the networking ports and display features?
2.4" colour display; Ethernet: 1x 1 Gbit/s (PoE) + 1x 10/100; 1x USB-C; RJ45 sensor port for up to 10 external sensors.
