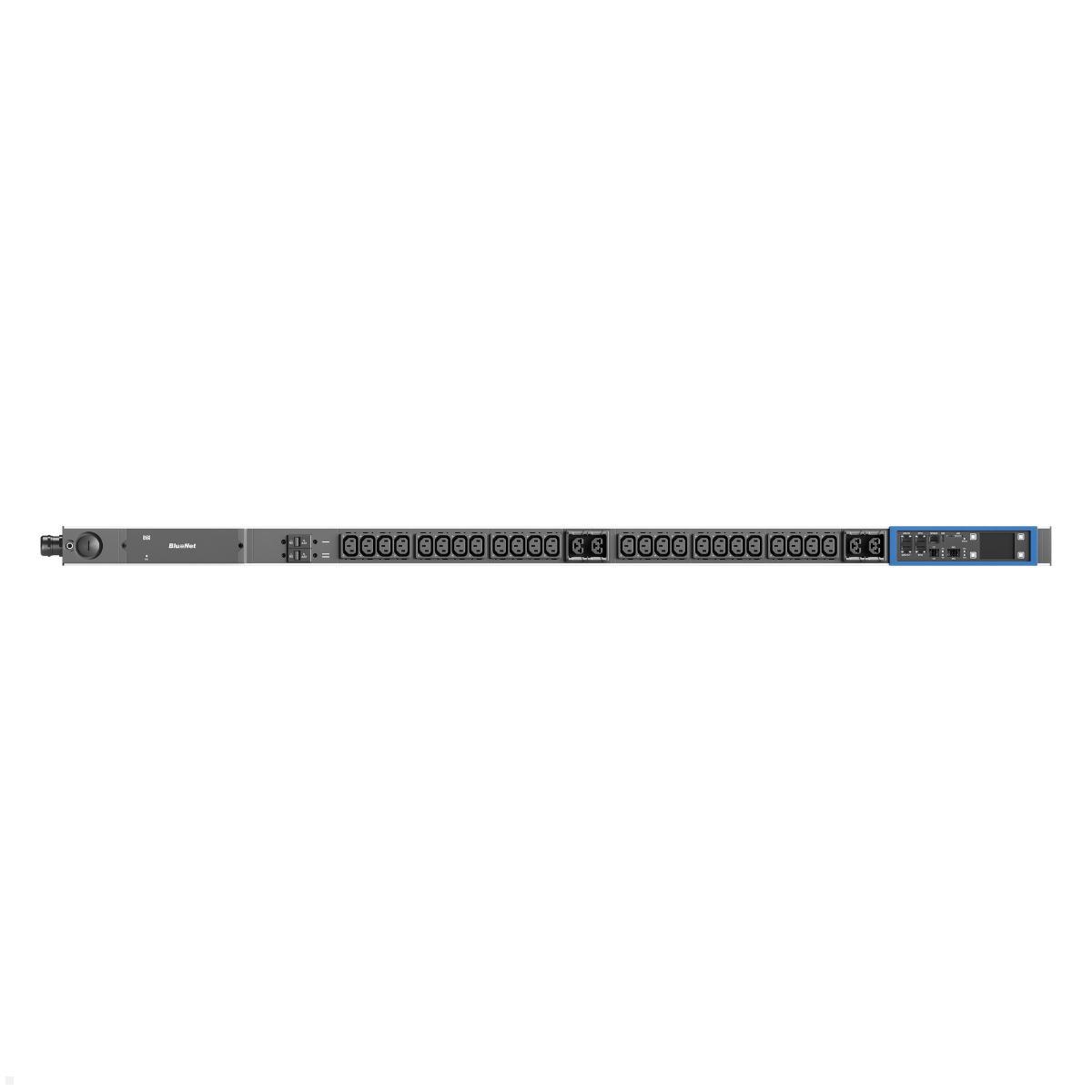

Bachmann BN PRO S Switched - 32A Rack PDU with 24xC13 4xCombo 2xMCB, 3.0m CEE 32A/3p (BM0024777)
Highlights
- 24x C13 + 4x Combo + 2x MCB 16A
- 32A / 230V / 7.2 kW, single-phase
- Sockets individually switchable
- Per-phase measurement, SNMP-capable
- Controller & power supply hot-swappable
Single-phase Switched Rack PDU 32A with MCBs and Switched Outlets
The Bachmann BN PRO S Switched (BM0024777) is a powerful, single-phase power distribution unit for professional use in IT racks, server rooms and data centers. With an input of 32A/230V and 7.2 kW and a 3.0 m supply cable (4 mm²) with CEE 32A blue plug, it reliably powers connected devices in the rack. The 24x C13 IEC outlets and 4x combo outlets (C13/C15/C19/C21) offer maximum flexibility for different device configurations. Two integrated hydraulically-magnetic MCBs 16A provide additional protection for connected devices. Each outlet is individually switchable, allowing devices to be powered on, restarted or shut down remotely—ideal for remote racks and edge installations. The integrated measurement function records per phase: current, voltage, reactive/apparent/active power, reactive/apparent/active energy, frequency and power factor. Upgradeable at any time to per-outlet measurement via license.
The Bachmann BN PRO S Switched - 32A Rack PDU with 24xC13 4xCombo 2xMCB, 3.0m CEE 32A/3p (BM0024777) convinces with maximum availability: controller and power supply are hot-swappable, allowing maintenance without interruption. The integrated web server with web interface and SNMP support enable seamless integration into existing monitoring systems. Up to 20 PDUs can be cascaded and managed centrally via the PDU cascade interface. The 2.4" TFT color display shows important operating data directly on the unit. An RJ45 sensor port allows connection of up to ten external sensors. With 1x Gbit/s (PoE) and 1x 10/100 Mbit/s Ethernet port, the PDU is well networked—frames for color coding (blue/red) and mounting brackets (L-shape) are included.
Technical Details – Bachmann BN PRO S Switched Rack PDU BM0024777
- Input: 32A / 230V / 7.2 kW
- Supply cable: 3.0 m | 4 mm² | CEE plug 32A blue
- Phases: single-phase
- Output: 24x C13 IEC outlets, 4x combo (C13/C15/C19/C21)
- 2x hydraulically-magnetic MCBs 16A
- Outlets individually switchable
- Per-phase measurement: current, voltage, reactive/apparent/active power, reactive/apparent/active energy, frequency, power factor
- Upgradeable at any time to per-outlet measurement via license
- Controller and power supply hot-swappable
- Integrated web server with web interface
- SNMP support
- Ethernet: 1x 1 Gbit/s (PoE) + 1x 10/100 Mbit/s
- PDU cascade: up to 20 PDUs can be cascaded
- 1x RJ45 sensor port for up to 10 external sensors
- 1x USB-C port (USB 2.0)
- 2.4" TFT color display
- LED indicator: Yes
- Surge protection: No
- EMI / line filter: No
- Protection: Yes (2x MCB 16A)
- Temperature measurement: Yes
- Mounting orientation: vertical
- Enclosure: Aluminum
- Frames for color coding (blue/red)
- Included mounting brackets (L-shape, single)
- Dimensions (L×W×D): 1387.8 x 56 x 71 mm
| Product sheet: |  [pdf] |
|---|---|

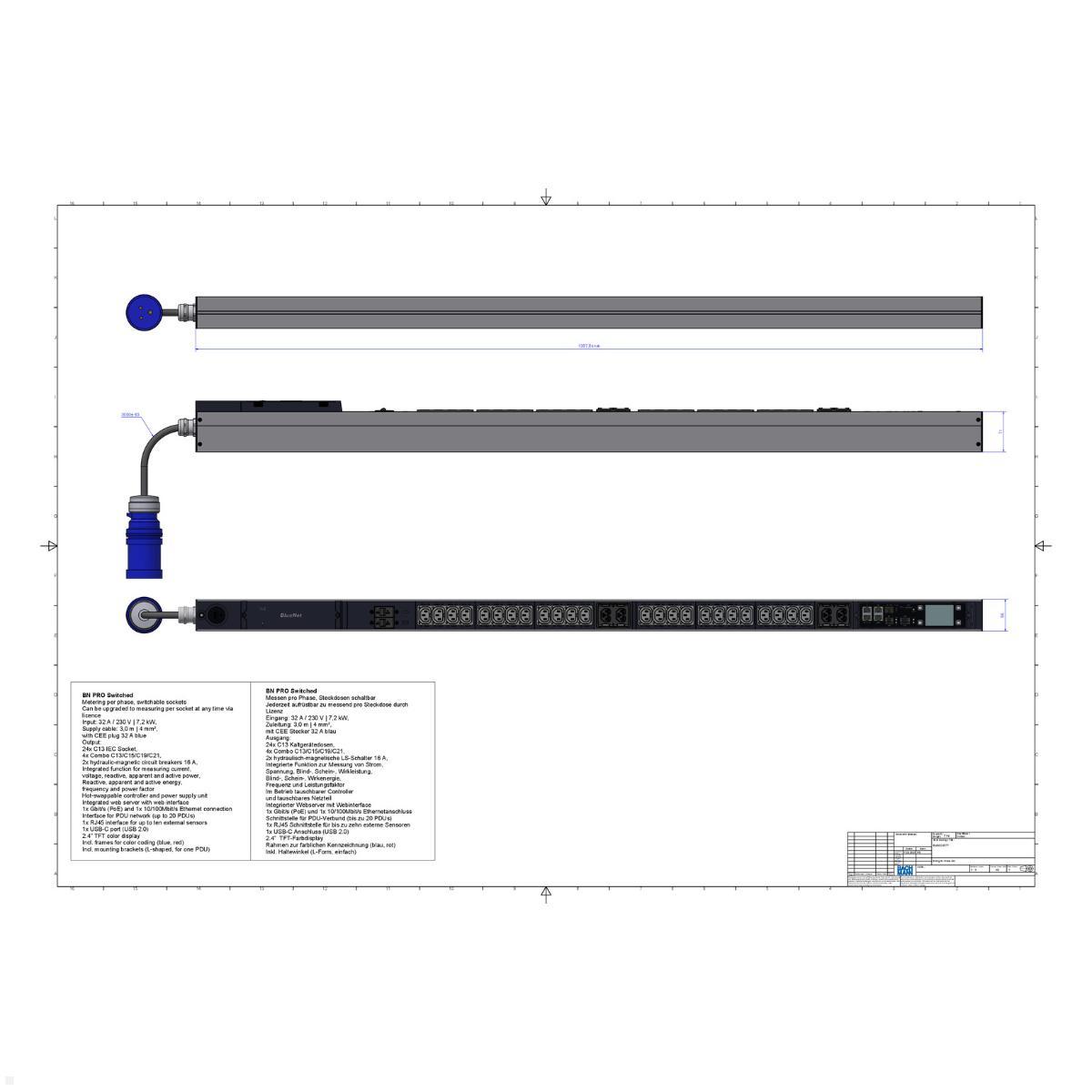

| Technical drawing: | [pdf] |
| Installation manual: | [pdf] |
| Contains installation material: | + |
| Warranty: | 3 years |
| Manufacturer/Importer: | Bachmann GmbH, Ernsthaldenstr. 33, 70565 Stuttgart, info@bachmann.com |
| Einspeisung: | 32A |
| FI switch: | No |
| Fuse: | Yes |
| Mains filter: | No |
| Messen: | pro Phase |
| Number of sockets: | 28 Steckdosen |
| Overvoltage protection: | No |
| Phasen: | 1-phasig |
| RCM-Differenzstrommessung: | Nein |
| Schalten: | Ja |
| Steckerart: | C13, Combosocket |
| Strommessung / Überwachung: | Ja, online |
| color: | Aluminium |
| Größe PDU: | Vertikal, 40 HE |
| USB-Charger: | USB C |
| screw-on: | Yes |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
Download area - catalogs, flyers, warranty conditions, ...
Questions & Answers
-
What is the Bachmann BN PRO S Switched Rack PDU BM0024777?
A powerful 1-phase Switched Rack PDU 32A with hydraulic-magnetic 16A breakers and individually switchable outlets; suitable for IT racks, server rooms and data centres. Input 32A/230V, 7.2 kW, 3.0 m lead with a blue 32A CEE plug; 24x C13 outlets and 4x Combo outlets.
-
What outlets does it have?
24x C13 outlets and 4x Combo outlets (C13/C15/C19/C21).
-
What protection features does it include?
Two hydraulic-magnetic 16A breakers; outlets are individually switchable; fusing: Yes (2x MCB 16A); surge protection and line filters: No.
-
Can measurements be upgraded?
Yes, it measures per phase (current, voltage, reactive, apparent and real power, reactive, apparent and real energy, frequency and power factor) and can be upgraded to per-outlet measurement via license.
-
Can PDUs be cascaded?
Yes, the PDU bus supports cascading up to 20 PDUs.
-
What are the network and remote-management features?
Integrated web server with web interface and SNMP support; PDU bus allows up to 20 PDUs; Ethernet: 1 Gbit/s (PoE) plus 1x 10/100; RJ45 sensor port for up to 10 external sensors; USB-C port.
-
What are the physical and mounting details?
Input 32A/230V; 3.0 m lead; dimensions 1387.8 × 56 × 71 mm; aluminium housing; color-coded frame (blue/red); vertical mounting; includes L-shaped mounting brackets.
