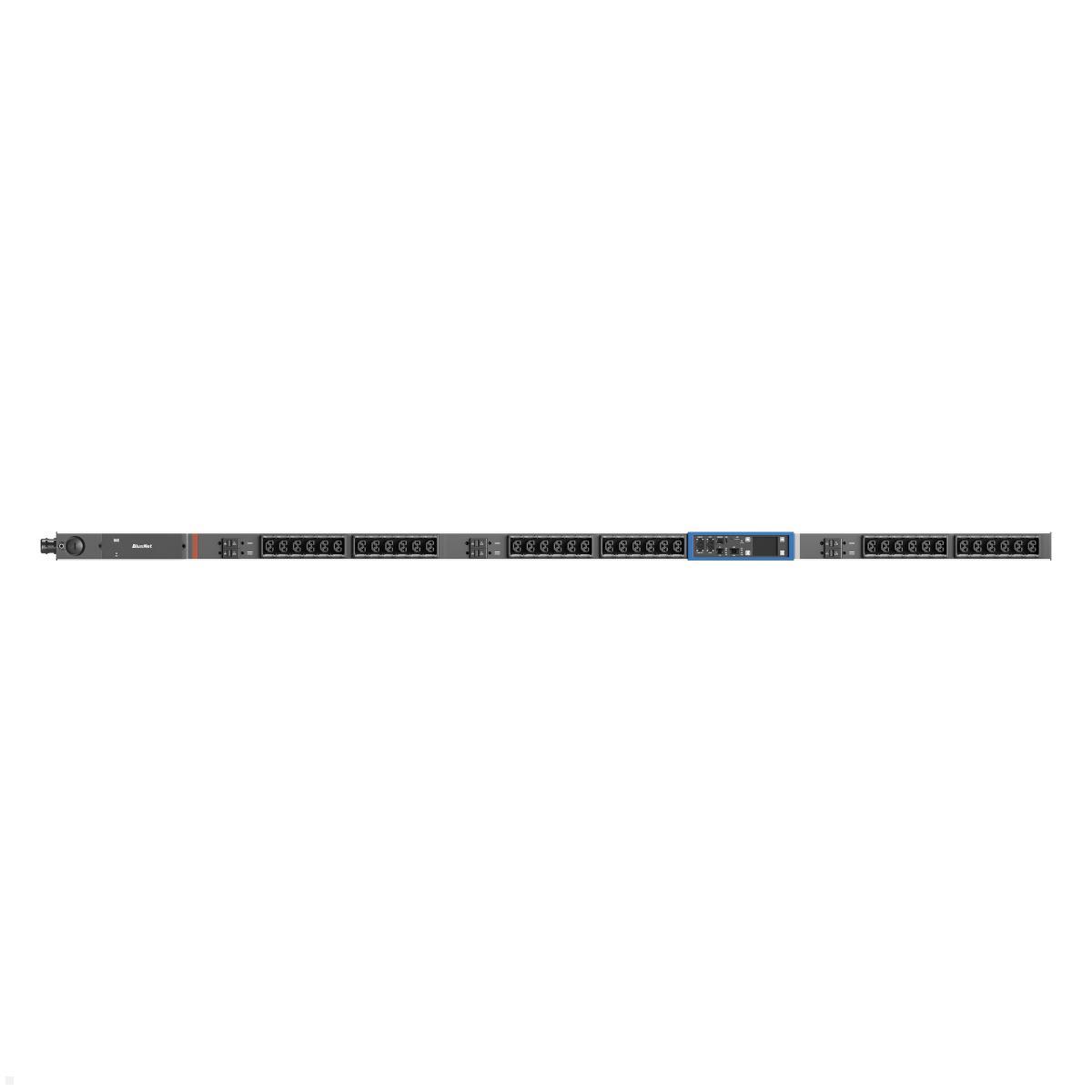

Bachmann BN PRO S Switched - 32A Rack PDU with 36xCombo 6xMCB, 3.0m CEE 32A/5p (BM0024783)
Highlights
- 36x Combo (C13/C15/C19/C21) + 6x MCB 16A
- 32A / 400V / 22 kW, 3-phase
- Outlets individually switchable
- Per-phase measurement, SNMP-capable
- Controller & power supply hot-swappable
3-phase Switched Rack PDU 32A with 22 kW, 36xCombo and 6 MCBs
The Bachmann BN PRO S Switched (BM0024783) is a high-performance, 3-phase Power Distribution Unit for professional use in IT racks, server rooms and data centers. With an input of 32A/400V and 22 kW and a 3.0 m supply cable (4 mm²) with a red CEE 32A plug, it provides maximum power reserves for densely populated IT racks. The 36xCombo sockets (C13/C15/C19/C21) offer maximum flexibility for a wide range of device configurations. Six integrated hydraulic-magnetic MCBs 16A provide reliable overload protection for connected device groups. Each socket is individually switchable, allowing devices to be remotely powered on, restarted or switched off — ideal for remote racks and edge installations. The integrated measurement function records per-phase current, voltage, reactive/apparent/active power, reactive/apparent/active energy, frequency and power factor. Upgradeable at any time to per-outlet measurement via license.
The Bachmann BN PRO S Switched - 32A Rack PDU with 36xCombo 6xMCB, 3.0m CEE 32A/5p (BM0024783) convinces with maximum fail-safety: controller and power supply are hot-swappable during operation, allowing maintenance without interruption. The integrated web server with web interface as well as SNMP support enable seamless integration into existing monitoring systems. Up to 20 PDUs can be cascaded and centrally managed via the PDU chaining interface. The 2.4" TFT color display shows important operating data directly on the device. An RJ45 sensor port allows connection of up to ten external sensors. With 1x 1 Gbit/s (PoE) and 1x 10/100 Mbit/s Ethernet port as well as 1x USB-C (USB 2.0) the PDU is well connected — frame for color coding (blue/red) and mounting brackets (L-shaped) are included.
Technical Details – Bachmann BN PRO S Switched Rack PDU BM0024783
- Input: 32A / 400V / 22 kW
- Supply cable: 3.0 m | 4 mm² | red CEE 32A plug
- Phases: 3-phase
- Output: 36x Combo (C13/C15/C19/C21)
- 6x hydraulic-magnetic MCBs 16A
- Outlets individually switchable
- Per-phase measurement: current, voltage, reactive/apparent/active power, reactive/apparent/active energy, frequency, power factor
- Upgradeable at any time to per-outlet measurement via license
- Controller and power supply hot-swappable during operation
- Integrated web server with web interface
- SNMP support
- Ethernet: 1x 1 Gbit/s (PoE) + 1x 10/100 Mbit/s
- PDU chaining: up to 20 PDUs can be cascaded
- 1x RJ45 sensor port for up to 10 external sensors
- 1x USB-C port (USB 2.0)
- 2.4" TFT color display
- LED indicator: Yes
- Surge protection: No
- Mains interference filter: No
- Protection: Yes (6x MCB 16A)
- Temperature measurement: Yes
- Mounting orientation: vertical
- Enclosure: aluminum
- Frame for color coding (blue/red)
- Includes mounting brackets (L-shaped, single)
- Dimensions (L×W×D): 1950.3 x 56 x 71 mm
| Product sheet: |  [pdf] |
|---|---|

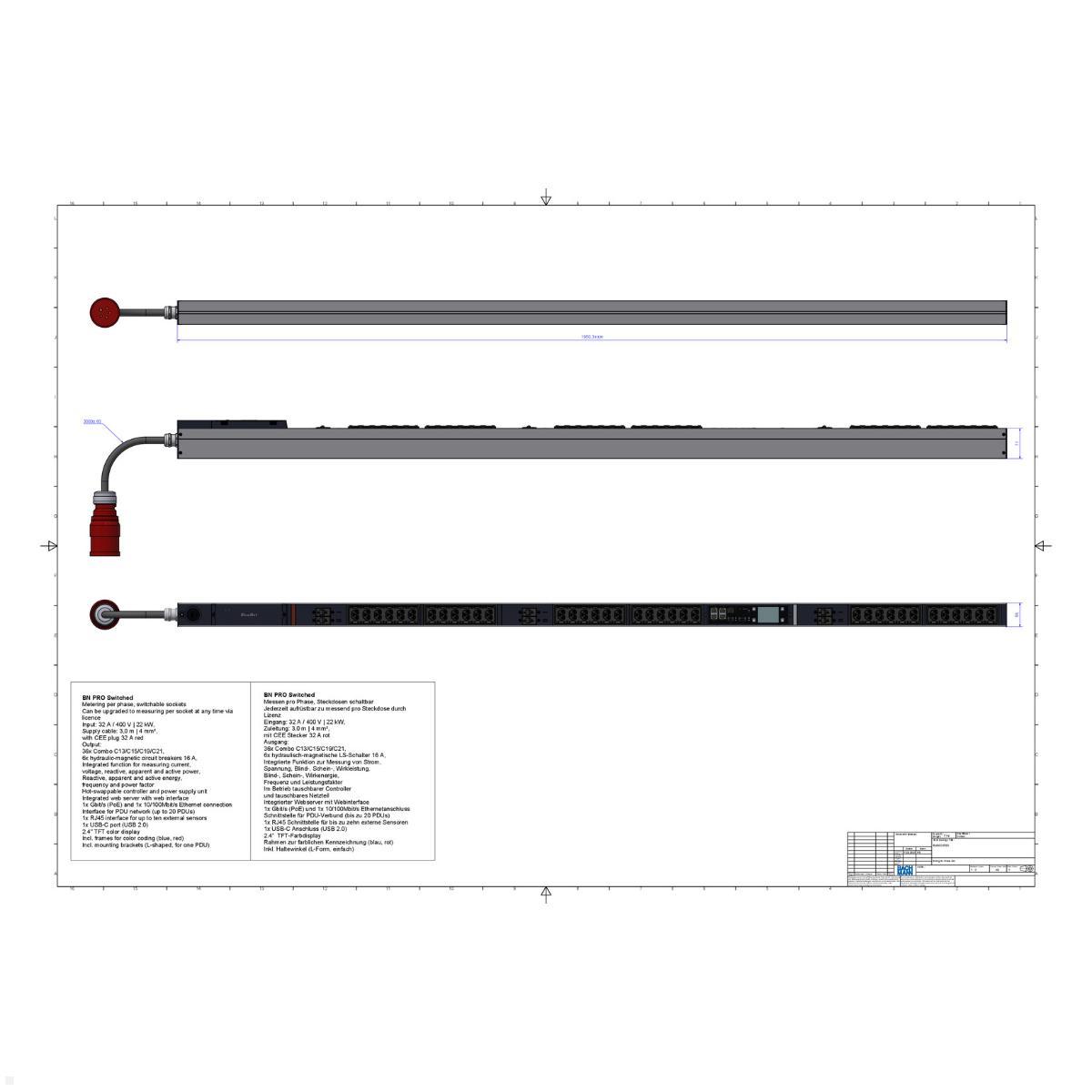

| Technical drawing: | [pdf] |
| Installation manual: | [pdf] |
| Contains installation material: | + |
| Warranty: | 3 years |
| Manufacturer/Importer: | Bachmann GmbH, Ernsthaldenstr. 33, 70565 Stuttgart, info@bachmann.com |
| Einspeisung: | 32A |
| FI switch: | No |
| Fuse: | Yes |
| Mains filter: | No |
| Messen: | pro Phase |
| Number of sockets: | 36 Outlets |
| Overvoltage protection: | No |
| Phasen: | 3-phasig |
| RCM-Differenzstrommessung: | Nein |
| Schalten: | Ja |
| Steckerart: | Combosocket |
| Strommessung / Überwachung: | Ja, online |
| color: | Aluminium |
| Größe PDU: | Vertikal, 47 HE |
| USB-Charger: | USB C |
| screw-on: | Yes |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
Download area - catalogs, flyers, warranty conditions, ...
Questions & Answers
-
What is the Bachmann BN PRO S Switched Rack PDU BM0024783?
The Bachmann BN PRO S Switched is a high-performance 3-phase switched rack PDU for professional IT racks, with 32A/400V input, 22 kW, and a 3.0 m lead with a red 32A CEE plug, featuring 36x Combo outlets (C13/C15/C19/C21).
-
What protections does it provide?
Six hydraulic-magnetic 16A breakers protect the connected devices. Each outlet is individually switchable for remote start, restart or shutdown.
-
What connectivity and monitoring options does it offer?
It includes an integrated web server with a web interface and SNMP support; PDU cascading up to 20 PDUs for centralized management. An RJ45 sensor port supports up to 10 external sensors, and it has 1 Gbit/s PoE and 1x 10/100 Ethernet plus USB-C.
-
What outlets and outputs are available?
36x Combo outlets (C13/C15/C19/C21) provide maximum flexibility for different device configurations.
-
Can the measurement features be upgraded?
Yes, the default measures per phase; licensing enables later per-outlet measurement.
-
How can the PDU be monitored and integrated?
Integrated web server and SNMP support enable monitoring; the PDU cascade supports up to 20 PDUs for centralized management.
-
What display and mounting features does it have?
A 2.4-inch color TFT display shows key operating data on the device. Color-coded blue/red frame indicators and included L-shaped mounting brackets aid installation; dimensions are 1950.3 × 56 × 71 mm, with an aluminium housing and vertical mounting.
