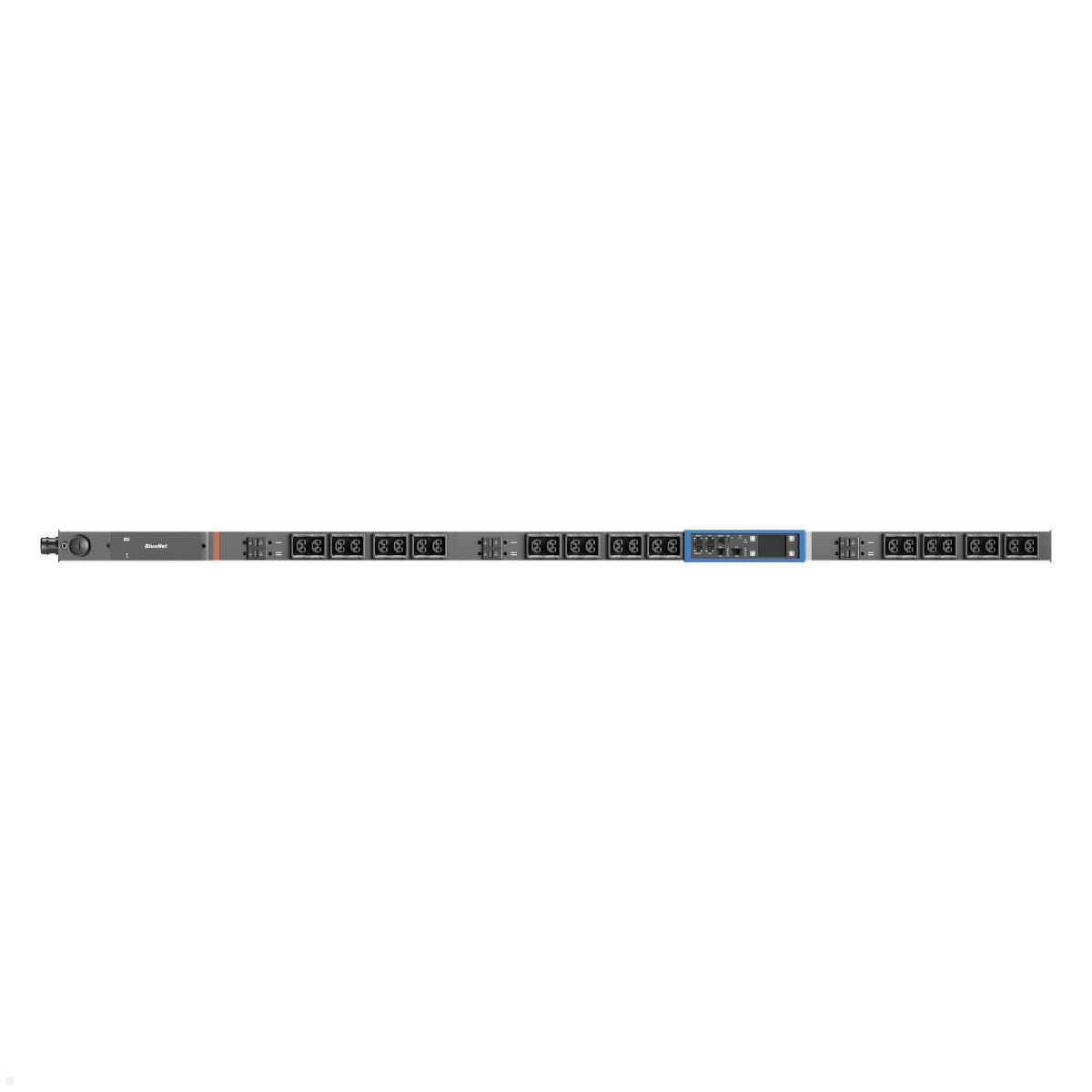

Bachmann BN PRO S Switched - 32A Rack PDU with 24xCombo 6xMCB, 3.0m CEE 32A/5p (BM0024782)
Highlights
- 24x Combo (C13/C15/C19/C21) + 6x MCB 16A
- 32A / 400V / 22 kW, 3-phase
- Sockets switchable individually
- Per-phase measurement, SNMP-capable
- Controller & power supply hot-swappable during operation
3-phase Switched Rack PDU 32A with 22 kW, 24x Combo and 6 MCBs

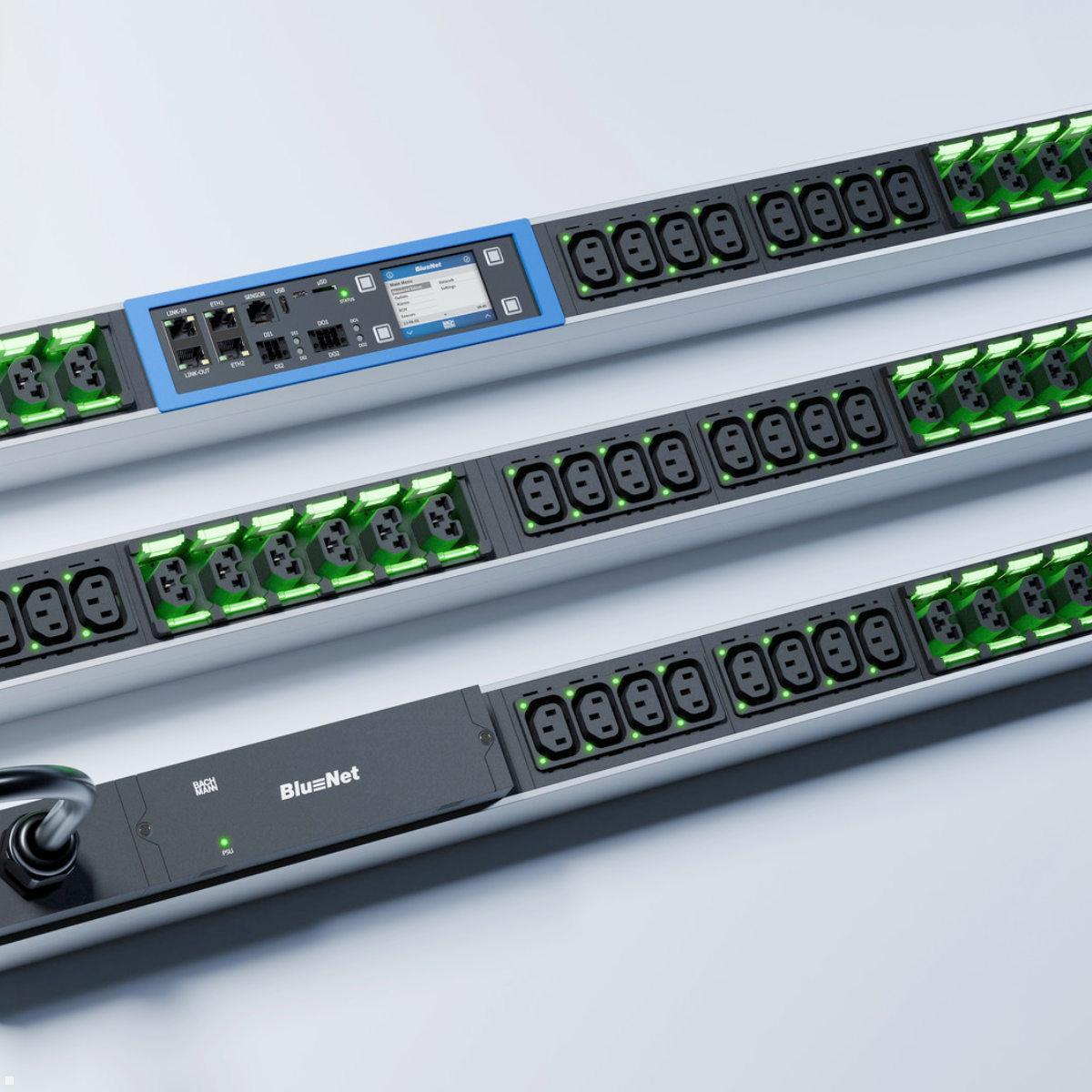

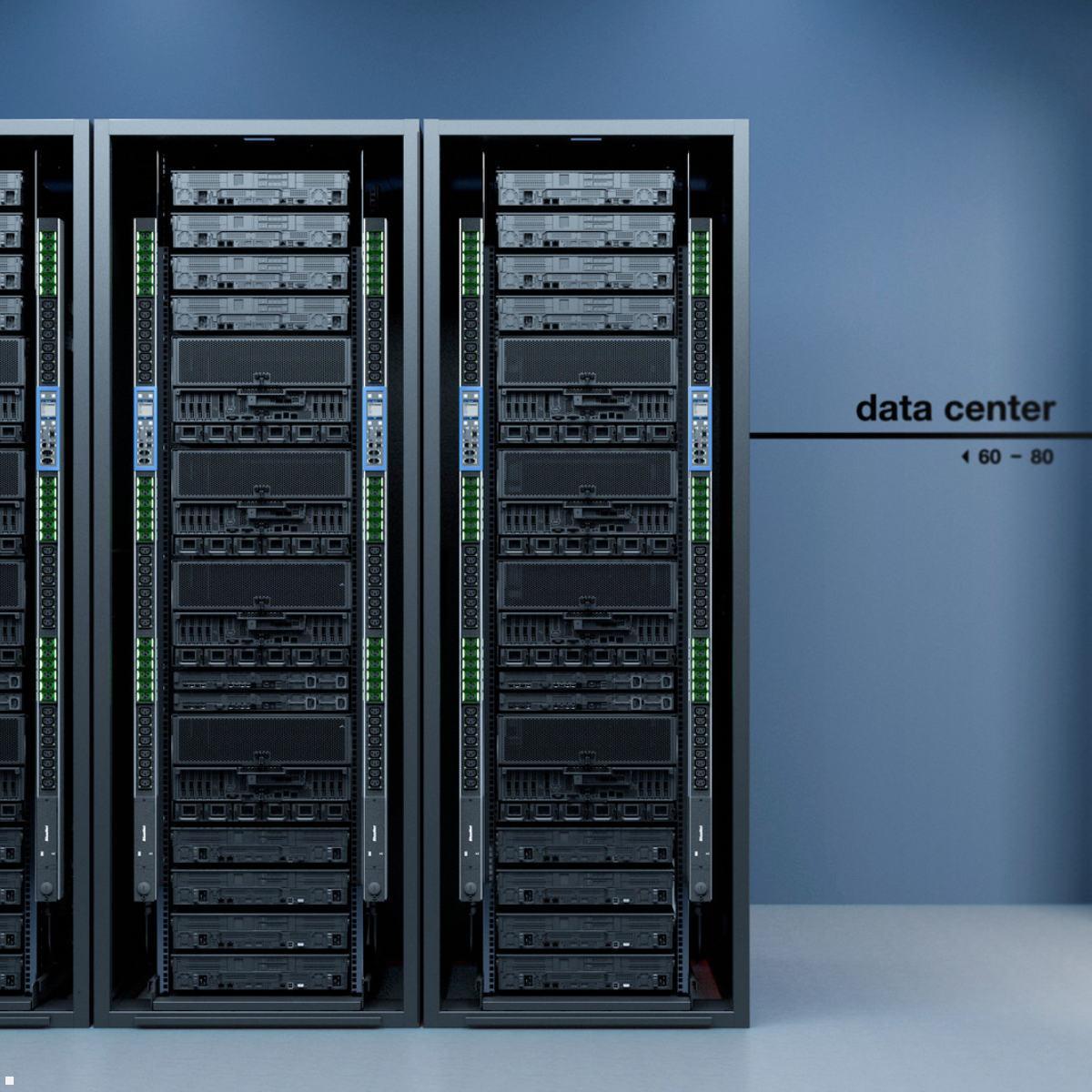

The Bachmann BN PRO S Switched (BM0024782) is a high-performance, 3-phase Power Distribution Unit for professional use in IT racks, server rooms and data centers. With an input of 32A/400V and 22 kW and a 3.0 m supply cable (4 mm²) with red 32A CEE plug, it offers maximum power reserves for demanding IT environments. The 24x Combo sockets (C13/C15/C19/C21) provide maximum flexibility for a wide range of device configurations. Six integrated hydraulic-magnetic MCBs 16A provide reliable overload protection for the connected device groups. Each socket is individually switchable, allowing devices to be conveniently powered on, restarted or shut down remotely — ideal for remote racks and edge installations. The integrated measurement function records per phase current, voltage, reactive/apparent/active power, reactive/apparent/active energy, frequency and power factor. Upgradable at any time to per-outlet measurement via license.
The Bachmann BN PRO S Switched - 32A Rack PDU with 24xCombo 6xMCB, 3.0m CEE 32A/5p (BM0024782) impresses with maximum reliability: controller and power supply are hot-swappable, allowing maintenance without interruption. The integrated web server with web interface and SNMP support enable seamless integration into existing monitoring systems. Up to 20 PDUs can be cascaded and centrally managed via the PDU-link interface. The 2.4" TFT color display shows important operational data directly on the device. An RJ45 sensor port allows connection of up to ten external sensors. With 1x Gbit/s (PoE) and 1x 10/100 Mbit/s Ethernet port as well as 1x USB-C (USB 2.0), the PDU is well networked — color coding frames (blue/red) and mounting brackets (L-shape) are included.
Technical Details – Bachmann BN PRO S Switched Rack PDU BM0024782
- Input: 32A / 400V / 22 kW
- Supply cable: 3.0 m | 4 mm² | CEE plug 32A red
- Phases: 3-phase

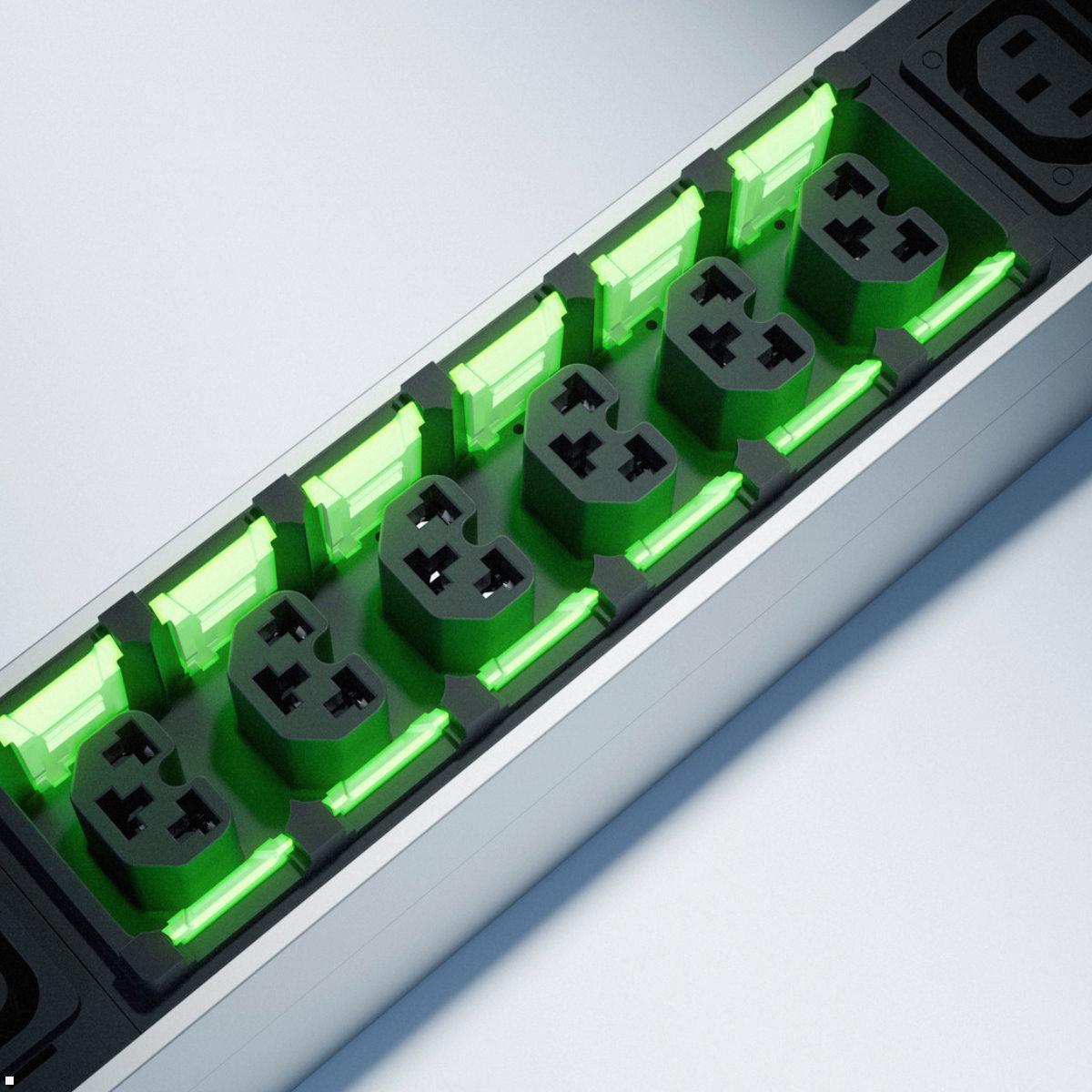

- Output: 24x Combo (C13/C15/C19/C21)
- 6x hydraulic-magnetic MCBs 16A
- Sockets individually switchable
- Per-phase measurement: current, voltage, reactive/apparent/active power, reactive/apparent/active energy, frequency, power factor
- Upgradable at any time to per-outlet measurement via license
- Controller and power supply hot-swappable
- Integrated web server with web interface
- SNMP support
- Ethernet: 1x 1 Gbit/s (PoE) + 1x 10/100 Mbit/s
- PDU-link: up to 20 PDUs cascadeable
- 1x RJ45 sensor port for up to 10 external sensors
- 1x USB-C port (USB 2.0)

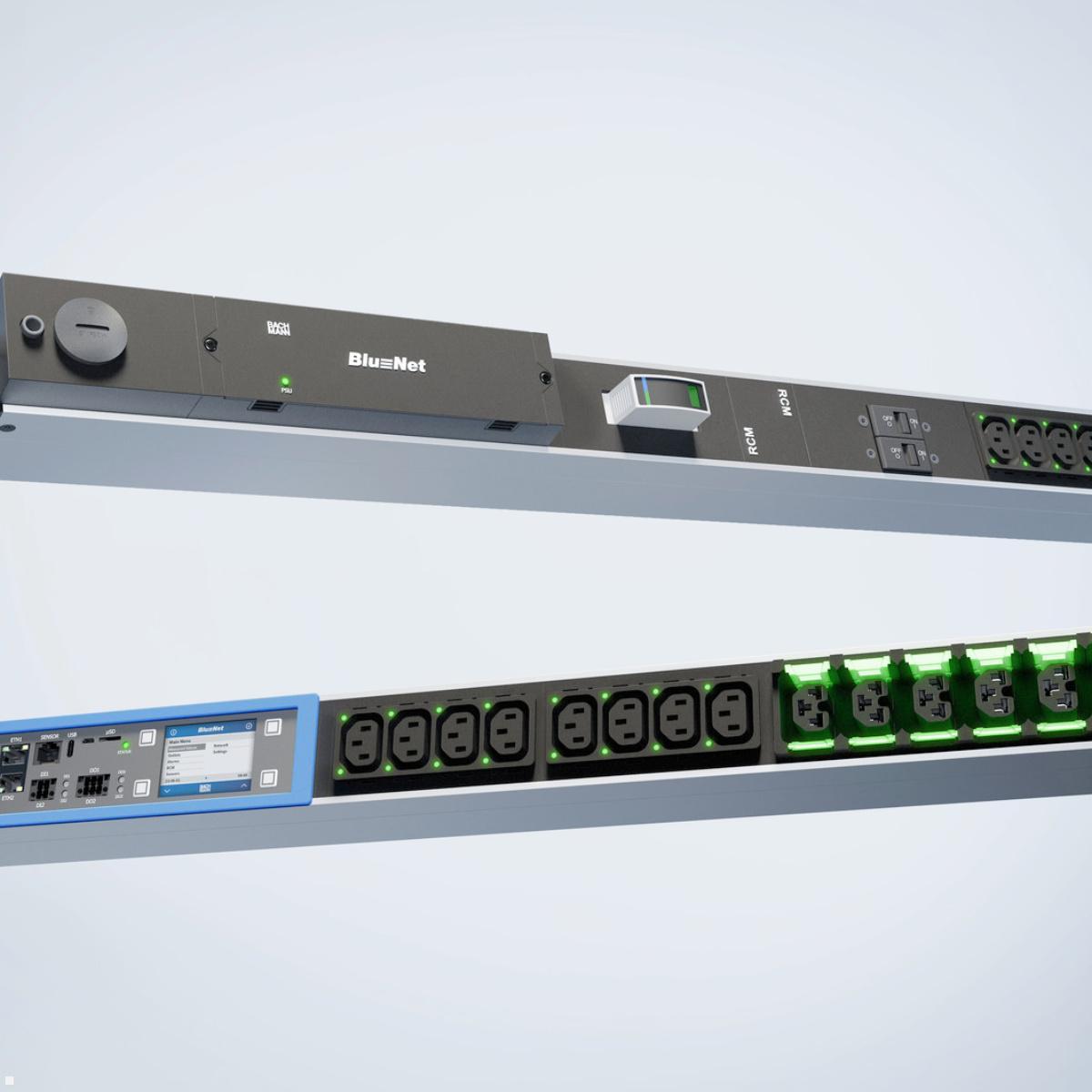

- 2.4" TFT color display
- LED indicator: Yes
- Surge protection: No
- EMI/line filter: No
- Protective devices: Yes (6x MCB 16A)
- Temperature measurement: Yes
- Mounting orientation: vertical
- Housing: aluminium
- Frames for color coding (blue/red)
- Includes mounting brackets (L-shape, single)
- Dimensions (L×W×D): 1710.9 x 56 x 71 mm
| Product sheet: |  [pdf] |
|---|---|

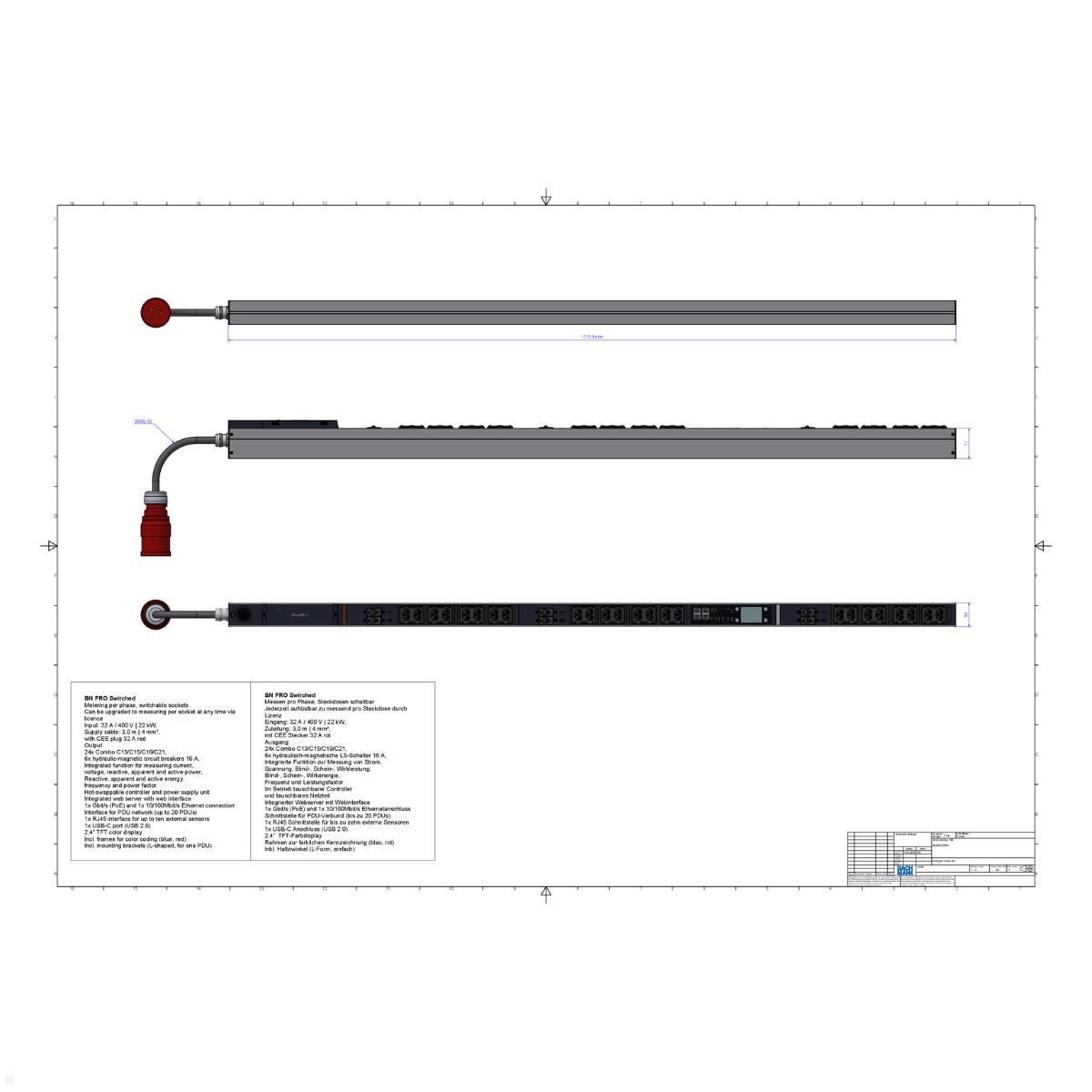

| Technical drawing: | [pdf] |
| Installation manual: | [pdf] |
| Contains installation material: | + |
| Warranty: | 3 years |
| Manufacturer/Importer: | Bachmann GmbH, Ernsthaldenstr. 33, 70565 Stuttgart, info@bachmann.com |
| Einspeisung: | 32A |
| FI switch: | No |
| Fuse: | Yes |
| Mains filter: | No |
| Messen: | pro Phase |
| Number of sockets: | 24 Outlets |
| Overvoltage protection: | No |
| Phasen: | 3-phasig |
| RCM-Differenzstrommessung: | Nein |
| Schalten: | Ja |
| Steckerart: | Combosocket |
| Strommessung / Überwachung: | Ja, online |
| color: | Aluminium |
| Größe PDU: | Vertikal, 40 HE |
| USB-Charger: | USB C |
| screw-on: | Yes |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
Download area - catalogs, flyers, warranty conditions, ...
Questions & Answers
-
What is the Bachmann BN PRO S Switched Rack PDU BM0024782?
A high-performance 3-phase switched rack PDU for professional IT environments with a 32 A/400 V input, 22 kW, a 3.0 m lead, 24x Combo outlets and six hydraulic-magnetic 16 A breakers.
-
How many outlets does it have and what types are they?
It has 24x Combo outlets (C13/C15/C19/C21) with individually switchable sockets.
-
What protections and safety features are included?
Six hydraulic-magnetic 16 A circuit breakers; each outlet is individually switchable; includes temperature measurement; surge protection and line filters are not present.
-
How can I monitor and manage it?
Integrated web server with a web interface, SNMP support, PDU cascade up to 20 PDUs, a 2.4" colour TFT display, and an RJ45 sensor port for up to 10 external sensors; per-outlet metering is available via license.
-
What about networking and connectivity?
1x 1 Gbit/s (PoE) and 1x 10/100 Mbps Ethernet, plus 1x USB-C (USB 2.0).
-
What are its physical specs and mounting options?
Dimensions: 1710.9 × 56 × 71 mm; aluminium housing; vertical mounting; colour-coded frame (blue/red) included; L-shaped brackets included; 3.0 m lead with red 32 A CEE plug.
-
Any features for maintenance and uptime?
Controller and power supply are hot-swappable; maintenance can be performed without interruption; outlets can be started, restarted or switched off remotely.
