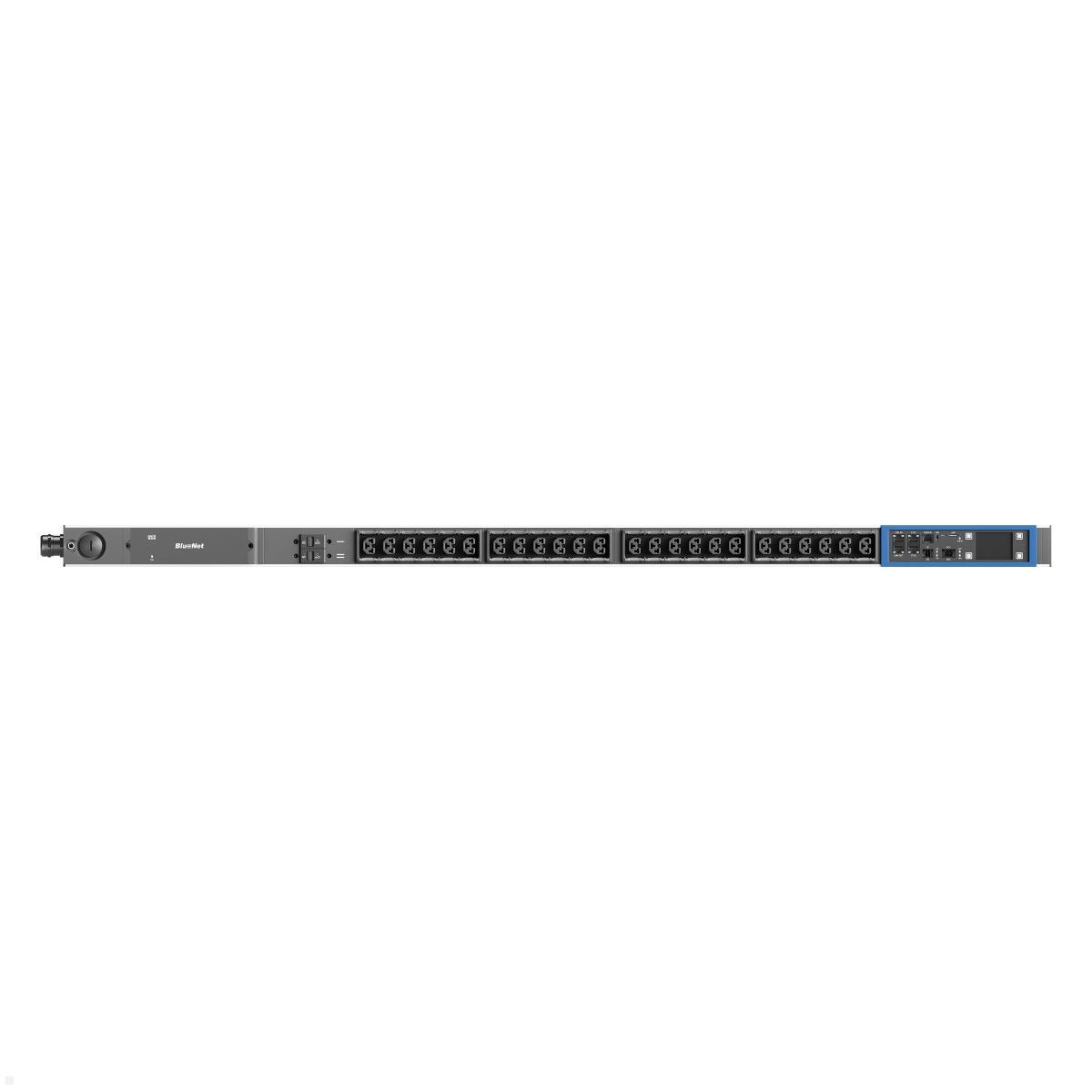

Bachmann BN PRO S Switched - 32A Rack PDU with 24xCombo 2xMCB, 3,0m CEE 32A/3p (BM0024778)
Highlights
- 24x Combo (C13/C15/C19/C21) + 2x MCB 16A
- 32A / 230V / 7.2 kW, single-phase
- Sockets individually switchable
- Per-phase measurement, SNMP-capable
- Controller & power supply hot-swappable
Single-phase Switched Rack PDU 32A with 24x Combo and Circuit Breakers
The Bachmann BN PRO S Switched (BM0024778) is a powerful, single-phase Power Distribution Unit for professional use in IT racks, server rooms and data centers. With an input of 32A/230V and 7.2 kW and a 3.0 m supply cable (4 mm²) with a CEE plug 32A blue, it reliably powers devices connected in the rack. The 24x Combo outlets (C13/C15/C19/C21) offer maximum flexibility for a wide range of device configurations. Two integrated hydraulic-magnetic circuit breakers (16A) provide additional overload protection for connected devices. Each outlet is individually switchable, allowing devices to be started, restarted or shut down remotely — ideal for remote racks and edge installations. The integrated measurement function records per phase current, voltage, reactive/apparent/active power, reactive/apparent/active energy, frequency and power factor. Upgradeable at any time to per-outlet measurement via license.
The Bachmann BN PRO S Switched - 32A Rack PDU with 24x Combo 2xMCB, 3.0m CEE 32A/3p (BM0024778) convinces with maximum redundancy: controller and power supply are hot-swappable, allowing maintenance without interruption. The integrated web server with web interface and SNMP support enable seamless integration into existing monitoring systems. Up to 20 PDUs can be cascaded and managed centrally via the PDU cascade interface. The 2.4" TFT color display shows important operating data directly on the device. An RJ45 sensor port allows connection of up to ten external sensors. With 1x 1 Gbit/s (PoE) and 1x 10/100 Mbit/s Ethernet port as well as 1x USB-C (USB 2.0) the PDU is well networked — color-marking frames (blue/red) and L-shaped mounting brackets are included.
Technical Details – Bachmann BN PRO S Switched Rack PDU BM0024778
- Input: 32A / 230V / 7.2 kW
- Supply cable: 3.0 m | 4 mm² | CEE plug 32A blue
- Phases: single-phase
- Output: 24x Combo (C13/C15/C19/C21)
- 2x hydraulic-magnetic circuit breakers 16A
- Outlets individually switchable
- Measurement per phase: current, voltage, reactive/apparent/active power, reactive/apparent/active energy, frequency, power factor
- Upgradeable at any time to per-outlet measurement via license
- Controller and power supply hot-swappable
- Integrated web server with web interface
- SNMP support
- Ethernet: 1x 1 Gbit/s (PoE) + 1x 10/100 Mbit/s
- PDU cascade: up to 20 PDUs can be cascaded
- 1x RJ45 sensor port for up to 10 external sensors
- 1x USB-C port (USB 2.0)
- 2.4" TFT color display
- LED indicator: Yes
- Surge protection: No
- EMI/line filter: No
- Protection: Yes (2x MCB 16A)
- Temperature measurement: Yes
- Mounting orientation: vertical
- Enclosure: Aluminum
- Color-marking frames (blue/red)
- Includes mounting brackets (L-form, single)
- Dimensions (L×W×H): 1318.2 x 56 x 71 mm
| Product sheet: |  [pdf] |
|---|---|

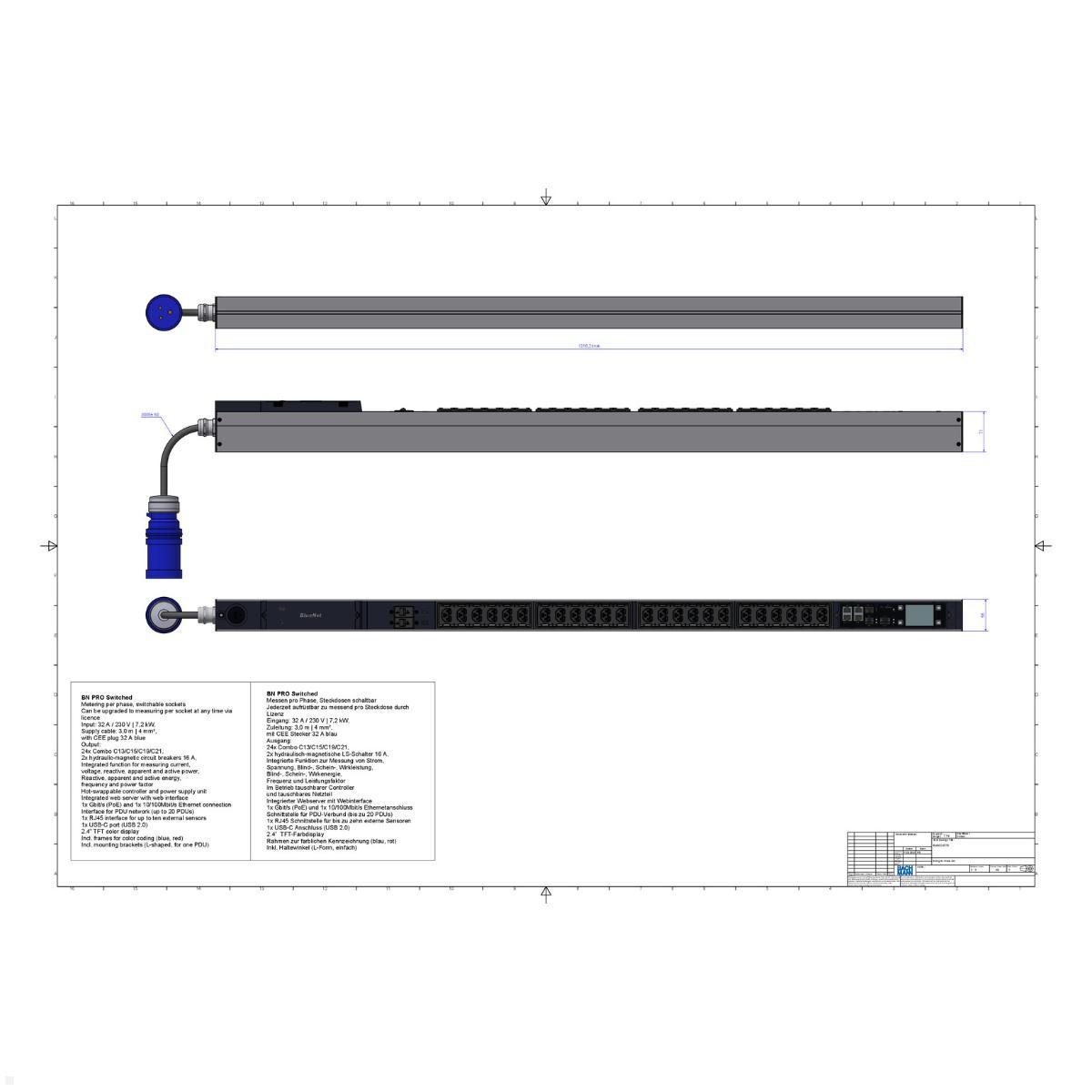

| Technical drawing: | [pdf] |
| Installation manual: | [pdf] |
| Contains installation material: | + |
| Warranty: | 3 years |
| Manufacturer/Importer: | Bachmann GmbH, Ernsthaldenstr. 33, 70565 Stuttgart, info@bachmann.com |
| Einspeisung: | 32A |
| FI switch: | No |
| Fuse: | Yes |
| Mains filter: | No |
| Messen: | pro Phase |
| Number of sockets: | 24 Outlets |
| Overvoltage protection: | No |
| Phasen: | 1-phasig |
| RCM-Differenzstrommessung: | Nein |
| Schalten: | Ja |
| Steckerart: | Combosocket |
| Strommessung / Überwachung: | Ja, online |
| color: | Aluminium |
| Größe PDU: | Vertikal, 40 HE |
| USB-Charger: | USB C |
| screw-on: | Yes |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
Download area - catalogs, flyers, warranty conditions, ...
Questions & Answers
-
What is the Bachmann BN PRO S Switched Rack PDU BM0024778?
A 1‑phase switched rack PDU rated at 32A/230V (7.2 kW) with 24x Combo outlets, 2x hydraulic‑magnetic 16A circuit breakers and a 3.0 m lead with a blue 32A CEE plug.
-
How many outlets and what types does it have?
24x Combo outlets (C13/C15/C19/C21) – individually switchable.
-
What protection and monitoring features does it offer?
2x 16A hydraulic‑magnetic breakers; per‑phase metering of current, voltage, apparent and reactive power and energy, and power factor; licence to upgrade to per‑socket metering; temperature measurement; fuses present (2x MCB 16A); no surge protection or line filters.
-
How is it networked and monitored?
Integrated web server with web interface and SNMP; PDU daisy‑chain up to 20 units; 2.4" colour TFT display; RJ45 sensor port for up to 10 external sensors; Ethernet: 1 Gbit/s (PoE) plus 10/100; USB‑C.
-
Can I remotely control devices?
Yes – outlets are individually switchable; devices can be started, restarted or turned off remotely.
-
What are the physical specs and power?
Input: 32A/230V/7.2 kW; lead: 3.0 m; dimensions: 1318.2 × 56 × 71 mm; aluminium housing; vertical mounting.
-
What is included in the box?
Frame for colour coding (blue/red) and L‑shaped brackets are included.
