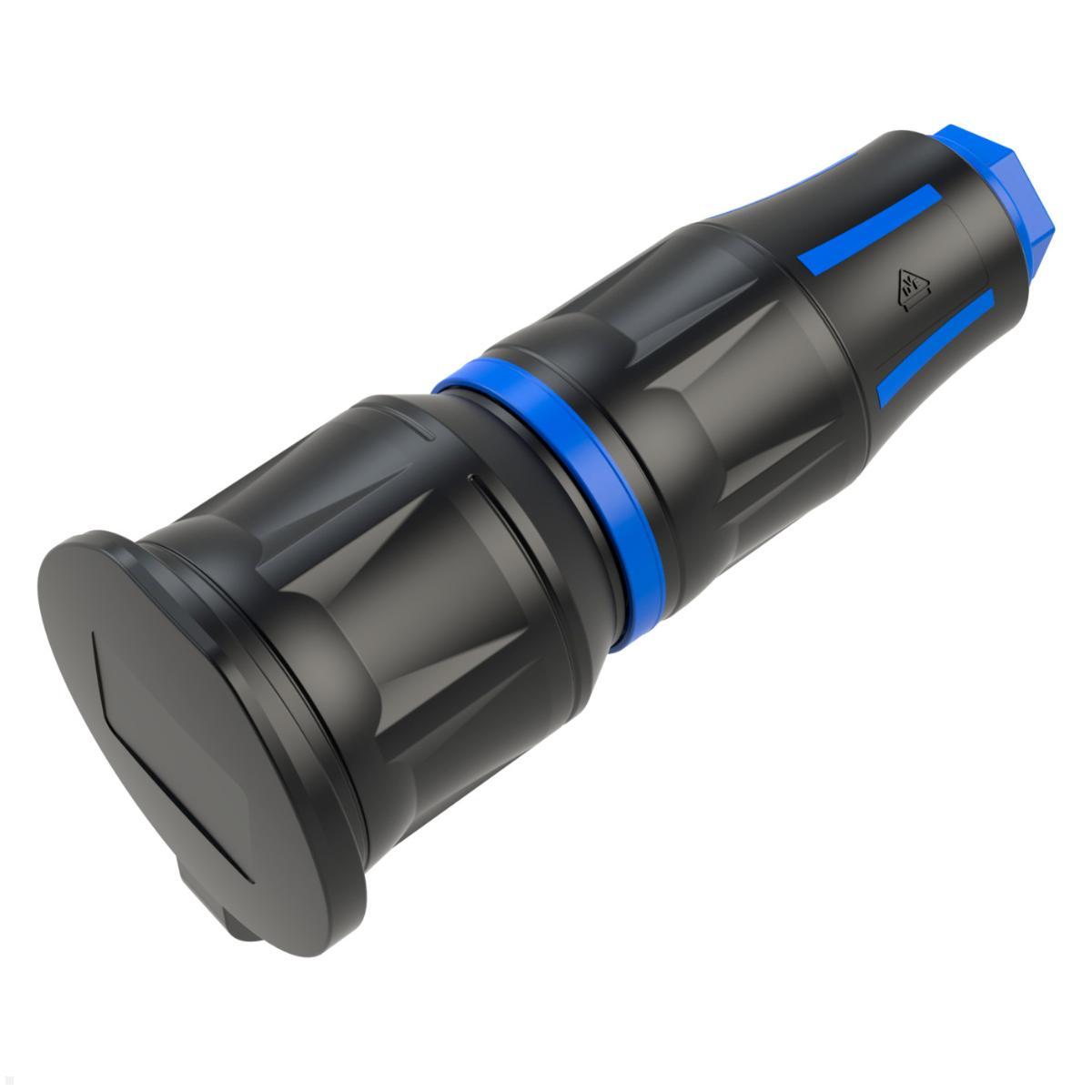

Bachmann professional protective contact coupling CEE7/3 with cover strip, rubberized (BM0017349)
The Bachmann BM0017349 protective contact coupling with cover strip impresses with its robustness and durability for professional use. It is ideal for workshops, construction sites, and industrial applications and ensures secure power connections even under difficult conditions.
Safety contact coupling BM0017349 – Robust connection technology for professional applications
Bachmann's safety contact plugs and couplings stand for reliable quality and long-lasting safety in both professional and private applications. Robust materials such as rubber or solid rubber ensure high resistance to mechanical stress and harsh environmental conditions. Models with IP44 protection offer additional protection against splash water and are therefore also suitable for outdoor use. Well-thought-out details such as cover strips, hinged lids, or integrated LED displays increase ease of use and simplify everyday use. The series includes both standard and professional versions, featuring rubberized housings, screwless connectors, and reinforced strain relief. Bachmann thus offers a wide range of solutions for secure and robust power connections that meet the diverse requirements of workshops, construction sites, and households.
Versatile applications and reliable technology of the BM0017349
The Bachmann BM0017349 protective contact coupling with cover strip is a high-quality connection solution designed for professional use in workshops, on construction sites, and in industrial environments. With its robust rubber housing, modern design, and sophisticated ergonomics, it offers a reliable and durable power supply solution.
Technical Details Bachmann Mounting Coupling
- CEE7/7 safety plug
- Mounting coupling with cover strip
- Incl. Anti-kink protection

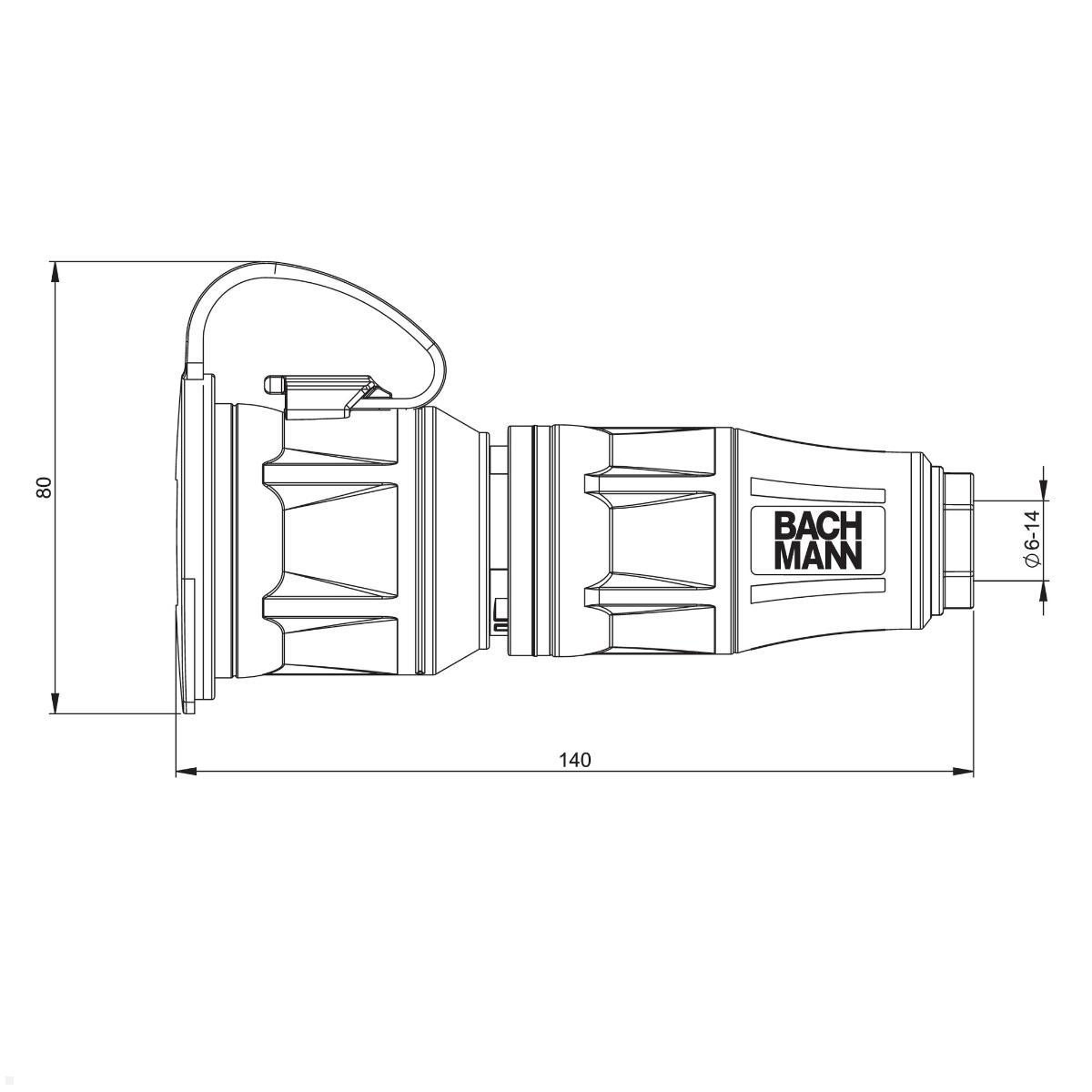

- Length: 140 mm
- Diameter: 80 mm
- Design: CEE 7/3 (Type F) coupling
- Material: Plastic
- Material grade: Polyamide (PA)
- Rubberized surface for optimal feel and grip
- Protection class (IP): IP54 dust and splash-proof
- Plug direction: straight
- Connection technology: screw terminal
- Color: Black / Blue
- Number of poles: 3
- Nominal voltage: 250.00 V
- Rated current: 16.00 A
- Protective contact: End clips
- For "heavy conditions" according to VDE: yes
- Cables up to 2.5 mm²
- External strain relief
- Without increased contact protection
- Connection only by a qualified specialist
| Product sheet: |  [pdf] |
|---|---|
| Technical drawing: | [pdf] |
| RoHS / REACH: | [pdf] |
| Installation manual: | [pdf] |
| Warning/safety instructions: | [pdf] |
| Contains installation material: | + |
| Manufacturer/Importer: | Bachmann GmbH, Ernsthaldenstr. 33, 70565 Stuttgart, info@bachmann.com |
| Number of sockets: | 1 |
| color: | black/blue |
| Land: | Germany |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
Download area - catalogs, flyers, warranty conditions, ...
BM0017349 Protective Contact Coupling—Robust connection technology for professional applications
The BM0017349 protective contact coupling from Bachmann stands for the highest quality, safety, and durability. It was specially developed for professional use in workshops, on construction sites, and in industrial environments, but is also suitable for demanding private applications. With its robust construction, high-quality materials, and sophisticated details, it offers reliable connection technology that performs impressively even under difficult conditions. The Bachmann BM0017349 is made of durable plastic (polyamide PA) and features a rubberized surface that provides both a pleasant feel and additional grip. This ensures the coupling sits securely in the hand, even during intensive use or in humid environments. Thanks to its high material quality, it meets the requirements for "heavy conditions" according to VDE and thus guarantees maximum safety in professional use. Thanks to its IP54 protection rating, the coupling is dust and splash-proof. This makes it suitable not only for dry indoor spaces, but also for temporary outdoor use. Whether in the workshop, on the construction site, or in industry, the BM0017349 remains reliable and functional even under adverse conditions.
Well-thought-out construction and ergonomic design
A key feature of the BM0017349 protective contact coupling is its practical design. The integrated cover strip protects the coupling from dirt and moisture, while the anti-kink protection ensures a long service life for the connected cables. The external strain relief prevents accidental cable release and significantly increases mechanical strength. The ergonomic design and rubberized surface facilitate handling, allowing comfortable installation and use even when wearing gloves. This makes the coupling particularly user-friendly and safe for daily use.
Technical Features at a Glance
The Bachmann BM0017349 is a CEE 7/3 coupling (Type F) and designed for the connection of CEE 7/7 safety plugs. With a length of 140 mm, a diameter of 80 mm, and a straight plug-in direction, it is compact and universally applicable. The coupling is designed for a rated voltage of 250 V and a rated current of 16 A and allows the use of cables with a cross-section of up to 2.5 mm². The connection technology is provided by a reliable screw terminal, which ensures a secure electrical connection. Please note that the connection may only be carried out by a qualified specialist to ensure electrical safety. The BM0017349 protective contact coupling impresses with its versatility. It is ideal for tough everyday use on construction sites, where robust and resilient components are required, as well as for workshops, industrial production environments, or demanding private use. Thanks to its high protection class and robust construction, it is ideally equipped for intensive, continuous use.
