Bachmann protective contact plug CEE7/7, solid rubber (BM0017344)
The Bachmann BM0017344 safety plug offers reliable and durable power connections for professional and private use. Thanks to its robust solid rubber housing and sophisticated ergonomics, it is particularly durable and comfortable to use. With IP54 protection against dust and splash water, it is also suitable for outdoor use.
Robust safety plug BM0017344 for professional use
Bachmann safety plugs and couplings stand for reliable quality and long-lasting safety in both professional and private use. Robust materials such as rubber or solid rubber ensure high resistance to mechanical stress and harsh environmental conditions. Models with IP44 protection offer additional protection against splash water and are therefore also suitable for outdoor use. Well-thought-out details such as cover strips, hinged lids, or integrated LED indicators increase ease of use and simplify everyday use. The series includes both standard and professional versions, featuring rubberized housings, screwless connectors, and reinforced strain relief. Bachmann thus offers a wide range of solutions for secure and robust power connections that meet the diverse requirements of workshops, construction sites, and households.
Versatile applications and reliable technology of the BM0017344
The Bachmann BM0017344 solid rubber safety plug is the ideal choice for anyone looking for a reliable, durable, and versatile connector. With its robust construction and sophisticated ergonomics, it is suitable for professional use in workshops, on construction sites, and in industry, as well as for the demanding DIY enthusiast.
Technical Details Bachmann Mounting Plug
- CEE7/7 safety plug
- Incl. Anti-kink protection

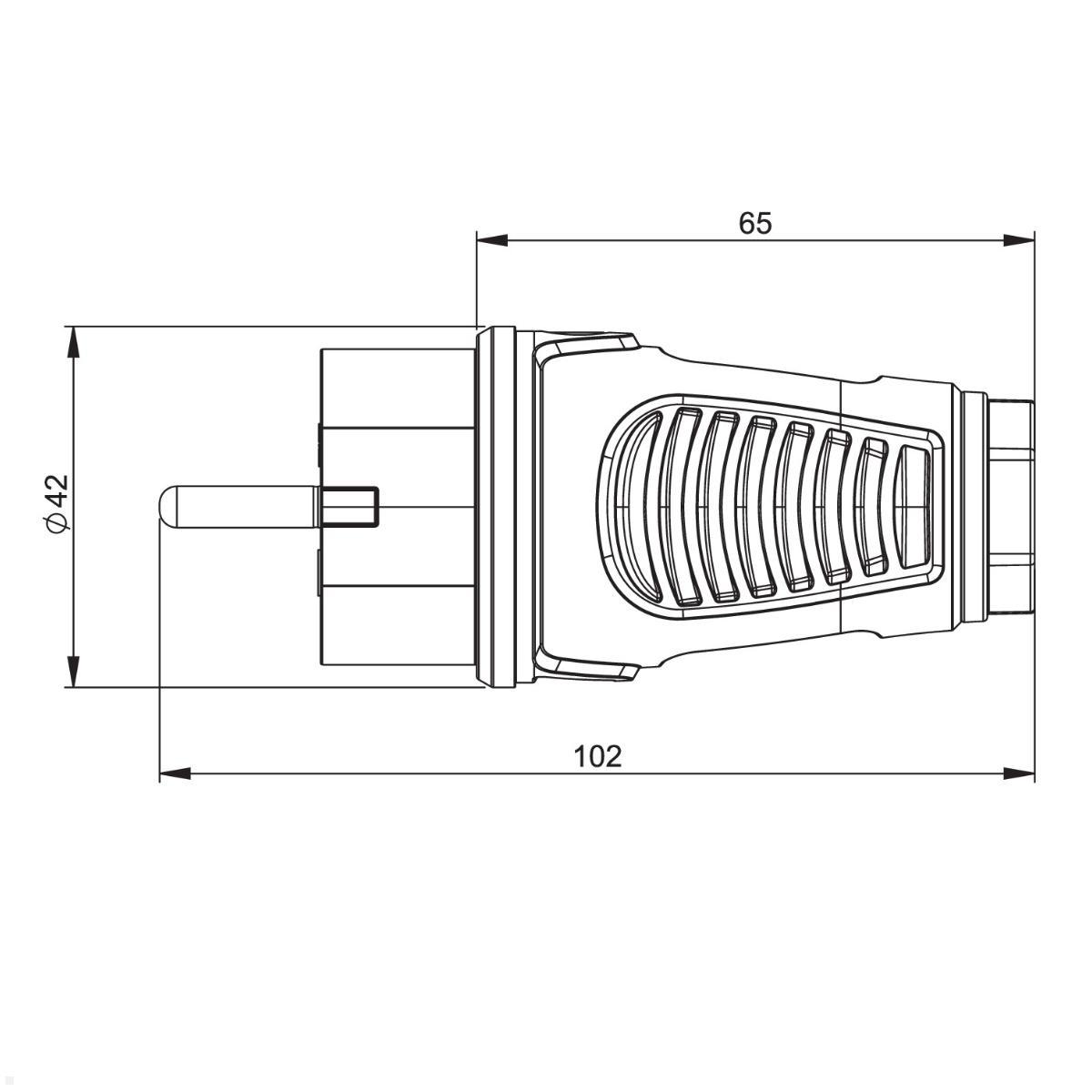

- Length: 102 mm
- Diameter: 42 mm
- Design: Hybrid plug CEE 7/7 (Type E/F)
- Material: Solid rubber
- Material grade: Thermoplastic
- Protection class (IP): IP54 dust and splash-proof
- Plug direction: straight
- Connection technology: screw terminal
- Color: Black / Blue
- Number of poles: 3
- Nominal voltage: 250.00 V
- Nominal current: 16.00 A
- Protective contact: End clips
- For "Heavy conditions" according to VDE: yes
- Cables up to 2.5 mm²
- Internal strain relief
- Without increased contact protection
- Connection only by a qualified specialist
[pdf]
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
Download area - catalogs, flyers, warranty conditions, ...
Sturdy safety plug BM0017344 for professional use
The Bachmann safety plug BM0017344 is a convincing, reliable solution for secure power connections under difficult conditions. Designed for professional use in workshops, on construction sites, or in industry, it combines robust materials with sophisticated technology. Thanks to its durable solid rubber construction, the plug can withstand even high mechanical stress and ensures a long service life. At the same time, it is versatile and equally suitable for the discerning DIY enthusiast who values quality and safety.
High-quality materials for maximum durability
The BM0017344 is made of solid rubber and thermoplastic, making it particularly resistant to impacts, pressure, and external influences. It remains reliably functional even in harsh environments. With an IP54 protection rating, the plug is both dust- and splash-proof. This makes it ideal for both indoor and outdoor use and guarantees safety even in adverse weather conditions.
Sophisticated technology for professional applications
The Bachmann BM0017344 safety plug is designed as a CEE 7/7 (Type E/F) hybrid plug, thus offering maximum compatibility. With a rated voltage of 250 V and a rated current of 16 A, it meets common requirements in professional environments. The screw terminal connection technology allows for a secure and stable cable connection. In addition, the internal strain relief ensures a long-lasting cable attachment, even with frequent reconnection or heavy use. An integrated kink protection reliably protects the cable from damage in the transition area to the plug. This significantly increases the service life of the connected cable. These details make the plug the ideal choice for work under difficult conditions according to VDE.
Compact design and easy handling
With a length of 102 mm and a diameter of 42 mm, the BM0017344 is compact and easy to handle. The straight plug direction allows for easy connection to various devices. Despite its robust construction, the plug impresses with its ergonomic shape, which supports comfortable working. The color combination of black and blue ensures clear visual recognition and underscores the professional character of the product.
Versatile Applications
Whether on the construction site, in the workshop, or outdoors – the BM0017344 safety plug meets the requirements of demanding work environments. It is suitable for cables with a cross-section of up to 2.5 mm² and can therefore be flexibly adapted to various applications. Thanks to its robust technology, it offers a secure connection even under heavy-duty conditions.
- Solid rubber housing for maximum durability
- IP54 protection class: dust and splash-proof
- CEE 7/7 (Type E/F) hybrid plug for broad compatibility
- Screw terminal connection and internal strain relief
- Kink protection for extended cable lifespan
- Suitable for cables up to 2.5 mm²
- Rated voltage 250 V / Rated current 16 A
